For Sale by National Machinery Exchange
Surplus Record Dealer Since 1939
Location: Newark, NJ
Contact Sales / Andreia
Phone Number: 973...> Show Phone Number 973-358-7208
Let the seller know you found their listing on Surplus Record!
Description

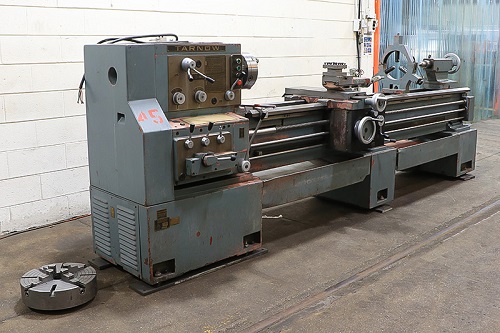

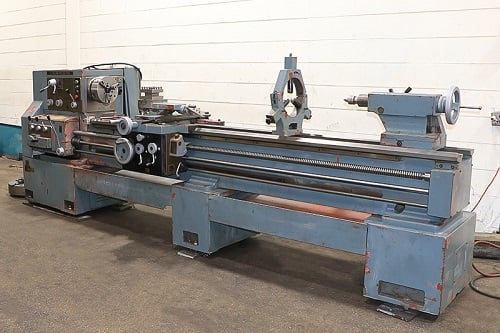

SPECIFICATIONS:
SWING OVER BED .......................... 21"
SWING IN GAP ............................ 30"
SWING OVER CARRIAGE ..................... 13"
DISTANCE BETWEEN CENTERS ................ 100"
HOLE THRU SPINDLE ....................... 2-1/16"
SPINDLE SPEEDS (16) ..................... 35 - 1800 RPM
TAILSTOCK SPINDLE CENTER TAPER .......... #5 MORSE
TAILSTOCK SPINDLE TRAVEL ................ 6"
TAILSTOCK SPINDLE DIAMETER .............. 3-1/8"
WIDTH OF BED ............................ 14-1/2"
FEEDS:
LONGITUDINAL ....................... .0036 - .18 IPR
CROSS .............................. .0018 - .9 IPR
THREADS:
INCH ............................... 1 - 28 TPI
METRIC ............................. .4 - 28 mm
APPROX WEIGHT .......................... 6,000 LBS
EQUIPPED WITH:
- INCH & METRIC THREADING CAPABILITY THROUGH QUICK CHANGE GEARBOX

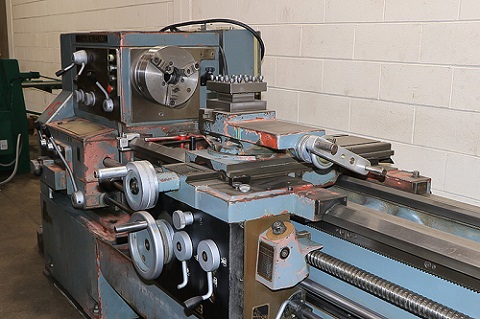

- 10" 3-JAW CHUCK
- 16" 4-JAW CHUCK

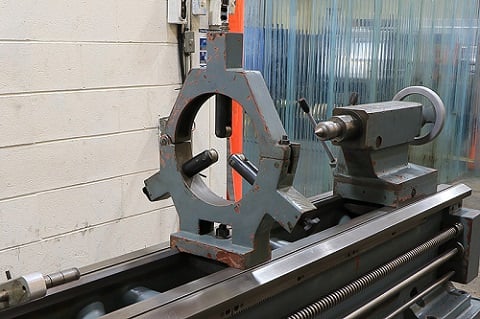

- ROLLER TYPE STEADY REST

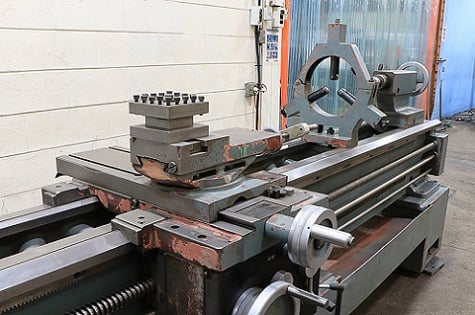

- TOOLPOST

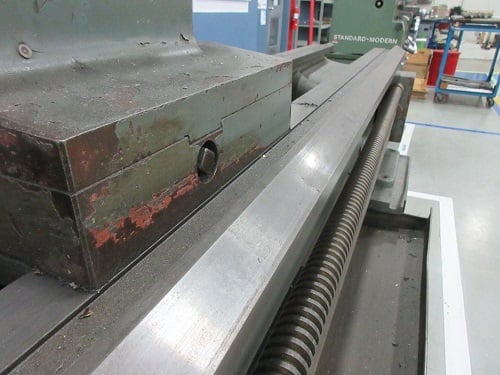

- INDUCTION HARDENED BEDWAYS
- THREADING DIAL
- COOLANT SYSTEM
- (2) REMOVABLE CHIP PANS
- 10 HORSE POWER SPINDLE DRIVE MOTOR
SWING OVER BED .......................... 21"
SWING IN GAP ............................ 30"
SWING OVER CARRIAGE ..................... 13"
DISTANCE BETWEEN CENTERS ................ 100"
HOLE THRU SPINDLE ....................... 2-1/16"
SPINDLE SPEEDS (16) ..................... 35 - 1800 RPM
TAILSTOCK SPINDLE CENTER TAPER .......... #5 MORSE
TAILSTOCK SPINDLE TRAVEL ................ 6"
TAILSTOCK SPINDLE DIAMETER .............. 3-1/8"
WIDTH OF BED ............................ 14-1/2"
FEEDS:
LONGITUDINAL ....................... .0036 - .18 IPR
CROSS .............................. .0018 - .9 IPR
THREADS:
INCH ............................... 1 - 28 TPI
METRIC ............................. .4 - 28 mm
APPROX WEIGHT .......................... 6,000 LBS
EQUIPPED WITH:
- INCH & METRIC THREADING CAPABILITY THROUGH QUICK CHANGE GEARBOX
- 10" 3-JAW CHUCK
- 16" 4-JAW CHUCK
- ROLLER TYPE STEADY REST
- TOOLPOST
- INDUCTION HARDENED BEDWAYS
- THREADING DIAL
- COOLANT SYSTEM
- (2) REMOVABLE CHIP PANS
- 10 HORSE POWER SPINDLE DRIVE MOTOR
