Description

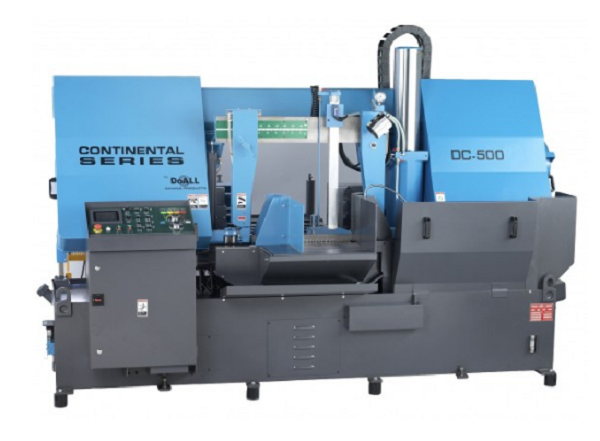

20” x 22" Band Saw with Programmable Logic Controller (PLC) Control for All Electric and Hydraulic Functions Multi-Step Full Stroke Vises with Split Front Vise and Variable Vise Pressure Control Spring Loaded, Zero Clearance, Coolant Through, Carbide Faced Saw Guide with Lead-In Rollers Power Driven, Coolant Flushed, Blade Cleaning Wire Brush Flushing Hose and Auxiliary Coolant Nozzles Hydraulic Blade Tension Automatic Chip Conveyor Blade Breakage/Stall Motion Detector Shut Off Switch Band Door Interlocks Work Light One 6.5 Foot (2 meter) Gravity Conveyor Tool Kit Complimentary DoALL Cutting Fluids Package One DoALL Bi-Metal Saw Blade Instruction and Parts Manuals on CD or USB Data Stick.
GENERAL SPECIFICATIONS
- Cutting Capacity Round: 20"
- Cutting Capacity Rectangle: 20 x 22"
- Maximum Nesting Capacity: 18.9” x 9.4"
- Minimum Nesting Capacity: 9.4” x 3"
- Band Saw Blade (L x W x Gage): 215” x 1-½” x 0.05"
- Band Speed: 66-262 fpm
- Band Drive Motor: 10 hp
- Hydraulic Pump: 2 hp
- Hydraulic Tank Capacity: 29 gal
- Coolant Motor: ¼ hp
- Coolant Tank Capacity: 29 gal
- Material Pass Line Height: 29.5"
- Floor Space Required (L x W x H): 114” x 61” x 71"
- Machine Weight: 5732 lbs
INCLUDES: Spring Loaded, Zero Clearance, Coolant Through, Carbide Faced Saw Guide with Lead-In Rollers, Power Driven, Coolant Flushed, Blade Cleaning Wire Brush, Flushing Hose and Auxiliary Coolant Nozzles, Hydraulic Blade Tension, Automatic Chip Conveyor, Blade Breakage/Stall Motion Detector Shut Off Switch, Band Door Interlocks, Work Light, One 6.5 Foot (2 meter) Gravity Conveyor,, Tool Kit Complimentary DoALL Cutting Fluids Package, One DoALL Bi-Metal Saw Blade, Instruction and Parts Manuals on CD or USB Data Stick.
***All Price, Location and Specifications Subject to Change without Notice***
