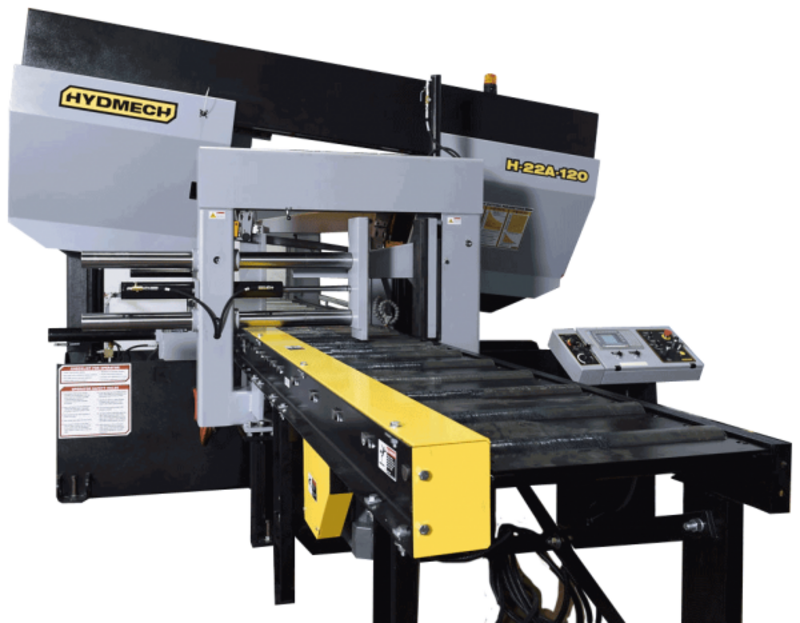

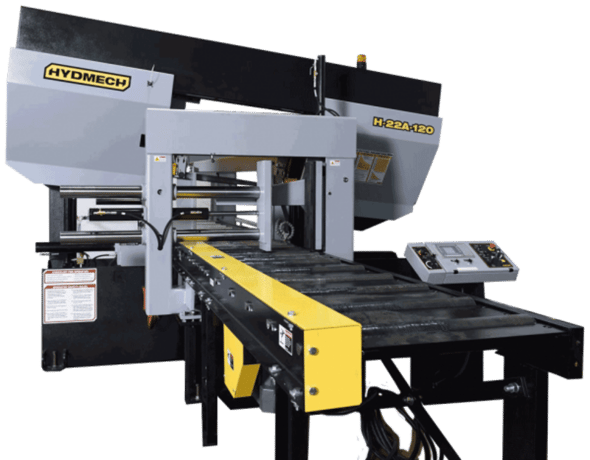

20" x 22" Hyd-Mech #H-22A-120, automatic horizontal bandsaw, 2" x 22' 6" blade, 40-300 SFM, 10 HP, 120" automatic multi indexing

Equipped with:
6 degree canted head
Split front vise
Full capacity hydraulic overhead bundling
10 bar feed
Shuttle features automatic multi-indexing up to 120 in a single stroke w/automatic kerf compensation. Powered by a rack
and pinion servo drive
Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm
spacing at all times.
Hydraulic positive down feed
10 HP VFD. True direct blade drive no belts/pulleys
Full capacity, full stroking hydraulic vises
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Blade chamber separates material from cut part
Cast iron band wheels
Automatic PLC control programable up to 999 jobs w/10 in queue
Replaceable blade brush
Automatic chip removal auger
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning w/digital readout
Hydraulic carbide guide tensioning
Hardened, replaceable wear plates
Safety door interlocks
Flood coolant w/wash down hose
Work light
Laser light
Variable vise pressure
Out of stock switch
Optional features for additional cost:
Blade deviation monitor
Vertical alignment rollers
Pedestal control
Mist lubrication
Outboard vise
Outboard vise w/bundling
Roller discharge table
Idler conveyors and accessories
Powered conveyors and accessories
Power transformer
