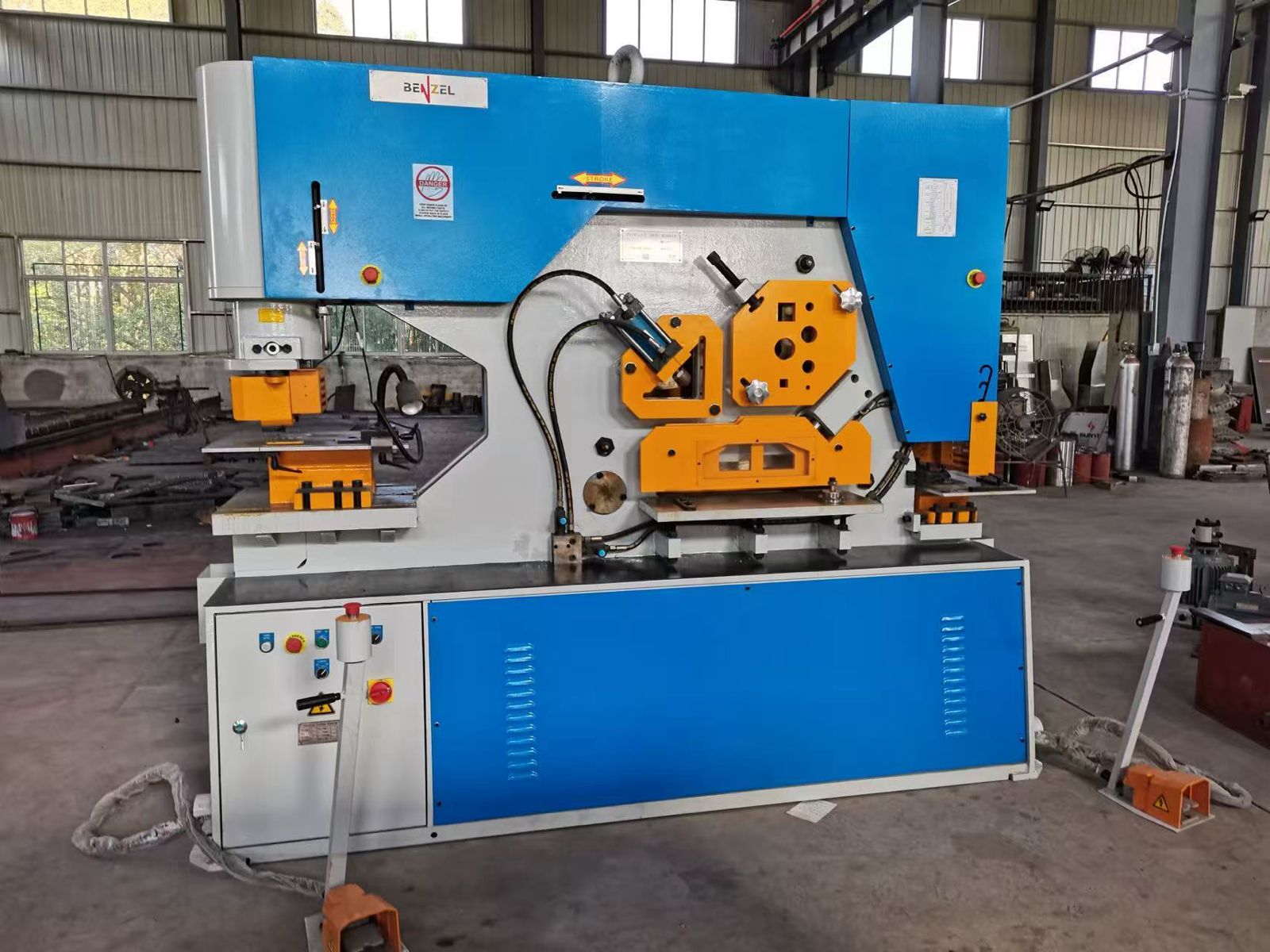

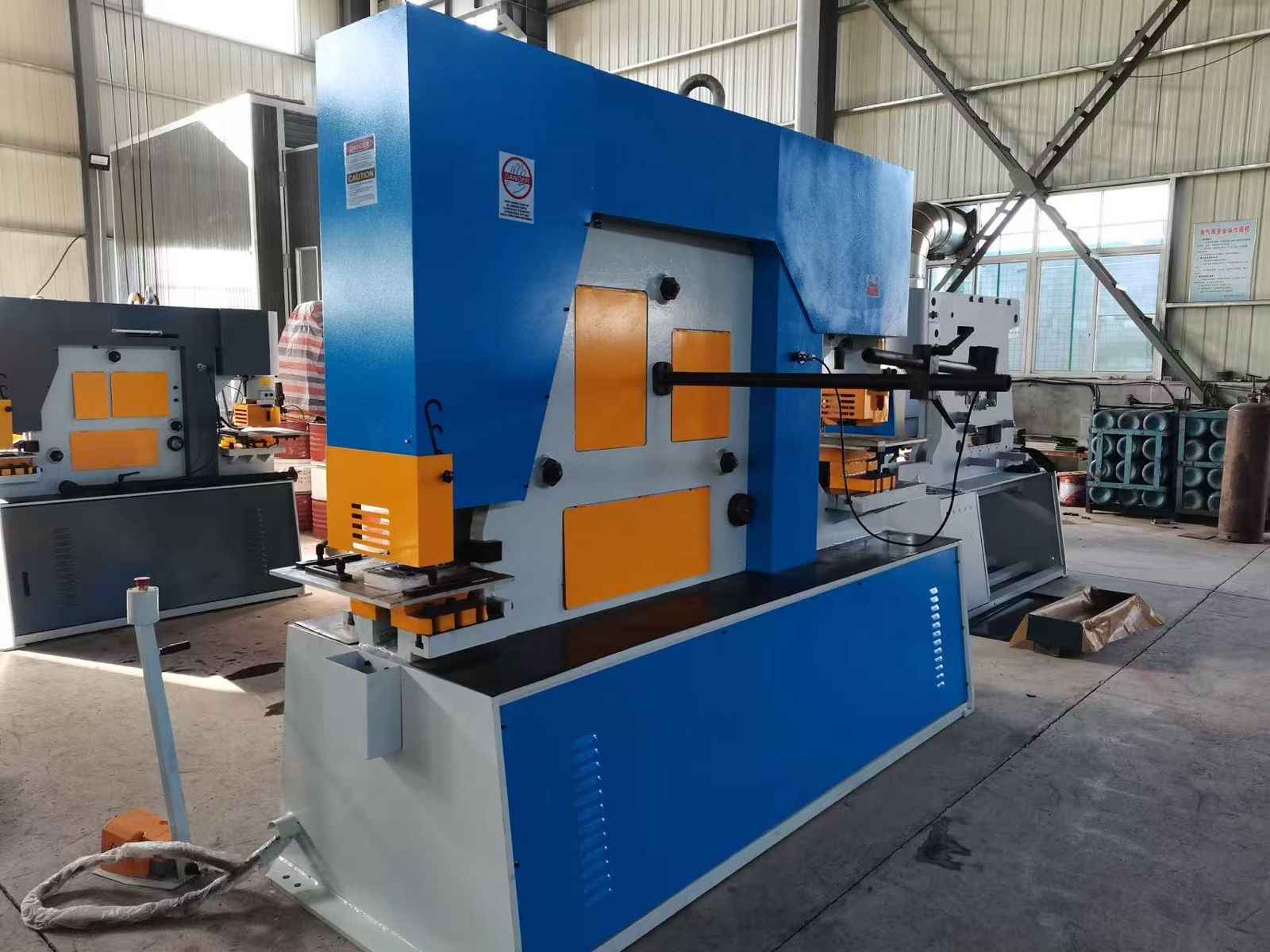

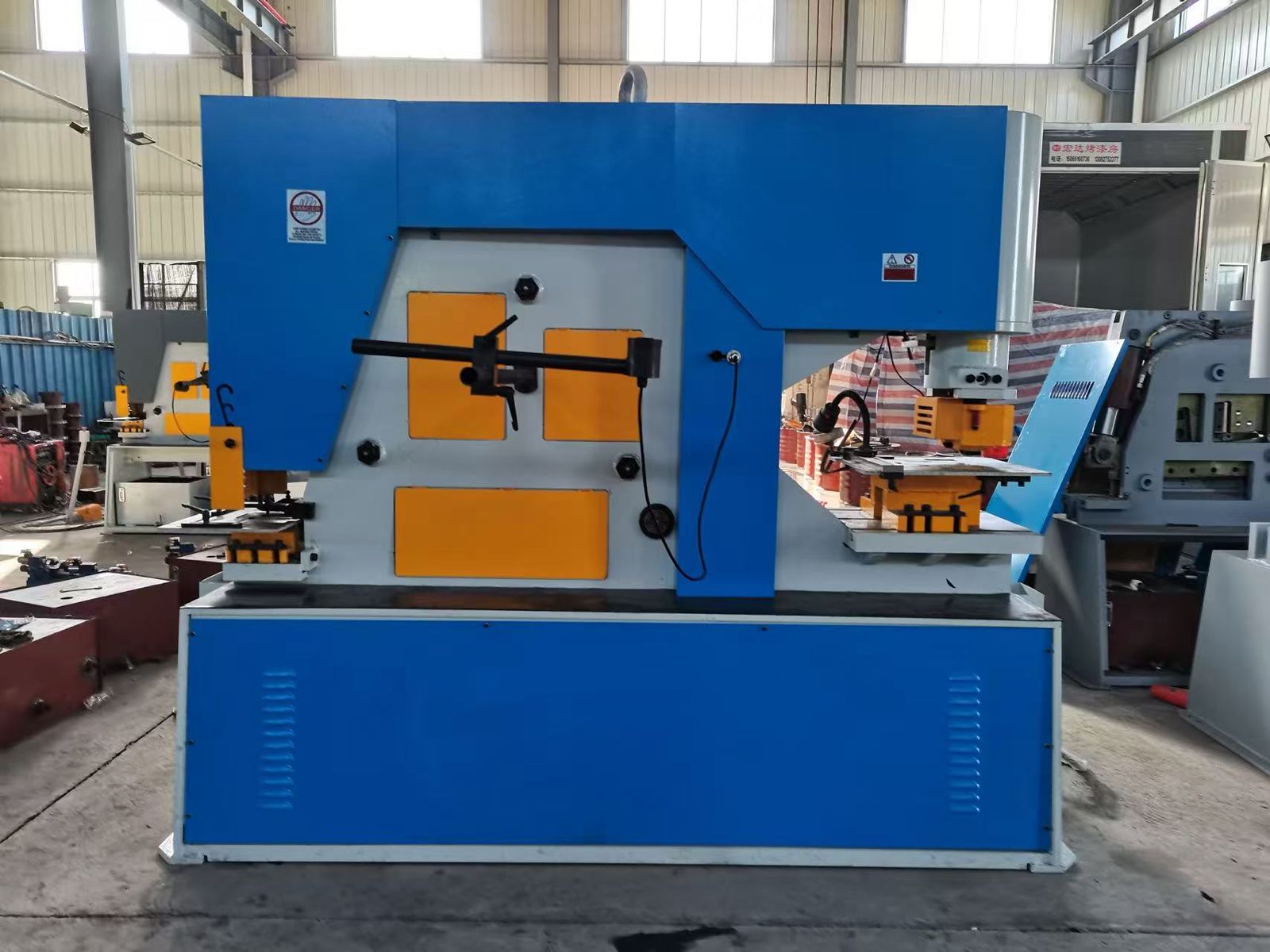

2-1/4" x 3-15/16" x 5/8" Ficom #H-160, ironworker, 160 ton, 23.6" throat, 5 stations, dual operator, 15 HP, New

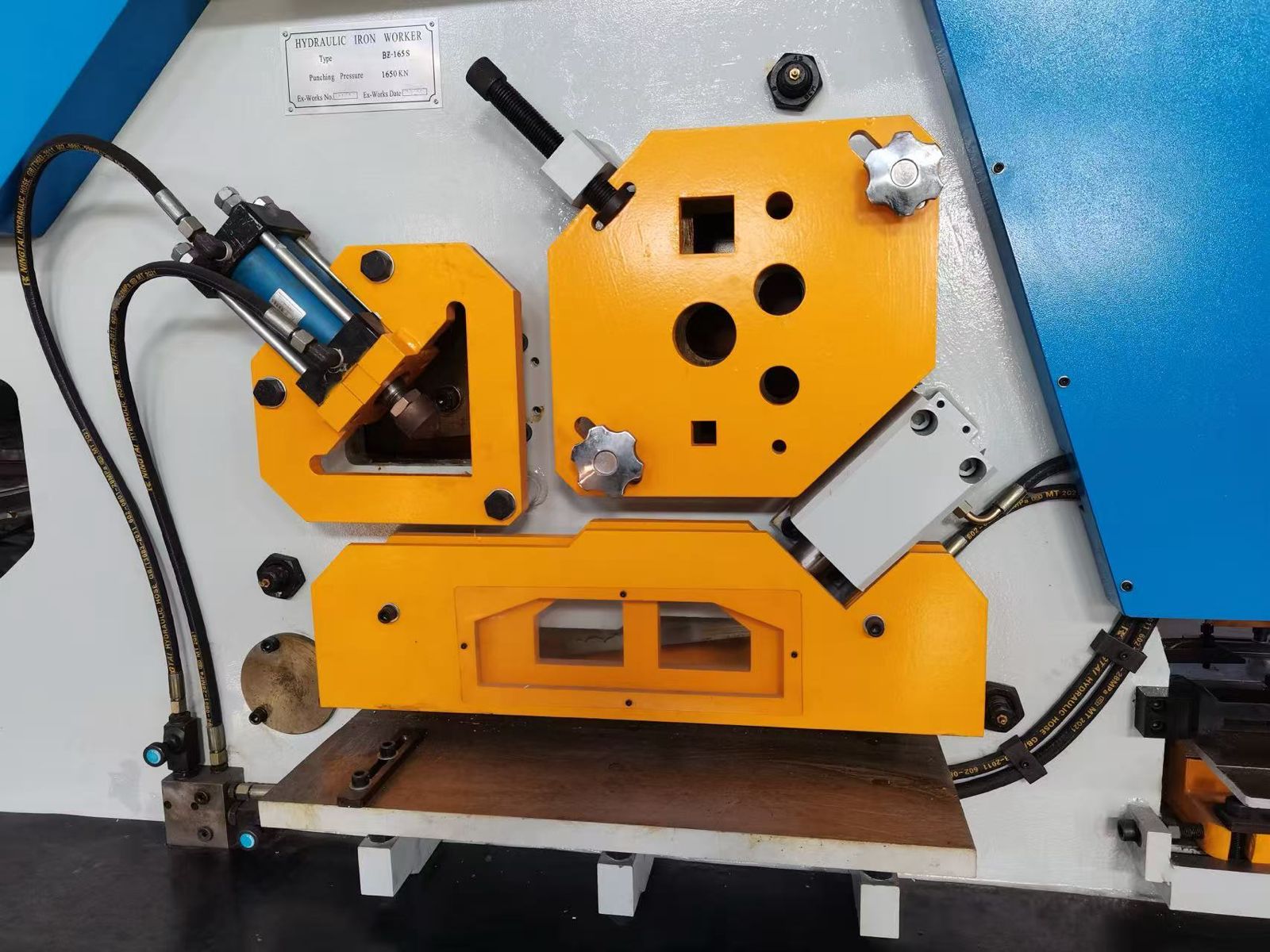

160 Ton Hydraulic Ironworker with Dual Operator Stations with (2) Movable Foot Pedals, Five Workstations (Punch, Plate Shear, Angle Shear, Rod Shear & Notcher), Punch Station has Large Two Piece Gauging Table with Fence, Punch Station is Quick Acting Swing Away Stripper with Safety Microswitch, Removable Sections on Punch Station for Channel & I-Beams, Quick Change Coupling Nut & Sleeve for Punch, 3’ Long Electric Backgauge, Electrically Interlocked Safety Guard for Notching Station and Movable Workstation Light with Magnetic Base.
GENERAL SPECIFICATIONS

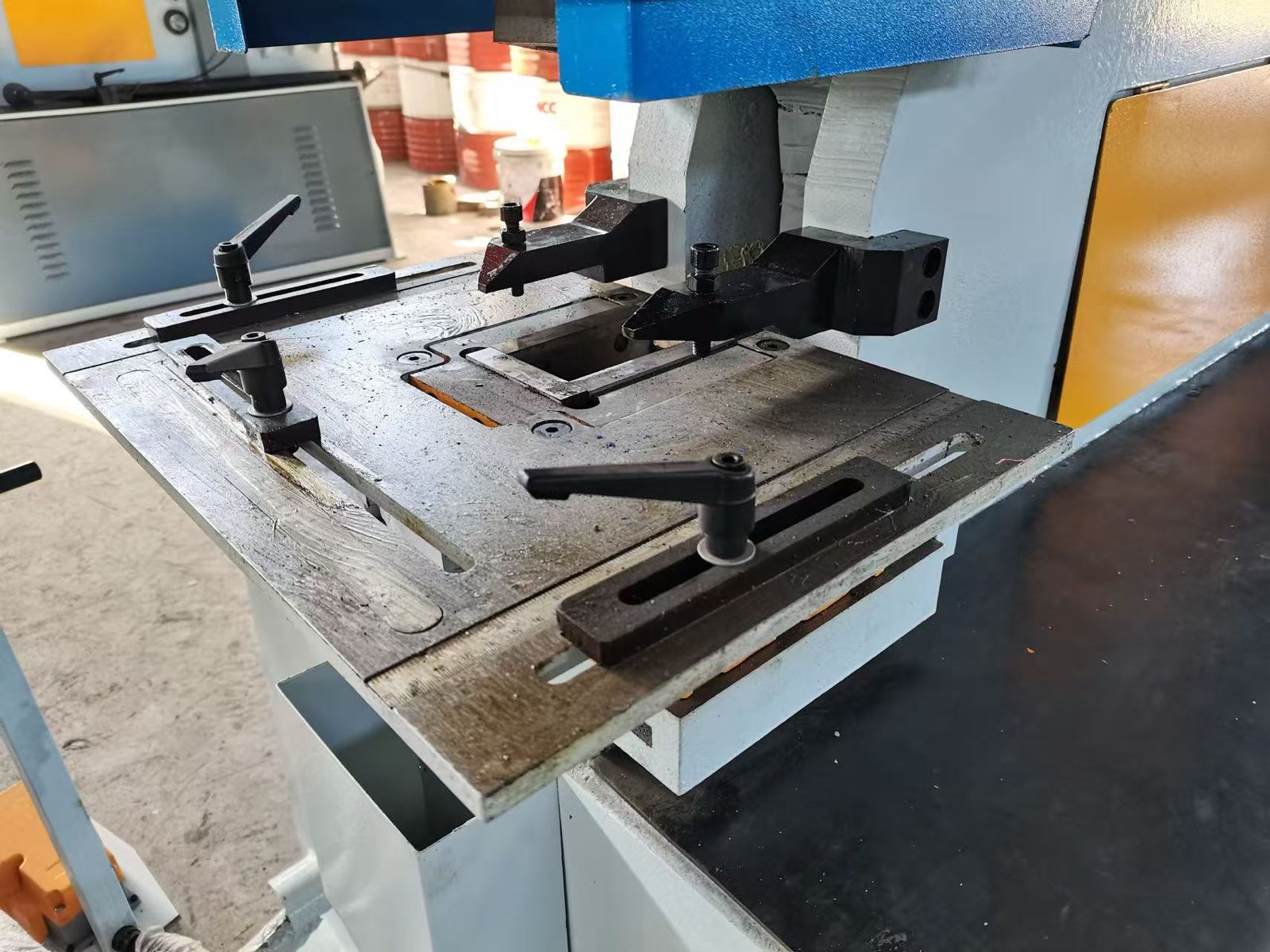

Punch Station
Tonnage: 160 Tons
Throat: 23.6”
Capacity: 1.5” Thru 1” Plate
Stroke: 3-”
Bar Shear
Cutting Capacity - Max. Thickness: 1-3/16” X 13-31/32”
Max Length: 25/32” X 23-”
Section Cutting
Round - Solid: 2-11/64”
Square - Solid: 2-9/16”
Channel: 1-7/64”
Angle: 7” X 7” X ”
Rectangular Notching
Max Cut: 2-¼” X 3-15/16” X ”
Motor & Electrics
Motor Power: 15 HP
Electrics: 230/460 / 3 / 60
Dimensions
Length x Width x Height: 106” X 41” X 91”
Machine Weight: 13,640 Lbs
INCLUDES: Dual Operator Stations with (2) Movable Foot Pedals, Five Workstations (Punch, Plate Shear, Angle Shear, Rod Shear & Notcher), Punch Station has Large Two Piece Gauging Table with Fence, Punch Station is Quick Acting Swing Away Stripper with Safety Microswitch, Removable Sections on Punch Station for Channel & I-Beams, Quick Change Coupling Nut & Sleeve for Punch, 3’ Long Electric Backgauge, Electrically Interlocked Safety Guard for Notching Station and Movable Workstation Light with Magnetic Base.
