For Sale by Southern Fabricating Mchy Sales
Description

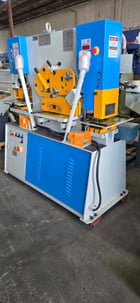

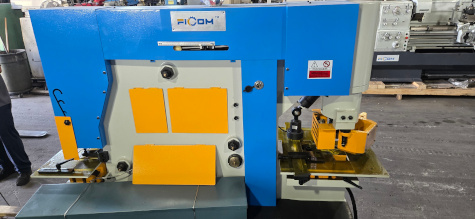

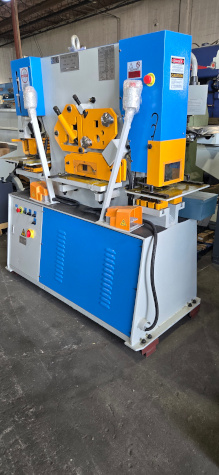

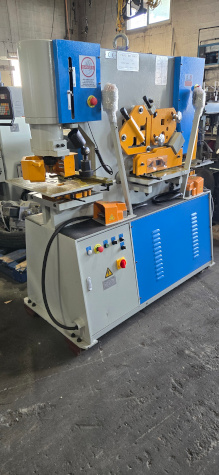

66 Ton Hydraulic Ironworker with Dual Operator Stations with (2) Movable Foot Pedals, Five Workstations (Punch, Plate Shear, Angle Shear, Rod Shear & Notcher), Punch Station Has Large Two Piece Gauging Table with Fence, Punch Station for Channel & I - Beam, Electrical Backgauge, Electrically Interlocked Safety Guard for Notching Station, Movable Workstation Light w/ Magnetic Base and 12” Press Brake Attachment.
GENERAL SPECIFICATIONS
Punch Station
Tonnage: 66 Tons
Throat: 11-13/16”
Capacity: 1” Hole Thru ” Plate
Stroke: 3-”
Bar Shear
Cutting Capacity - Max. Width: 5/16” X 15-¾”
Max. Thickness: ” X 10”
Section Cutting
Round - Solid: 1-¾”
Square Solid: 1-9/16”
Channel: ½”
Angle: 4-59/64” X ½”
Rectangular Notching
Max. Cut: 2-¼” X 3-15/16” X 25/64”
Motor & Electrics
Motor Power: 5.3 HP
Electrics - Standard: 230 / 460 / 3 / 60
Dimensions: 65” X 32” X 70”
Machine Weight: 3,527 Lbs
INCLUDES: Dual Operator Stations with (2) Movable Foot Pedals, Five Workstations (Punch, Plate Shear, Angle Shear, Rod Shear & Notcher), Punch Station Has Large Two Piece Gauging Table with Fence, Punch Station for Channel & I - Beam, Electrical Backgauge, Electrically Interlocked Safety Guard for Notching Station, Movable Workstation Light w/ Magnetic Base and 12” Press Brake Attachment.
***All Price, Location and Specifications Subject to Change without Notice***
Get Your Price from Southern Fabricating Mchy Sales!
