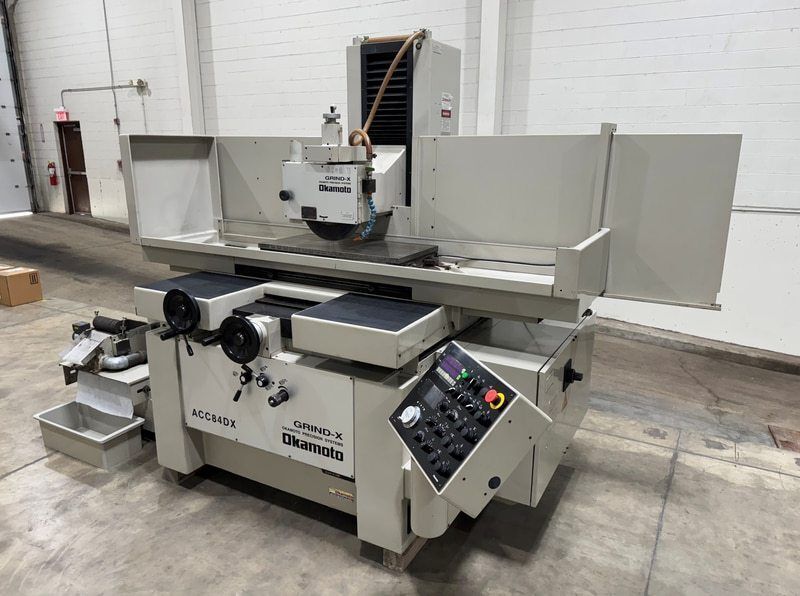

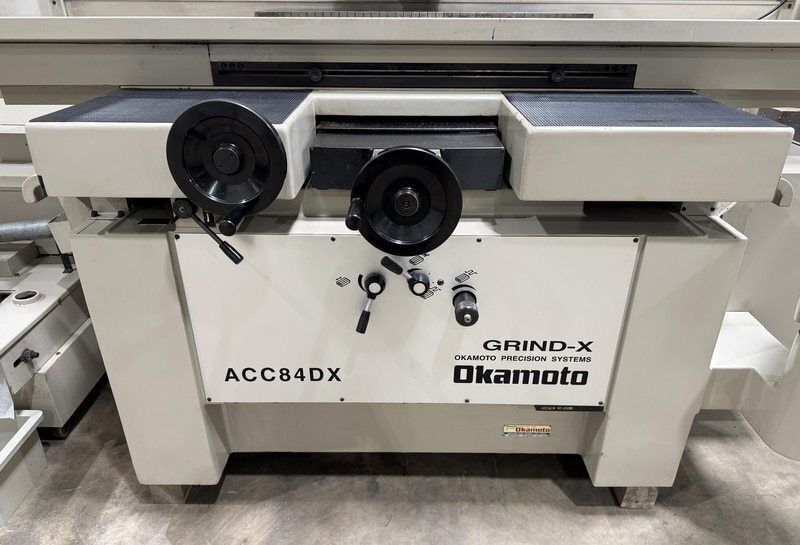

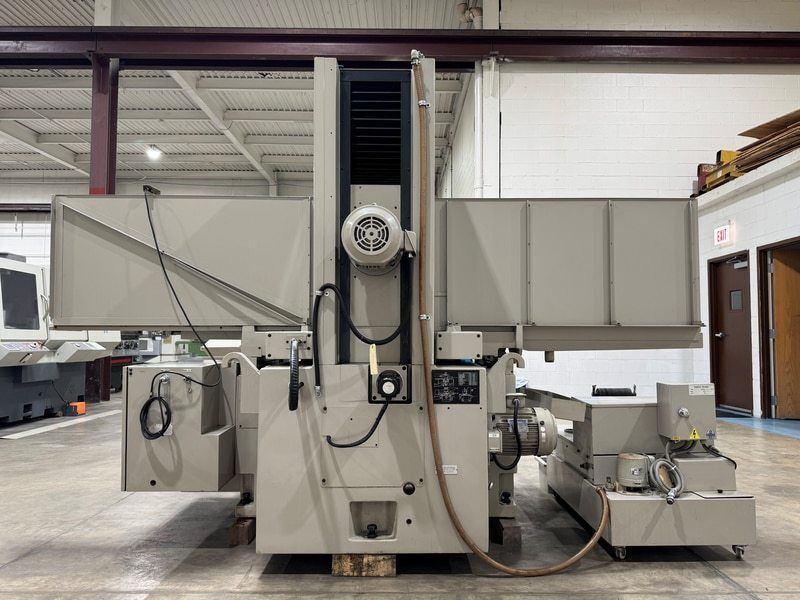

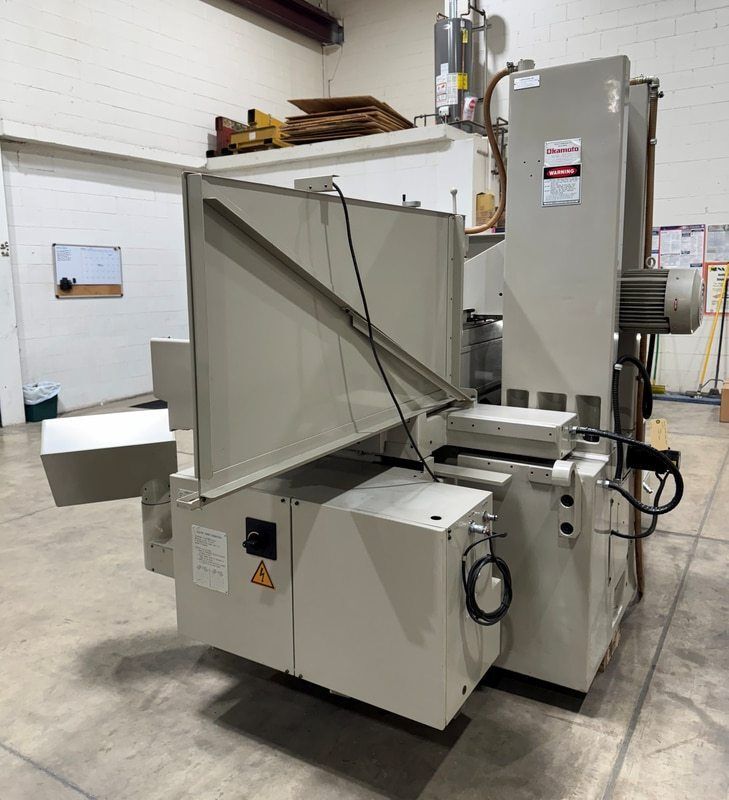

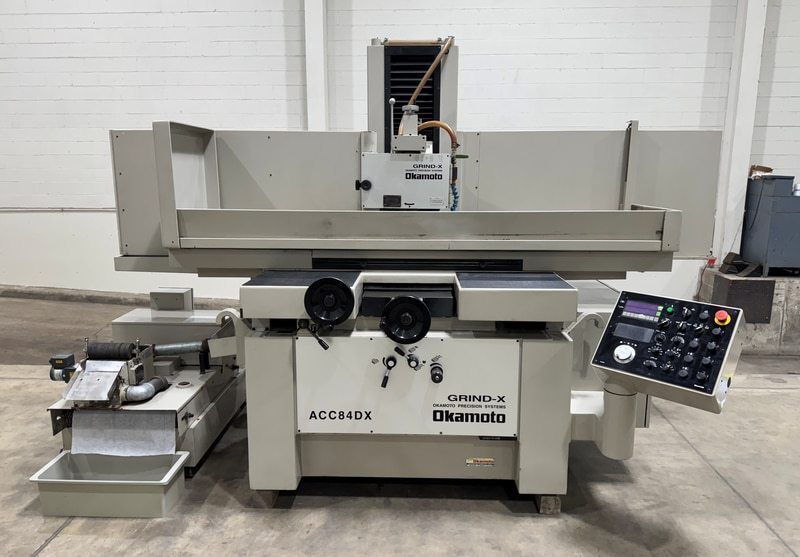

Manufacturer: Okamoto
Model: ACC84DX
Year: 2016
Width/Cross: 17.7
Length/Longit.: 33.4
Stock # 51755
1 / 10
Click to zoom in
1 / 10
For Sale by Liberty Machinery Co
Surplus Record Dealer Since 1996
Location: Lincolnshire, IL
Contact Peter Sonneborn
Phone Number: 847...> Show Phone Number 847-276-2761
Let the seller know you found their listing on Surplus Record!
Description
Serial No. 69292
Year Built - 2016
SPECIFICATIONS:
Table:
- Working Capacity............850 x 450 mm
- Distance from Table Top to Wheel Underside (355 mm Wheel)............22.5 - 522.5 mm
- Load Capacity............1540 Lbs
- Chuck Dimensions (L x W x H)............800 x 400 x 85 mm
- T-Slots (Width x No.)............17mm x 3
Longitudinal Feed:
- Travel - Maximum............950 mm
- Feed Rate (Average)............0.3 - 25 m/min
- Hand Feed Per Revolution............47 mm
Cross Movement:
- Travel - Maximum............440 mm
- Manual Feed............5 mm Hand Feed per Revolution (0.02 mm Graduations on Handwheel)
- Automatic Feed - Intermittent............0.5 - 20 mm
- Automatic Feed - Continuous............0.2 - 1 m/min
Vertical Movement:
- Automatic Downfeed (Traverse & Plunge Cut)............0.0001 - 0.03 mm <15 Stages>
- Manual Downfeed - Hand Feed Per Graduation............0.0001/0.001/0.01 mm
- Manual Downfeed - Hand Feed Per Revolution............0.01/0.1/1.0 mm
- Vertical Rapid Feed............600mm/min
- No of Spark Out............0 - 5

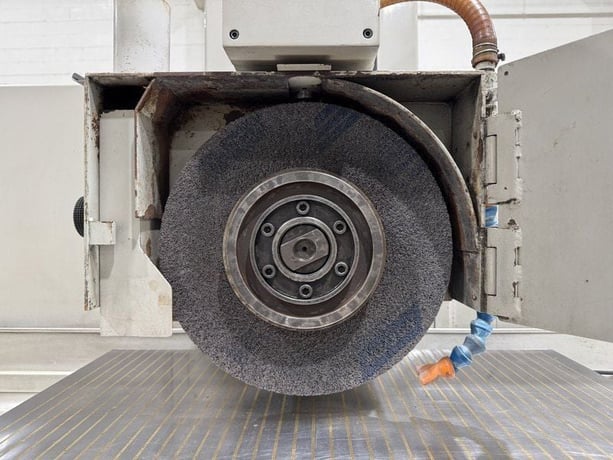

Grinding Wheel:

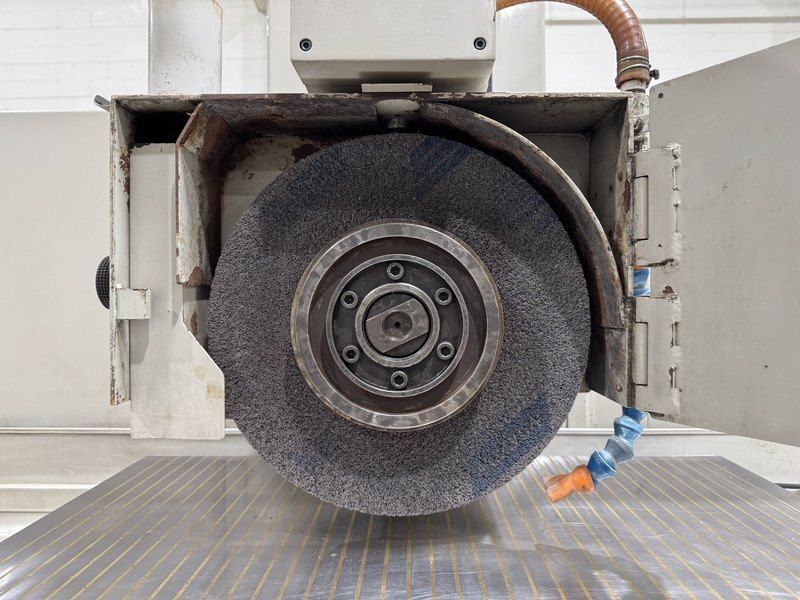

- Size (Diameter x Width x Bore)............Ø355/305 x 38 x 127 mm
- Speed (50 Hz)............1500, 1800
Motor:
- Grinding Wheel Spindle............5 HP
- Hydraulic Oil Pump............2 HP
- Vertical Rapid Feed............0.5HP, AC Servo
Dimensions - Approximate............131"L x 88"W x 84"H
Weight - Approximate............8600 Lbs
EQUIPPED WITH:

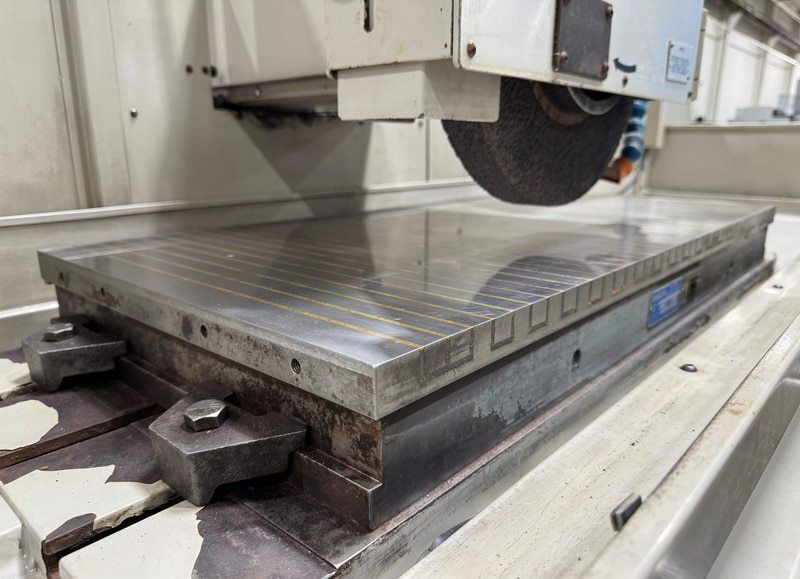

800 x 400 mm Electro-Magnetic Chuck w/Neutrifier

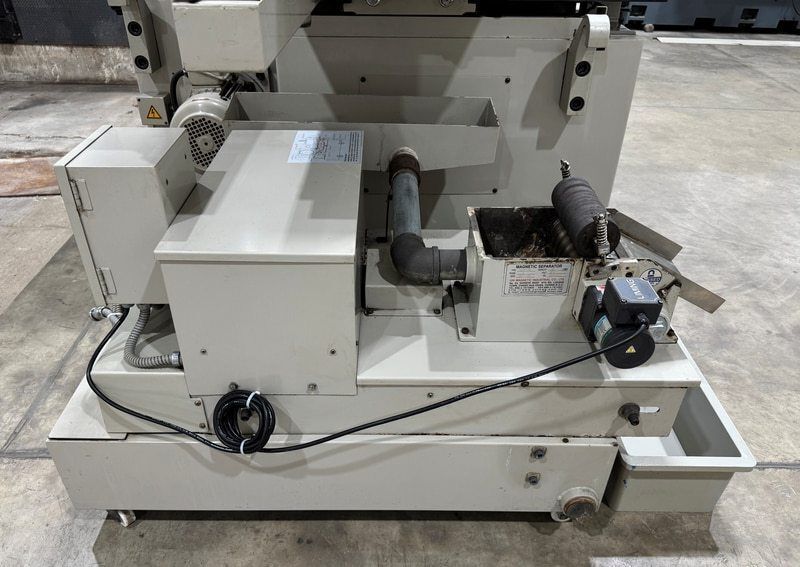

Coolant Filtration System

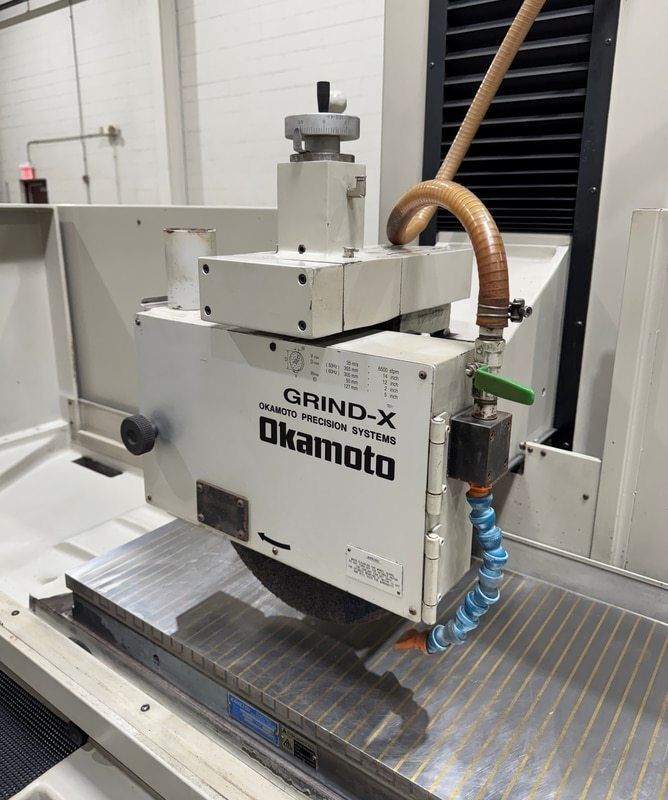

Over the Wheel Dresser

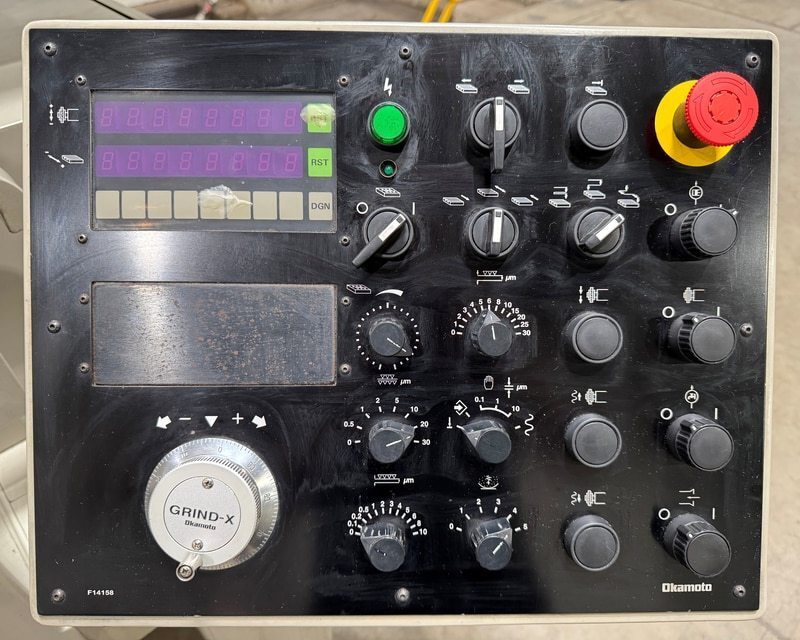

Vertical Position Display
Rough Downfeed Selector Switch (10) Selectable Increments
Finish Grind Selector (Fine)
Fine Downfeed Selector Switch
Grind Cycle Switch
Fully Automatic: Surface, Bias, Plunge Grinding, Rough & Finish, Spark-Out, Table Park L-R
*Preliminary specifications, pending confirmation
Year Built - 2016
SPECIFICATIONS:
Table:
- Working Capacity............850 x 450 mm
- Distance from Table Top to Wheel Underside (355 mm Wheel)............22.5 - 522.5 mm
- Load Capacity............1540 Lbs
- Chuck Dimensions (L x W x H)............800 x 400 x 85 mm
- T-Slots (Width x No.)............17mm x 3
Longitudinal Feed:
- Travel - Maximum............950 mm
- Feed Rate (Average)............0.3 - 25 m/min
- Hand Feed Per Revolution............47 mm
Cross Movement:
- Travel - Maximum............440 mm
- Manual Feed............5 mm Hand Feed per Revolution (0.02 mm Graduations on Handwheel)
- Automatic Feed - Intermittent............0.5 - 20 mm
- Automatic Feed - Continuous............0.2 - 1 m/min
Vertical Movement:
- Automatic Downfeed (Traverse & Plunge Cut)............0.0001 - 0.03 mm <15 Stages>
- Manual Downfeed - Hand Feed Per Graduation............0.0001/0.001/0.01 mm
- Manual Downfeed - Hand Feed Per Revolution............0.01/0.1/1.0 mm
- Vertical Rapid Feed............600mm/min
- No of Spark Out............0 - 5
Grinding Wheel:
- Size (Diameter x Width x Bore)............Ø355/305 x 38 x 127 mm
- Speed (50 Hz)............1500, 1800
Motor:
- Grinding Wheel Spindle............5 HP
- Hydraulic Oil Pump............2 HP
- Vertical Rapid Feed............0.5HP, AC Servo
Dimensions - Approximate............131"L x 88"W x 84"H
Weight - Approximate............8600 Lbs
EQUIPPED WITH:
800 x 400 mm Electro-Magnetic Chuck w/Neutrifier
Coolant Filtration System
Over the Wheel Dresser
Vertical Position Display
Rough Downfeed Selector Switch (10) Selectable Increments
Finish Grind Selector (Fine)
Fine Downfeed Selector Switch
Grind Cycle Switch
Fully Automatic: Surface, Bias, Plunge Grinding, Rough & Finish, Spark-Out, Table Park L-R
*Preliminary specifications, pending confirmation
Get Your Price from Liberty Machinery Co!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!

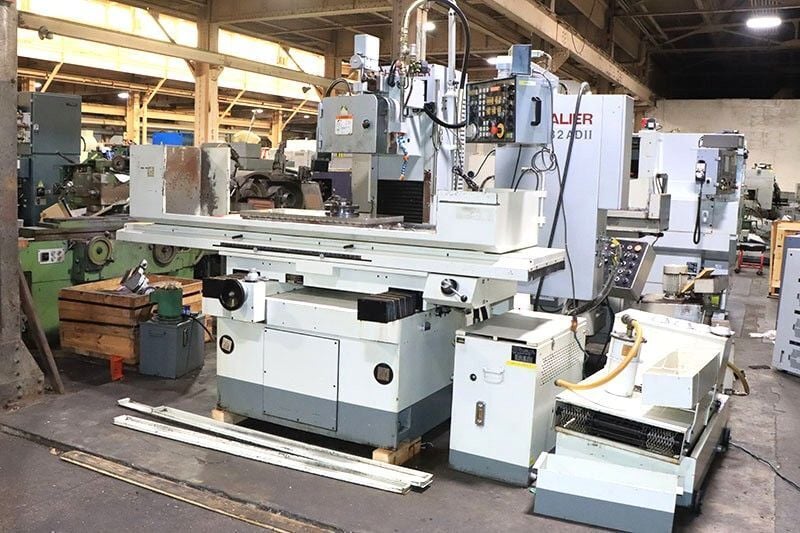

16" x 32" Chevalier #FSG-1632ADII, Horizontal Surface Grinder, 35-3/8" X, 18" Y, 24" spindle-to-table, 14" x 2" x 5" grinding wheel, 5 HP, 3450 RPM, 2008
