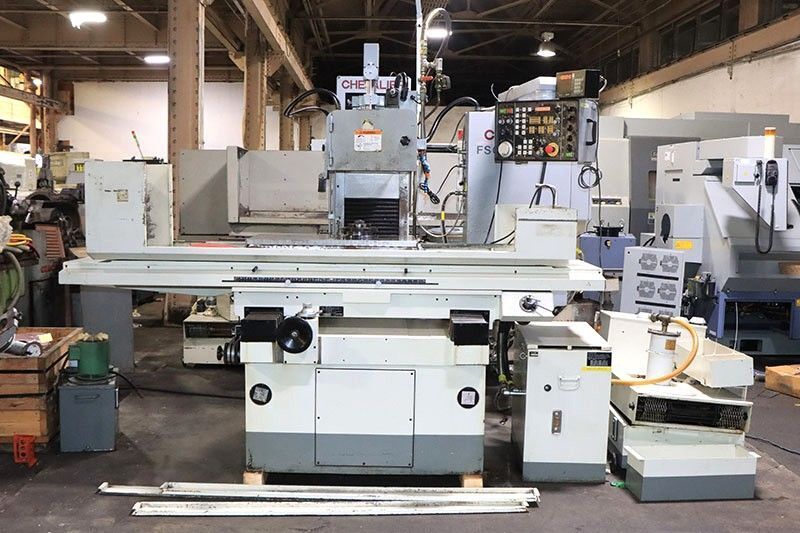

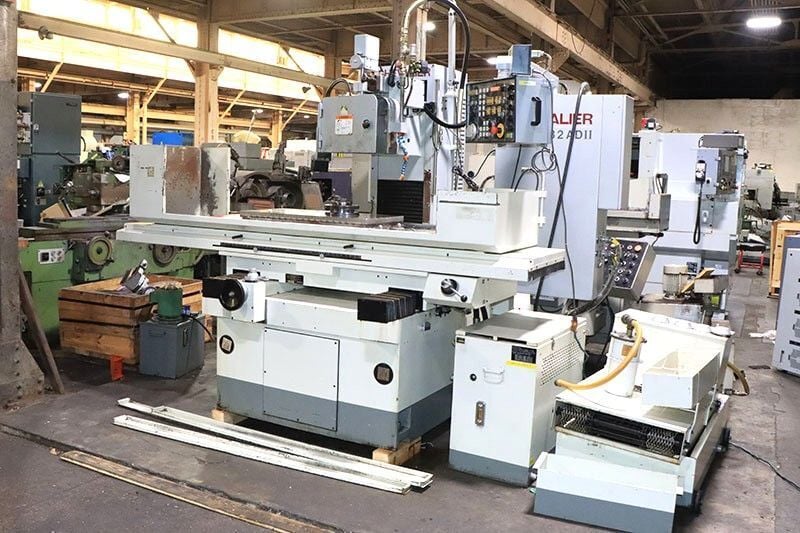

Manufacturer: Chevalier
Model: FSG-1632-ADII
Year: 2006
Width/Cross: 16.0
Length/Longit.: 32.0
Stock # 500324
1 / 10
Click to zoom in
1 / 10
For Sale by Clark Machinery Sales LLC
Surplus Record Dealer Since 2005
Location: Hunt Valley, MD
Contact Troy Clark
Phone Number: 410...> Show Phone Number 410-252-5494
Let the seller know you found their listing on Surplus Record!
Description

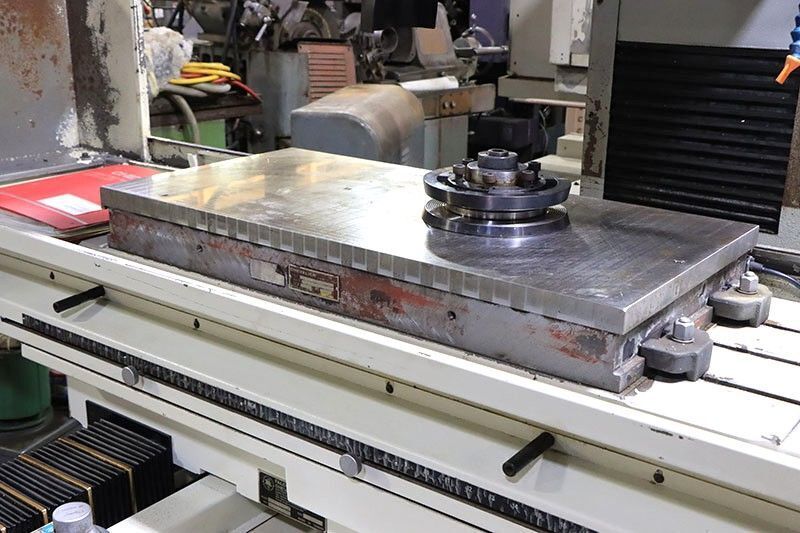

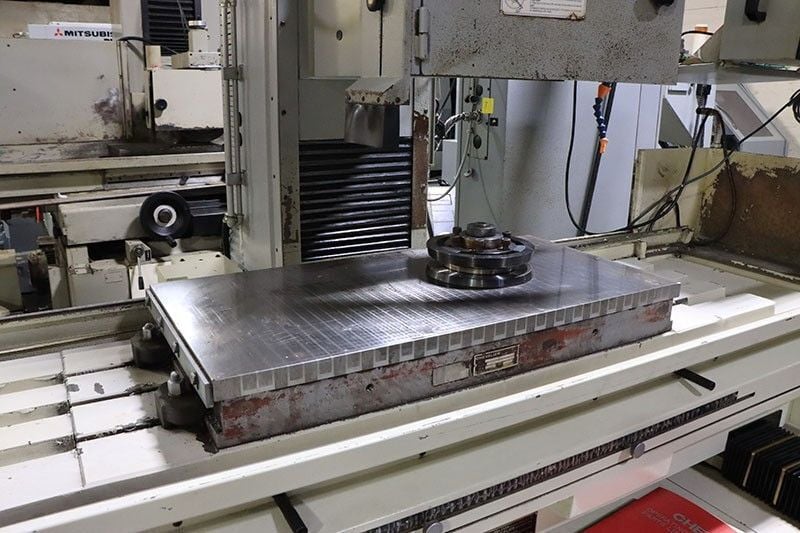

TABLE SIZE........................... 15-3/4" x 31-1/2"
MAX. GRINDING CAPACITY .................. 16" X 32"
MAX. LONGITUDINAL TABLE TRAVEL, HYD. .... 32-5/8"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL .. 33-3/8"
MAX. CROSSFEED TRAVEL, AUTOMATIC ........ 16"
MAX. CROSSFEED TRAVEL, MANUAL ........... 18"
DIST. FROM SPINDLE CENTER TO TABLE ...... 24-3/8"
VARIABLE TABLE SPEED, HYDRAULIC ......... 16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT ........... 1/8" TO 2"

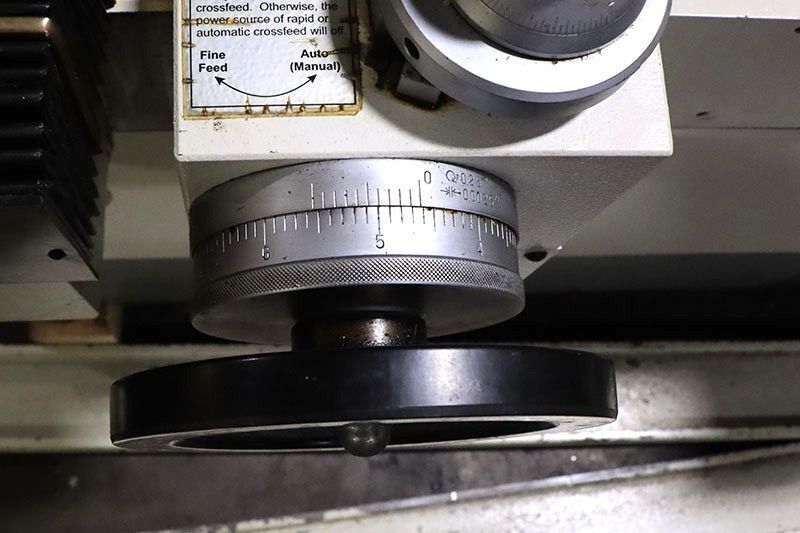

CROSSFEED HANDWHEEL, PER GRADUATION ..... 0.0025"
PER REVOLUTION .......................... 0.25"

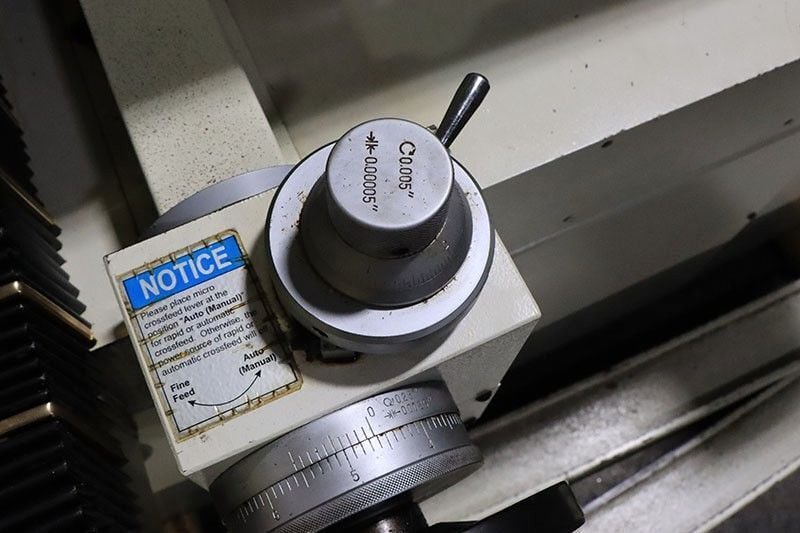

MICROFEED, PER REVOLUTION ............... 0.005"
PER GRADUATION .......................... 0.00005"
AUTOMATIC INCREMENTAL DOWNFEED ...... 0.000050" TO .002"
AUTO DOWNFEED DIAL PER GRADUATION ....... 0.0005"
PER REVOLUTION .......................... 0.05"
MICROFEED ........................... 0.00005"/.0001"
RAPID TRAVERSE RATE ..................... 8" IPM
SPINDLE MOTOR ........................... 5 HP
STANDARD GRINDING WHEEL ............. 14"DIA. x 2"W x 5"B
APPROX. WEIGHT .......................... 6,400 LBS
APPROX. DIMENSIONS .................. 102" x 69" x 75"H
MAX. GRINDING CAPACITY .................. 16" X 32"
MAX. LONGITUDINAL TABLE TRAVEL, HYD. .... 32-5/8"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL .. 33-3/8"
MAX. CROSSFEED TRAVEL, AUTOMATIC ........ 16"
MAX. CROSSFEED TRAVEL, MANUAL ........... 18"
DIST. FROM SPINDLE CENTER TO TABLE ...... 24-3/8"
VARIABLE TABLE SPEED, HYDRAULIC ......... 16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT ........... 1/8" TO 2"
CROSSFEED HANDWHEEL, PER GRADUATION ..... 0.0025"
PER REVOLUTION .......................... 0.25"
MICROFEED, PER REVOLUTION ............... 0.005"
PER GRADUATION .......................... 0.00005"
AUTOMATIC INCREMENTAL DOWNFEED ...... 0.000050" TO .002"
AUTO DOWNFEED DIAL PER GRADUATION ....... 0.0005"
PER REVOLUTION .......................... 0.05"
MICROFEED ........................... 0.00005"/.0001"
RAPID TRAVERSE RATE ..................... 8" IPM
SPINDLE MOTOR ........................... 5 HP
STANDARD GRINDING WHEEL ............. 14"DIA. x 2"W x 5"B
APPROX. WEIGHT .......................... 6,400 LBS
APPROX. DIMENSIONS .................. 102" x 69" x 75"H
