For Sale by Southern Fabricating Mchy Sales
Description

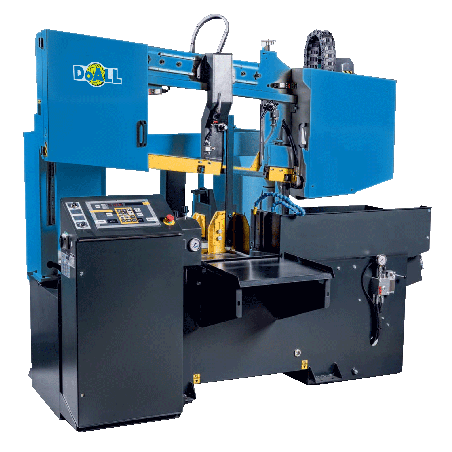

16” x 16" Tube Band Saw with Saw-Micro Saw Control Variable Frequency Drive Work Light Pulley-Driven Band Brush Automatic Guide Arm Setting Work Height Sensor Overfeed Protection Variable Vise Pressure Control Discharge Chute Hydraulic Band Tension Worm Chip Conveyor Flood Coolant Tool Kit Complimentary DoALL Cutting Fluids Package One DoALL Bi-Metal Saw Blade Instruction and Parts Manuals on CD or USB Data Stick.
GENERAL SPECIFICATIONS
- Cutting Capacity Round Tube: 16″
- Cutting Capacity Round Solid: 9-7/8″
- Cutting Capacity Rectangle: 16 x 16″
- Maximum Bundle Capacity: 15.8 x 13.4″
- Minimum Bundle Capacity: 1.2″
- Auto Index Single Stroke Lengths: 0.12-19.9″
- Auto Index Multiple Stroke Lengths: 394″
- Band Saw Blade Width: 1-1/4 x 0.042″
- Maximum Blade Length: 178″
- Remnant Length Drop: 6″
- Band Speed: 65-328 fpm
- Band Drive: 4 hp
- Hydraulic Pump: 1 hp
- Coolant Pump: 0.12 hp
- Coolant Tank Capacity: 16 gal
- Material Pass Line Height: 31-1/2″
- Machine Weight: 2866 lbs
- Dimensions W x L x H: 102" x 102" x 72”
INCLUDES: Work Light, Pulley-Driven Band Brush, Automatic Guide Arm Setting, Work Height Sensor, Overfeed Protection,Variable Vise Pressure Control, Discharge Chute, Hydraulic Band Tension, Worm Chip Conveyor, Flood Coolant, Tool Kit, Complimentary DoALL Cutting Fluids Package, One DoALL Bi-Metal Saw Blade, Instruction and Parts Manuals on CD or USB Data Stick.
***All Price, Location and Specifications Subject to Change without Notice***
