Description
16” Swing (24” with Gap Removed) X 60” Manual Gap-Bed Engine Lathe with 3 1/16” D1-8 Camlock Spindle Bore, 7.5HP Drive Motor, 12 Speed Gear Drive (Digital Variable Speed Drive Available), Tailstock, Follower Rest, 8.75” Swing Over Cross-Slide, 3 Jaw 10” Chuck, Coolant System and Splash Guarding, 16” Face Plate, Steady Rest, 4-Way Tool Post, Halogen Work Light and Tool Kit Included.
STANDARD EQUIPMENT:
- 10” 3-Jaw Chuck
- 16” Face Plate
- Steady Rest (1/2” to 6”) & Follower Rest
- Coolant System & Full Length Splash Guard
- American Tool Post
- Halogen Worklight
- Longitudinal Carriage Stop
- Center sleeve ( MT 5 x 3)
- Dead centers ( MT# 4x1, MT # 5 x1)
- Tailstock
- Tool Kit includes:
- Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set of 6 Allen wrenches, Phillip ScrewDriver, Flat Head Screwdriver, Oil can, Grease Gun, Rear Way Cover Bracket, Pin for Indicator, Can of Paint
FEATURES:
- D1- 8 Camlock
- 3 - 1/16”” Spindle Bore
- Direct Selection For Inch/Metric Threads
- One Piece Cast Meehanite Bed
- Quick Change Gearbox
- 7.5 HP Motor
- 12-Speed Gear Head (40-2,000 RPM)
SPECIFICATIONS:
Swing Over Bed: 16”
Swing Over Cross Slide: 8.75”
Swing Over Gap: 24.38”
Distance Between Centers: 60”
Width of Gap: 9.75”
Center height from top of compound: 1.9”
Headstock
Spindle Nose Type D1-8 Camlock
Spindle Bore 3 - 1/16”
Spindle Speeds (12 Speed) 20 - 2,000 RPM
Taper of Spindle Bore MT#6
Taper of Center MT#4
Threads and Feeds
- Longitudinal Feeds – in/rev (18) 0.002 - 0.032”
- Cross Feeds – in /rev: 0.0001 –0.0094”
- Inch Threads (#): 4-56 tpi
- Metric and Module Threads: 0.5-7mm
- D.P. Threads (36): 4-56 mm
- Leadscrew Pitch, Diameter: 4 tpi, 1-3/8”
Carriage
Cross Slide Width: 8.7”
Compound Rest Travel: 4.9”
Compound Width: 4.5”
Bed
Bed Length: 69”
Bed Width: 11-3/4”
Tailstock
Quill Travel (graduated): 5”
Quill Diameter: 2.25”
Quill Taper: MT#4
GENERAL
Spindle Motor (220V,60, 3) 7.5 HP
Net Weight (approx.) 3,600 LBS
Standard Color Gray
Electrical:
Voltage: 220V
Phase: 3 phase
Note: Machine is set only for 220 V. Needs an optional transformer for other applications.
Total Power Consumption 230V: 8KVA/25 amps
***All Price, Location and Specifications Subject to Change without Notice***
MANY OPTIONS AVAILABLE TO CUSTOMIZE YOUR MACHINE - CALL FOR COMPLETE QUOTATION LISTING ALL AVAILABLE OPTIONS.
Get Your Price from Southern Fabricating Mchy Sales!
Buyers Who Viewed This Listing Also Viewed:
16" x 60" Sharp #1660LV, precision lathe, 8.75" swing over cross slide, 3-jaw 10" chuck, 12" face plate

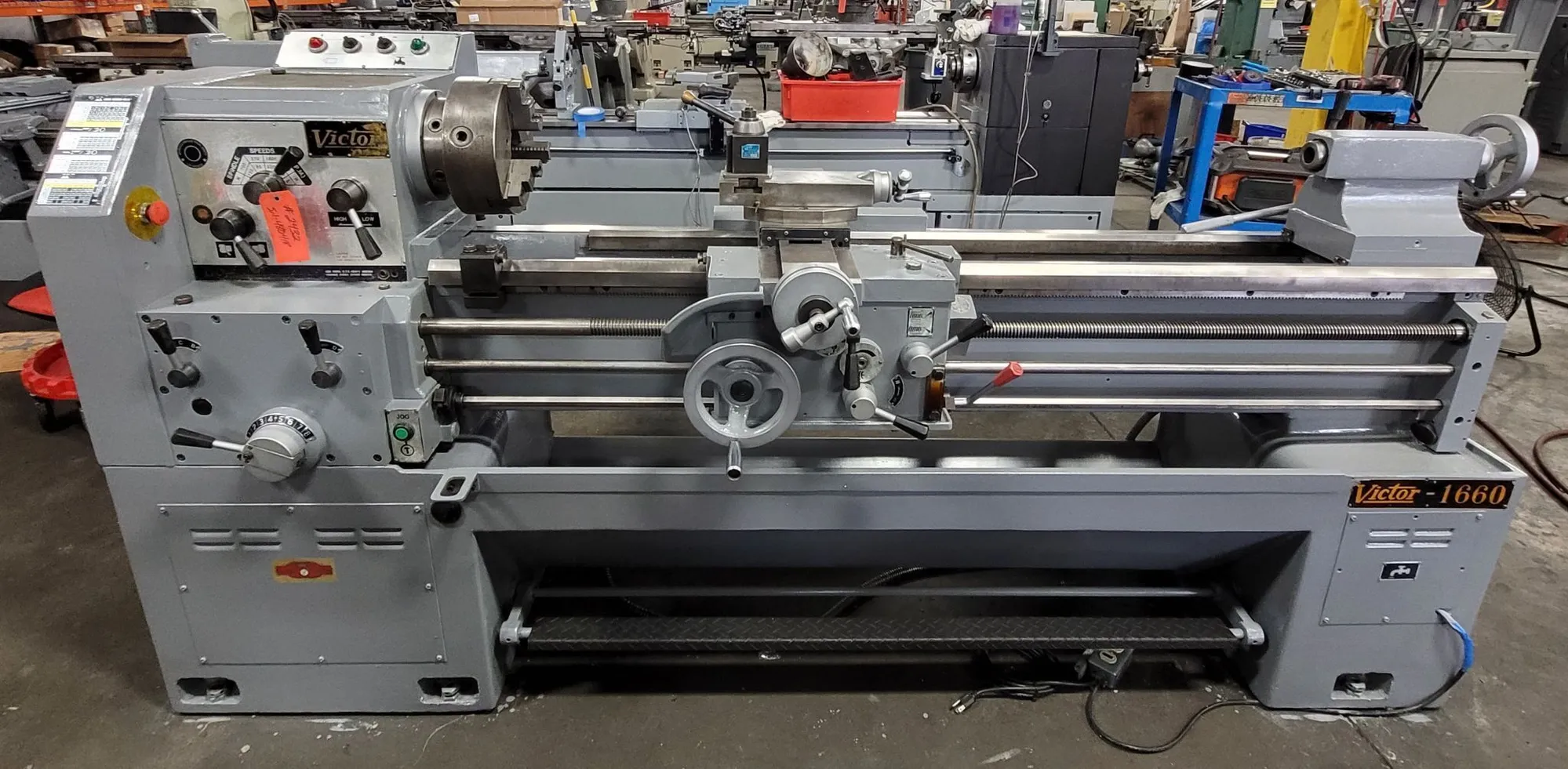

16"/23" x 60" Victor #1660, gap bed engine lathe, 2" bore, 30-2000 RPM, 7.5 HP, 10" 3-jaw chuck, D1-6, MT4, Yuasa QCTP, 220 V.
