For Sale by Southern Fabricating Mchy Sales
Description

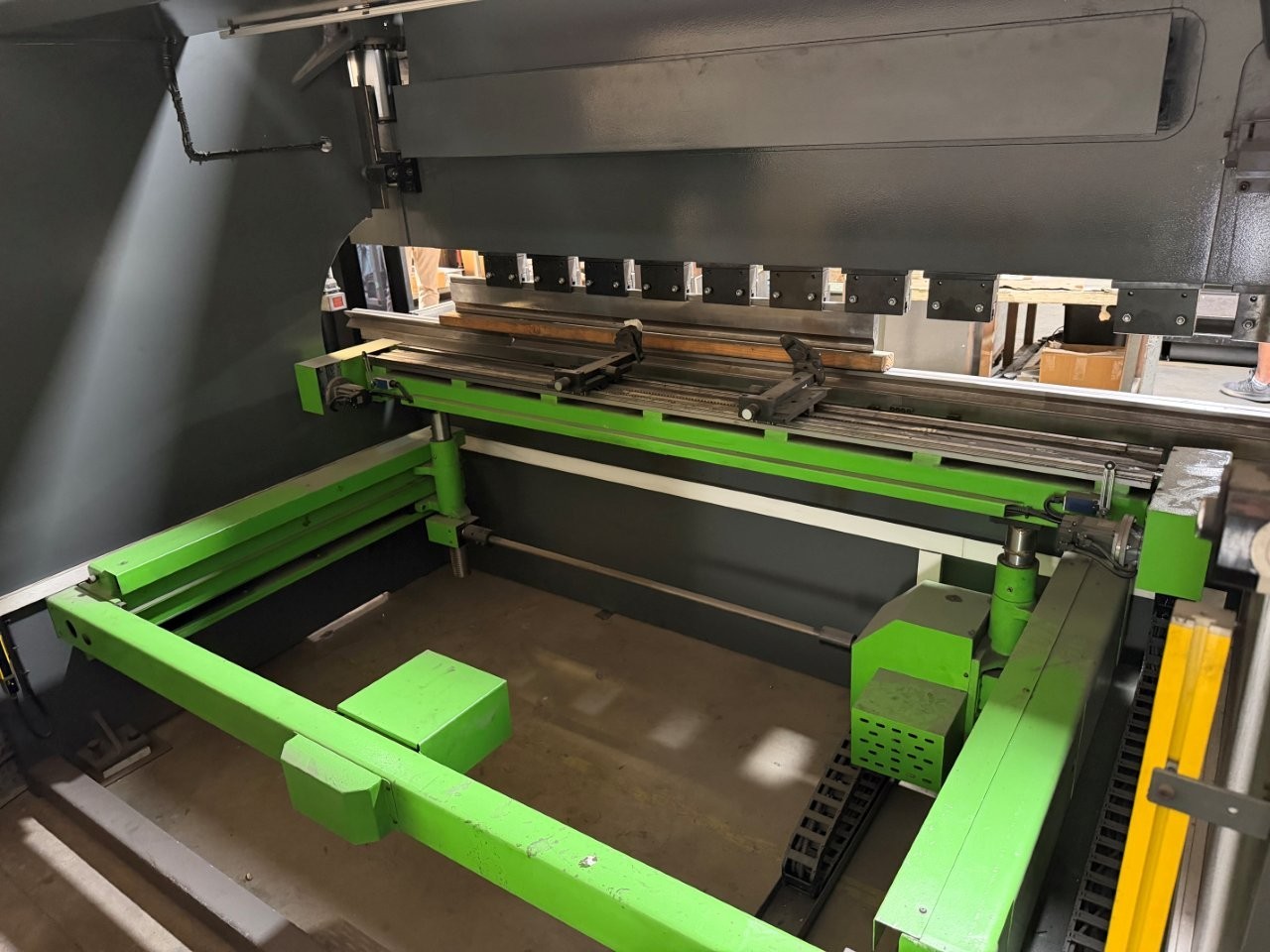

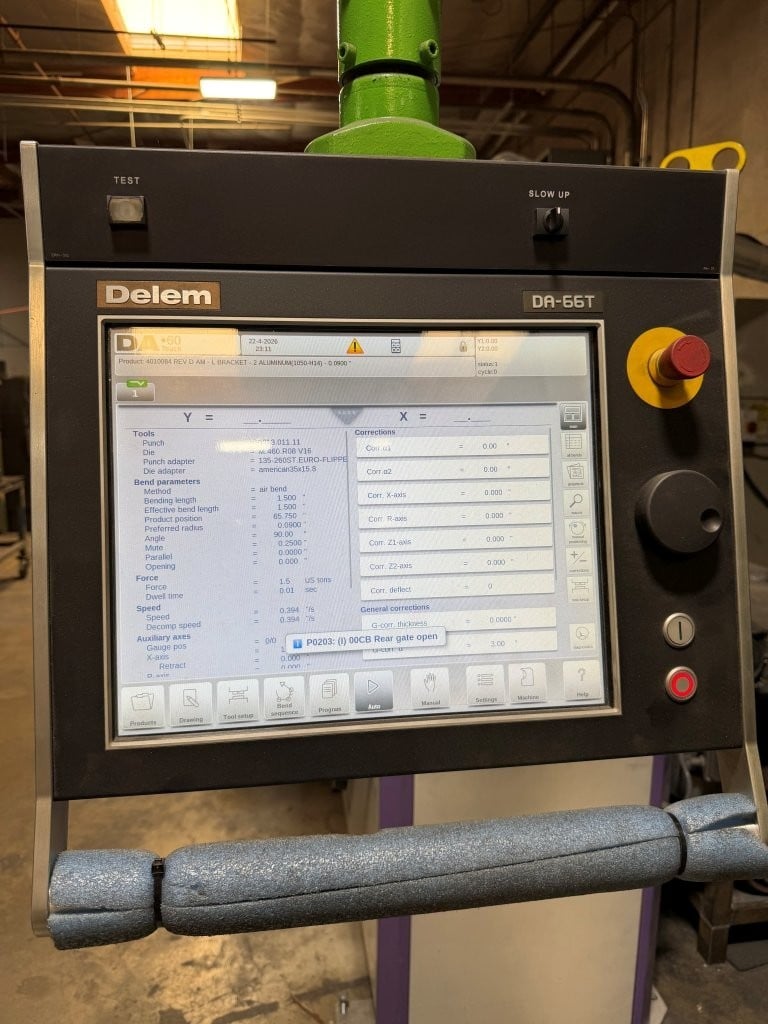

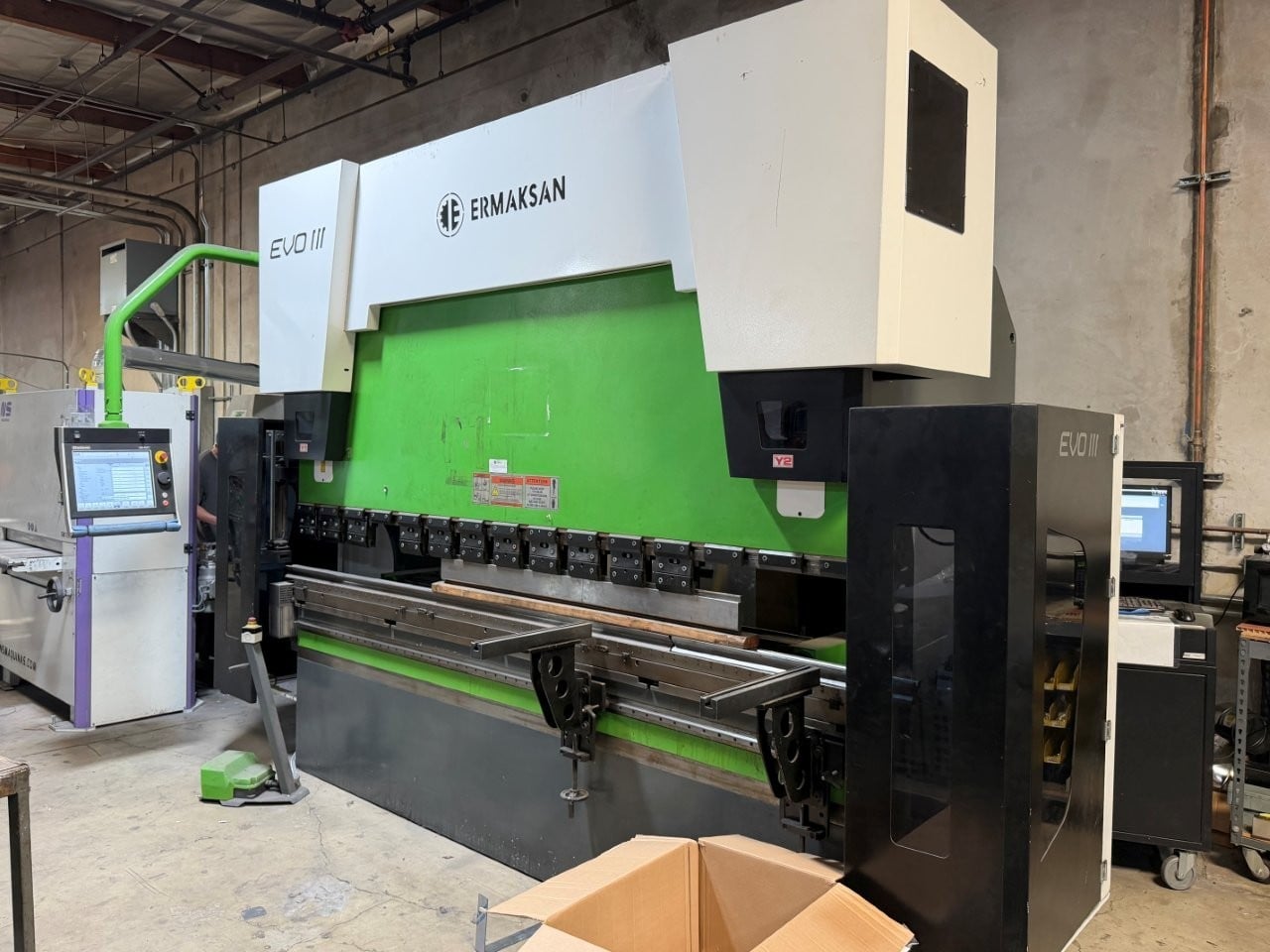

149 Ton X 10.17’ Hybrid CNC Press Brake with Delem 66T Control, Y1 / Y2 / X / R / Z1 / Z2 CNC Axes, CNC Crowning, (2) Front Support Arms and Foot Pedal
GENERAL SPECIFICATIONS
Capacity: 149 Tons
Overall Bending Length: 122”
Distance Between Columns: 102.36”
Y - Working Speed: .37” / Sec
Y - Return Speed: 6.3” / Sec
X - Axis Travel: 31.5”
X - Axis Speed: 19.69” / Sec
R - Axis Travel: 9.84”
R - Axis Speed: 13.78” / Sec
Stroke: 10.83”
Daylight: 21.65”
Throat: 16.14”
Approx. Dimensions: 167.32” X 80.71” X 110.24” H
Weight: 18,047 Lbs
Oil Capacity: 14.5 US Gallons
INCLUDES: Delem 66T Control, Y1 / Y2 / X / R / Z1 / Z2 CNC Axes, CNC Crowning, (2) Front Support Arms and Foot Pedal
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
