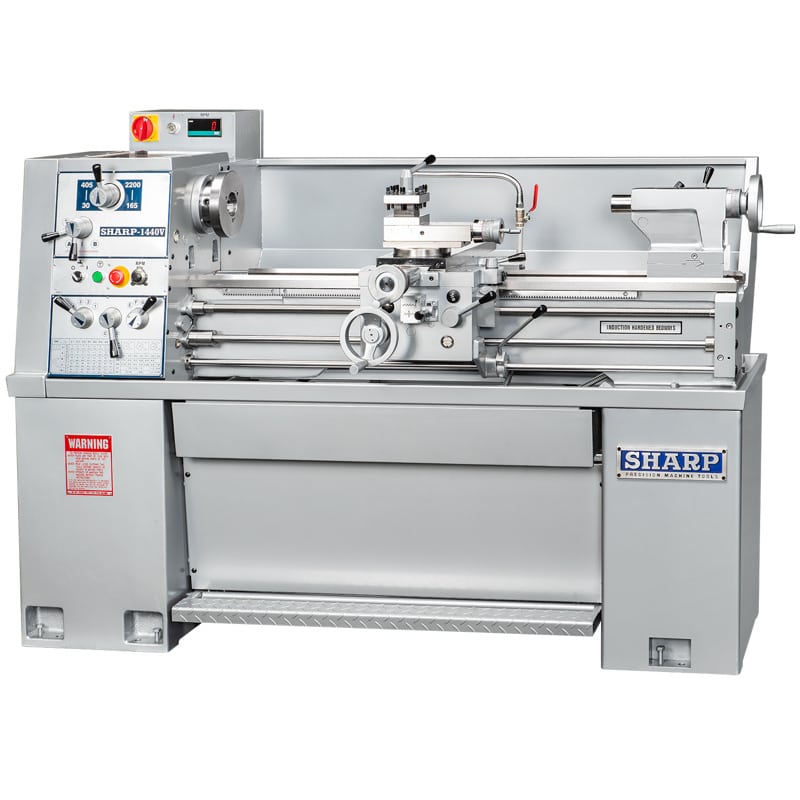

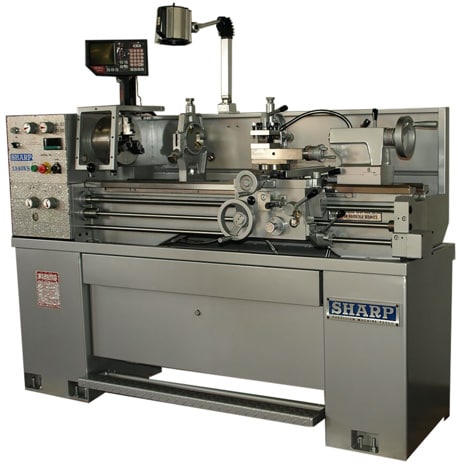

14" x 40" Sharp #1440V, precision lathe, 8.62" swing over cross slide, inch/metric threads, 3-jaw 8" chuck, steady rest

General Info

• Stock #: Sharp-1440V
• Brand: Sharp
• Model: 1440V
• Approx. Shipping Weight: 1650 lbs / 748.42 Kg
• Approx. Shipping Dimensions: 6.29′ L x 2.41′ W x 3.91′ H / 1.95m x 0.73m x 1.19m

Specifications

• Swing Over Bed: 14 in. / 355.6 mm
• Swing Over Cross Slide: 8.62 in. / 218.94 mm
• Swing Over Gap: 20 in. / 508 mm
• Gap Width (In Front Of Face Plate): 9.25 in. / 234.9 mm
• Distance Between Centers: 40 in. / 1016 mm

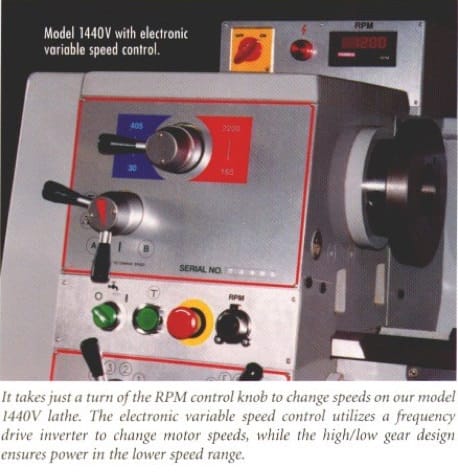

• Spindle Speed: 30 – 2200 RPM
• Spindle Nose: D1-4 camlock
• Spindle Bore: 1.5 in. / 38.1 mm
• Threads (Inch/Metric): 4 – 112 tpi / 0.45 – 7.5 mm (40 / 22)
• Longitudinal Feeds: 0.0012 – 0.03 in./rev / 0.03 – 0.7 mm/rev
• Cross Feeds: 0.0003 – 0.01 in./rev / 0.007 – 0.3 mm/rev
• Leadscrew Pitch, Diameter: 8 tpi, 7/8 in. / 8 tpi, 22.225 mm

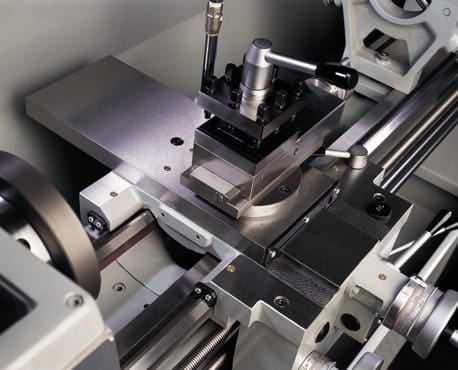

• Cross Slide Travel: 6.6 in. / 167 mm
• Compound Travel: 4 in. / 101.6 mm
• Compound Width: 3.5 in. / 88.9 mm
• Bed Length: 66 in. / 1676.4 mm
• Bed Width: 8.5 in. / 206.24 mm
• Quill Diameter: 1.75 in. / 44.45 mm
• Quill Travel: 4.5 in. / 114.3 mm
• Quill Center Taper: MT #3
• Voltage: 220V/440V
• Phase: 3 phase
• Power Consumption (220V): 3.2 KVA / 10 amps
• Power Consumption (440V): 3.2 KVA / 5 amps
