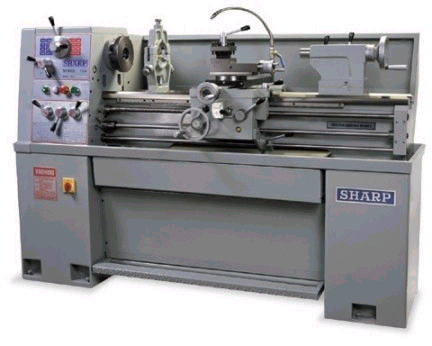

14" x 40" Sharp #1440V, precision variable speed manual engine lathe, 3-Jaw 8" chuck

Manufacturer Sharp
Model 1440V
Swing 14.0"
Centers 40.0"
Stock # 1317

For Sale by Southern Fabricating Mchy Sales

Gold Level Dealer
Surplus Record Dealer Since 2015

Description

14" X 40" Capacity Manual Engine Lathe with 2,200 RPM 3HP, Infinitely Variable Drive, D1-4 Camlock Spindle, 8" 3 Jaw Chuck, Gap Bed Frame, Single or 3 Phase Electrics, Coolant System Foot Brake and Tailstock.


STANDARD EQUIPMENT:

  • 3-Jaw 8" Chuck
  • Steady Rest (Capacity = ¼" – 3-3/4")
  • Coolant System
  • Infinitely Variable Drive
  • Full Length Splash Guard
  • 4-Way Tool Post
  • Removable Bed (GAP)
  • 6" Diameter Backplate
  • Tailstock
  • Threading Dial
  • Foot Brake
  • Center Sleeve (MT #5 x #3)
  • Dead Centers (MT #3)
  • Tool Kit (includes: Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set of 6 Allen wrenches, Phillip Screwdriver, Flat Head Screwdriver, Oil can, Grease Gun, Rear Way Cover Bracket, Pin for Indicator, Can of Paint)

FEATURES:

  • 14"x 40" Capacity
  • 8-5/8" Over Cross Slide

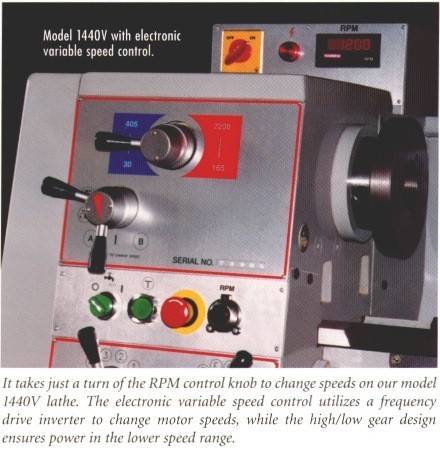

  • Digital Variable Speed control for super-smooth operations.
  • D1-4 Camlock Spindle 1-1/2" Bore
  • Gap Bed
  • 3 HP Motor
  • Hardened and Ground Bedways (Rockwell 50)
  • Larger Compound, Tailstock, and Apron Allow Heavier Cutting with Less Vibration than Competitive Models Vari-Speed, All Geared Headstock Housed inside a Sturdy Cast Iron Base.
  • Quick Change Gearbox Offers a Wide Range of Threads
  • Jog Button for Easy Gear Engagement and Inching Spindle
  • Quick Change Gearbox Offers a Wide Range of Threads

SPECIFICATIONS:

Capacity

Swing Over Bed: 14"

Swing Over Cross Slide: 8-5/8"

Swing Over Gap: 20"

Width Of Bed: 8-1/2"

Width of Gap: 9.25"

Center Height from Top of Compound: 1.5"

Distance Between Centers: 40"


Headstock

Spindle Nose Type: D1-4 camlock

Spindle Bore: 1-1/2"

Spindle Speeds: 30-2,200 RPM

Taper of Spindle Bore: MT#5


Threads and Feeds

Longitudinal Feeds – in/rev (40): 0.0012 - 0.0294"

Cross Feeds – in / rev (40): 0.0003 –0.01"

Inch Threads (40): 4-112 tpi

Metric Threads (22): 0.45 – 7.5mm

Leadscrew Pitch, Diameter: 8 tpi, …ž"


Carriage

Saddle Width: 13.25"

Apron Width: 11"

Cross Slide Width: 6.75"

Cross Slide Travel: 7"

Compound Rest Travel: 4"

Compound Width x Length 3-1/2 x 8-1/2"


Bed

Bed Length: 66"

Bed Width: 8-1/8"


Tailstock

Quill Travel (graduated): 4-1/2"

Quill Diameter: 1-3/4"

Quill Taper: MT#3


General

Spindle Motor: 3 HP

Net Weight (approx.): 1,650 LBS

Standard Color: Gray

Dimensions: 77" x 29" x 55"


Electrical:

Voltage 220 3PH (440 volts optional)

Total Power Consumption 220V 3KVA/10 amps, 440V 3KVA/5 amps


***All Price, Location and Specifications Subject to Change without Notice***

MANY OPTIONS AVAILABLE TO CUSTOMIZE YOUR MACHINE - CALL FOR COMPLETE QUOTATION LISTING ALL AVAILABLE OPTIONS.
