For Sale by Southern Fabricating Mchy Sales
Description

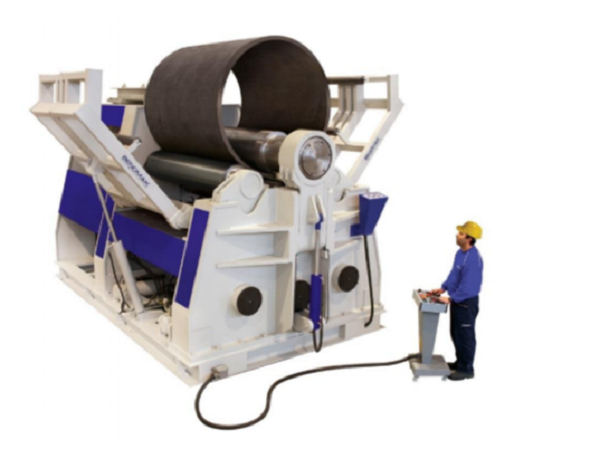

1/2" X 10' 4-Rolls Plate Rolling Machine with Cone Bending Device, Induction Hardened Rolls, Digital Display For Side Rolls, Fully Welded Steel (ST-52) Construction Body, Separate Moving Control Panel, Two Rolling Speeds, Electro-Hydraulic Calibration, All Rolls Are Mounted In Roller Spherical Roller Bearings, Safety Equipment Around The Machine, Central Rolls Are Driven By Hydraulic Motors And Planetary Gearboxes.
GENERAL SPECIFICATIONS
- Working Length: 10’
- Maximum Thickness Pre-Bending: 25/64
- Bending: 1/2
- Yield Point: 240 N/MM2
- Number of Rolls: 4
- Motor Power: 14.75
- Min. Diameter Ø: Top Roll Diameter X 3
- Top Roll Ø: 11.81”
- Bottom Roll Ø: 10.62”
- Side Roll Ø: 8.26”
- Length: 220.47”
- Height: 59.05”
- Width: 70.86”
- Weight: 19400
INCLUDES: Cone Bending Device, Induction Hardened Rolls, Digital Display For Side Rolls, Fully Welded Steel (ST-52) Construction Body, Separate Moving Control Panel, Two Rolling Speeds, Electro-Hydraulic Calibration, All Rolls Are Mounted In Roller Spherical Roller Bearings, Safety Equipment Around The Machine, Central Rolls Are Driven By Hydraulic Motors And Planetary Gearboxes.
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
