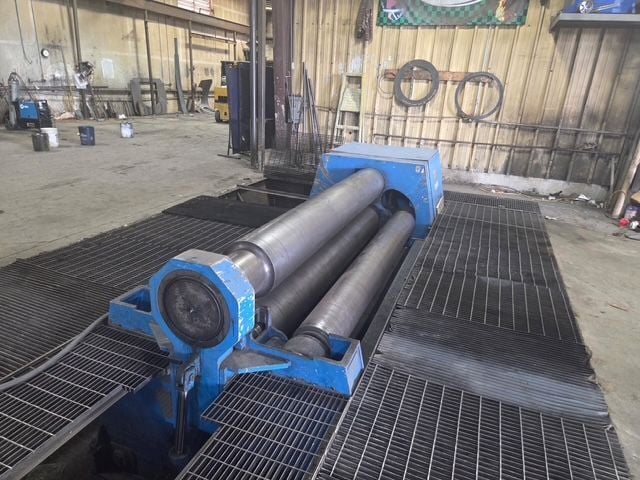

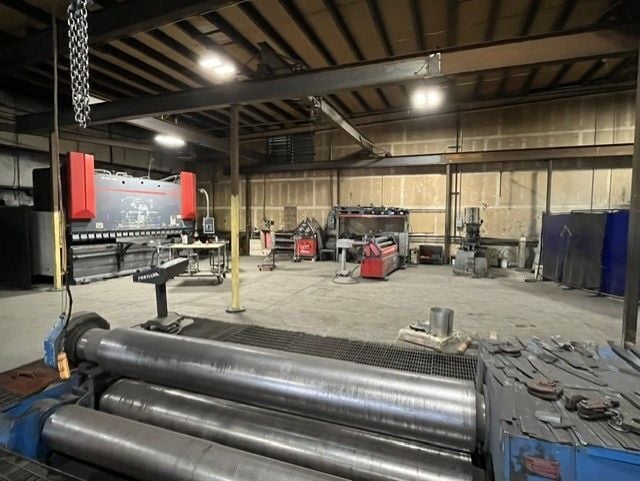

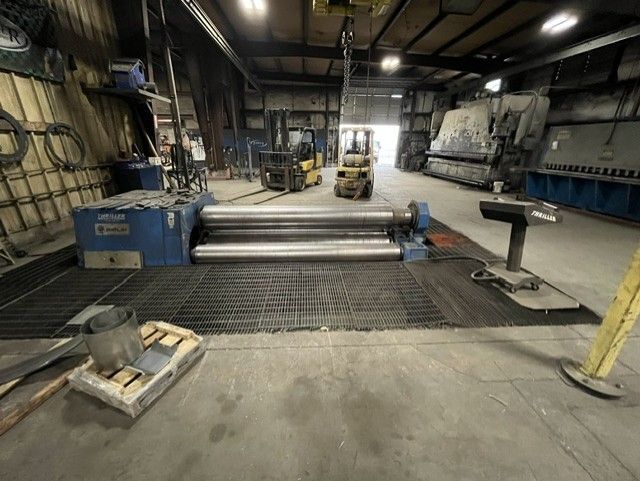

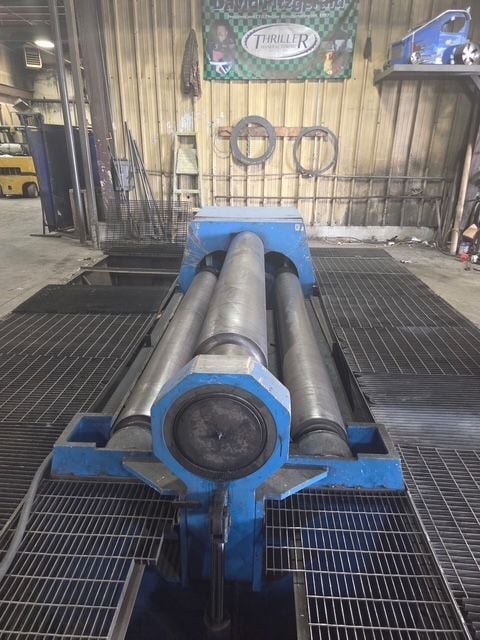

120" x 1" Birlik Durma #HSM-4, Plate Roll, 3/4" pre-bend, 40 HP, 16.5" diameter roll top/bottom, 13" diameter side rolls, 2-1/2" max thru, digital read out, 2008

Overview

Description
Type:
Plate Rollers
Manufacturer:
BIRLIK Durma
Model:
HSM-4
Year:
2008
Description
Number of Rolls 4
Bending Length (L) 10' 2"
Pre-bending Capacity 3/4"
Bending Capacity 1"
Top Roll Diameter 16.54"
Bottom Roll Diameter 16.54"
Side Rolls Diameter 13"
Max. Pass-Through 2-1/2"
Working Height (C) 58.66"
Length (U) 237"
Width (G) 83"
Height (Y) 75"
Weight (Approx.) 47,000 lbs.
Motor Power 40 HP
Power Supply 460V / 3 Phase / 60 Hz (or Request)
Bending Speed Dual Speed
Feeding Rolls 2 Independent planetary gear boxes and hydraulic motors
Roll Housing Spherical roller bearings and bronze housings
Roll Material High tensile carbon steel C45
Roll Hardening Induction hardened 54±2 HRc
Roll Positioning Proportional speed electronic synchronous
Roll Calibration Automatic

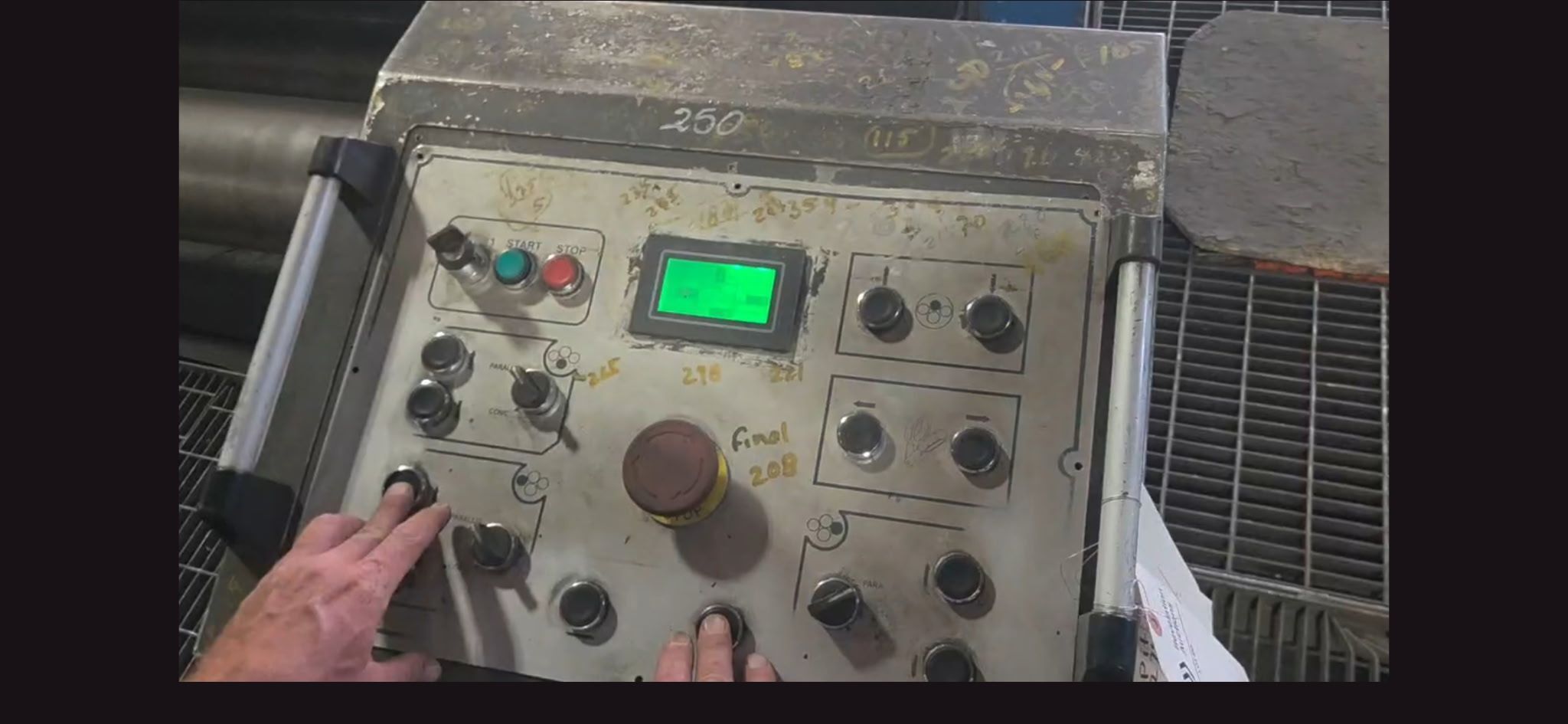

Control Unit DRO
Conical Bending Conical bending device standard
Lubrication Manual and automatic
Specifications
Maximum Plate Width
122"
Top Roll Diameter
16.5"
Bottom Roll Diameter
16.5"
Side Rolls Diameter
13"
Bending Capacity
1"
* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
