For Sale by National Machinery Exchange
Surplus Record Dealer Since 1939
Location: Newark, NJ
Contact Sales / Andreia
Phone Number: 973...> Show Phone Number 973-358-7208
Let the seller know you found their listing on Surplus Record!
Description
SPECIFICATIONS:
MANUFACTURER - STRILICH - BRADBURY
YEAR - 1996
LINE DIRECTION - RIGHT to LEFT
MATERIALS - C.R.S, HRP&O, HOT DIP GALV., ELECTRO GALV., PRE-PAINTED
YIELD STRENGTH - 20,000# PSI MIN., 80,000 PSI MAX.
THICKNESS - .015" MIN., .125" MAX.
COIL WIDTH - 12" MIN., 74" MAX.
COIL WEIGHT - 75,000# MAX.
COIL OUTSIDE DIAMETER - 72" MAX.
COIL INSIDE DIAMETER - 20" TO 24"
BLANK LENGTH - 12" MIN., 180" MAX.
SINGLE BLANK WIDTH - 12" MIN., 74" MAX.
MULTI-BLANK WIDTH - 8" MIN., 36" MAX.

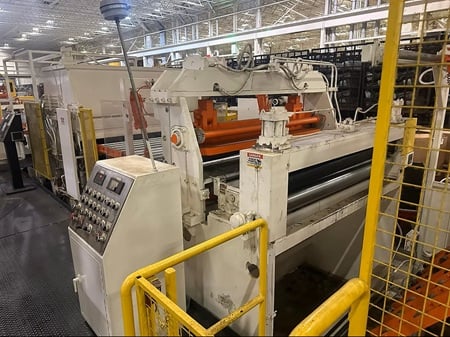

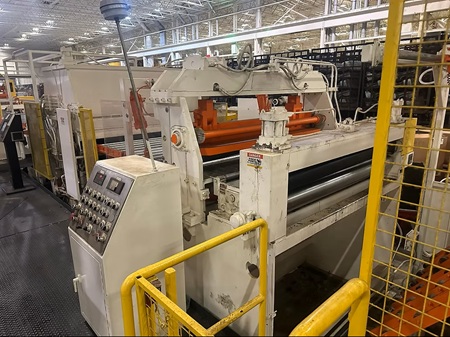

LEVELER TYPE - 17 ROLL BRADBURY, 7 FLIGHT, 4 HIGH, HYDRAULIC DESIGN
SLITTER HEAD TYPE - HALF-HEAD INJECTOR w/ SHUTTLE TRAY
NUMBER OF SLITTER HEADS - TWO (2)
SLITTER ARBOR DIAMETER - 8"
SHEAR TYPE - HIGH SPEED MECHANICAL
ROLL FEEDER TYPE - FULL WIDTH ROLLS, 4 HIGH
STACKER TYPE - AIR FLOAT w/ MECHANICAL DIVIDERS
PACK HEIGHT - 30" MAX. INCLUDING PALLET ESTIMATED
PACK WEIGHT - 20,000# MAX.
LINE SPEED - 250 FPM MAX.
UNCOILER DRIVE - 100 HP UNICO DC FEED-UP DRIVE / DRAG GENERATOR BRAKE
LEVELER DRIVE - 200 HP DC
SLITTER DRIVE - 75 HP DC
SCRAP BALLER DRIVE - AC MOTOR
ROLL FEEDER DRIVE - AC INDUCTION MOTOR
SHEAR DRIVE - 15 HP AC MOTOR
LINE COMPONENTS:
COIL STORAGE SADDLES w/ ONE (1) STORAGE POSITION
END TRAVELING COIL LOADING CAR
AUTOMATIC FEED DUAL EXPANDING MANDREL UNCOILER w/ 100 HP DC FEED-UP DRIVE /
DRAG GENERATOR BRAKE
MACHINE MOUNTED HOLD DOWN ROLL
PIVOTING AND TELESCOPING PEELER BLADE
AUTOMATIC EDGE GUIDE SYSTEM
ENTRY PINCH ROLLS
ROLLER TYPE STRIP CENTERING GUIDES
ENTRY CROP SHEAR w/ THREADING TABLE AND SCRAP CART
LEVELER ENTRY PINCH ROLLS
BRADBURY 17 ROLL, 7 FLIGHT, 4 HIGH, HYDRAULIC LEVELER w/ ??? HP DC DRIVE
STRIP INSPECTION AND CARRY-OVER TABLE
ROLLER TYPE STRIP CENTERING GUIDES
SLITTER BASE AND 75 HP DC DRIVE

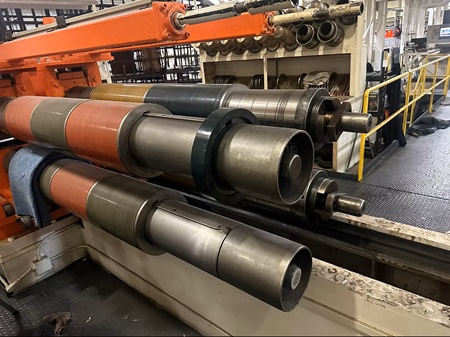

TWO (2) PACKED ARBOR INJECTOR SLITTER HEADS w/ 8" ARBORS
POWERED SLITTER HEAD INJECTOR SYSTEM
SLITTER HEAD STORAGE TRAY w/ TWO (2) STORAGE POSITIONS
ONE (1) LOT of SLITTER AND SEPARATOR TOOLING w/ CABINETS
HEAVY-DUTY EDGE TRIM SCRAP BALLER SYSTEM w/ AC MOTOR
STRIP INSPECTION AND CARRY-OVER TABLE
LOOPING PIT QUADRANT TABLES w/ BELT STYLE THREADING TABLE
ROLLER TYPE STRIP CENTERING GUIDES w ENTRY STRIP SEPARATOR SPINDLE AND
ADJUSTABLE STRIP BRIBLE ROLL ASSEMBLY
FULL WIDTH, 4 HIGH ROLL FEEDER
HIGH SPEED MECHANICAL SHEAR w/ AC MOTOR
PIVOTING BELT CONVEYOR FOR INSPECTION AND TRANSPORTING BLANKS INTO STACKER (OR
SCRAP CART)
BELT CONVEYOR MOUNTED TRAVERSING BLANK HOLD-DOWN SYSTEM
BELT CONVEYOR MOUNTED STACKER FEED ROLLS
15 FOOT NOMINAL AIR FLOAT STACKER w/ AIR BLOWER AND EIGHT (8) ADJUSTABLE STRIP
DIVIDERS
15 FOOT NOMINAL POWERED SKID INJECTOR
15 FOOT NOMINAL ELEVATING STACKER LIFT TABLE w/ END DISCHARGE ROLLERS
20 FOOT NOMINAL PACKAGE RUNOUT w/ END DISCHARGE ROLLERS AND SCALE
OPERATOR CONTROL STATIONS
AC CONTROLS
VARIABLE SPEED DRIVE CONTROLS
CLOSED LOOP HYDRAULIC SYSTEM
MANUFACTURER - STRILICH - BRADBURY
YEAR - 1996
LINE DIRECTION - RIGHT to LEFT
MATERIALS - C.R.S, HRP&O, HOT DIP GALV., ELECTRO GALV., PRE-PAINTED
YIELD STRENGTH - 20,000# PSI MIN., 80,000 PSI MAX.
THICKNESS - .015" MIN., .125" MAX.
COIL WIDTH - 12" MIN., 74" MAX.
COIL WEIGHT - 75,000# MAX.
COIL OUTSIDE DIAMETER - 72" MAX.
COIL INSIDE DIAMETER - 20" TO 24"
BLANK LENGTH - 12" MIN., 180" MAX.
SINGLE BLANK WIDTH - 12" MIN., 74" MAX.
MULTI-BLANK WIDTH - 8" MIN., 36" MAX.
LEVELER TYPE - 17 ROLL BRADBURY, 7 FLIGHT, 4 HIGH, HYDRAULIC DESIGN
SLITTER HEAD TYPE - HALF-HEAD INJECTOR w/ SHUTTLE TRAY
NUMBER OF SLITTER HEADS - TWO (2)
SLITTER ARBOR DIAMETER - 8"
SHEAR TYPE - HIGH SPEED MECHANICAL
ROLL FEEDER TYPE - FULL WIDTH ROLLS, 4 HIGH
STACKER TYPE - AIR FLOAT w/ MECHANICAL DIVIDERS
PACK HEIGHT - 30" MAX. INCLUDING PALLET ESTIMATED
PACK WEIGHT - 20,000# MAX.
LINE SPEED - 250 FPM MAX.
UNCOILER DRIVE - 100 HP UNICO DC FEED-UP DRIVE / DRAG GENERATOR BRAKE
LEVELER DRIVE - 200 HP DC
SLITTER DRIVE - 75 HP DC
SCRAP BALLER DRIVE - AC MOTOR
ROLL FEEDER DRIVE - AC INDUCTION MOTOR
SHEAR DRIVE - 15 HP AC MOTOR
LINE COMPONENTS:
COIL STORAGE SADDLES w/ ONE (1) STORAGE POSITION
END TRAVELING COIL LOADING CAR
AUTOMATIC FEED DUAL EXPANDING MANDREL UNCOILER w/ 100 HP DC FEED-UP DRIVE /
DRAG GENERATOR BRAKE
MACHINE MOUNTED HOLD DOWN ROLL
PIVOTING AND TELESCOPING PEELER BLADE
AUTOMATIC EDGE GUIDE SYSTEM
ENTRY PINCH ROLLS
ROLLER TYPE STRIP CENTERING GUIDES
ENTRY CROP SHEAR w/ THREADING TABLE AND SCRAP CART
LEVELER ENTRY PINCH ROLLS
BRADBURY 17 ROLL, 7 FLIGHT, 4 HIGH, HYDRAULIC LEVELER w/ ??? HP DC DRIVE
STRIP INSPECTION AND CARRY-OVER TABLE
ROLLER TYPE STRIP CENTERING GUIDES
SLITTER BASE AND 75 HP DC DRIVE
TWO (2) PACKED ARBOR INJECTOR SLITTER HEADS w/ 8" ARBORS
POWERED SLITTER HEAD INJECTOR SYSTEM
SLITTER HEAD STORAGE TRAY w/ TWO (2) STORAGE POSITIONS
ONE (1) LOT of SLITTER AND SEPARATOR TOOLING w/ CABINETS
HEAVY-DUTY EDGE TRIM SCRAP BALLER SYSTEM w/ AC MOTOR
STRIP INSPECTION AND CARRY-OVER TABLE
LOOPING PIT QUADRANT TABLES w/ BELT STYLE THREADING TABLE
ROLLER TYPE STRIP CENTERING GUIDES w ENTRY STRIP SEPARATOR SPINDLE AND
ADJUSTABLE STRIP BRIBLE ROLL ASSEMBLY
FULL WIDTH, 4 HIGH ROLL FEEDER
HIGH SPEED MECHANICAL SHEAR w/ AC MOTOR
PIVOTING BELT CONVEYOR FOR INSPECTION AND TRANSPORTING BLANKS INTO STACKER (OR
SCRAP CART)
BELT CONVEYOR MOUNTED TRAVERSING BLANK HOLD-DOWN SYSTEM
BELT CONVEYOR MOUNTED STACKER FEED ROLLS
15 FOOT NOMINAL AIR FLOAT STACKER w/ AIR BLOWER AND EIGHT (8) ADJUSTABLE STRIP
DIVIDERS
15 FOOT NOMINAL POWERED SKID INJECTOR
15 FOOT NOMINAL ELEVATING STACKER LIFT TABLE w/ END DISCHARGE ROLLERS
20 FOOT NOMINAL PACKAGE RUNOUT w/ END DISCHARGE ROLLERS AND SCALE
OPERATOR CONTROL STATIONS
AC CONTROLS
VARIABLE SPEED DRIVE CONTROLS
CLOSED LOOP HYDRAULIC SYSTEM
