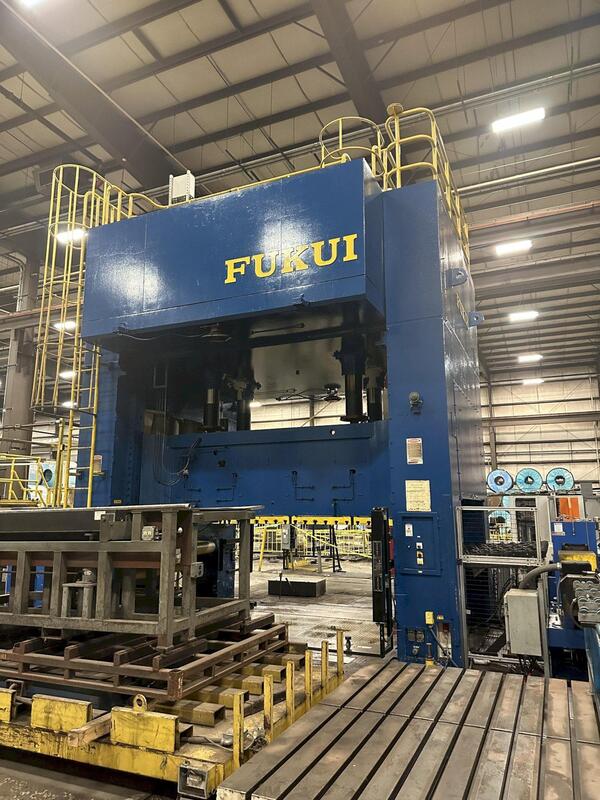

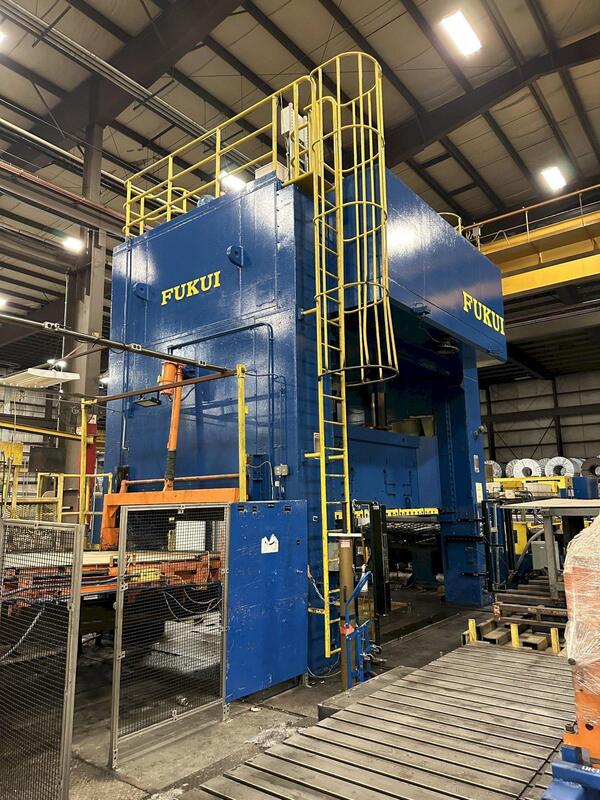

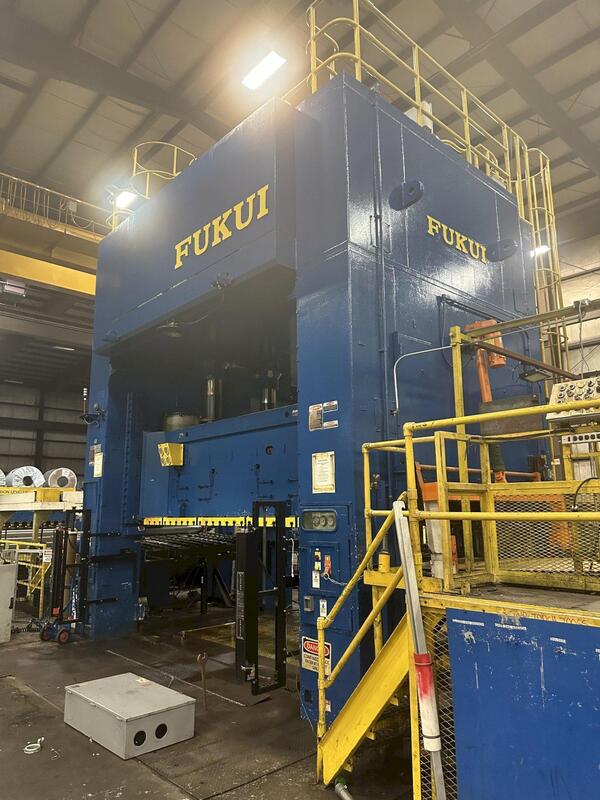

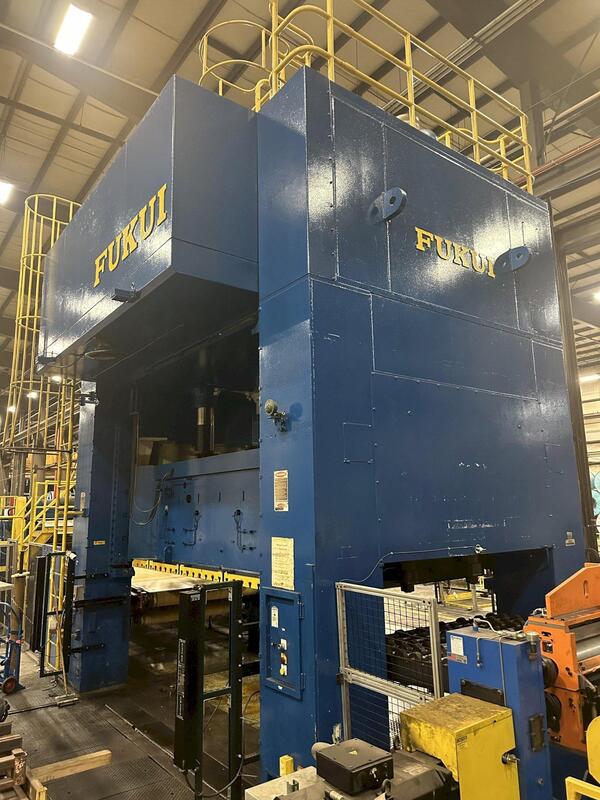

.090" x 72" Fukui, press blanking line, 400 ton, 70000 lb., servo feedline w/Hervoss leveler

PRESS:
YEAR..............................: 1987
CAPACITY..........................: 400 TON
STROKE............................: 10"
SHUT-HEIGHT.......................: 53"
ADJUSTMENT........................: 13.8"
STROKES PER MINUTE................: 15-60 VARIABLE
BED SIZE..........................: 157"(L-R) X 98"(F-B)

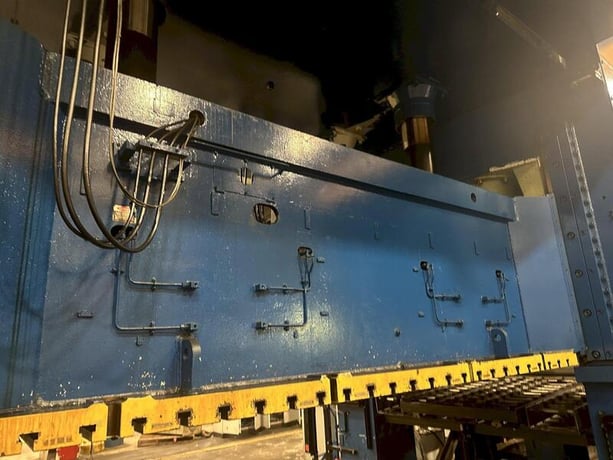

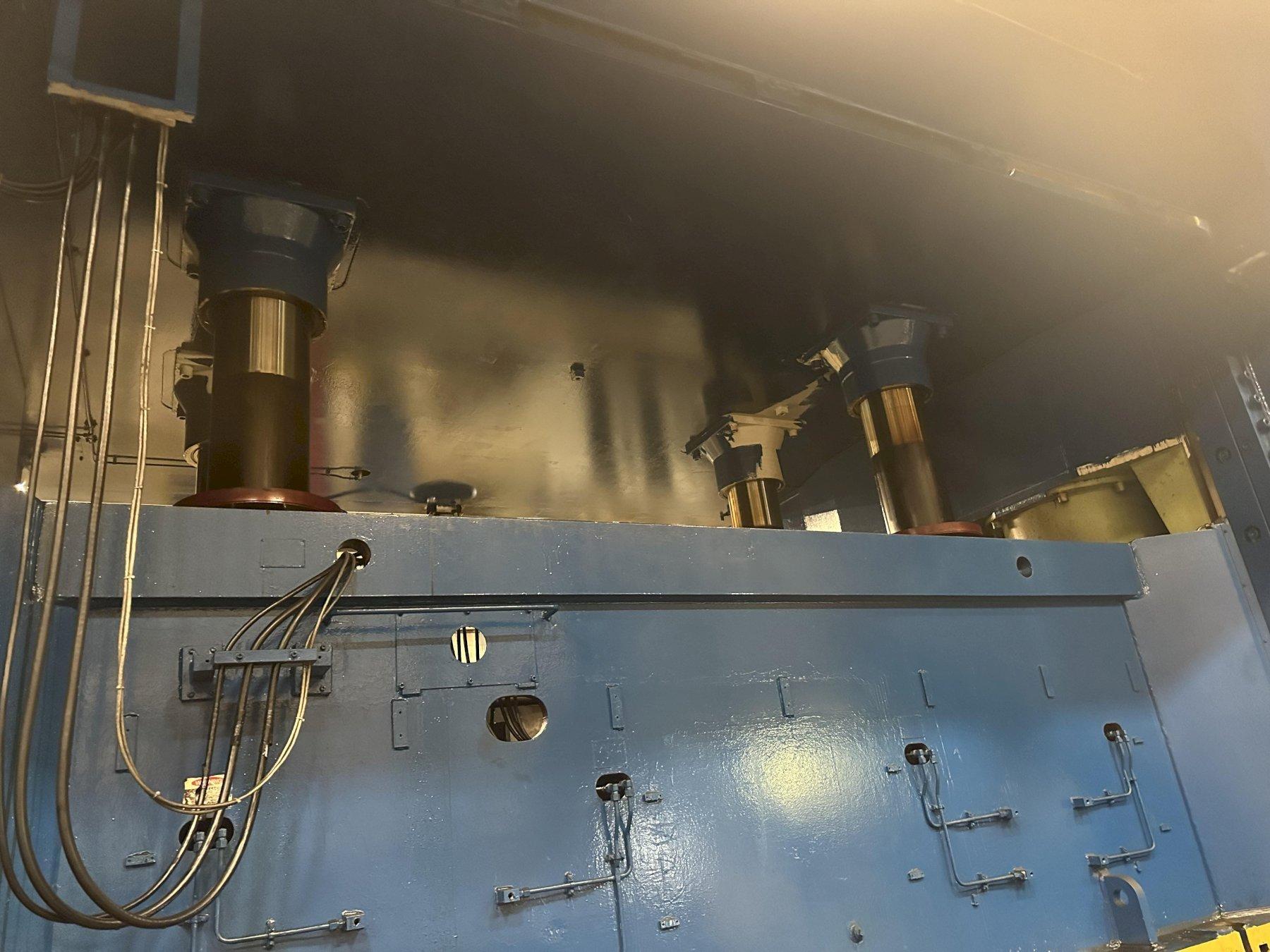

RAM SIZE..........................: 157"(L-R) X 98"(F-B)
WINDOW OPENING....................: 94"
MOTOR HP..........................:
MOVING BOLSTER....................: YES,QTY(2)

FEED SYSTEM:
PIT COIL CAR......................: YES
DOUBLE STUB UNCOILER..............: YES
CAPACITY..........................: 70,000 LBS
HYDRAULIC EXPANSION...............: YES
EXPANSION RANGE...................: 20" - 24"
COIL O.D. CAPACITY................: 86"
HOLD DOWN ROLL....................: YES
DRIVE MOTOR.......................: 15 HP DC
SLIDING BASE ON EACH HEAD.........: YES
PEELER/PINCH ROLL UNIT............: YES
CROP SHEAR........................: YES
HYDRAULIC DOWNCUT TYPE............: YES


LOOPING PIT

ROLL FEED UNIT
FEEDING LENGTH....................: 2" MIN TO 120" MAX
LINE SPEED........................: APPROX 80 IN/MIN

AUTOMATIC FEED CO STACKERS
MAGNETIC BRIDGE CONVEYOR..........: YES
# OF STACKING STATIONS............: 2
BLANK STACKER STATION 1:
WIDTH OF BLANKS...................: 16" MIN TO 72" MAX
LENGTH OF BLANKS..................: 8" MIN TO 126" MAX
BLANK STACKER STATION 2:
WIDTH OF BLANKS...................: 16" MIN TO 72" MAX
LENGTH OF BLANKS..................: 8" MIN TO 157" MAX
MAX BLANK STACK WEIGHT............: 15,000 LBS
REJECT STACKER....................: YES
RUNOUT CONVEYOR...................: YES

LINE EQUIPPED WITH UPGRADED TOLEDO INTEGRATED TECHNOLOGIES CONTROL IN 2015

NOTE*
FEED LINE, PRESS, AND STACKER UNITS HAVE INDEPENDENT CONTROLS.

Specifications
Machine Type...	...Presses, Blanking
Manufacturer...	...FUKUI
Model...	...N/A
Year...	...N/A
Condition...	...Used
