17 Results
6" x 18" Hardinge #DSM-59, Shop Lathe, collet chuck, tailstock, 1 HP
G-2000 | Toledo, OH
Category: Precision and Second Operation Lathes
Seller: G-2000
Location: Toledo, OH
Mfr: Hardinge
Model: DSM-59
Swing Over Bed.:9″, Distance Between Centers.:36″, Travel Double Tool Cross Slide.:3 3/4″, Travel of Turret Slide.:4″, Diameter of Turret Holes.:3/4″, Motor.:1 HP, DIMENSIONS.:72″ x 36″ x 60″, WEIGHT.:1,000 LBS., COLLET CHUCK.:YES, TAILSTOCK.:YES, Machine Type.Lathes ...more
8" x 20" Hardinge #DSM-59, Lathe, 1 HP, 440 V.
HGR24 | Euclid, OH
Category: Precision and Second Operation Lathes
Seller: HGR24
Location: Euclid, OH
Mfr: Hardinge
Model: DSM 59
1 HP, 9 KVA TRANSFORMER, 1” BORE.
9" x 17" Hardinge #DV-59, lathe, 6" swing over cross slide, 5C collet nose, 1 HP, 150-3500 RPM, #54467
Yoder Machinery Sales | Holland, OH
Category: Precision and Second Operation Lathes
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Hardinge
Model: DV-59
SERIAL. DV-59-13245, MODEL. DV-59, SWING OVER BED. 9", SWING OVER CROSS SLIDE. 6", DISTANCE BETWEEN CENTER. 17", SPINDLE SPEEDS. 150 TO 3500 RPM, TOP SLIDE TRAVEL. 5", BOTTOM SLIDE TRAVEL. 4-1/2", COLLECT NOSE. 5C, MOTOR HORSEPOWER. 1.
9" x 18" Victor #618EVS, precision engine lathe, 6" swing over cross slide, inch/metric, 2-Axis Newall DP700 digital read out, 3 HP
Yoder Machinery Sales | Holland, OH
Category: Precision and Second Operation Lathes
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Victor
Model: 618EVS
SERIAL. 103041210, MODEL. 618EVS, YEAR NEW., SWING OVER BED. 11", SWING OVER CARRIAGE. 9", SWING OVER CROSS SLIDE. 6", DISTANCE BETWEEN CENTERS. 18", SPINDLE SPEEDS VARIABLE. 0 TO 4000 RPM, DIAMETER OF SPINDLE HOLE. 1-1/4", THREADS ENGLISH. 11 TO 108 TPI, THREADS METRIC. 0.275 TO 2.7MM, CROSS SLIDE POWER FEED. 3/16" ...more
9" x 36" Hardinge #DSM-59R, second operation lathe, double tool cross slide, turret, 5C closer, 1 HP
C.W. Wood Machinery Inc | Cincinnati, OH
Category: Precision and Second Operation Lathes
Seller: C.W. Wood Machinery Inc
Location: Cincinnati, OH
Mfr: Hardinge
Model: DSM-59R
HARDINGE SECOND OPERATION LATHE, MODEL: DSM59-R, SERIAL NUMBER: V-59-15112, Swing Over Bed: 9", Length Of Bed: 36", Spindle Speeds: (10) 450 - 4000 RPM, Travel Of Double Tool Cross Slide: 3-3/4", Travel Of Turret Slide: 4", Diameter Of Turret Holes: 5/8", Spindle Capacity, With Round 5C Collets: 1-1/16", With Hexagon ...more
Get email updates for newly added Precision and Second Operation Lathes
Precision lathes are high-accuracy machines used for fine, detailed work requiring tight tolerances and smooth finishes, often in industries like aerospace and watchmaking. Second operation lathes, also known as capstan or turret lathes, are used in mass production to perform additional machining tasks on already partially machined parts, allowing for efficient and repetitive operations without extensive retooling.
9" x 36" Hardinge #DSM59, shop lathe, 3/4" hole, collet chuck, tailstock
G-2000 | Toledo, OH
Category: Precision and Second Operation Lathes
Seller: G-2000
Location: Toledo, OH
Mfr: Hardinge
Model: DSM59
SWING OVER BED.:9″, DISTANCE BETWEEN CENTERS.:36″, TRAVEL DOUBLE TOOL CROSS SLIDE.:3 3/4″, TRAVEL OF TURRET SLIDE.:4″, DIAMETER OF TURRET HOLES.:3/4″, Motor.:1 HP, DIMENSIONS.:72″ x 36″ x 60″, WEIGHT.:1,000 LBS., COLLET CHUCK.:YES, TAILSTOCK.:YES, Machine Type.Lathes ...more
10" x 20" Hardinge #HLV-H, precision lathe, 2" bore, 1.5 HP, tailstock,
HGR24 | Euclid, OH
Category: Precision and Second Operation Lathes
Seller: HGR24
Location: Euclid, OH
Mfr: Hardinge
Model: HLV-H
1.5 HP, TOOL POST, TAIL STOCK, NO CHUCK, 2” BORE.

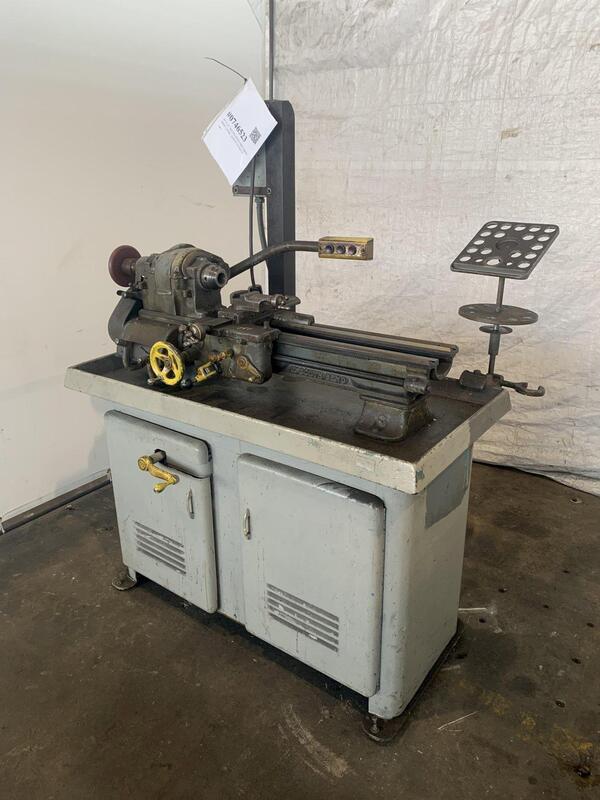

10" x 22" South Bend, Precision Shop Lathe, 1" spindle hole, collect chuck
G-2000 | Toledo, OH
Category: Precision and Second Operation Lathes
Seller: G-2000
Location: Toledo, OH
Mfr: South Bend
1" SPINDLE HOLE, COLLET CHUCK, Machine Type.Lathes, Precision Manufacturer.SOUTH BEND Model.N/A Year.N/A Condition.Used.

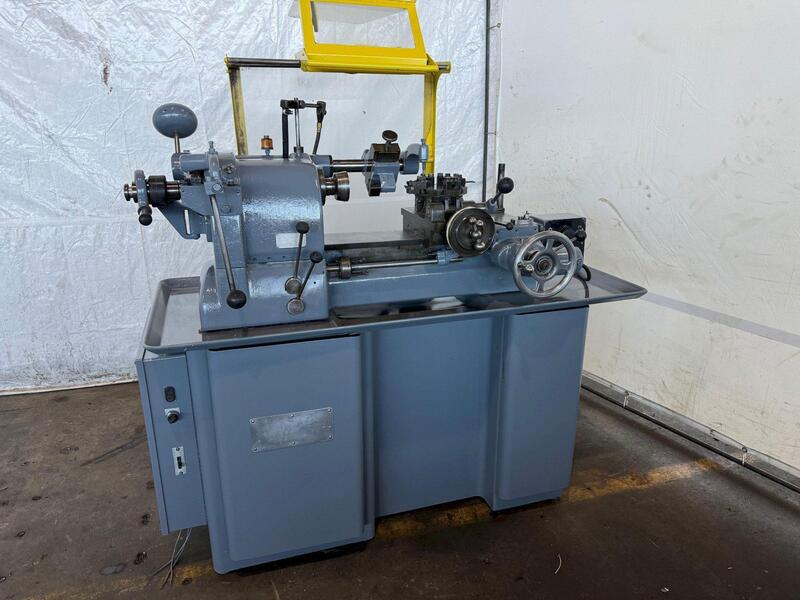

11" x 18" Hardinge #HC, Turret Lathe, 125-3000 RPM, 1-1/4" hole thru spindle, 11-108 TPI thread range
G-2000 | Toledo, OH
Category: Precision and Second Operation Lathes
Seller: G-2000
Location: Toledo, OH
Mfr: Hardinge
Model: HC
MAXIMUM SWING OVER BED. 11" DISTANCE BETWEEN CENTERS. 18" SPINDLE SPEEDS - VARIABLE. 125 TO 3000 RPM HOLE THRU SPINDLE. 1-1/4" COMPOUND SLIDE TRAVEL. 3" POWER FEED RANGE. 1/4" TO 7" PER MIN THREAD RANGE. (27) 11 TO 108 TPI MOTOR. 1 HORSEPOWER, Machine Type.Lathes, Turret Manufacturer.HARDINGE Model.N/A Year.N/A ...more

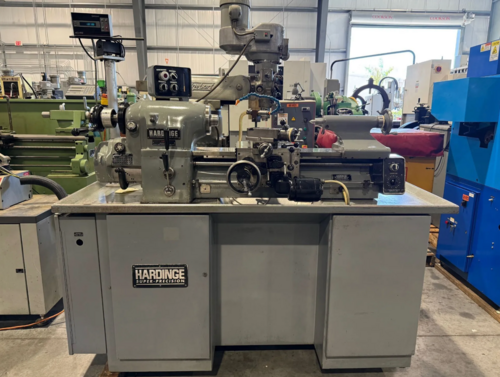

11" x 18" Hardinge #HLV-H, Precision Lathe, 6" socs, 125-3000 RPM, 3-Axis Acurite digital read out, 1997
Toolquip Inc | Lebanon, OH
Category: Precision and Second Operation Lathes
Seller: Toolquip Inc
Location: Lebanon, OH
Mfr: Hardinge
Model: HLV-H
Year: 1997
1997 HARDINGE HLV-H Precision Lathe, spindle speeds of 125-3,000 RPM, plus a 3-axis ACURITE DRO. Weighs 1,750 lbs with dimensions of 70"L x 30"W x 60"H., Spindle construction- HARDINGE ball bearing, Spindle nose- HARDINGE taper, Spindle capacity with round type 5C collets- 1-1/16", Spindle capacity with step chucks- ...more
11" x 18" Sharp #H1118, precision lathe, 6" swing over cross slide, inch/metric threads, 3-jaw 6" chuck, 5C collet
Yoder Machinery Sales | Holland, OH
Category: Precision and Second Operation Lathes
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Sharp
Model: H1118
SERIAL. P8503082MODEL. 1118HSWING OVER WAYS. 11"SWING OVER CROSS SLIDE. 6"DISTANCE BETWEEN CENTERS. 18"SPINDLE SPEEDS. 50 TO 4000 RPM VARIABLEENGLISH THREADS. 11 TO 108 THREADS PER INCHMETRIC THREADS. 0.275 TO 2.7 PITCH IN MMSPINDLE HOLE. 1-1/4"CHUCKS. 6" 3 JAWCOLLET. 5CSTEADY REST. 3" 3 POINTTRAVEL DIAL. YESHARDIGE ...more
11" x 18" Victor #618EVS, precision lathe, collet chuck, 4000 RPM, compound cross slide, tailstock, 2005
Great American Eqpt Co | Cincinnati, OH
Category: Precision and Second Operation Lathes
Seller: Great American Eqpt Co
Location: Cincinnati, OH
Mfr: Victor
Model: 618EVS
Year: 2005
6" x 18" VICTOR 618EVS PRECISION TOOLROOM LATHE, DRO, 11" Swing Over Bed, 6" Swing Over Cross Slide, 18" Between Centers, Collet Chuck, Compound Cross Slide, 4000 RPM Variable Speed Spindle, 3 HP, New 2005., 2005 Victor 618EVS, Digital Read Out, 5C Collet Chuck, Variable Frequency Spindle (4,000 RPM), Compound Cross ...more
11" x 20" Victor #618EM, precision engine lathe, 3-jaw chuck, inch/metric threading, 1 HP
Yoder Machinery Sales | Holland, OH
Category: Precision and Second Operation Lathes
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Victor
Model: 618EM
SERIAL. 31099, MODEL. 618EM, SWING OVER BED. 11", SWING OVER CARRAIGE. 9", DISTANCE BETWEEN CENTERS. 20", SPINDLE SPEEDS. 130 TO 3000, CHUCK. 3 JAW, COUMPOUND TRAVLE. 3", CARRIAGE FEED RANGE. 5/16 TO 7 IPM, CROSS SLIDE FEED. 3/16/ TO 4IPM, THREADING. ENGLISH & METRIC, MAIN MOTO HORSEPOWER. 1.
10" Monarch EE
Monarch Lathes | Sidney, OH
Category: Precision and Second Operation Lathes
Seller: Monarch Lathes
Location: SIDNEY, OH
Mfr: Monarch
Model: EE
Year: 2025
This is a completely remanufactured Monarch 10" EE 20" version back to the OEM by the same company that made the EE famous. And it's all done at the same location it was originally built years ago. It has a reground bed and carriage, reground headstock spindle, nose, face, and bore with new bearings. Chromed and ...more
12.5" x 20" Monarch #10EE, precision toolroom lathe, electric leadscrew reverse, collet chuck, some collets
Mohawk Machinery Inc | Cincinnati, OH
Category: Precision and Second Operation Lathes
Seller: Mohawk Machinery Inc
Location: Cincinnati, OH
Mfr: Monarch
Model: 10EE
12.5" x 20" MONARCH "10EE" PRECISION TOOLROOM LATHE - Electric Leadscrew Reverse - Collet Chuck - Some Collets - Aloris Tool Post, 12.5" x 20" MONARCH "10EE" PRECISION TOOLROOM LATHE, Serial No 49601, Model 10EE, Electric Leadscrew Reverse, Collet Chuck - Some Collets, Aloris Tool Post - (5) Tool Holders, Flame ...more
12.5" x 20" Monarch #10EE, toolroom precision engine lathe with taper attachment, 12.5" swing, 7.25" swing over cross slide, 20" cc, 5 HP
Mohawk Machinery Inc | Cincinnati, OH
Category: Precision and Second Operation Lathes
Seller: Mohawk Machinery Inc
Location: Cincinnati, OH
Mfr: Monarch
Model: 10EE
12.5" X 20" MONARCH 10EE TOOLROOM PRECISION ENGINE LATHE - Taper Attachment - Collet Chuck, 12.5" x 20" MONARCH "TOOLROOM" PRECISION ENGINE LATHE, Serial No EE44043, Model 10EE, Series Toolroom, Taper Attachment - Collet Chuck, Flame Hardened & Ground Bed Ways, Coolant System, CATALOG :, Hole Thru Spindle 1.41" ...more
Hardinge, precision turret lathe, serial #1755-1, #16101
Yoder Machinery Sales | Holland, OH
Category: Precision and Second Operation Lathes
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Hardinge
SERIAL #. 1755-1.
