For Sale by Great American Eqpt Co
Surplus Record Dealer Since 1991
Location: Cincinnati, OH
Contact Sales Dept.
Phone Number: 513...> Show Phone Number 513-771-2111
Let the seller know you found their listing on Surplus Record!
Description

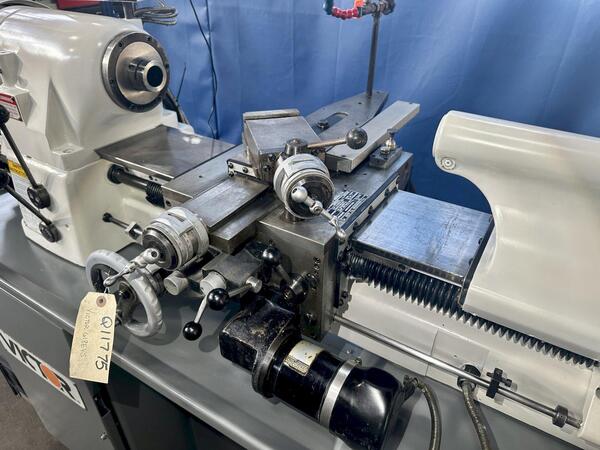

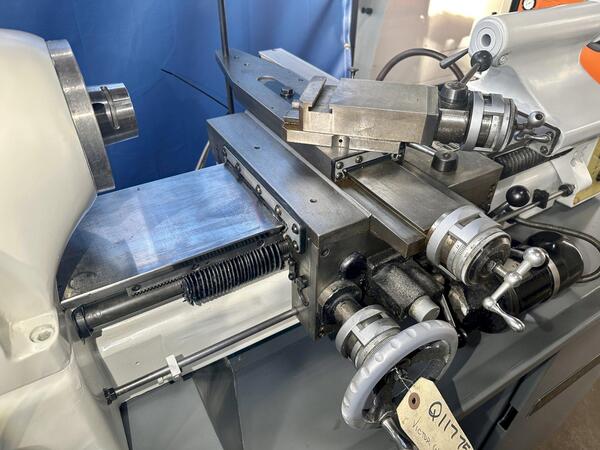

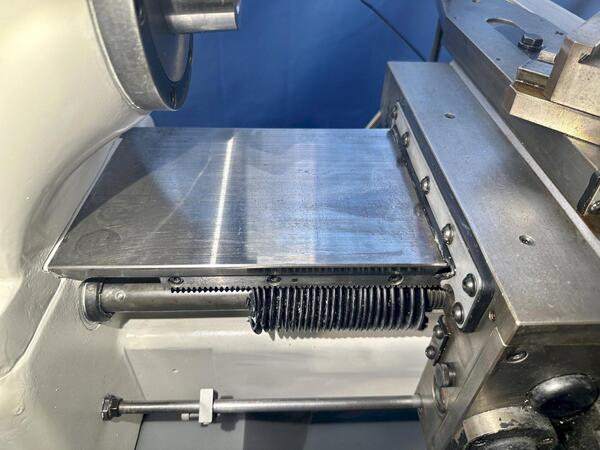

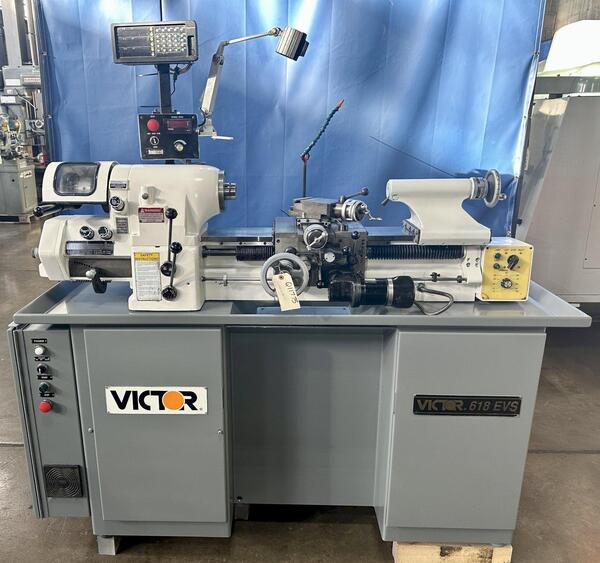

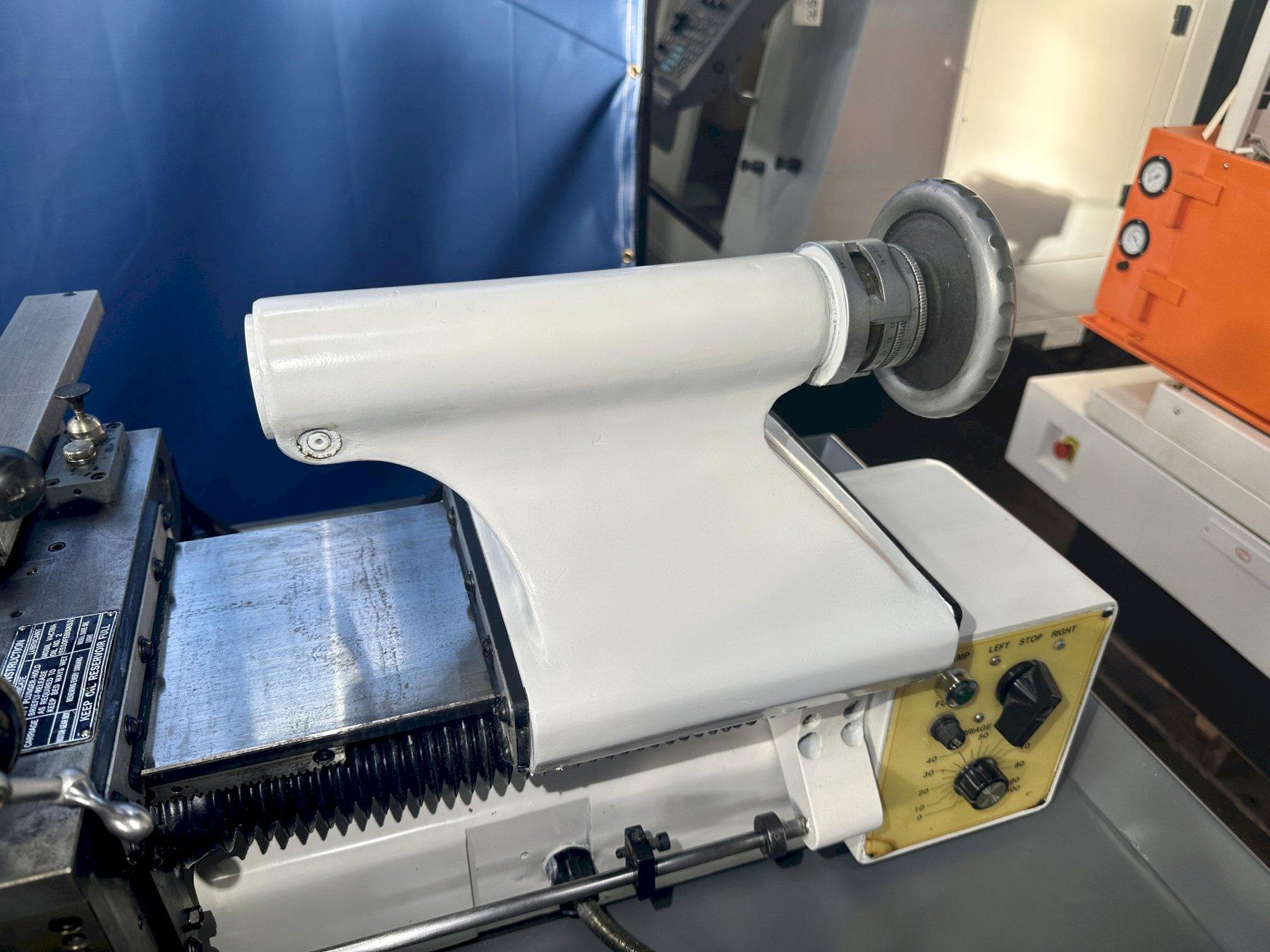

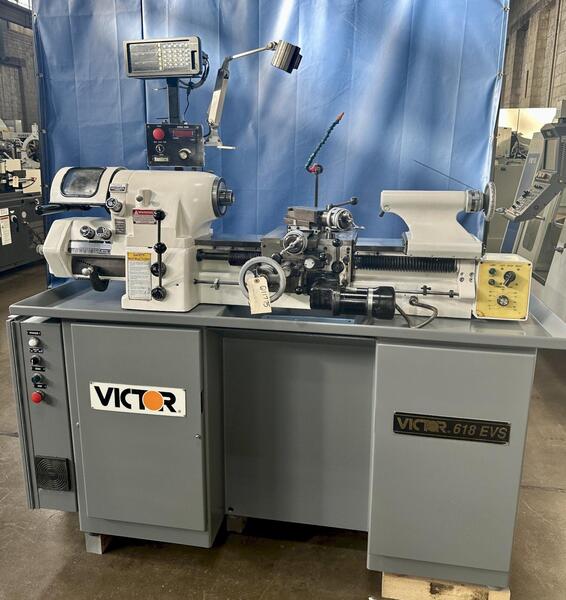

6" x 18" VICTOR 618EVS PRECISION TOOLROOM LATHE, DRO, 11" Swing Over Bed, 6" Swing Over Cross Slide, 18" Between Centers, Collet Chuck, Compound Cross Slide, 4000 RPM Variable Speed Spindle, 3 HP, New 2005.
2005 Victor 618EVS
EQUIPPED WITH:

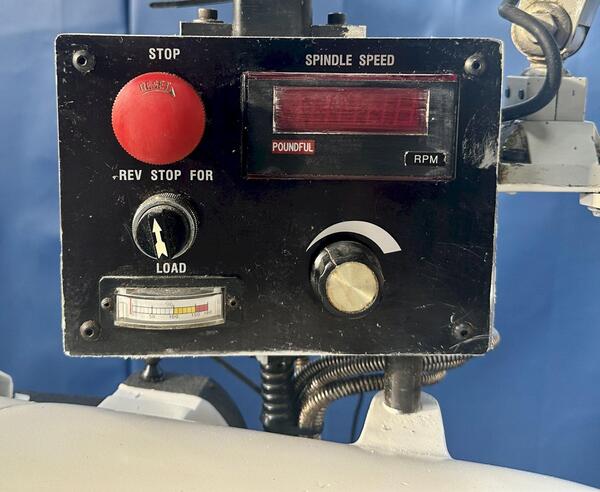

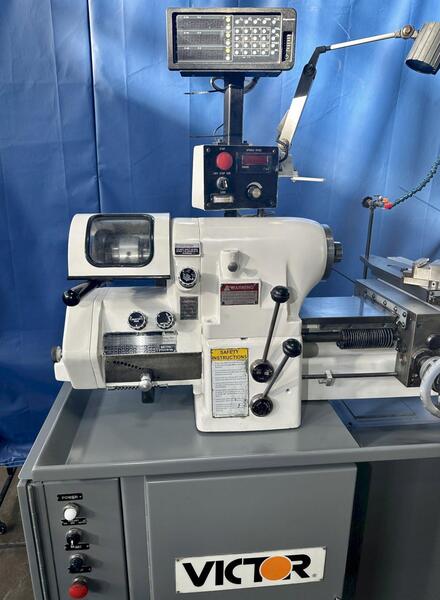

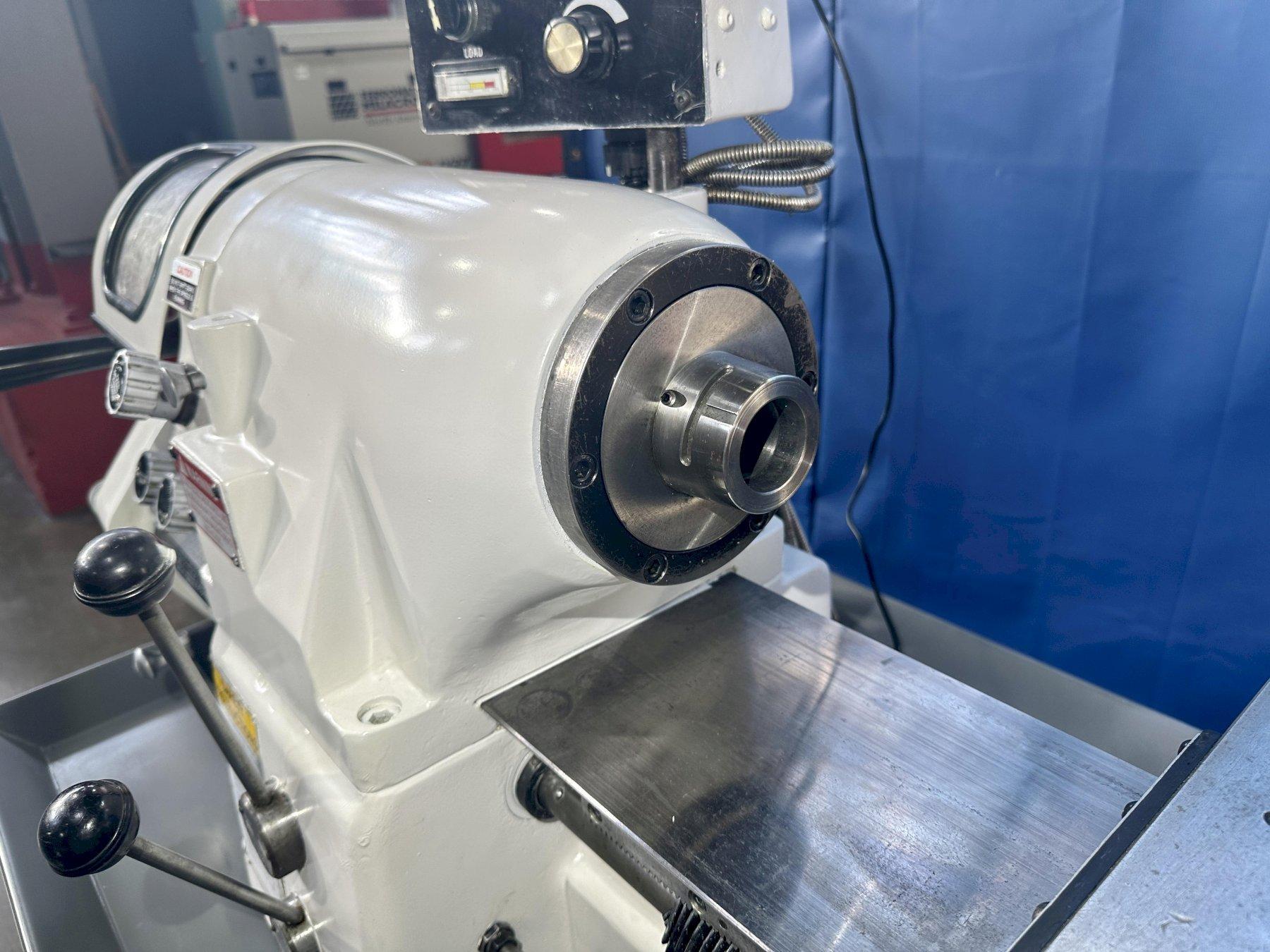

Digital Read Out, 5C Collet Chuck, Variable Frequency Spindle (4,000 RPM), Compound Cross Slide, English and Metric Threading, Coolant Pump.
* High Quality Precision Tool Room Lathe, similar to a Monarch EE
SPECIFICATIONS:
Max Swing Over Bed.................................. 11"
Max Swing Over Carriage............................. 9"
Max Swing Over Cross Slide.......................... 6"
Distance Between Centers............................ 18"
Spindle Thru Hole Capacity with Round Collets....... 1-1/16" (Round 5C Collet)
Spindle Thru Hole Capacity with Hex Collets......... 0.875"
Spindle Thru Hole Capacity with Square 5C Collets... 1.25"
Spindle Speed Range................................. 1 - 3,000 RPM for 6" 3-Jaw Chuck / 1 - 4,000 RPM for 5C Collet
Max Spindle Speed for Chuck......................... 3,000 RPM
Max Spindle Speed for Collet........................ 4,000 RPM

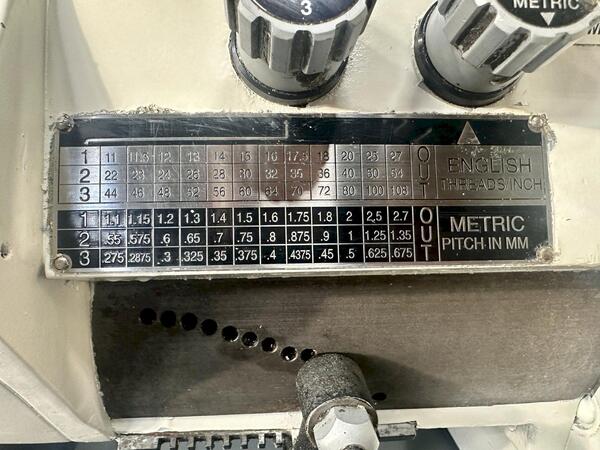

# of Threads - Inch................................. 36
Inch Threads........................................ 11 - 108 TPI
Tailstock Spindle Travel............................ 3.75"
Tailstock Taper..................................... #2 MT
Motor Power......................................... 3 hp
Electric............................................ 220/3/60
Dimensions.......................................... 73" x 30" x 67"
Weight.............................................. 2,530 lbs
2005 Victor 618EVS
EQUIPPED WITH:
Digital Read Out, 5C Collet Chuck, Variable Frequency Spindle (4,000 RPM), Compound Cross Slide, English and Metric Threading, Coolant Pump.
* High Quality Precision Tool Room Lathe, similar to a Monarch EE
SPECIFICATIONS:
Max Swing Over Bed.................................. 11"
Max Swing Over Carriage............................. 9"
Max Swing Over Cross Slide.......................... 6"
Distance Between Centers............................ 18"
Spindle Thru Hole Capacity with Round Collets....... 1-1/16" (Round 5C Collet)
Spindle Thru Hole Capacity with Hex Collets......... 0.875"
Spindle Thru Hole Capacity with Square 5C Collets... 1.25"
Spindle Speed Range................................. 1 - 3,000 RPM for 6" 3-Jaw Chuck / 1 - 4,000 RPM for 5C Collet
Max Spindle Speed for Chuck......................... 3,000 RPM
Max Spindle Speed for Collet........................ 4,000 RPM
# of Threads - Inch................................. 36
Inch Threads........................................ 11 - 108 TPI
Tailstock Spindle Travel............................ 3.75"
Tailstock Taper..................................... #2 MT
Motor Power......................................... 3 hp
Electric............................................ 220/3/60
Dimensions.......................................... 73" x 30" x 67"
Weight.............................................. 2,530 lbs
Get Your Price from Great American Eqpt Co!
