For Sale by C.W. Wood Machinery Inc
Surplus Record Dealer Since 1965
Location: Cincinnati, OH
Contact Sales Dept.
Phone Number: 800...> Show Phone Number 800-745-6008
Let the seller know you found their listing on Surplus Record!
Description

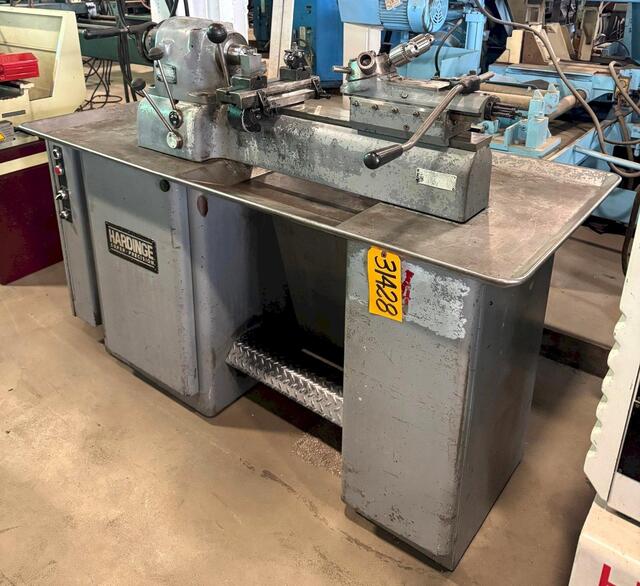

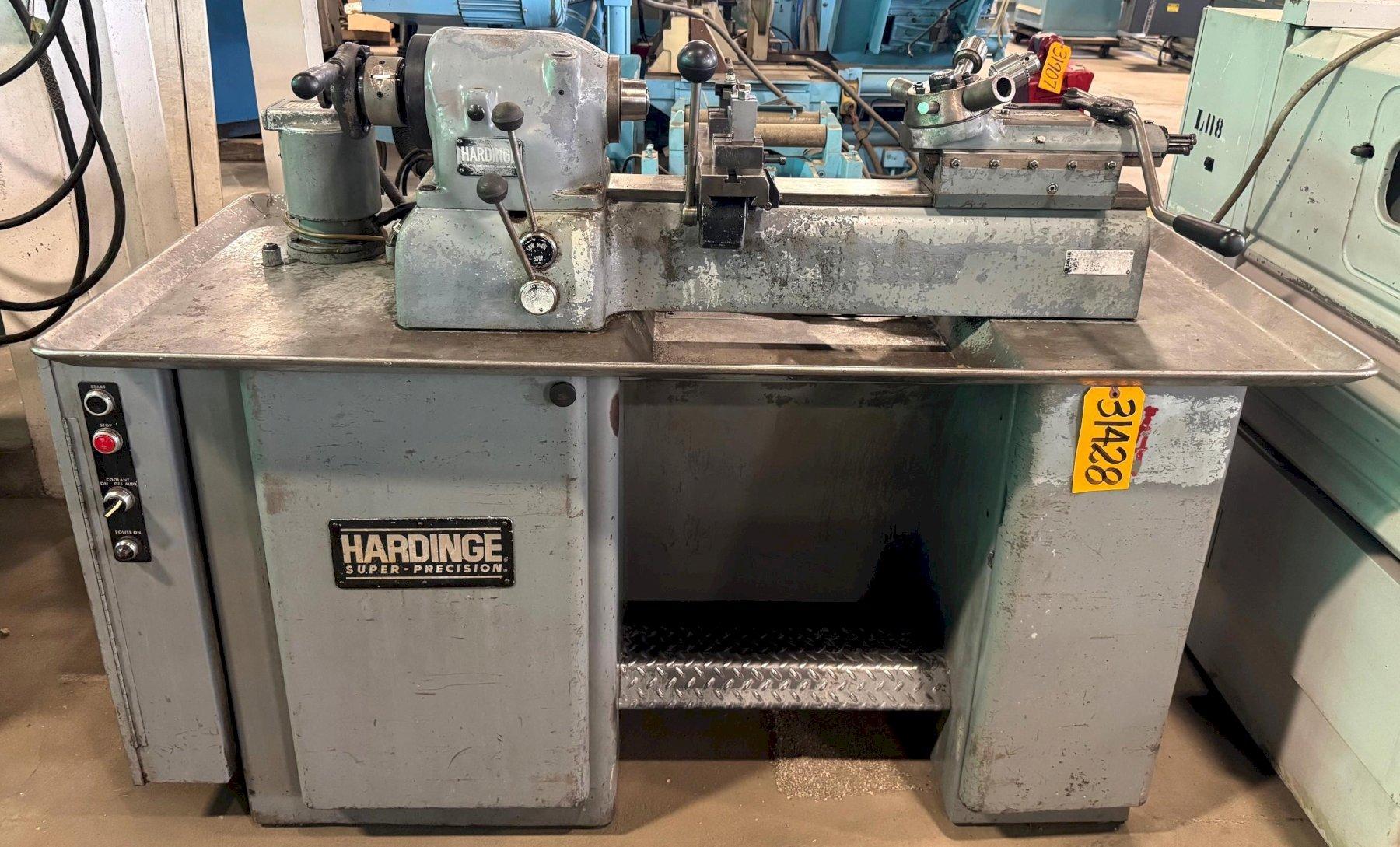

HARDINGE SECOND OPERATION LATHE
MODEL: DSM59-R
SERIAL NUMBER: V-59-15112
GENERAL SPECIFICATIONS
Swing Over Bed: 9"
Length Of Bed: 36"
Spindle Speeds: (10) 450 - 4000 RPM
Travel Of Double Tool Cross Slide: 3-3/4"
Travel Of Turret Slide: 4"
Diameter Of Turret Holes: 5/8"
Spindle Capacity
With Round 5C Collets: 1-1/16"
With Hexagon 5C Collets: 7/8"
With Square 5C Collets: 3/4"
With Step Chucks: 1-1/6" - 6"
With Jaw Chucks: 5"
With Jaw Chucks (Through Spindle): 1-5/32"
EQUIPPED WITH
Double Tool Cross Slide
Collet Closer
Approximate Weight: 1000 Lbs.
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
MODEL: DSM59-R
SERIAL NUMBER: V-59-15112
GENERAL SPECIFICATIONS
Swing Over Bed: 9"
Length Of Bed: 36"
Spindle Speeds: (10) 450 - 4000 RPM
Travel Of Double Tool Cross Slide: 3-3/4"
Travel Of Turret Slide: 4"
Diameter Of Turret Holes: 5/8"
Spindle Capacity
With Round 5C Collets: 1-1/16"
With Hexagon 5C Collets: 7/8"
With Square 5C Collets: 3/4"
With Step Chucks: 1-1/6" - 6"
With Jaw Chucks: 5"
With Jaw Chucks (Through Spindle): 1-5/32"
EQUIPPED WITH
Double Tool Cross Slide
Collet Closer
Approximate Weight: 1000 Lbs.
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
Get Your Price from C.W. Wood Machinery Inc!
