4 Results

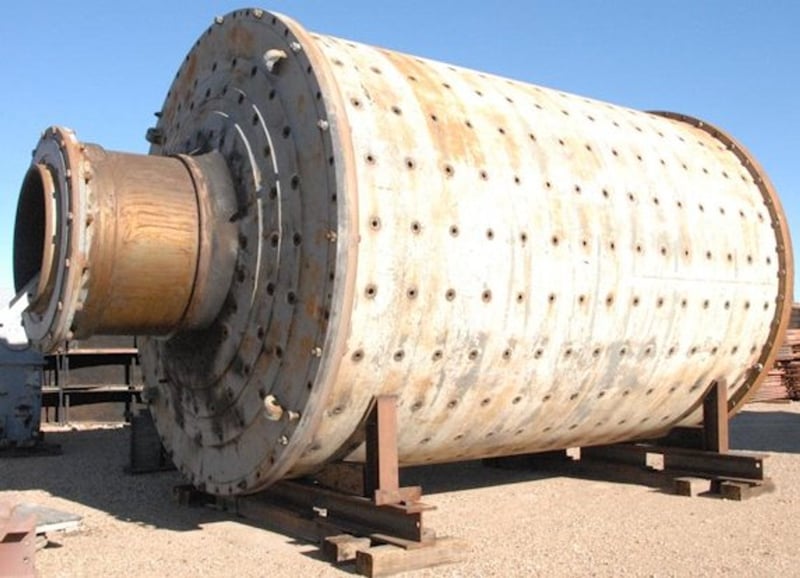

13' x 18.6' Nordberg, Rod/ Ball mill with 1500 HP motor
D'Angelo International | Bellingham, WA
Seller: D'Angelo International
Location: Bellingham, WA
Mfr: Nordberg
- 1500 hp (1125 kw) AC 60 Hz synchronous motor, 225rpm, - Eaton Fawick air clutch 46VC 1200, - Mill shell and cast heads, - Feed and discharge trunnions and liners, - Trunnion bearing assemblies, - Refurbished girth gear (2 pcs), 570 mm wide, 310 tooth, 1.25 DP helical cut., - Pinion shaft assembly, 21 tooth pinion ...more

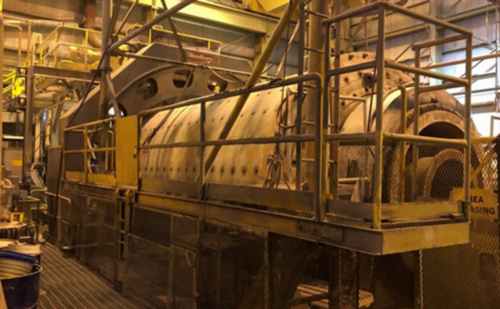

13.5' x 20' Nordberg rod mill, 2000 HP
D'Angelo International | Bellingham, WA
Seller: D'Angelo International
Location: Bellingham, WA
Mfr: Nordberg
- Nordberg 13.5 ft diameter x 20 ft length Rod Mill- 2,000 HP (1,500 kW) Electric synchronous motor- 60 Hz and 4000V- 210 RPM- 6000 frame, - Manufactured in Canada- Used steel liner package, removed for shell and head inspection, - Double-wave pattern liners.

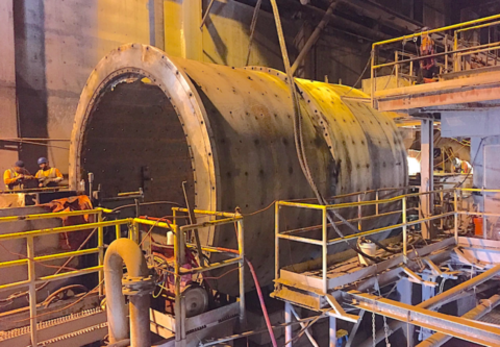

15' x 19' Nordberg, Ball Mill with 3000 HP motorw, wet grinding, overflow discharge, Farwick dual clutch
D'Angelo International | Bellingham, WA
Seller: D'Angelo International
Location: Bellingham, WA
Mfr: Nordberg
- 15 x 19 ft mill shell, - 2 piece shell, - Configured for wet grinding and overflow discharge, - 3,000 HP Westinghouse synchronous motor, 240 RPM 4160 V, - Containerized motor controls, - Farwick dual clutch.
15' x 20' Nordberg (Metso) ball mill shell w/cast heads (3 available)
D'Angelo International | Bellingham, WA
Seller: D'Angelo International
Location: Bellingham, WA
Mfr: Nordberg
- 15 x 20 ft mill shell with cast heads, - Removed from installation and disassembled for inspection and shipment, - Spur cut main gear, - Rubber liner backing, - Steel shell and head liner package with single wave profile, Electric Synchronous Motor, - 3,000 HP 240 RPM, - 4,000 V and 3 Ph 60 Hz, - Frame 6000, - ...more
Get email updates for newly added Grinding Mills - Ball, Pebble, Sag, Mining
Grinding mills are industrial machines used to crush and grind materials into smaller particles, typically used in mining to process ores and minerals. They operate by rotating a cylinder filled with grinding media (such as steel balls or pebbles) and the material being processed, breaking it down into finer pieces for further processing. Common types include ball mills, pebble mills, and SAG mills, each suited for specific grinding applications depending on the hardness and size of the materials.
