Also See: 9 Results
9' x 7' Allis-Chalmers, for wet grinding & overflow discharge, 2-doors, cast heads, 259 tooth main gear
D'Angelo International | Bellingham, WA
Seller: D'Angelo International
Location: Bellingham, WA
Mfr: Allis-Chalmers
- 9 ft dia x 7 ft length ball mill, - Manufactured by Allis Chalmers, - Configured for wet grinding and overflow discharge, - Mill components disassembled, inspected, cleaned, refurbished, and painted, - mill shell with 2 doors, - Cast heads, - New rubber liner set available separately, - Herringbone cut main and ...more
9' x 10' Allis-Chalmers, Ball Mill, 400 Ton/day, 400 HP, 257 RPM, 550 V, 2-pc. Bull gear, 5-pc. Gear guard
Machinery & Equipment Co | Brisbane, CA
Seller: Machinery & Equipment Co
Location: Brisbane, CA
Mfr: Allis-Chalmers
Allis Chalmers Ball Mill, 9' diameter x 10' long, driven by 400 HP motor. Previously used in gold mining operation at approximately 400 tons per day. s Welded Steel Shell with Feed and Discharge Heads, Bronze Main Bearings Complete with Sole Plates, 2-Piece Single Helical Bull Gear with 5-Piece Gear Guard ...more
9' x 10' Allis-Chalmers, ball mill with 400 HP motor, Feed and discharge heads, overflow discharge, wet grinding
D'Angelo International | Bellingham, WA
Seller: D'Angelo International
Location: Bellingham, WA
Mfr: Allis-Chalmers
- 9 x 10 ft Allis Chalmers ball mill, - Feed and discharge heads, - Configured for overflow discharge and wet grinding, - 2 piece bull gear with 248 teeth and 13 inch face, - 20 tooth pinion with assembly, - 2 lubrication pumps with 0.5 HP motors and air receivers, - Discharge trommel, - Removed and in storage, - ...more
9' x 12' Allis-Chalmers, Rod or Ball Mill with 400 HP, Herringbone bull gear and pinion
D'Angelo International | Bellingham, WA
Seller: D'Angelo International
Location: Bellingham, WA
Mfr: Allis-Chalmers
9 x 12 ft. Allis Chalmers Rod or Ball Mill w/ 400 hp, - Herringbone (1 piece) bull gear, 302 teeth, 20 in. face, - Herringbone pinion, 30 teeth, 20 in. face, - Westinghouse 400hp, 750 rpm, 575 volts, - Model SR-2614 reduction gear, 720 rpm input, 160 rpm output, 4.571:1Output: 160 R.P.M., SPARES (Additional cost): ...more

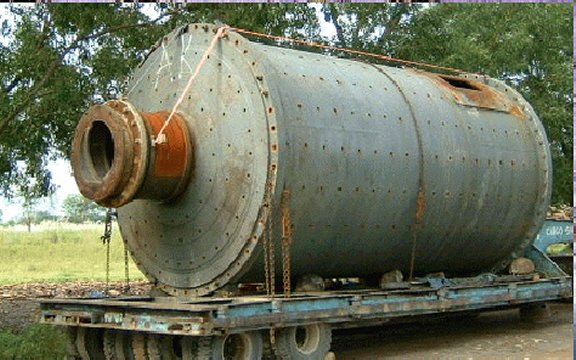

10' x 18' Allis-Chalmers, Ball Mill, 800 HP, wet overflow type
Machinery & Equipment Co | Brisbane, CA
Seller: Machinery & Equipment Co
Location: Brisbane, CA
Mfr: Allis-Chalmers
Allis-Chalmers ball mill, 10' diameter(3082 mm) x 18' long(5486 mm), wet overflow type, serial number C2482. Complete with bull gear and pinion drive through speed reducer. Motor no longer available No liners., HP: Less Motor, Diameter: 10, Type: Wet Overflow, Measurements: 10' Diameter X 18' Long ...more
Get email updates for newly added Grinding Mills - Ball, Pebble, Sag, Mining
Grinding mills are industrial machines used to crush and grind materials into smaller particles, typically used in mining to process ores and minerals. They operate by rotating a cylinder filled with grinding media (such as steel balls or pebbles) and the material being processed, breaking it down into finer pieces for further processing. Common types include ball mills, pebble mills, and SAG mills, each suited for specific grinding applications depending on the hardness and size of the materials.

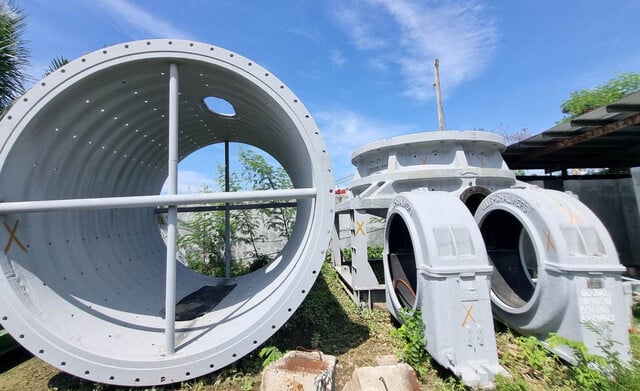

10.5' x 13' (3 x 4 m) Allis Chalmers, Ball Mill parts
D'Angelo International | Bellingham, WA
Seller: D'Angelo International
Location: Bellingham, WA
Mfr: Allis-Chalmers
Shell- One piece, Forty-Eight 40 mm diameter bolt holesTwo Trunnion Bearings- Bearing journal with insert- Inside diameter- 1132 mm- Two bases in good conditionRing gear cover - 5 pieces (SOLD)Trunnion and motor base plates, 2 pinion drives with couplings (SOLD), 1 drive shaft (SOLD), 1 babbitt bearing (SOLD).
14' x 23' Kobe Steel/Allis Chalmers, Ball Mill, 120 MT/hr., 150 MT grinding media capacity
Machinery & Equipment Co | Brisbane, CA
Seller: Machinery & Equipment Co
Location: Brisbane, CA
Mfr: Allis-Chalmers
Kobe Steel/Allis Chalmers, 14' (4.2 m) diameter x 23'(7 m) long ball mill. Unit has feed & discharge trunnion Bbaring housing and inserts. Unit is missing pinion gear, pinion shaft, bull gear, lube system and motor. Grinding capacity at previous installation was 120 MT per hour, single compartment ...more
14.5' x 28' Allis-Chalmers, ball mill, 3000 HP, Configured for wet overflow discharge
D'Angelo International | Bellingham, WA
Seller: D'Angelo International
Location: Bellingham, WA
Mfr: Allis-Chalmers
- 2 mills available: 14.5 x 28 ft (4.4 x 8.5 m), - Configured for wet overflow discharge, - 2 piece mill shell, - Trunnions with liners, - White metal trunnion bearing journals, - 289 tooth two-piece bull gear, - Bull gear guards, - 24 tooth pinion, - Falk gear reducers: 4.096:1 ratio, - One inching drive available ...more
30' x 7' Allis-Chalmers, SAG Mill components with 4079 HP motor, 200 RPM, Lube Units
D'Angelo International | Bellingham, WA
Seller: D'Angelo International
Location: Bellingham, WA
Mfr: Allis-Chalmers
Allis Chalmers 30 x 7 ft SAG, - Westinghouse AC brushless synchronous motor with spare stator:, - 4079 HP (3000 kW), - 200 RPM - 3300 V, - 50 Hz Mill includes:, - Bull gear - Pinions, - Lube units, - Slide shoe bearings, - Liner handler, - Inching drive.
