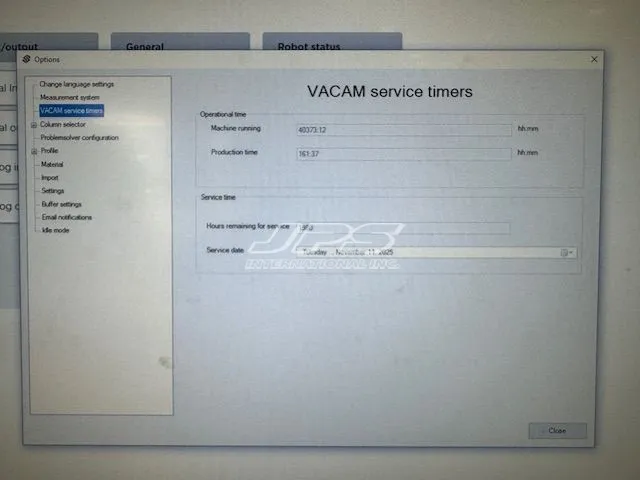

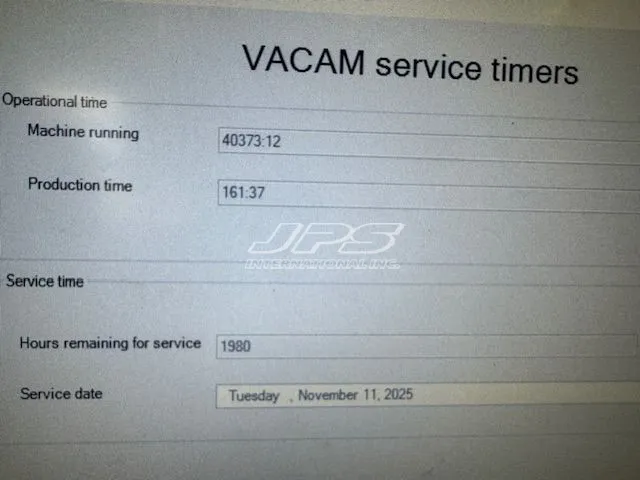

Voortman #V807, Complete Robotic Beam Coping System, 41" max. profile width, 18" max. profile height, Hypertherm XPR300 core, 300 amps, 3" thickness, 162 hours, 2020

System Components & Equipment:
Operational direction: From left to right

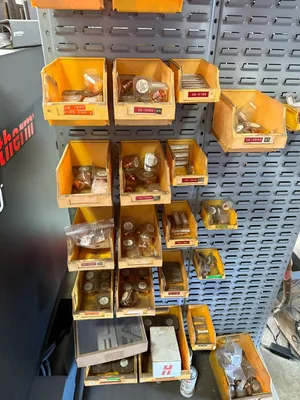

Consumables can be negotiated

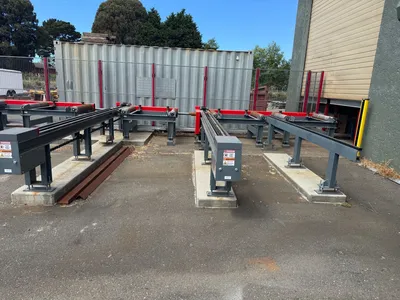

-One-way infeed cross transport (CT1):
Mechanical drag-dogs
Length: 16 ft
3 supports
Fully loadable; transports profiles up to 270 lbs/ft
- Two-way outfeed cross transport (CT2):
Double pneumatic-operated drag-dogs
Length: 16 ft
4 supports
Fully loadable; transports profiles up to 270 lbs/ft

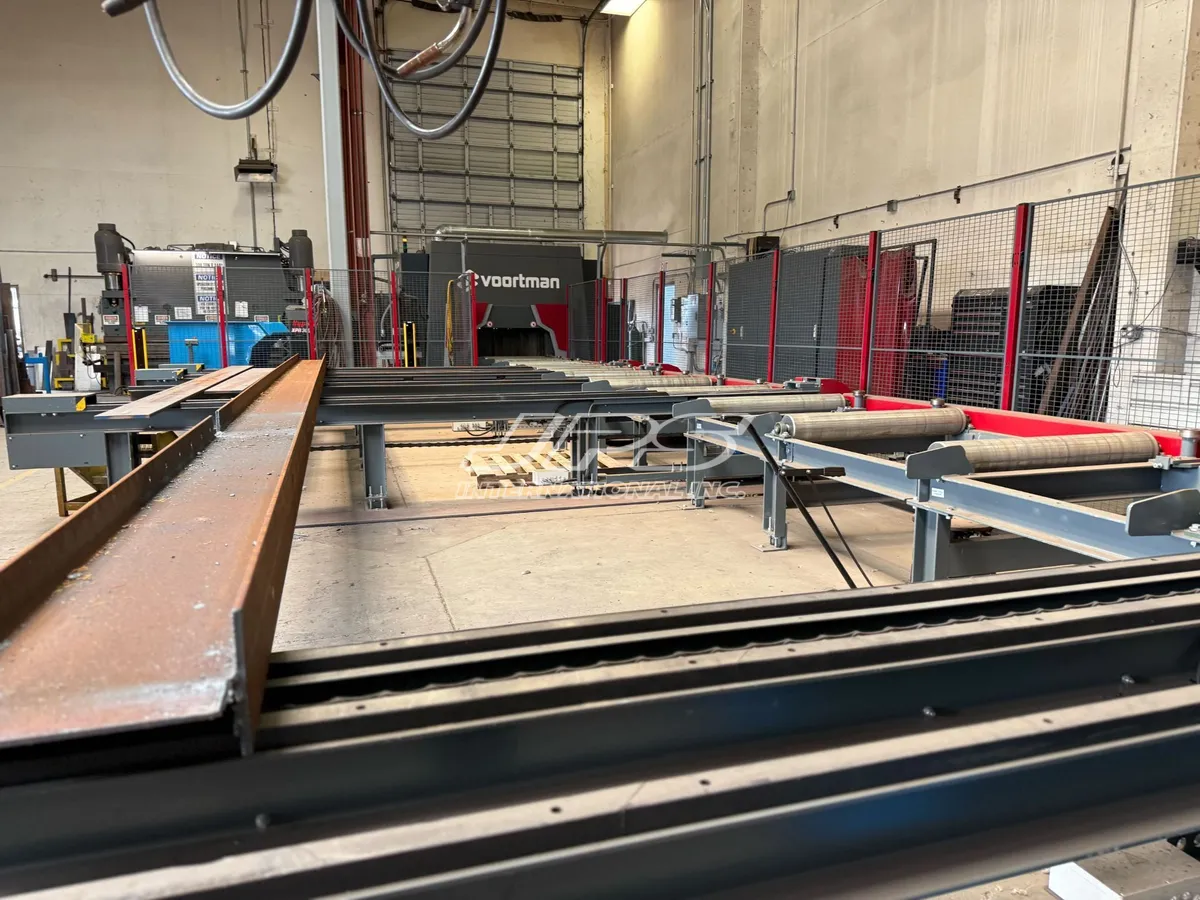

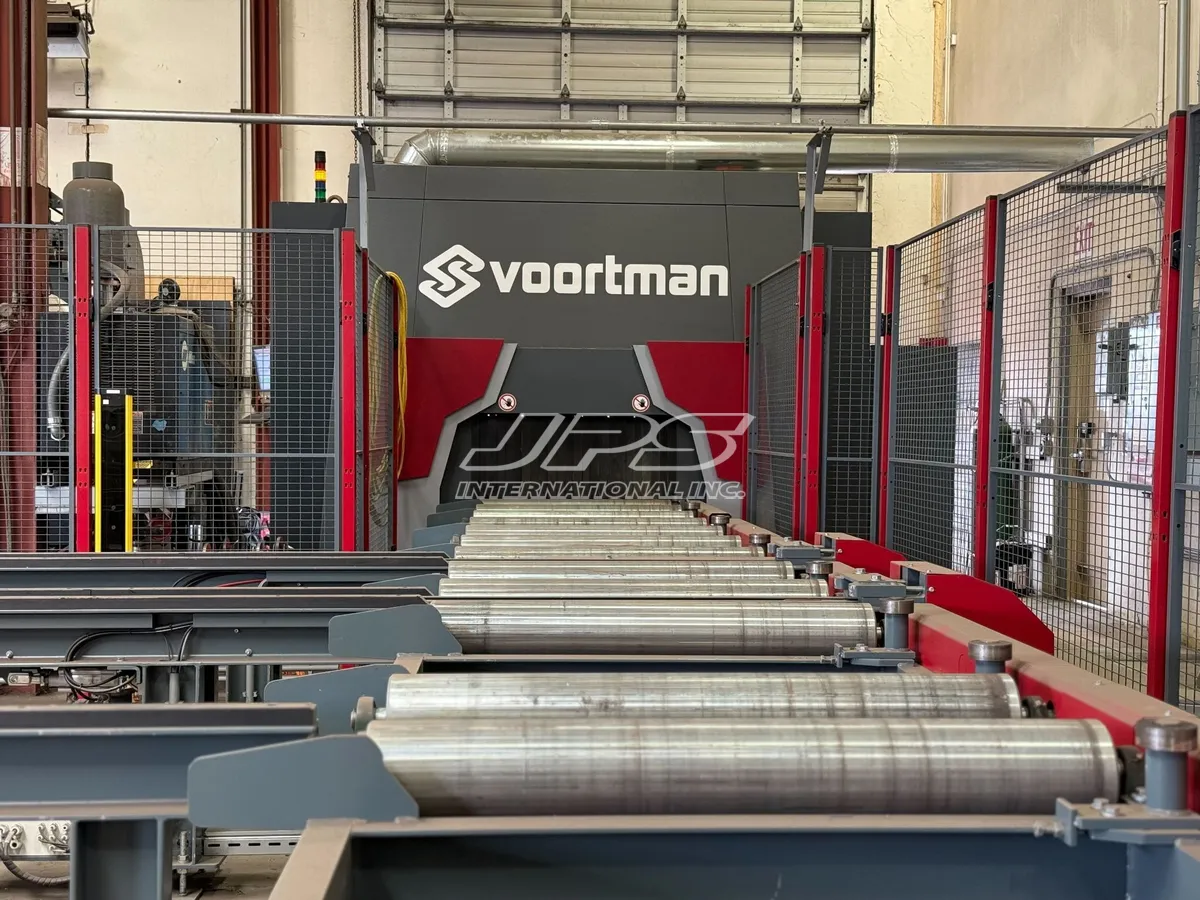

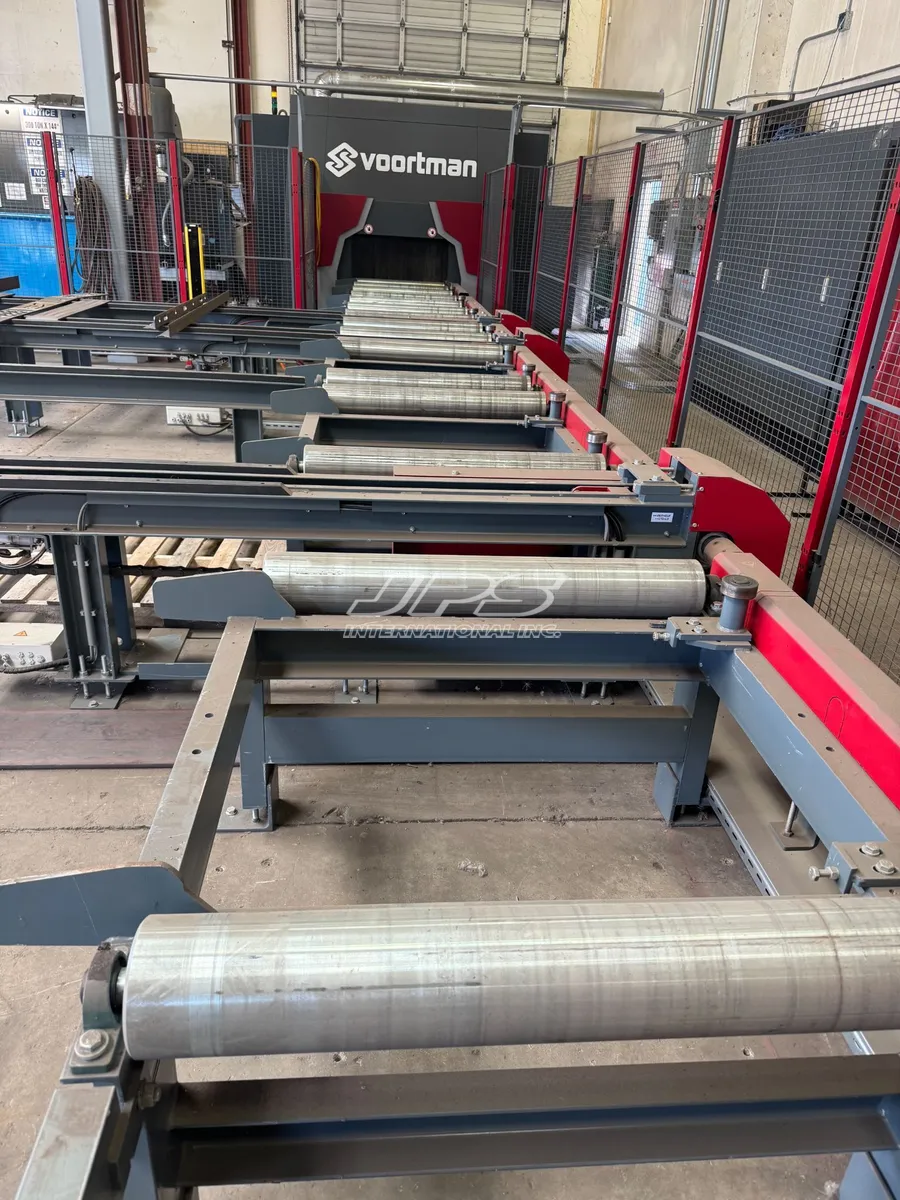

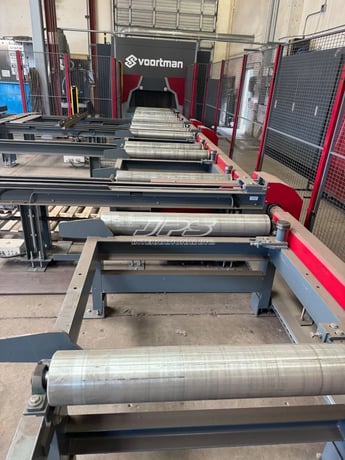

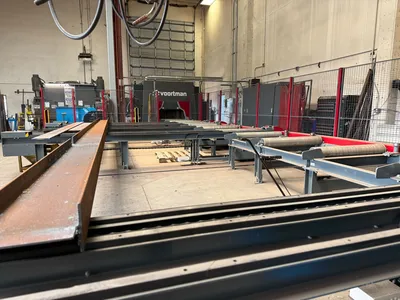

- Infeed roller conveyor (RC1):
Width: 41"
Roll diameter: 6-1/4"
Transports profiles up to 41 ft
Minimum profile length: 8-1/4 ft
Max weight: 270 lbs/ft

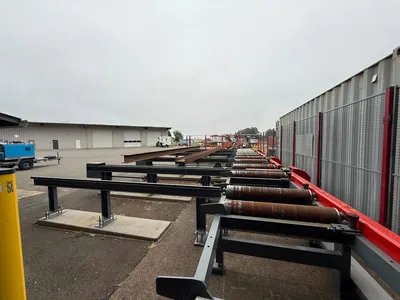

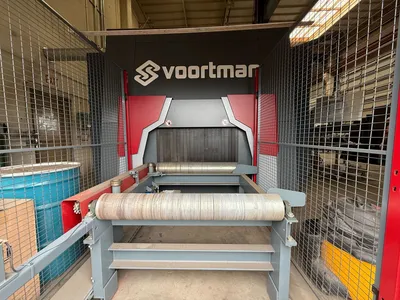

- Outfeed roller conveyor (RC2):
Width: 41"
Roll diameter: 6-1/4"
Transports profiles up to 41 ft
Minimum profile length: 4-1/2 ft
Max weight: 270 lbs/ft

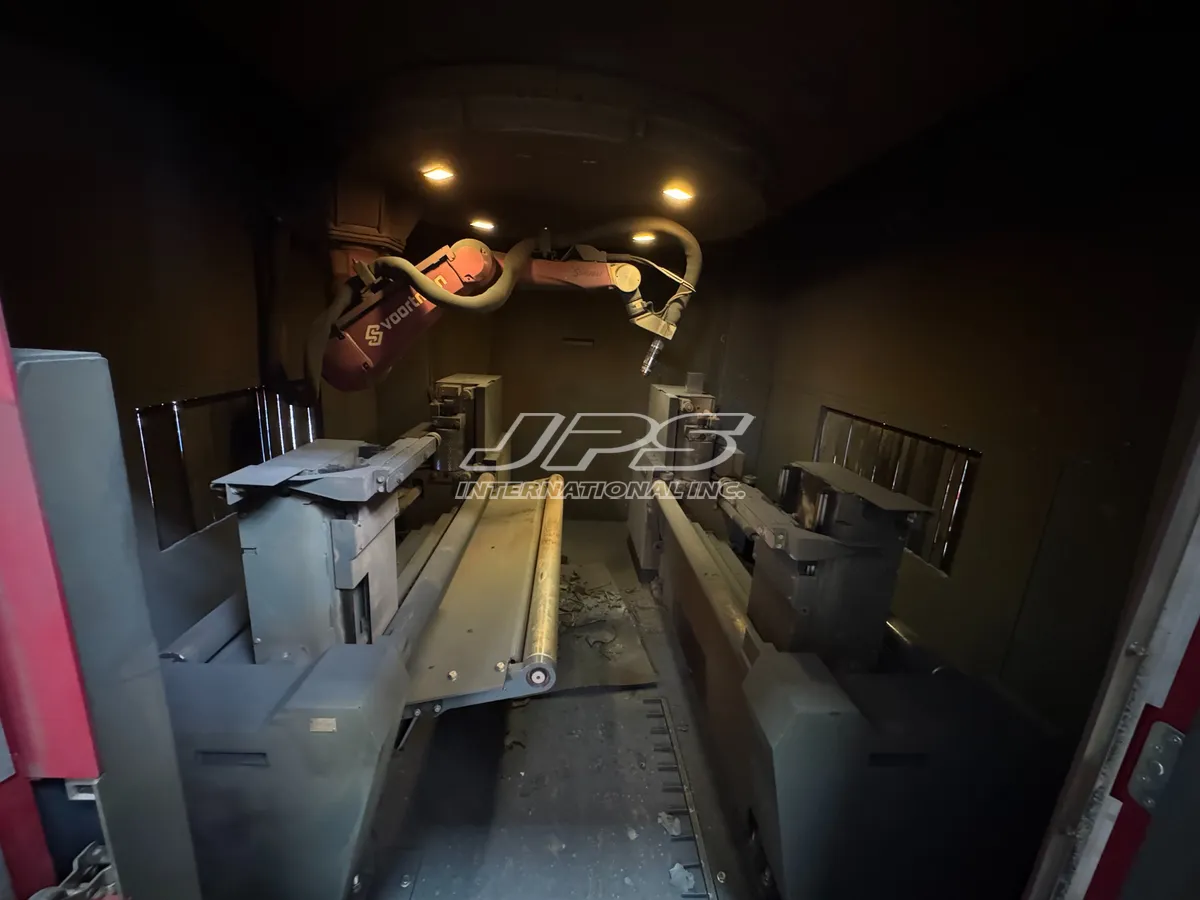

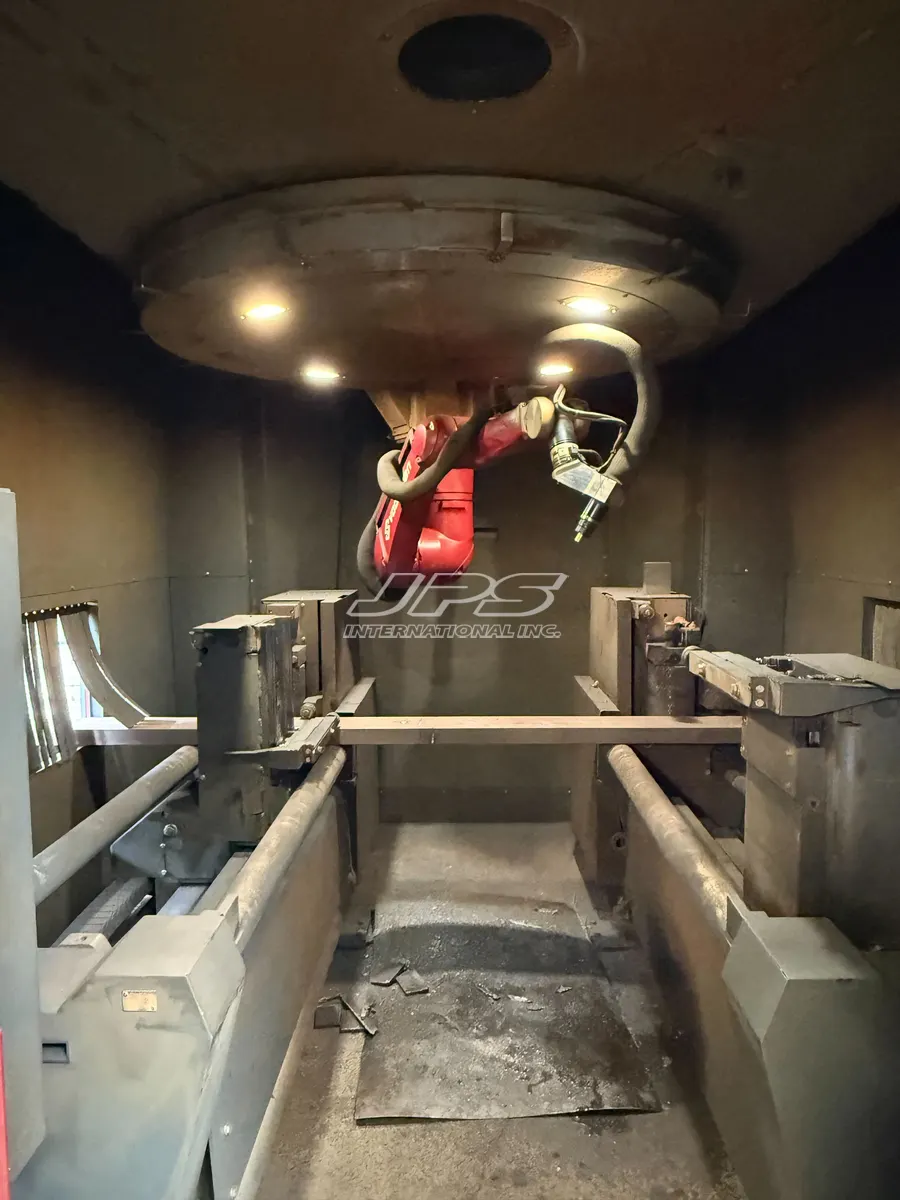

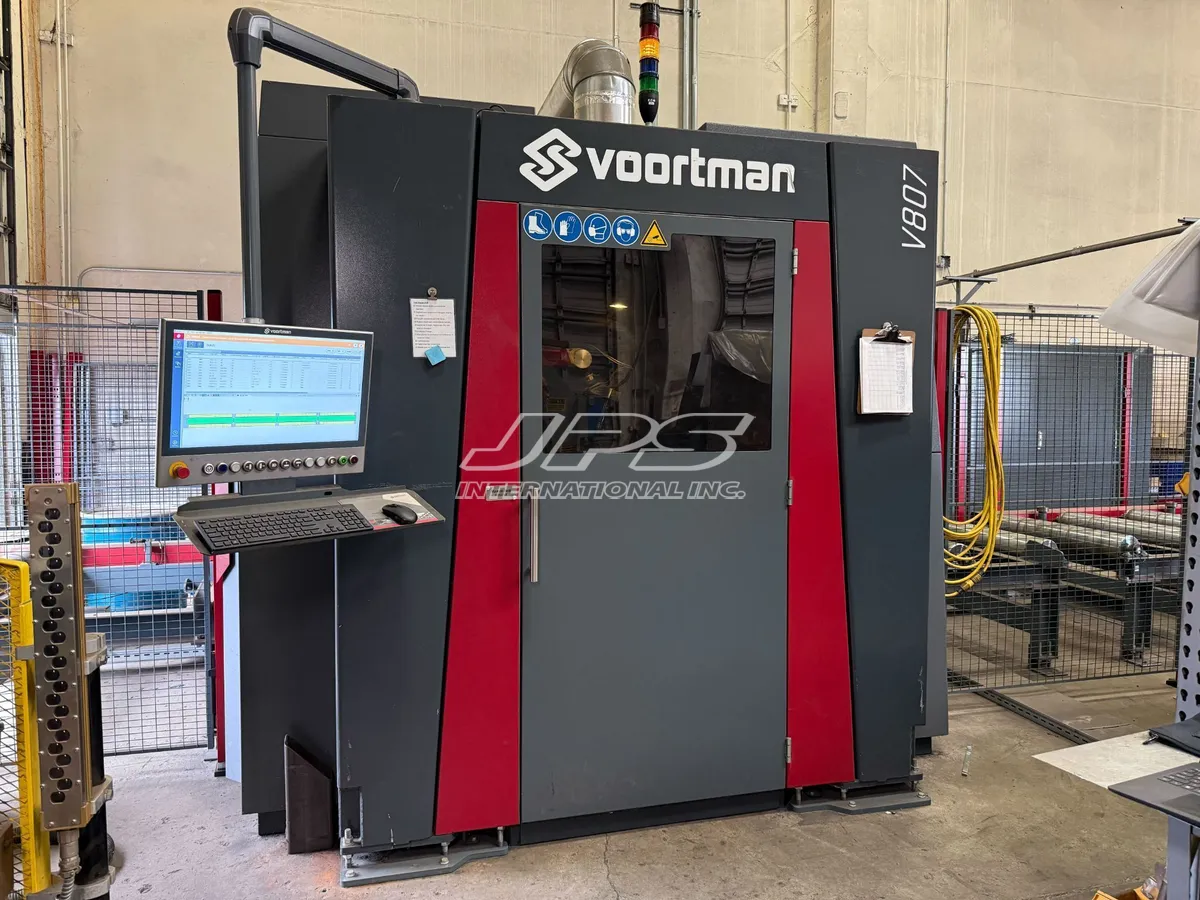

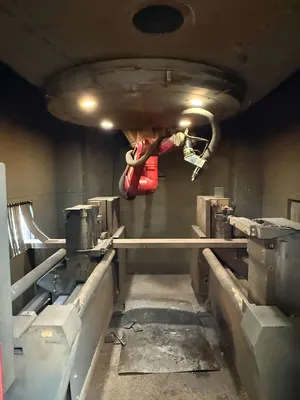

- V807M Coping Machine:
7-axis system
Calibrated Stubli robot

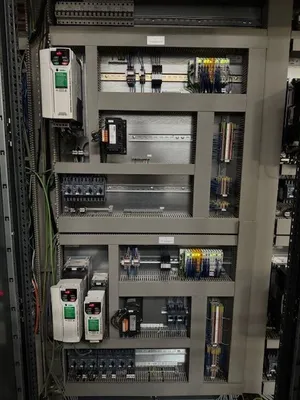

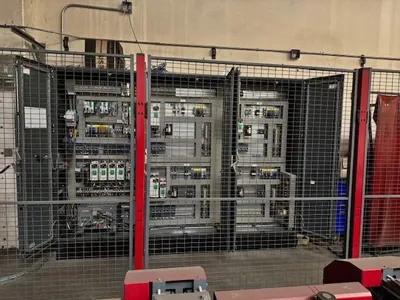

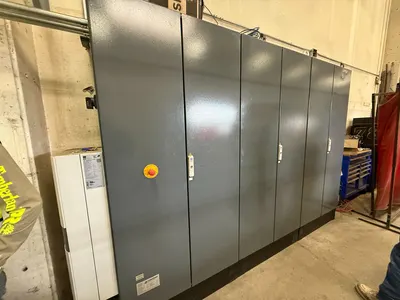

Air conditioning for switch panel
Length measuring system with feeder rolls

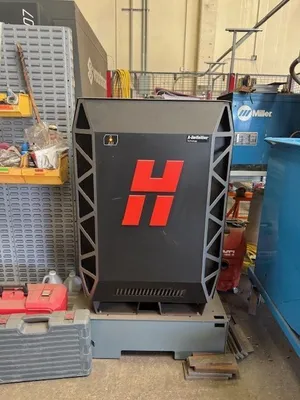

- Plasma Cutting Unit:

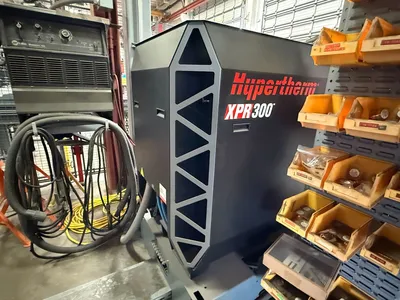

Hypertherm XPR300 Core (1 unit)

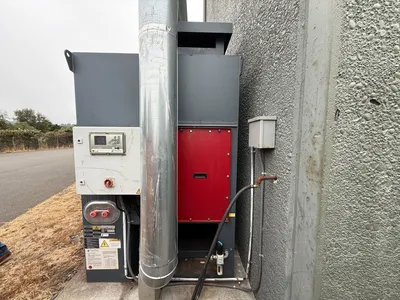

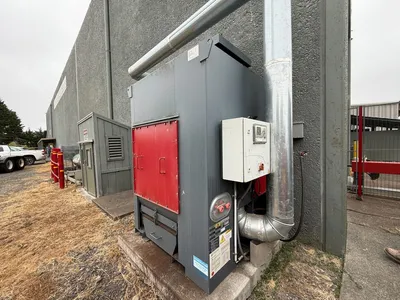

Fume Extraction Unit: DFPRE 4 50L
-Safety Devices:
Interlocking door for machine housing

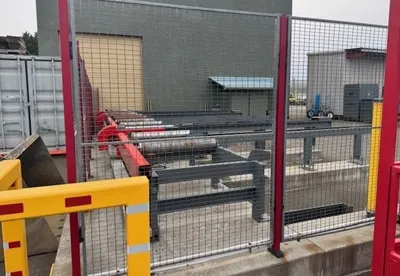

Safety fencing
Light curtain (machine housing)
Light Curtain Cross Transport (Indoor) 1 unit (no outdoor solution)

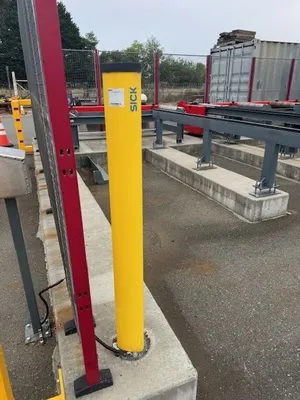

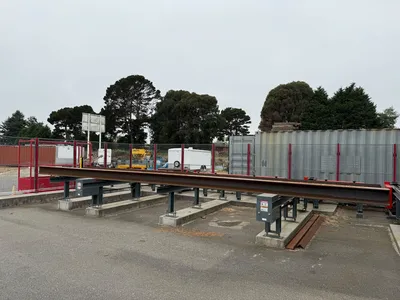

Light Curtain Cross Transport (Outdoor) - 1 unit
- Includes heating device in columns to prevent lens fogging
Light Curtain General Outdoor Use - 1 unit
- Includes heating device in columns to prevent lens fogging
