For Sale by Equilibrium Machinery
Description

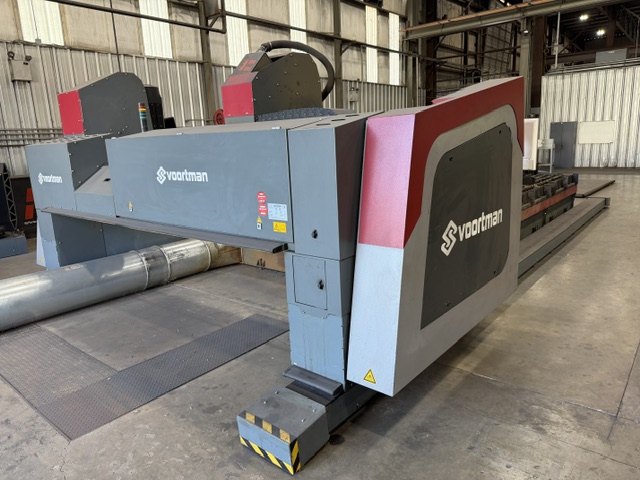

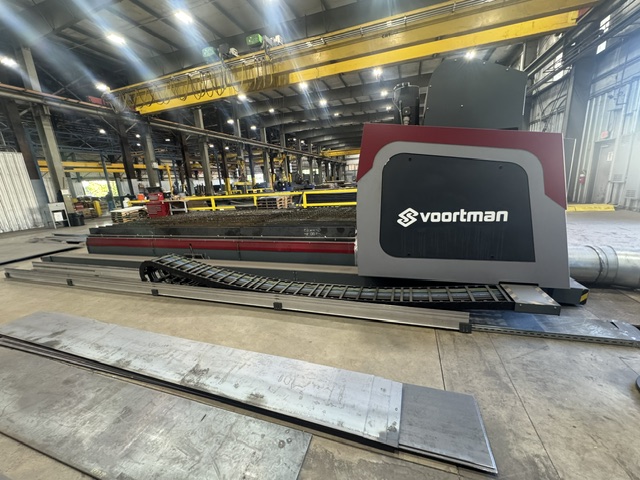

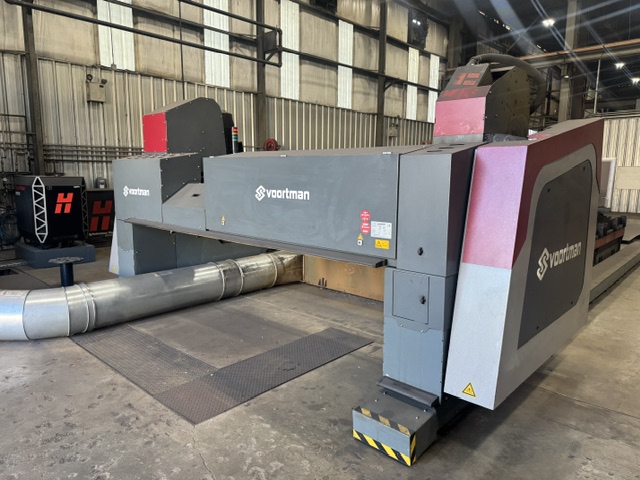

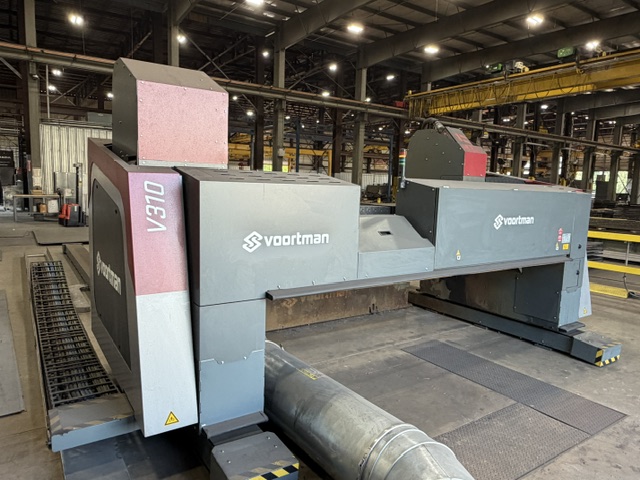

2022 Voortman V310 Plate Processing Machine CNC Plasma and Drilling System

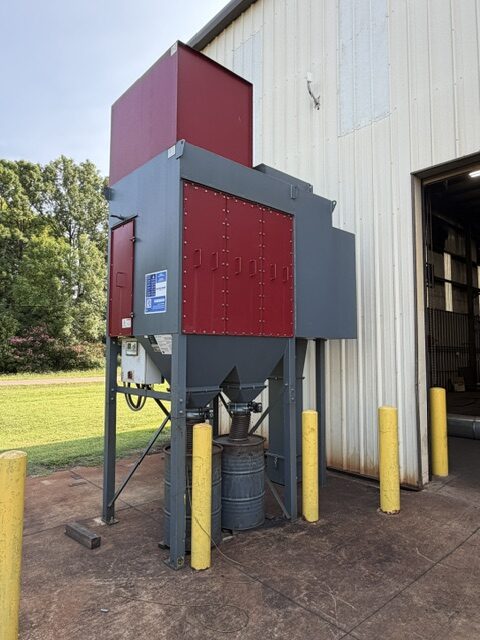

8’ x 20’ plate / sheet capacity, Drilling unit VD40, Plasma 3D Beveling, Hypertherm XPR300 Core, Servo motor driven axes and suspension, Milling package, Dross inhibitor and Arc Glare protection, Donaldson Fume Extractor
Drilling unit VD40
Automatic tool changer 8 positions
Spindle rpm Step less 0 – 3.500 rpm (servomotor)
Maximum torque 300 ft lb
Lubrication Internal by mist of air / oil
Holder SK 40
Drill diameter 0.200 – 1.575”
Maximum thickness for drilling 8.000”
Thread tapping M6 – M30
Maximum thickness for tapping 3 times the tap diameter
Centre point marking
Countersinking
Layout marking
Milling
Pneumatic clamping
Pneumatic clamping force 1130 lbf
Minimum tool length 4.750”
Maximum tool length 12.625”
Maximum tool diameter tool changer 3.500” *Depending on tool length

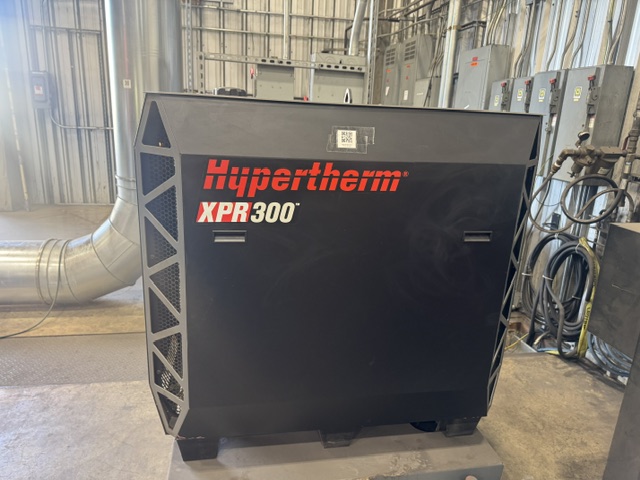

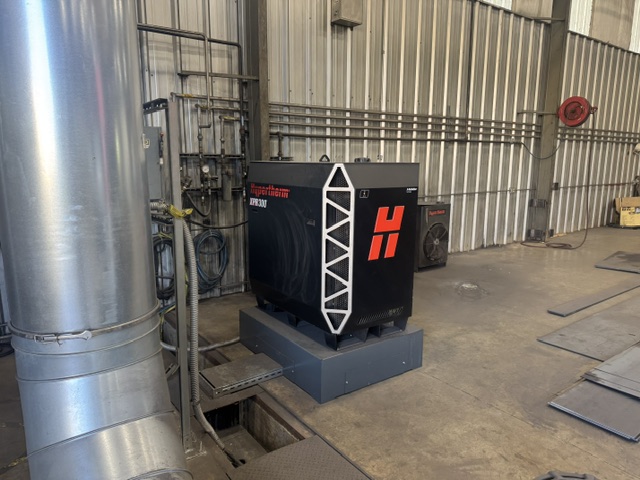

Plasma cutting unit XPR300 Core
Min. thickness 1/8” Max. thickness 3-1/8”
Max. pierce capacity 1-3/4”
Dross-free cutting max. 1-1/2”
Marking, with same consumables
Automatic gas console
Plasma cutting speeds mild steel
1/4” Approx. 150 ipm 130A
1/2” Approx. 115 ipm 170A
1” Approx. 75 ipm 300A
1-1/2” Approx. 40 ipm 300A
2” Approx. 21 ipm 300A
2-1/2” Approx. 14 ipm 300A
3” Approx. 7 ipm 300A
Plasma 3D bevel unit
Max. acceleration Z-axis 288.000 ipm2
Max. speed Z-axis 840 ipm
Bevel angle (depending on torch type) + / – 50°
Positioning accuracy + / – 0,5°
Material thickness .250” – 2”

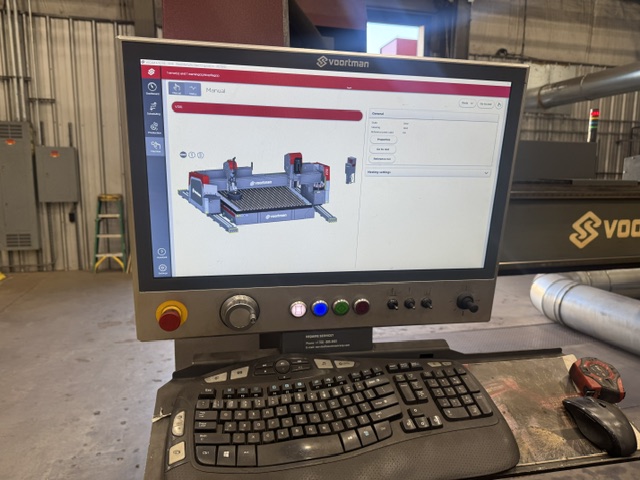

VACAM Opertor Dashboard
SigmaNEST Programming Workstation
Operating system 64-bit Windows 10 Pro / Windows Server 2016 CPU
