Description
Specifications
Equipped With
Equipped With
| Spindle Taper | R-8 |
| Quill Diameter | 3.375 inches |
| Number of Spindle Speeds | Variable |
| Spindle Speed Range (60hz) | 60-4,200 Rpm |
| Spindle Feed Range (inches/revolution) (3 Speeds) | 0.018", 0.003", 0.006" |
| Spindle Travel | 5 inches |
| Head Tilt (Left-Right) | 90 |
| Head Tilt (Front-Back) | 45 |
| Maximum Distance Spindle to Table | 3.15"-18.30" |
| Maximum Distance Spindle to Column | 24.50 inches |
| Minimum Distance Spindle to Column | 10.20 inches |
| Collet Capacity | 1/8" - 7/8" |
| Table Size | 10" x 54" |
| Longitudinal Travel (X-axis) with Powerfeed | 35 inches |
| Longitudinal Travel (X-axis) without Powerfeed | 39 inches |
| Cross Travel (Y-axis) | 14.875 inches |
| Number of T-Slots | 3 |
| T-Slot Size | 0.625 inches |
| T-Slot Centers | 2.5 inches |
| Maximum Weight of Work Piece | 837 pounds |
| Vertical Travel | 16 inches |
| Main Motor Horsepower | 3 |
| Weight | 3406 pounds |
| Floor Area (W x D x H) | 96" x 69" x 87" |
| Electrical | 220 or 440 volts, 3 phase |
| Power Consumption (Amperage) (220/440 volt) | 10/5 |
Equipped With
Equipped With
Standard Equipment:
• Power-feed on X-axis controlling longitudinal travel
• Backlash adjustment for leadscrews and gib adjustments for ways
• Hardened and ground and precisely scraped worktable, saddle and knee ways
• Stress relieved meehanite cast iron for long life and accuracy
• Digital readout with 0.0002 resolution
• Built in coolant tank base with coolant pump, pressure and return hose, nozzle and valve
• Installed and ready to use base chip pan to help prevent coolant overflow
• Conventional dovetail ways on X, Y and Z axes
• One shot lube system • Hard-chromed ways
• Front and rear rubber way covers
• 24 volt halogen machine light
• Tool box with tools
• Dual voltage main motor wired 220V or 440V (3 phase) per customer’s preference
Optional Accessories:
• Pneumatic drawbar for easy changing of tools
• Power feed for Y-axis (cross feed)
• Power feed for Z-axis (knee feed)
• Quick change collet set
• Clamping kit
• Precision parallel set in formed case
• 6” lock type vise
• R-8 collet set
• Power-feed on X-axis controlling longitudinal travel
• Backlash adjustment for leadscrews and gib adjustments for ways
• Hardened and ground and precisely scraped worktable, saddle and knee ways
• Stress relieved meehanite cast iron for long life and accuracy
• Digital readout with 0.0002 resolution
• Built in coolant tank base with coolant pump, pressure and return hose, nozzle and valve
• Installed and ready to use base chip pan to help prevent coolant overflow
• Conventional dovetail ways on X, Y and Z axes
• One shot lube system • Hard-chromed ways
• Front and rear rubber way covers
• 24 volt halogen machine light
• Tool box with tools
• Dual voltage main motor wired 220V or 440V (3 phase) per customer’s preference
Standard Features:
Our line of milling machines features three standard models that offer the best in drilling, boring, and cutting of your materials. Choose from the manual variable speed mill, the heavy-duty manual variable speed mill, or the heavy-duty electronic variable speed mill. Each comes with the following features:
- Sino 3-Axis digital readout inch or metric
- Flood coolant and chip pan
- Power table feed
- Power quill feed
- Machine light
- Enclosed electrical cabinet
- Circuit breaker protection
- Low voltage controls
• Pneumatic drawbar for easy changing of tools
• Power feed for Y-axis (cross feed)
• Power feed for Z-axis (knee feed)
• Quick change collet set
• Clamping kit
• Precision parallel set in formed case
• 6” lock type vise
• R-8 collet set
Get Your Price from Smith Machinery Co!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!

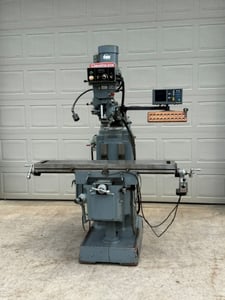

Clausing #450-EVS-08, vertical mill, 10" x54" table, 3 HP, 34.6" X, 16" Y, 16" knee, 5" quill, 50-5000 RPM, R-8, 220/460 V., 3 Ph. (2 available)
