Traub #TNX-65/42, milling & turning center, TX 8i-S Control, Knoll coolant tank, serial #7060107, 2007

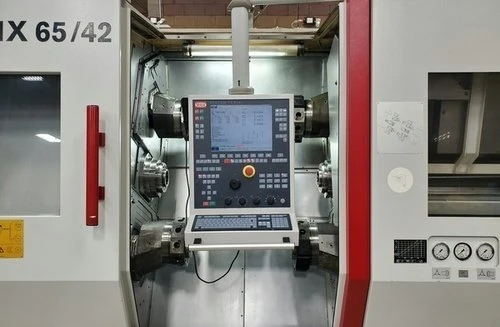

Traub TNX 65/42 Milling and Turning Center
Mfd. 2007
Serial #7060107
Commissioned in 2010

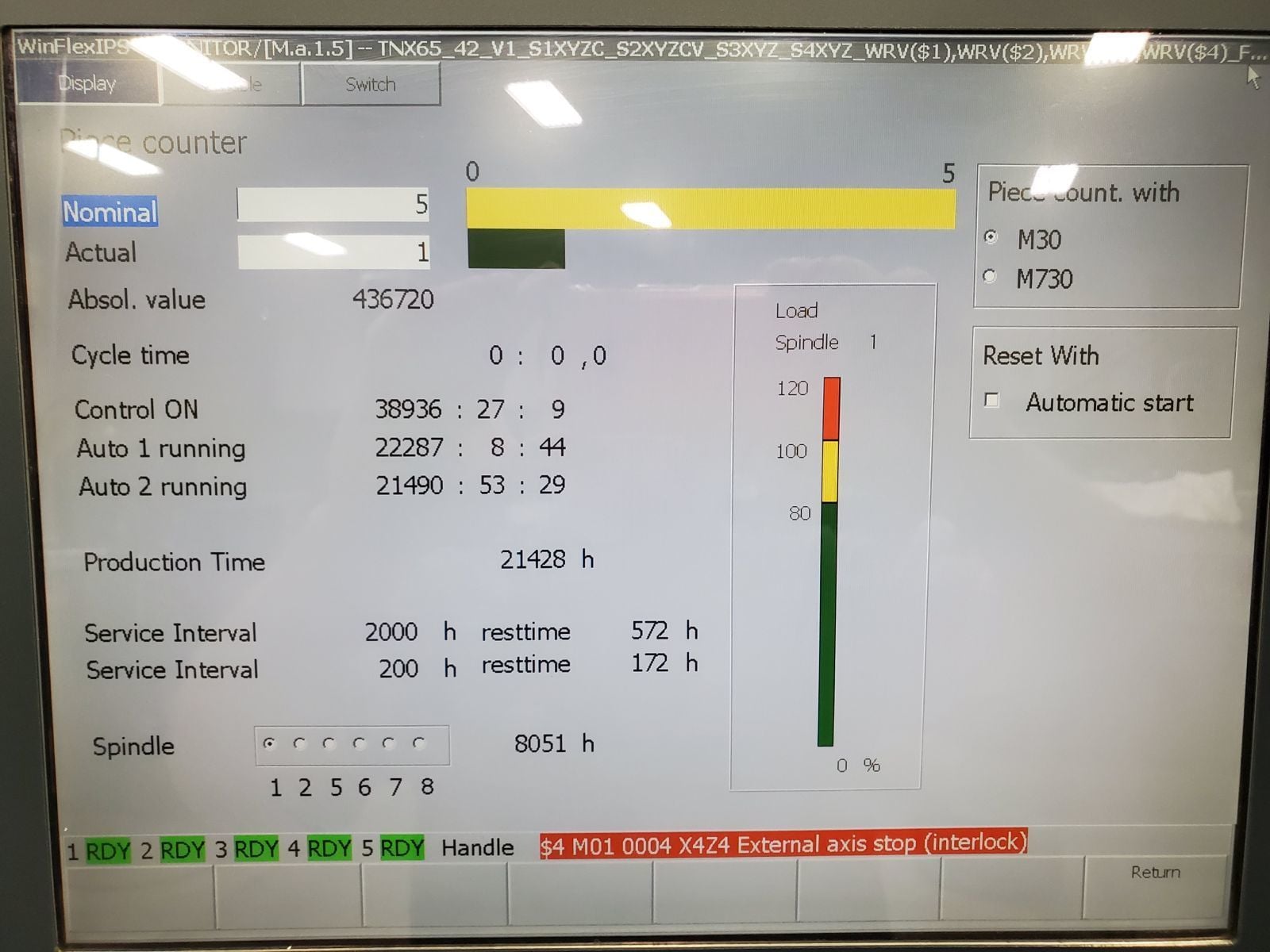

Production Hours: 21,428

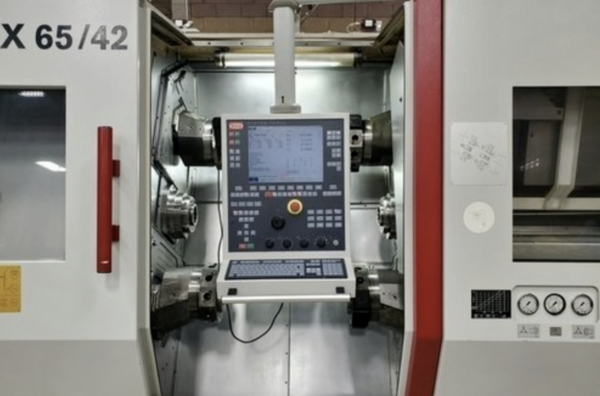

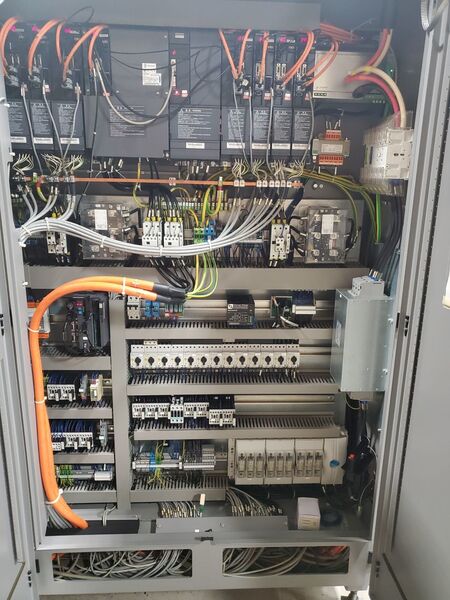

TX 8i-S control (Mitsubishi/Traub based control with Mitsubishi drives and motors)
15 CNC axiss

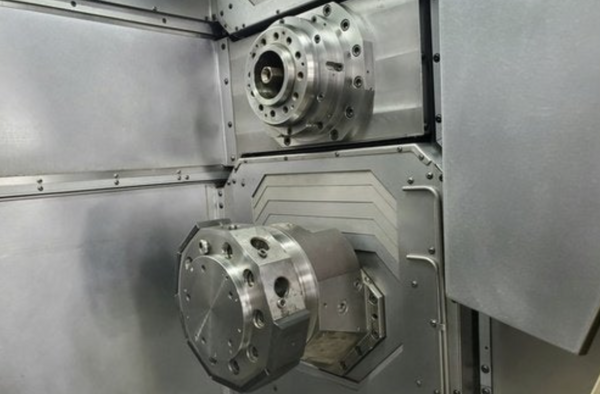

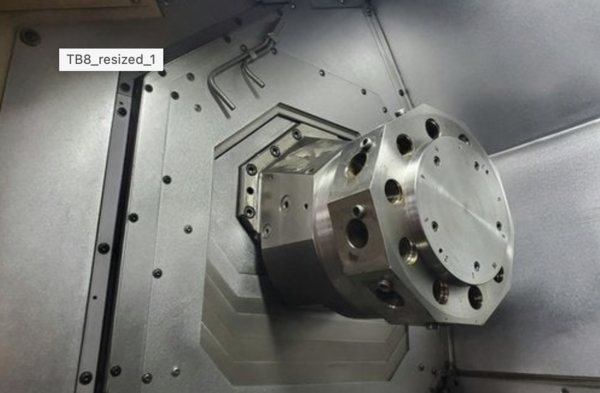

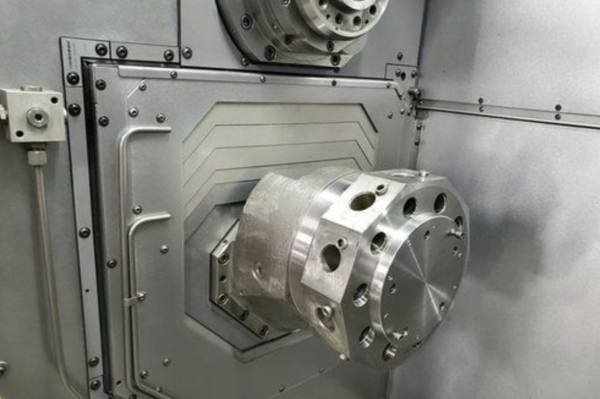

(4) X-Y-Z turrets with 10 positions each. Up to 20 tools per turret
65 mm thru hole main and sub spindle (sub spindle has coolant flush)
Foot pedal control for clamp/unclamp of spindle chucks
Servo driven gantry receiver
Hydraulic swivel w/ pneumatic finished part and bar remnant gripper
Finished part conveyor belt

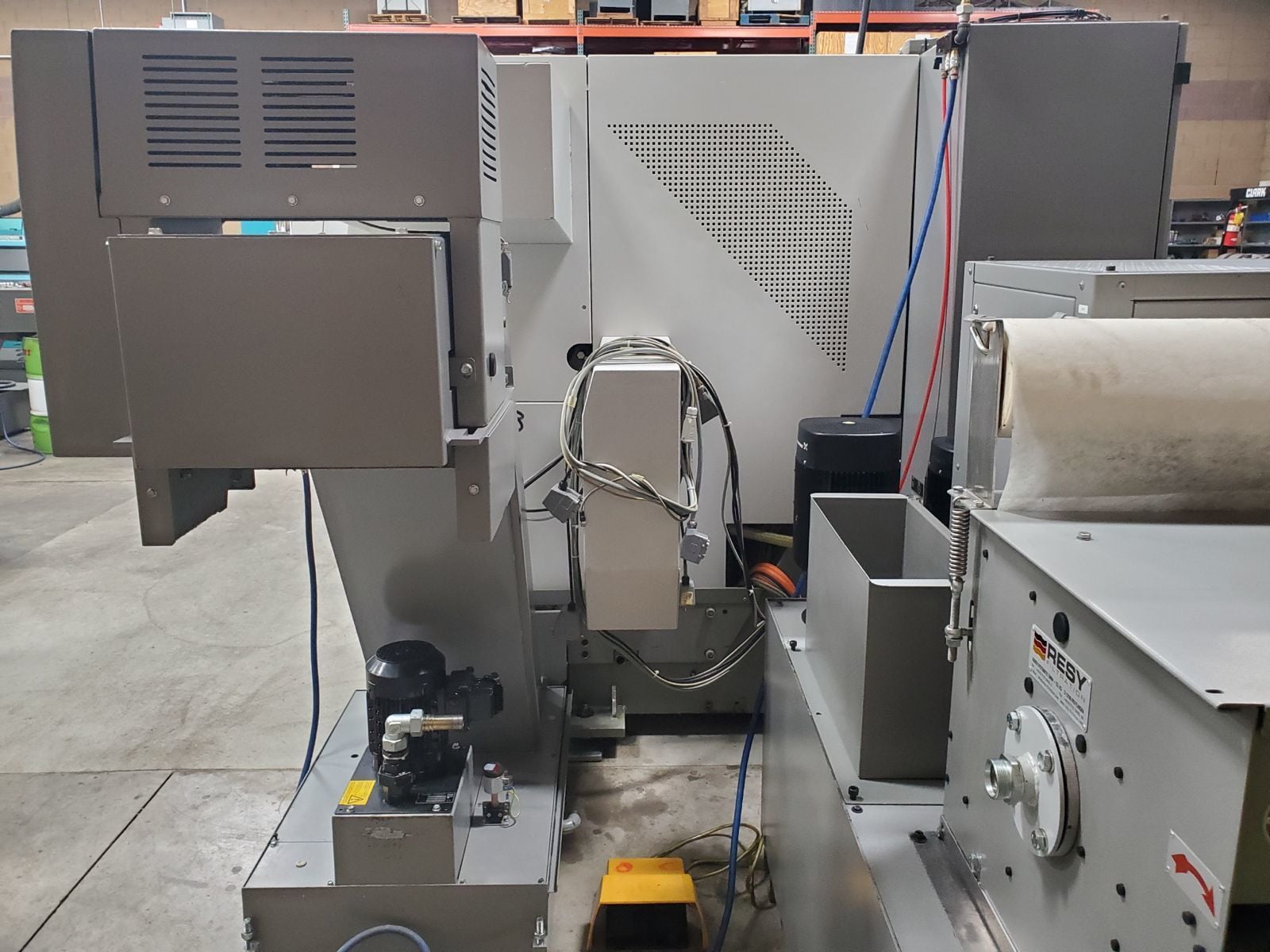

RESY paper band coolant filter

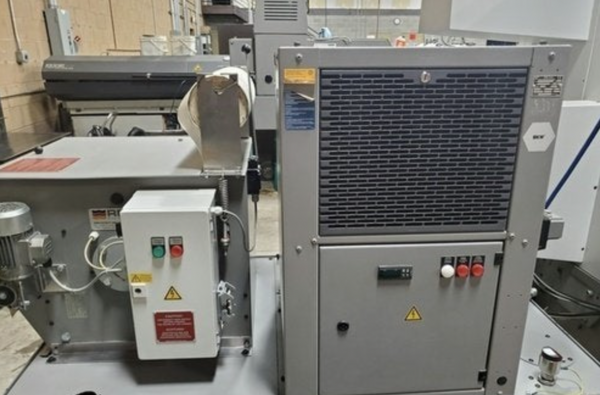

Knoll Coolant tank with BKW refrigerated coolant temperature control
20 Bar High pressure and 8 Bar Low pressure coolant pumps
Knoll chip conveyor

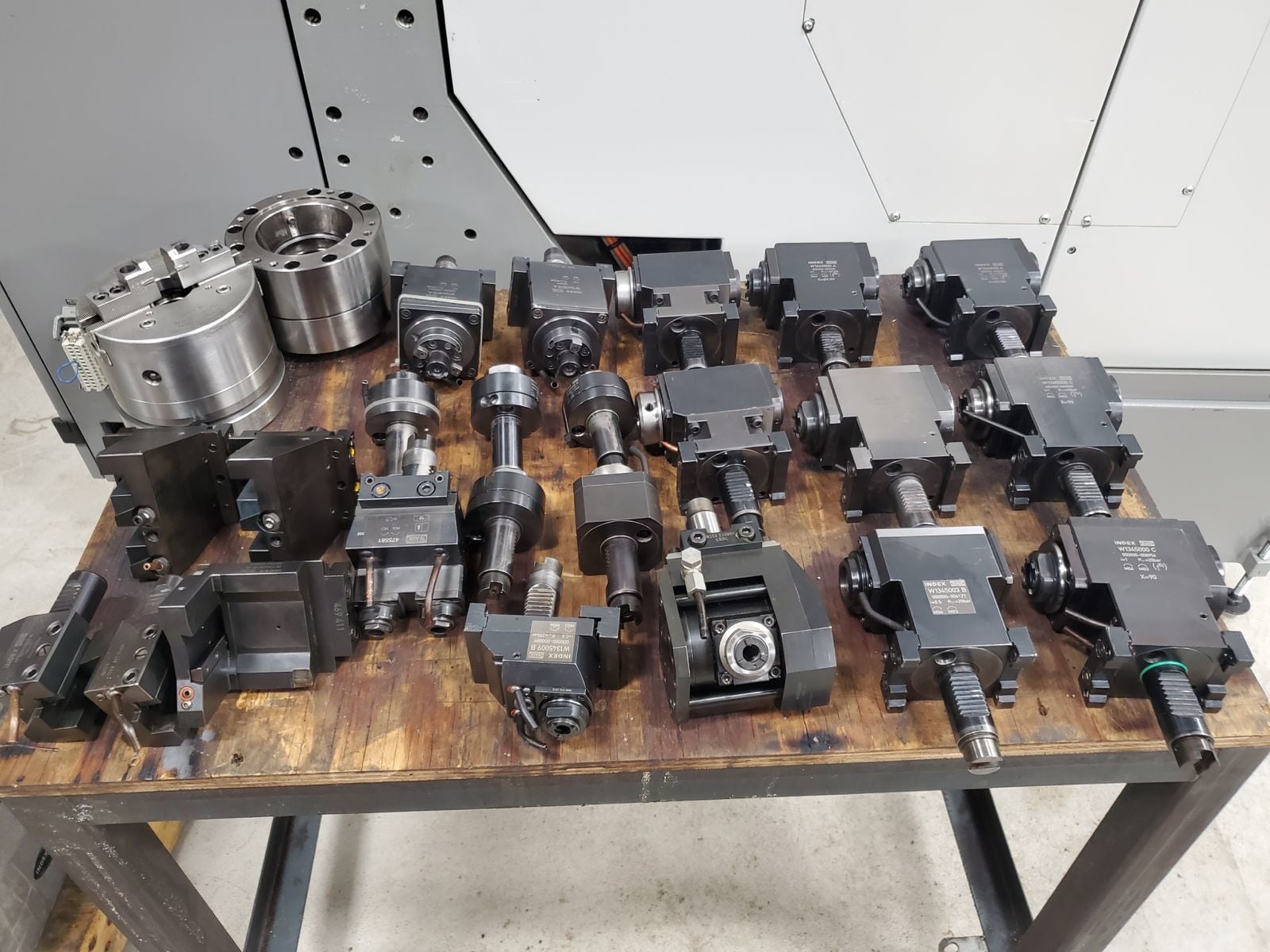

2) Single stick turning tool holders
2) Double stick turning tool holders
1) Cut-off tool holder
1) Overdriven double radial live ER Collet tool holder
1) Overdriven radial live ER Collet tool holder
4) Radial live ER Collet tool holders
1) Radial live End Mill tool holder
1) Angle adjustable live ER Collet tool holder
2) Radial live Shell Mill tool holders
2) Axial live End Mill tool holders
6) Axial live ER Collet tool holders
43) Additional tool holders on separate list (see supplemental attachment)
Hainbuch main spindle collet chuck
Rohm sub spindle 2 jaw chuck
2 Spare sets of spare Z-axis ball screws and bearing packs.
History on this machine;
Built in 2007 commissioned/ installed in 2010
Leased machine
Ran for 6 years making rifle scope mounts
Sat idle for 1 year while being remarketed by bank
We purchased it Feb 2018
The last 2 years, undergoing extensively refurbished at our facility
Refurbish included but not limited to;
Disassembly and Removal of all panels and way covers
Very thorough and detailed steam cleaning of ALL components and machine from top to bottom
Replacement of any wore/broken hoses, cables or electrical/mechanical/hydraulic components
Replacement of ball screws and bearing packs where needed.
Replaced all servo buffer batteries
Replaced all pneumatic/hydraulic filters
Refinish or replace all large panels and the mounting hardware
Replace all 4 turrets slideable X-Y covers
Replaced all rubber, plastic, and metal sealing band way cover wipers
Reassembly using new fasteners where needed.
Complete disassembly of coolant tank and chip conveyor components.
A very thorough and detailed steam cleaning of all components and covers to like new condition
The refurbish was done for many trouble free years of use. No expense was spared on this refurbish with many new parts. Over 500 hours just in cleaning every nook and crevice of this machine and its accessories.
2007 TRAUB TNX 65/42
SPECIFICATIONS:
Chuck Size..... 175 mm
Bar Capacity... 65 mm
Power.......... 24 kW
Max RPM........ 5,000 RPM
