Traub #TNX65/42, CNC Lathe, 6" chuck, 2.6" bar, 32 HP, 5k RPM, 66 holders, TX8is cnc, parts, 2007

Estimated monthly payment valid upon approved credit.

Request Formal Quote

Description

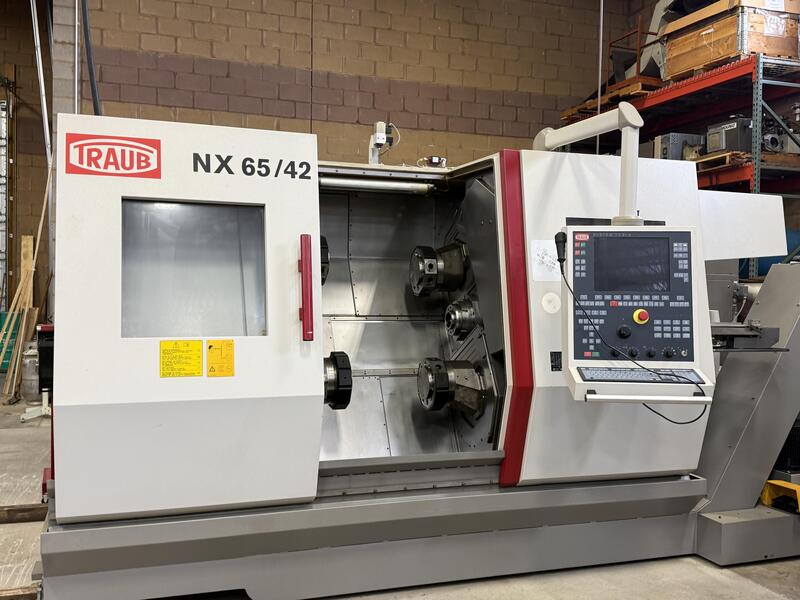

Located in Minnesota, this 2007 Traub TNX 65/42 Milling and Turning Center is a versatile, high-precision multi-axis CNC machine designed for complex turning and milling operations. Available for inspection under power, it is ideal for manufacturers requiring integrated milling and turning in a single setup.

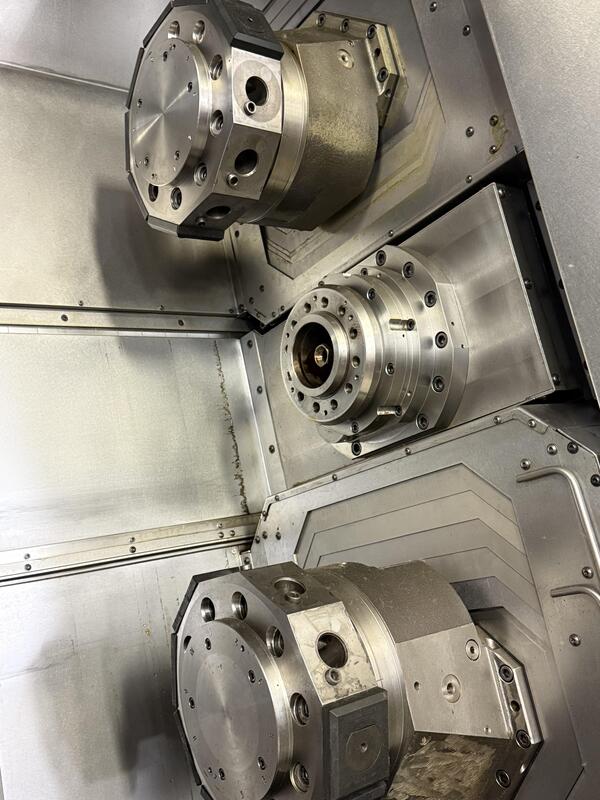

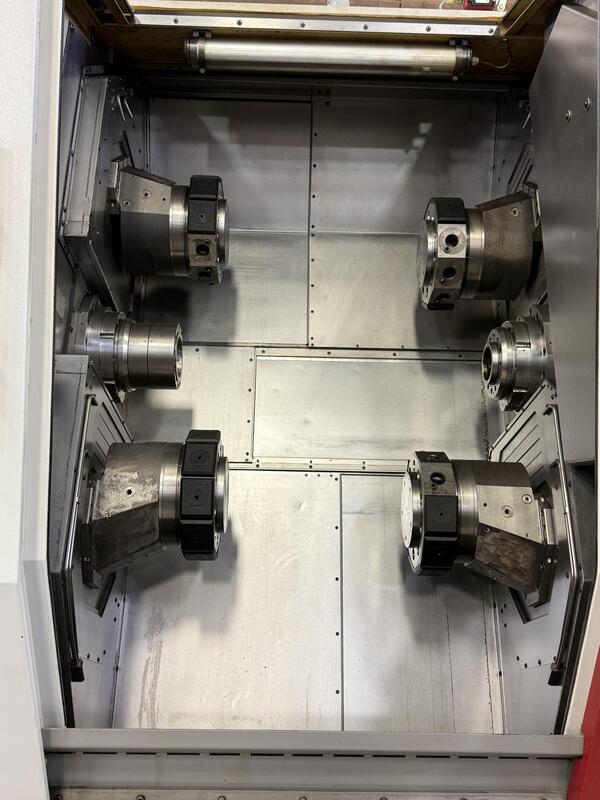

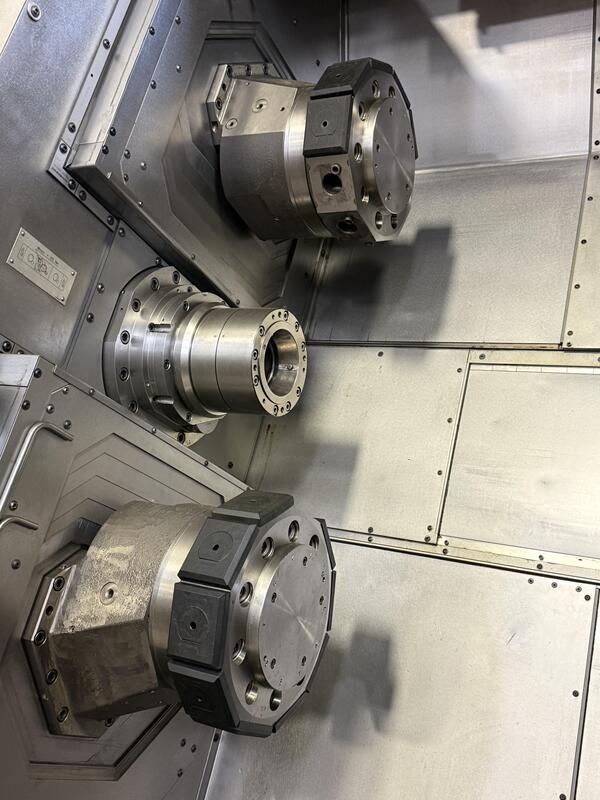

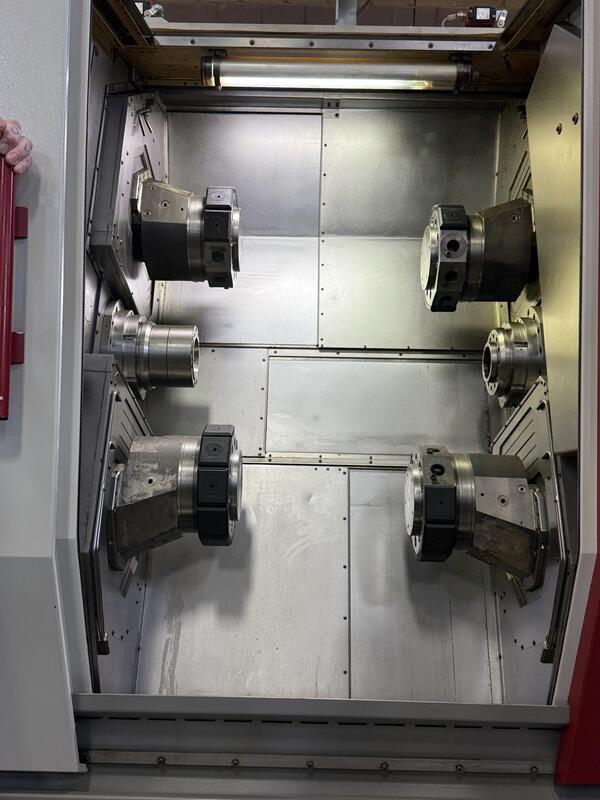

The TNX 65/42 features a 6.8898 main chuck, 2.5591 bar capacity, and 32 HP spindle power with 5,000 RPM capability. Equipped with live tooling, a sub spindle with coolant flush, and 15 CNC axes, it supports simultaneous milling, drilling, and turning operations. The machine is controlled via a TX8i-S CNC system (Mitsubishi/Traub based), managing 4 X-Y-Z turrets with 10 positions each, capable of up to 20 tools per turret.
Additional capabilities include:
- Servo-driven gantry receiver and hydraulic swivel with pneumatic finished part and bar remnant gripper

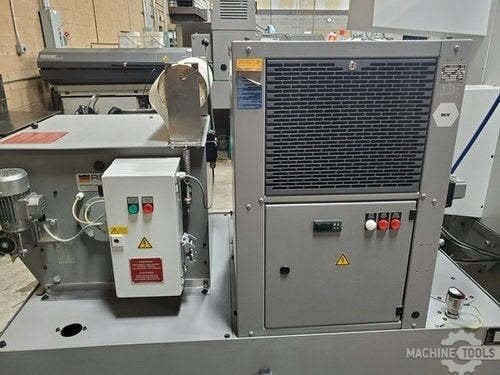

- Finished part conveyor belt and RESY paper band coolant filter with Chiller
- Knoll coolant tank with BKW refrigerated temperature control, high- and low-pressure coolant pumps
- Knoll chip conveyor for efficient chip removal
- FMB Turbo 5-55 magazine bar feeder (new 2010)
This unit includes an extensive tooling package with 66 tool holders (many brand new), axial and radial milling/drilling tools, turning stick holders, and a Rohm 2-jaw chuck. Additional spare parts include two complete ballscrew replacements, buffers, clutches, bearing units, and two rebuilt MDS-DH-V2-2020 2-axis 400V amplifiers. Total spare parts replacement cost: $11,450.38.
The Traub TNX 65/42 is fully operational and can be inspected at our Minnesota location. Offered by Source Machinery Sales, this machine provides immediate access to a highly capable multi-axis milling and turning solution, with tooling and spare parts included to support continuous production and minimal downtime.
*All specifications are approximations and are subject to verification
Traub TNX 65/42 Milling and Turning Center
Year: 2007
Serial #: 7060107
Chuck: 6.8898"
Bar Capacity 2.5591"
Power 32 HP
RPM: 5,000 RPM
Live Tooling, Sub Spindle

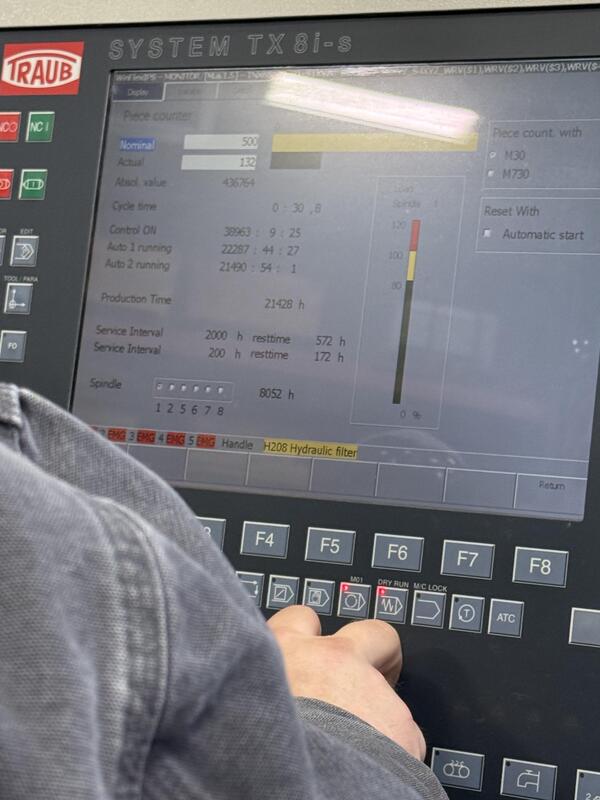

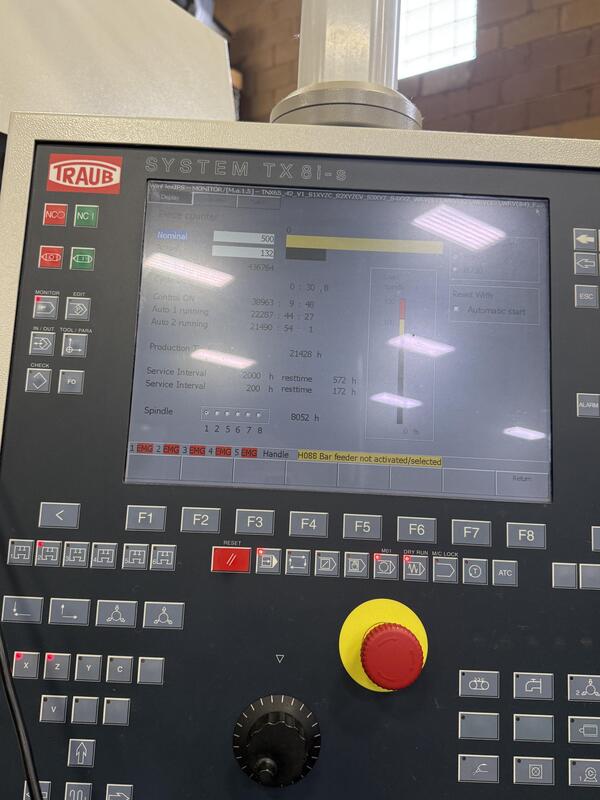

Control: CNC (TX8is)
Commissioned in 2010 TX 8i-S control (Mitsubishi/Traub based control with Mitsubishi drives and motors) 15 CNC axiss (4) X-Y-Z turrets with 10 positions each. Up to 20 tools per turret 65 mm thru hole main and sub spindle (sub spindle has coolant flush) Foot pedal control for clamp/unclamp of spindle chucks Servo driven gantry receiver Hydraulic swivel w/ pneumatic finished part and bar remnant gripper Finished part conveyor belt RESY paper band coolant filter/Chiller Knoll Coolant tank with BKW refrigerated coolant temperature control 20 Bar High pressure and 8 Bar Low pressure coolant pumps Knoll chip conveyor FMB Turbo 5-55 magazine bar feeder (new in 2010) Machine is under power and can be inspected at our Minnesota
Tooling Package included:
2 475577 Axial Milling/ driven
3 W68500.0200 Axial Drilling/ER collet/ Driven
3 W1340057 Radial drilling/ER collet/Static
1 W1340048 Radial boring head/ bushing/ static
2 475568 Radial boring head/ bushing/ static
4 W1340052 Twin Radial boring head/ bushing/ static
8 W1345014 Twin Axial drilling/ ER collet/ driven
5 W1305021 Axial Milling/ End Mill/ driven
10 40.3025G300IM EWS Axial Drilling/ER collet/ Driven
1 40.3020WNG300 EWS Axial Milling/ End Mill/ driven
3 W1300000 Turning stick holders
1 W9990259 Cut-off holder with W1340039 Base
1 W1330000 Radial VDI adaptor/ with Bruckner 700E055VDI30 live center support
2 W1300002 Single Stick Turning tool holder
2 W1340033 Double Stick Turning tool holder
1 W9990026 Cut off holder with W1340015 Base
1 W1345009 Single/ Axial Drilling/ ER collet/ Driven
4 W130500 Axial ER Collet Drilling/ Driven
1 W68510.0400 Axial EM holder/ Driven
1 W1335010 Angle Adjustable Drilling ER collet/ Driven
2 W1345013 Axial Shell Mill Holder/ Driven
2 475588 Radial EM holder / Driven
6 W1345000 Radial ER collet/ Driven
66 total tool holders. Some tool holders on this list are brand new never been used.
1 KFD-HS 160/2 Rohm 2 Jaw Chuck
Spare Parts for 2 complete Ballscrew replacements
4 10419381 Buffer 445.80
2 10880634 Ball Screw 3781.66
2 10441861 Clutch 544.02
2 10716639 Bearing Unit 6678.90
Total Cost $11,450.38

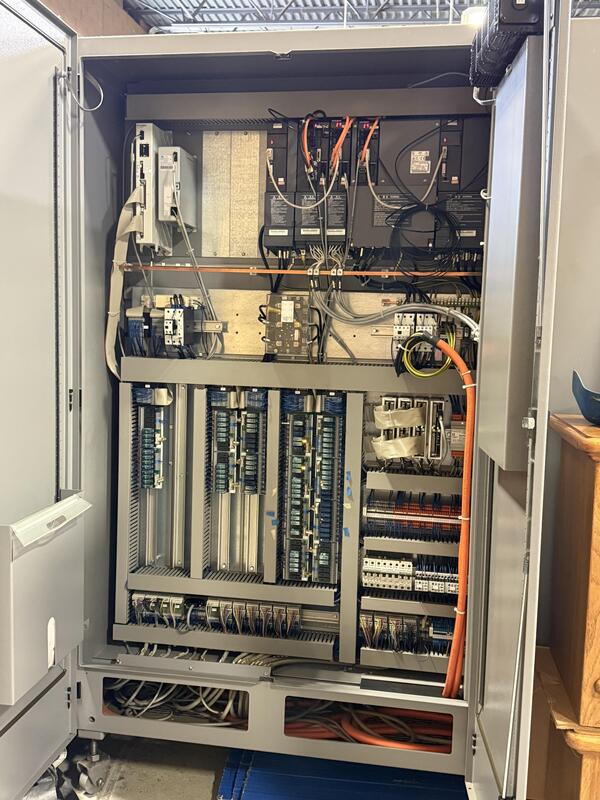

2 MDS-DH-V2-2020 2 axis 400v Amplifier (rebuilt by Mitsubishi)
