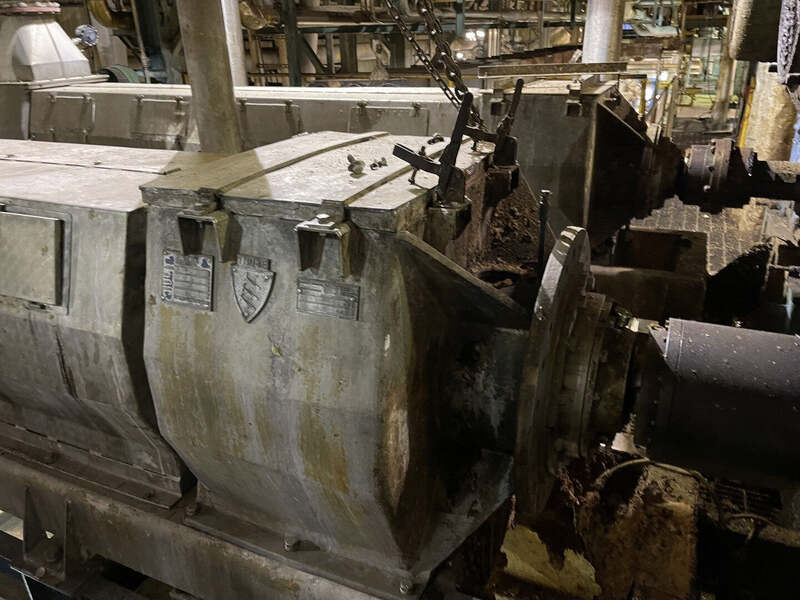

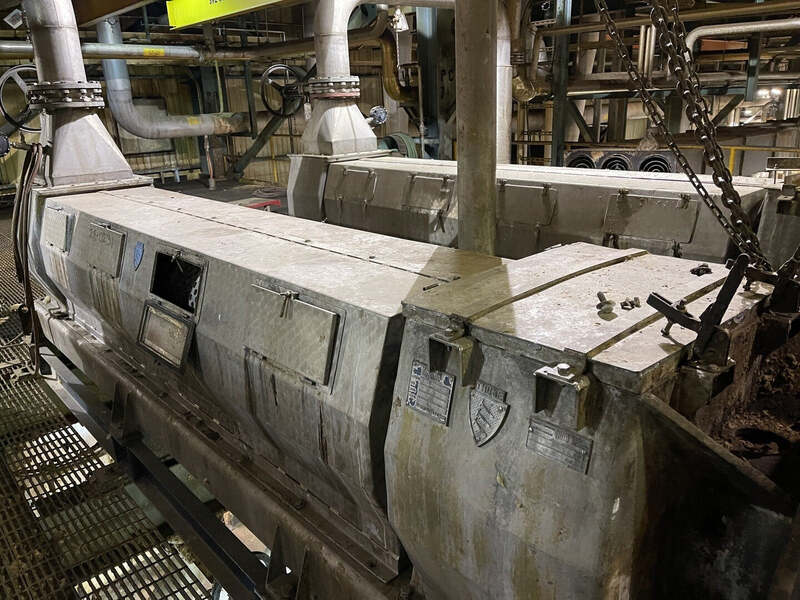

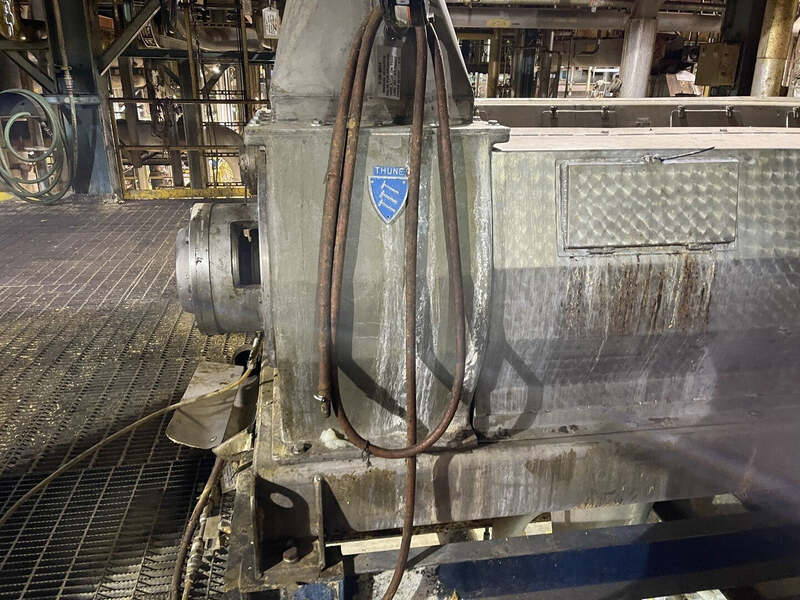

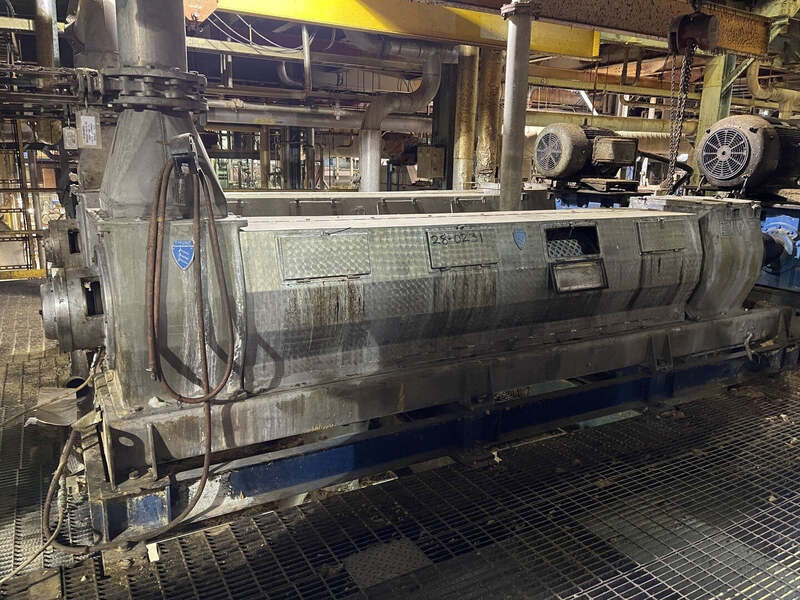

Thune #SP45SL, Dewatering Screw

SKU: 113591

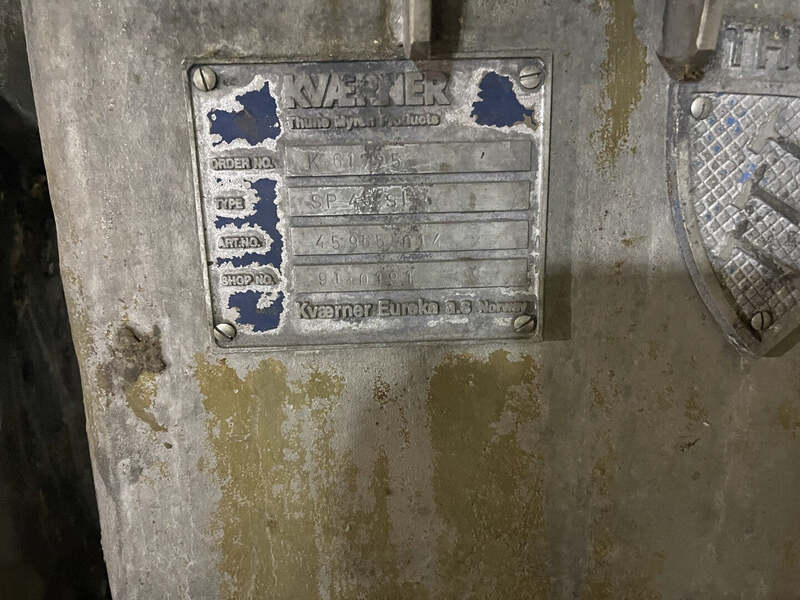

Model: SP45SL
Condition: Used
Additional Description:
Applications Include:
- Removing DCM extractives
- Washing DIP
- Washing high kappa kraft pulp
- Dewatering rejects
- Fiber sludge dewatering
Features:
- All wetted parts of high-grade stainless steel
- The pneumatic counter-pressure system with piston-type individual baffles This combined with a mechanically adjusted cone ring ensures a high and even discharge consistency
- The drill pattern of the screens and the close tolerances between the screw flight and the screens prevent blocking.
- Improved hard facing on the screw flight in the high compression zone significantly reduces wear.
- The split screen in the high compression zone enables easy screw flight inspection and maintenance.
- The shaft screen in the high compression zone increases and evens out the discharge consistency.
Dewatering Screw Dimensions: 4910 mm length x 950 mm width x 1030 mm height
Net Weight (Just the screw): 3700 kg
Nominal Capacity (Bone Dry Metric Tonnes Per Day): 120 BDMT/D
Screen Cylinder Diameter: 45 cm
Screen Sections: 4

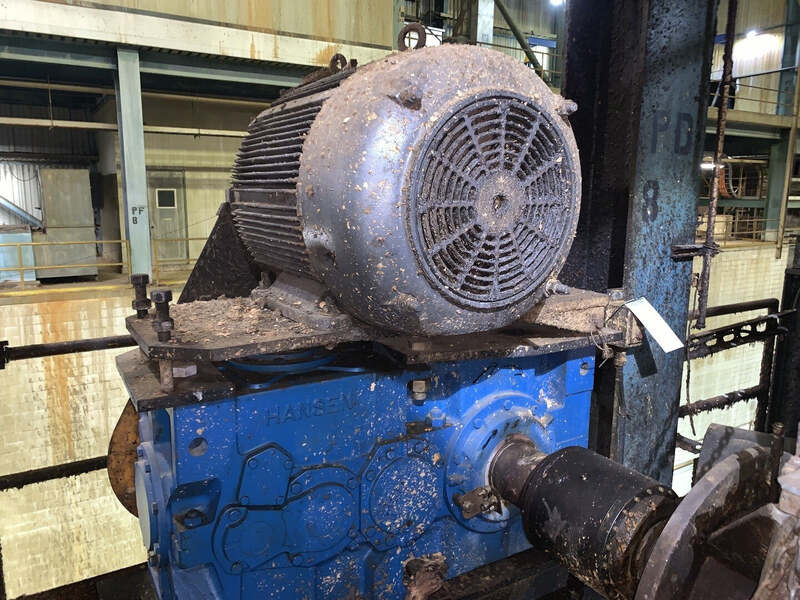

Motor Power: 125 hp

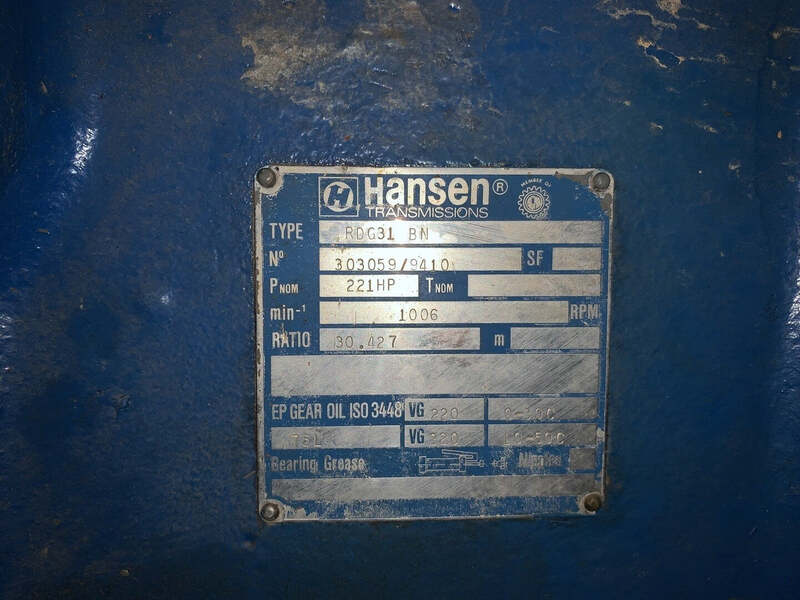

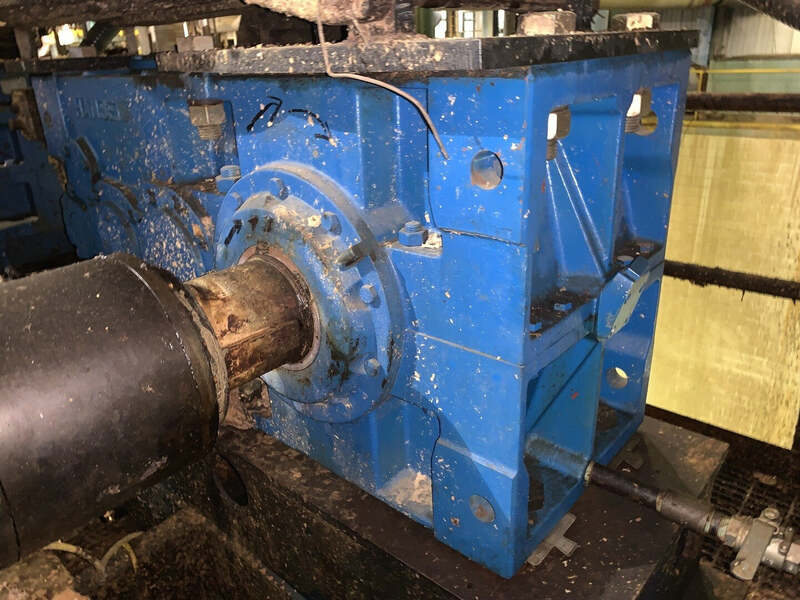

Gearbox Ratio: 30.427
Gearbox Nominal Power: 221 hp
Gearbox Min. Speed: 1006 rpm
