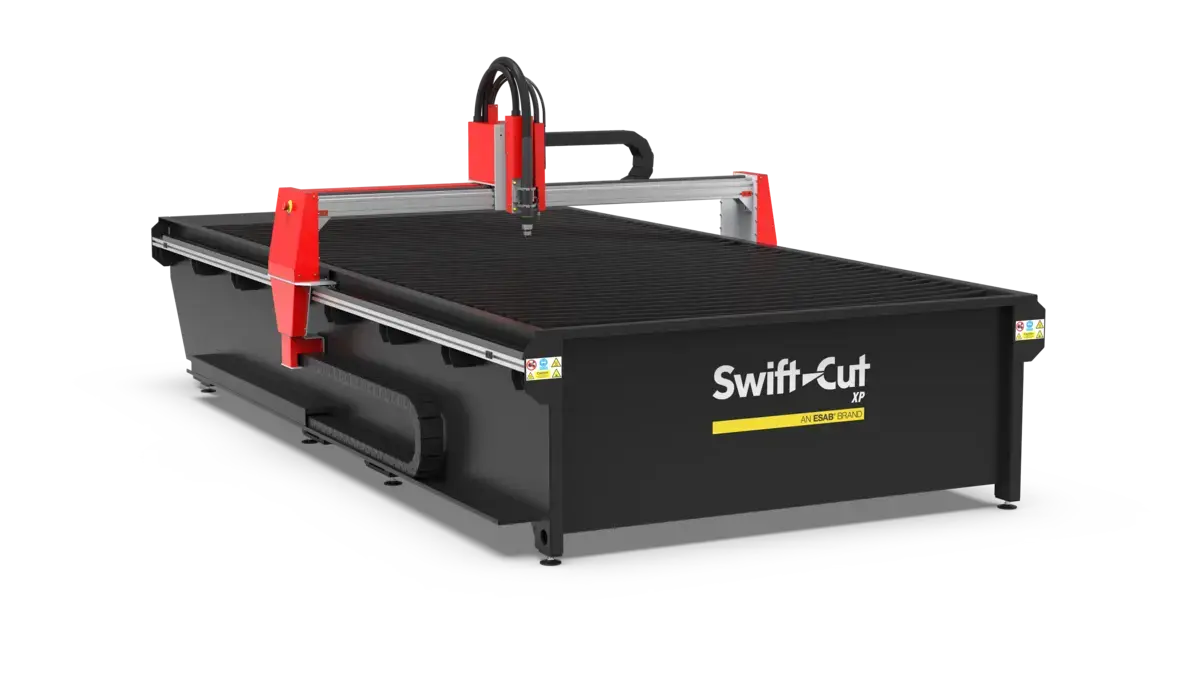

Swift-Cut #XP613WT, Plasma Cutter, 6' x 13', touchscreen CNC, Hypertherm Maxpro200, water table

6.5’ x 13’ CNC Plasma Cutting Systems with Swift-Cut Touchscreen CNC Control, Advanced DXF importer, Hypertherm Maxpro200 Plasma Power Source (Pierce/cut 1.25” thick, edge start 2” thick.) Water Table, 2 Year Warranty on Table/Motion System, 3 Year on Plasma Power Source.

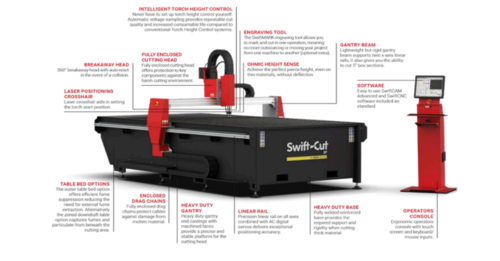

GENERAL SPECIFICATIONS
Cutting area 6.5’ x 13’
Dropped rails for ease of loading
Gantry parking to allow full sheet to be loaded overhead
Robust steel frame design – 5,732lbs for table
Water table design has drain ports to ball valve to drain table
Cutting deck on either design has three sections that can be removed completely to clean table.
Heavy duty gantry and head to suit high performance plasma source for increased cut performance and easy maintenances
Linear motion guides
400W AC Digital Servo motors with encoder feedback
Planetary gearbox
Dual drive Y-axis
Helical rack and pinion drive system for smoothest motion
NEW – laser crosshairs to easily position cutting head
NEW – completed enclosed Z-axis
NEW – ohmic sensing with air blast prior to sensing for max accuracy
NEW – 360 degree torch protection with spring loaded mount and proximity sensors to stop motion immediately, with any contact with torch. Superior to break-away.
Rapid speeds of 708”/min
Digital Torch-Height Control (DTHC)
Proximity sensing for reliable and robust switching
Ball Screw z axis for precise torch height control
Torch leads and air hoses ran through cable tracks
Easy to remove dross trays
CONTROLLER FEATURES - Swift- Cut CNC Operators Console
Windows 11 platform
NEW - Touchscreen HMI with optional mouse control
NEW - Plate Alignment – Align the cutting path with misaligned sheets on table.
NEW – “Connect-The-Dots” Sheet Trim to follow scrap contour to trim and maximize material utilization. (Two-point and three-point)
NEW – “Point-and Click” Cut Recovery System to restart cutting process from interrupted cutting
NEW – Standard and Advanced screens for operators with varying experience
NEW – Advanced Importer for JPEG/DXF/DWG/DSTV files, as well as pre-nested DXF or DWG files
NEW – Automatic Lead-ins and toolpath generation as standard
Wireless keyboard and mouse for ease of use
NEW - Dual core CPU Intel i3 processor, 128GB solid state drive, 4 GB RAM
External USB and Ethernet connection for customer networking
Teamviewer remote diagnostics and/or training through WIFI or Ethernet connection
E-stop safety button
SOFTWARE PACKAGE - Swift-Cam Software Included As Standard
Conversion of any DXF file to Swift-Cut machine code
Automatic toolpath and lead-in placement
Automatic feed-rate and corner-ramping
Parametric shapes
Preloaded cut tools, consumable recognition photos
3D simulation of nested parts
Swift-Cut CNC control system software
Windows 11 operating system
“Anywhere” on-line support
NEW Advanced Importer Features: Drawing scaling, auto-correct CAD drawing imperfections: overlapping lines, disconnected line segments, (Set tolerance for acceptable gaps), delete/ignore specified geometries within drawing.)
Swift-Cam Advanced Nesting Software – one click, automatic trueshape nesting. Maximizes material utilization with multiple part nesting, parts inside of parts, etc.
PlasmaCAD software – unparalleled, user-friendly CAD drawing package. Supported by CNC Tech only – includes on line personalized training session.
POWER SOURCE
Maxpro200 Power Supply (Pierce/cut 1.25” thick, edge start 2” thick.) (208V and 480V 3ph - in stock)
Maxpro200 Torch X 50’ Long leads
Swift-Cut Custom Consumable Kit (All Gas combos - $1400 value) Only genuine Hypertherm consumables - Includes Fine Cut)
Custom three-stage air filtration for proper air quality to Hypertherm Powermax unit and to ensure best cut quality
Swift-Mark Engraving System – pneumatic hardened tip, permanently mounted next to torch for marking part numbers, press brake bend lines, layout work, etc. (Adjustable depth marking.)
Set up and installation videos provided.
Site Survey provided by Swift-Cut through MySwiftCut App to ensure proper set up, connections, air, etc.
INCLUDES: Swift-Cut Touchscreen CNC Control, Advanced DXF importer, Hypertherm Maxpro200 Plasma Power Source (Pierce/cut 1.25” thick, edge start 2” thick.) Water Table, 2 Year Warranty on Table/Motion System, 3 Year on Plasma Power Source.

***All Price, Location and Specifications Subject to Change without Notice***
