Superfici #Climber-Easy-150-C-2/2100, Moulding Spray Finishing Line, 150 FPM, 900+-20 mm working height, 10' 6" L profile, 20 pc/min

Estimated monthly payment valid upon approved credit.

Request Formal Quote

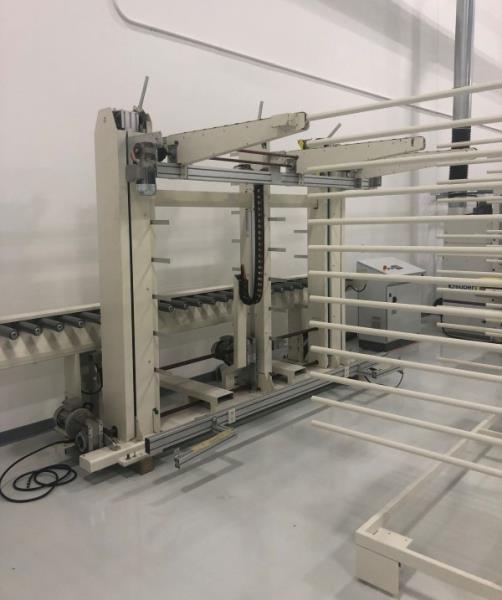

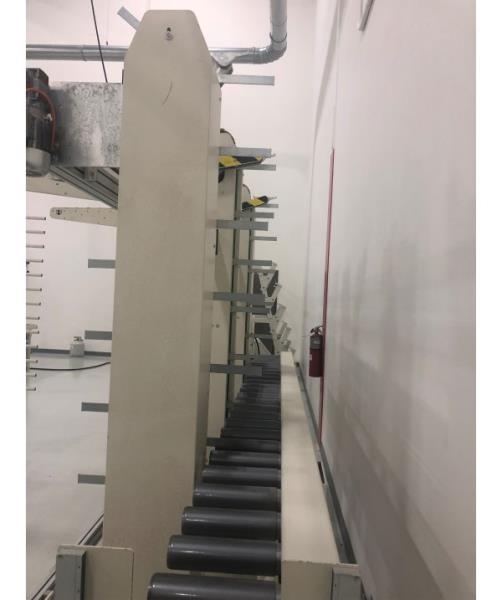

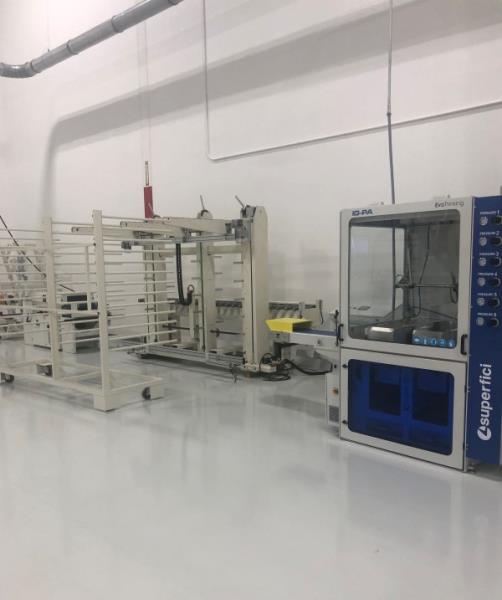

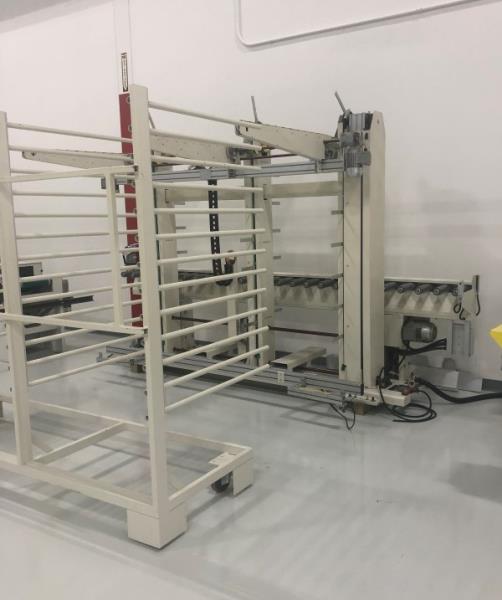

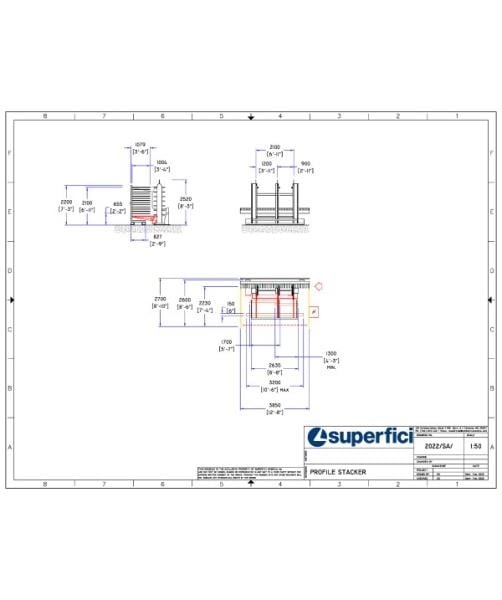

SPERFICI - "Climber Easy 150-C-2/2100", ...Automatic Moulding StackerThis equipment collects strips/profiles coming from a Painting Line and stacks them up automatically on suitable Racks for drying.General Description: -- Machine structure built with electro-welded and painted steel with some aluminum profiles parts. -- On the base of the machine are the columns of the balance devices, as well as the roller way where profiles are fed into the Stacker. -- Side of the roller way built with aluminum profiles having PVC-covered cantilever rollers with different pitch. -- Rollers are driven by an electric motor controlled by an Inverter. -- Lifting balance devices are driven by chains with top system for profiles, movement is mechanically synchronized. -- The machine has (3) Cantilever arms, supported by cross parts & plates sliding on nylon wheels, driven by (3) vertical aluminum profiles. -- The cantilever arms, which place the profiles on the rack arms, have (3) driven V-belts which are covered with soft polyurethane and have different speeds controlled by an Inverter.Technical Data:- Overall dimension: 3,850 mm.- Rollers conveyor speed: 20 - 70 MPM (avg. working speed 150 FPM).- Working height: 900 +/-20 mm.- Working width: 150 mm (6").- Arms pitch: 2,100 mm (6'-8").- Max. profile length: 3,200 mm (10-1/2').- Min. profile length: 1,300 mm (50").- Max. height for profile deposit: 2,000 mm.- Min. height for profile deposit: 490 mm.- Max. cycle: (20) Pcs./Min.- Installed power: 3.8 kW.- Compressed air consumption: Negligible.
