Stanza #STM, UV Finishing line, 24" roll coat, wipers, UV oven

Stanza STM UV Finishing Line

Stock No.: 29133

Serial No.: See Pics

Condition: Used

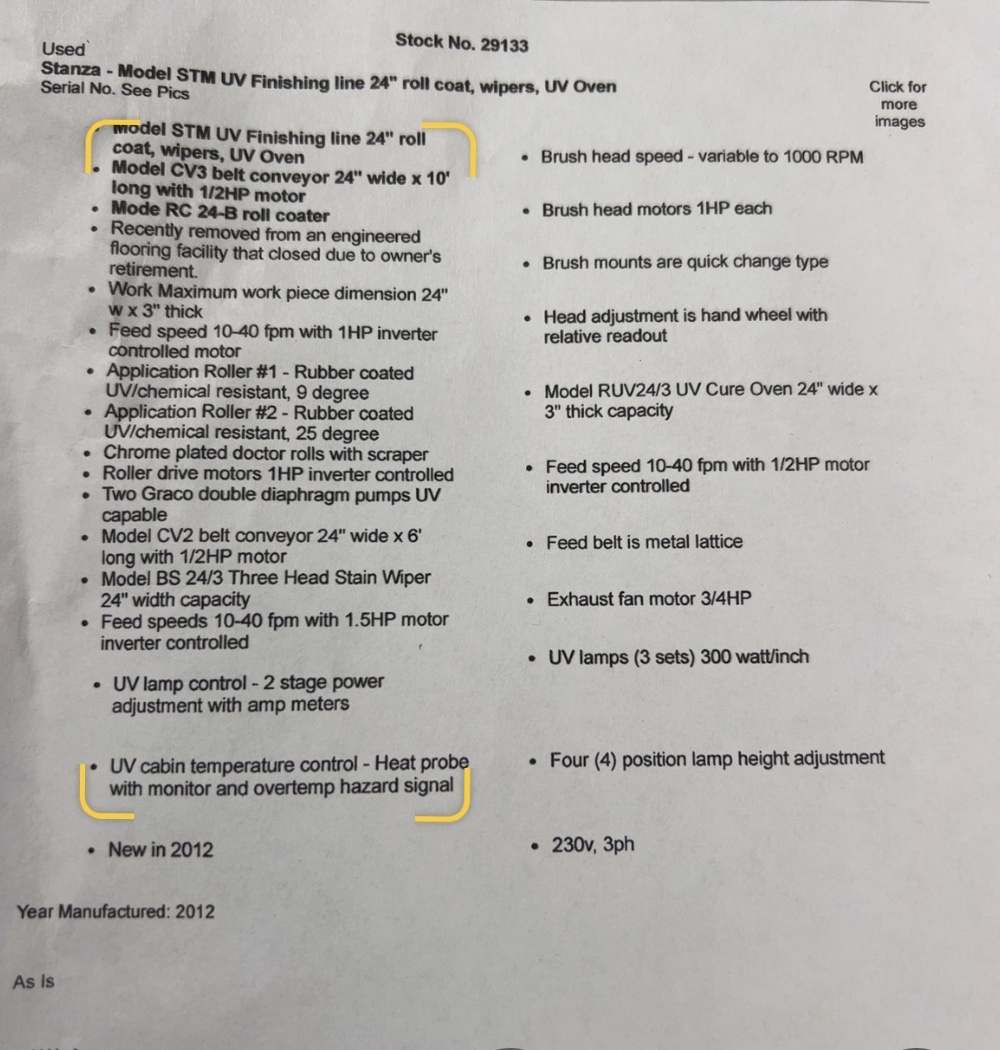

Equipment Included

• Model STM UV Finishing Line, 24" roll coat, wipers, UV oven

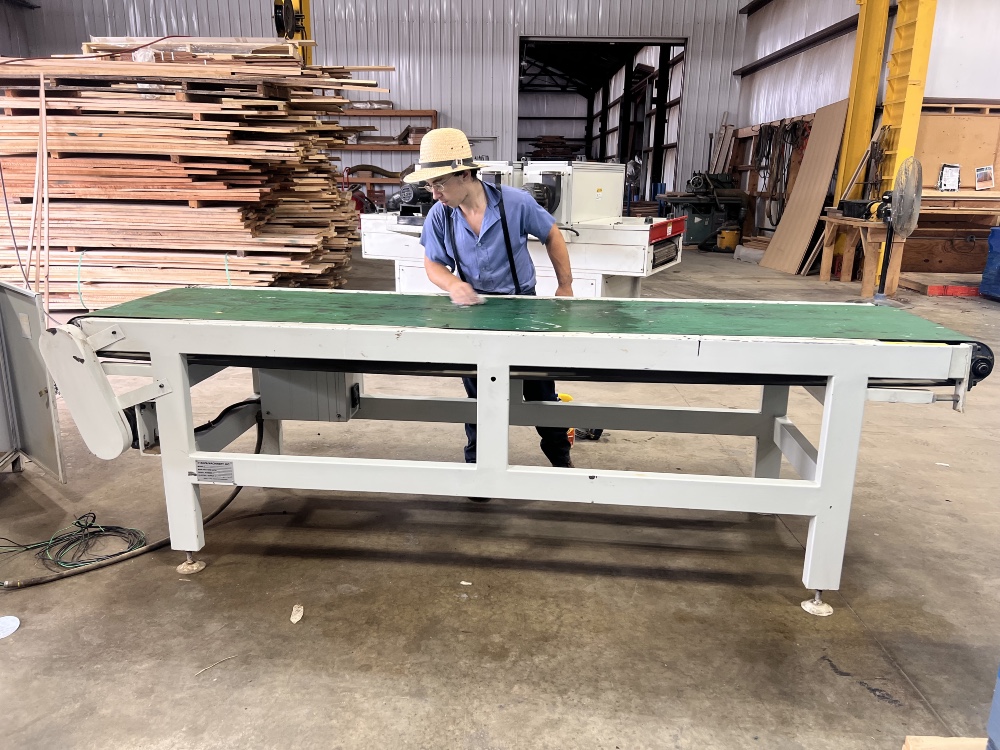

• Model CV3 belt conveyor, 24" wide x 10' long, with 1/2 HP motor
• Model RC 24 B roll coater

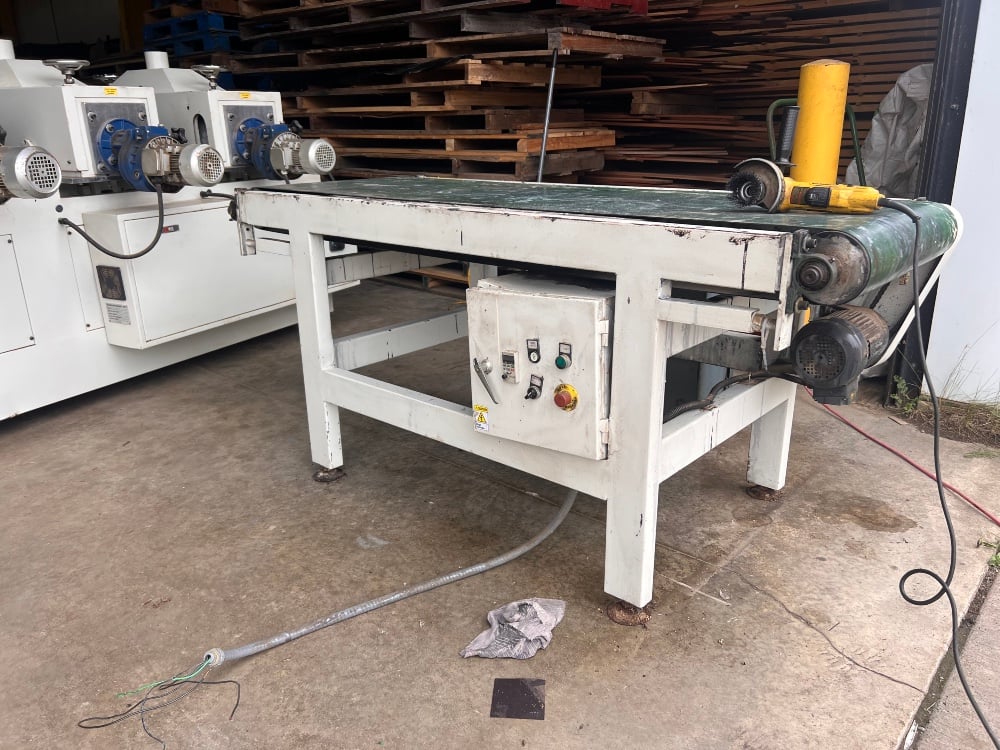

• Model CV2 belt conveyor, 24" wide x 6' long, with 1/2 HP motor
• Model BS 24/3 three head stain wiper, 24" width capacity
• Model RUV24/3 UV cure oven, 24" wide x 3" thick capacity

Specifications

• New in 2012
• Recently removed from an engineered flooring facility that closed due to owner retirement
• Maximum work piece dimension: 24" wide x 3" thick
• Feed speed: 10 to 40 FPM
• Voltage: 230V, 3 phase

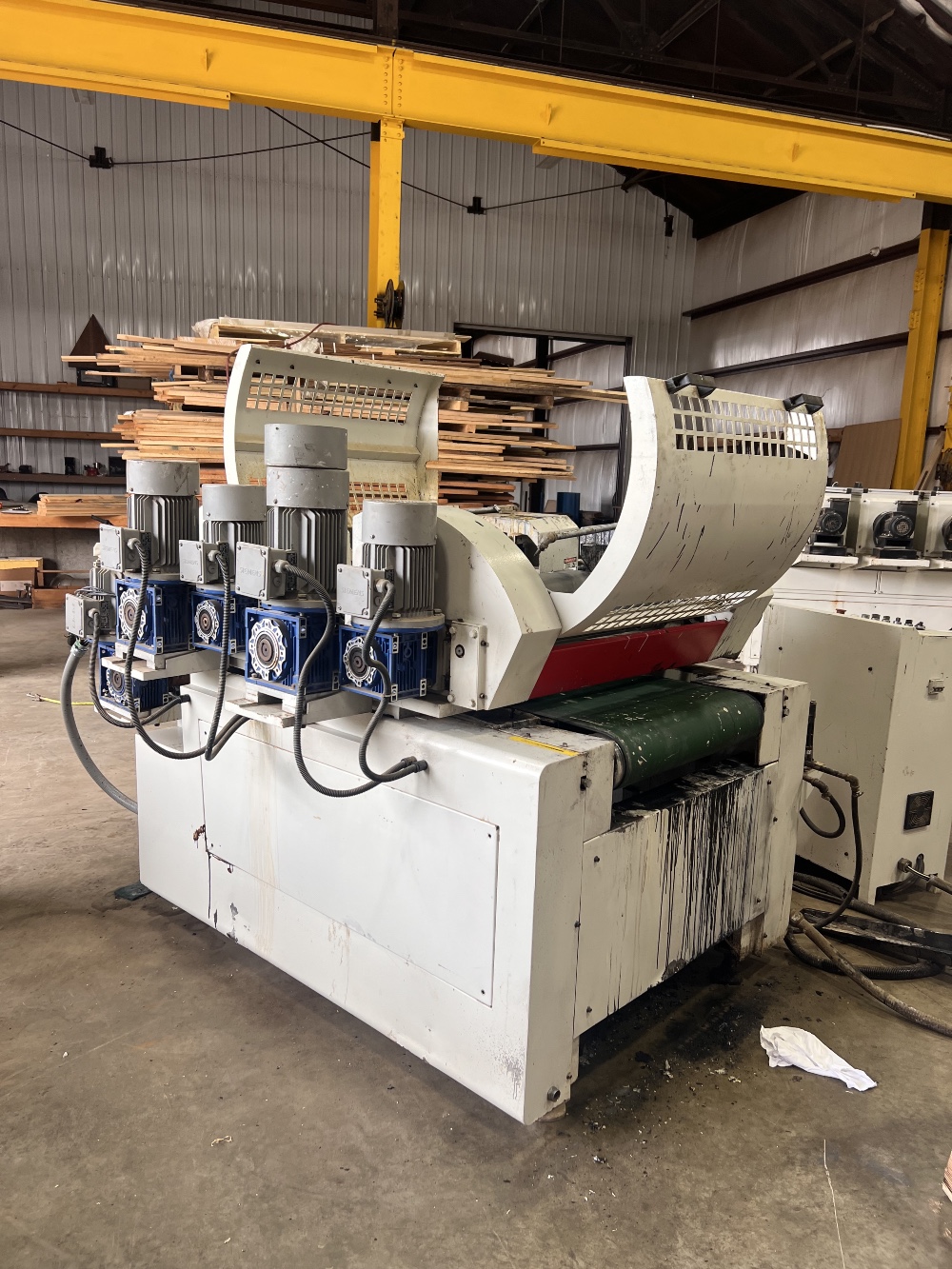

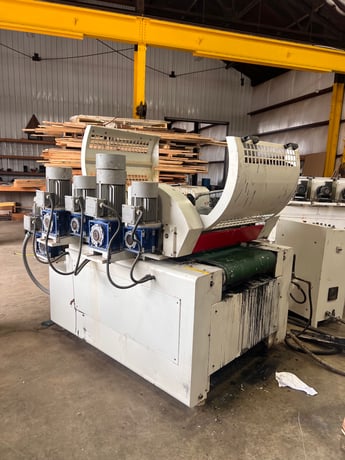

Roll Coater

• Application Roller No. 1: rubber coated, UV/chemical resistant, 9 degree
• Application Roller No. 2: rubber coated, UV/chemical resistant, 25 degree
• Chrome plated doctor rolls with scraper
• Roller drive motors: 1 HP, inverter controlled
• Two Graco double diaphragm pumps, UV capable

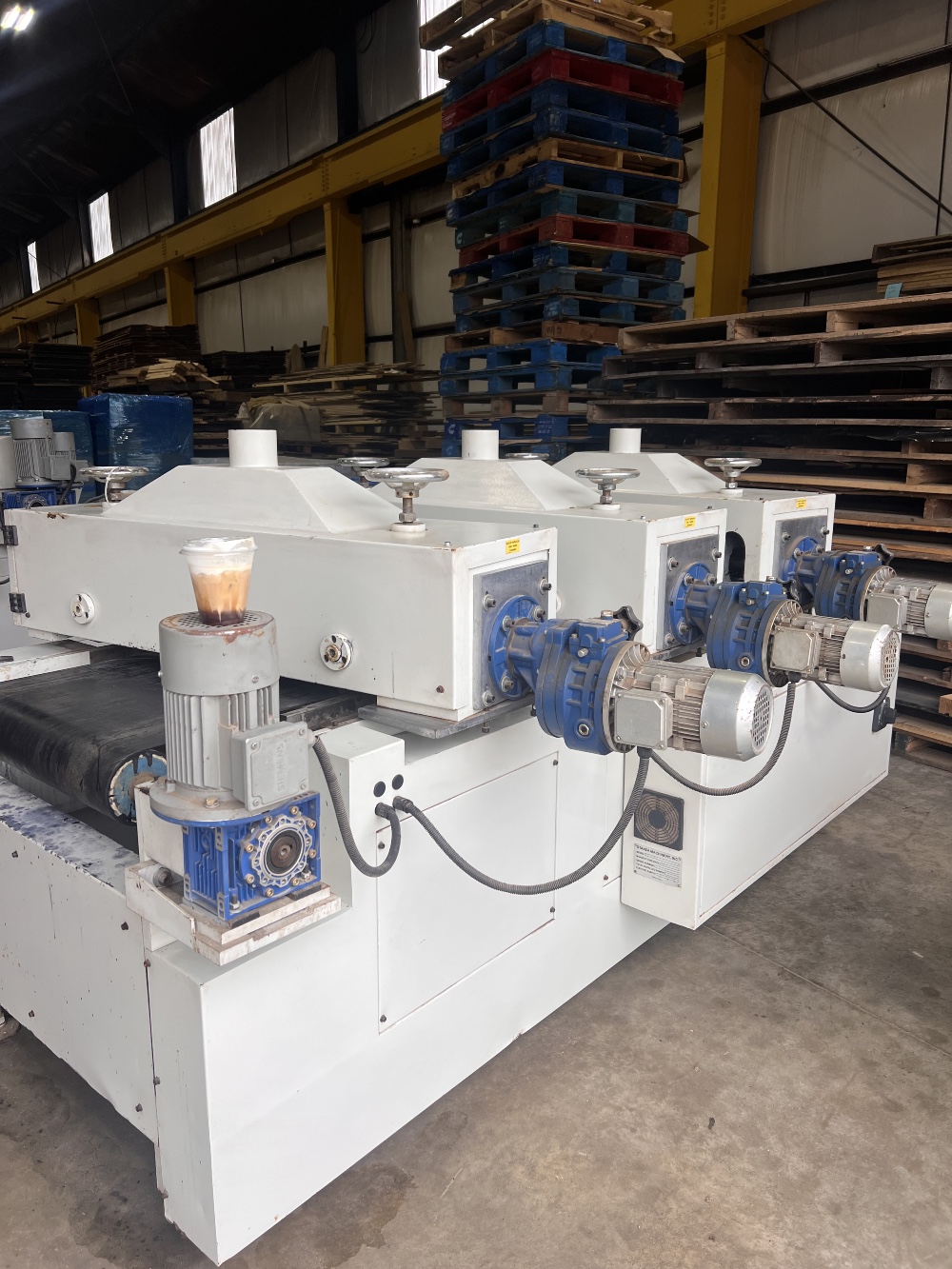

Stain Wiper

• Three head stain wiper, 24" width capacity
• Feed speed: 10 to 40 FPM with 1.5 HP motor, inverter controlled
• Brush head speed: variable to 1000 RPM
• Brush head motors: 1 HP each
• Brush mounts are quick change type
• Head adjustment is hand wheel with relative readout

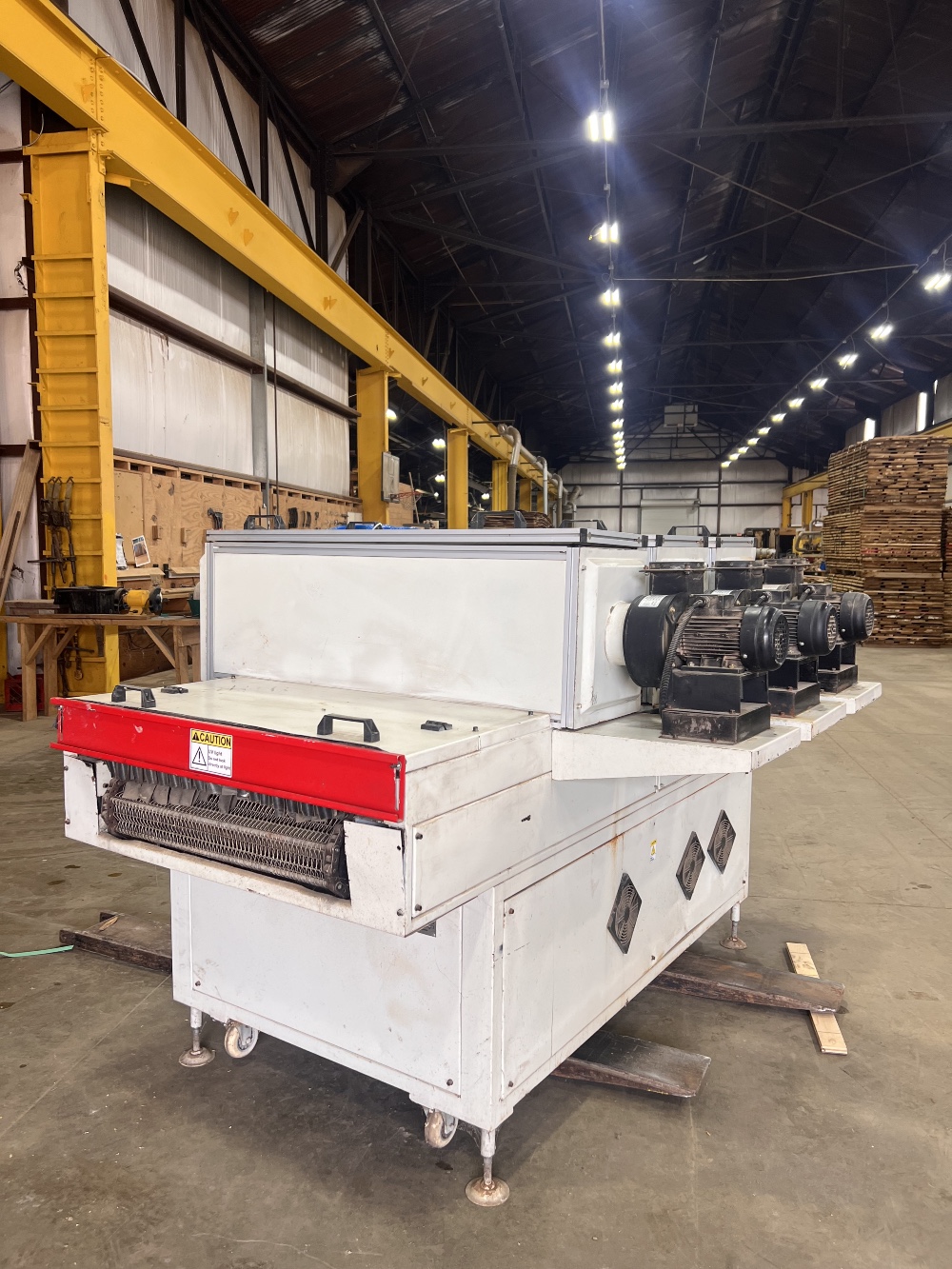

UV Cure Oven

• Feed speed: 10 to 40 FPM with 1/2 HP motor, inverter controlled
• Feed belt is metal lattice
• Exhaust fan motor: 3/4 HP
• UV lamps: 3 sets, 300 watts per inch
• UV lamp control with 2 stage power adjustment and amp meters
• UV cabin temperature control with heat probe monitor and overtemperature hazard signal
• Four position lamp height adjustment
