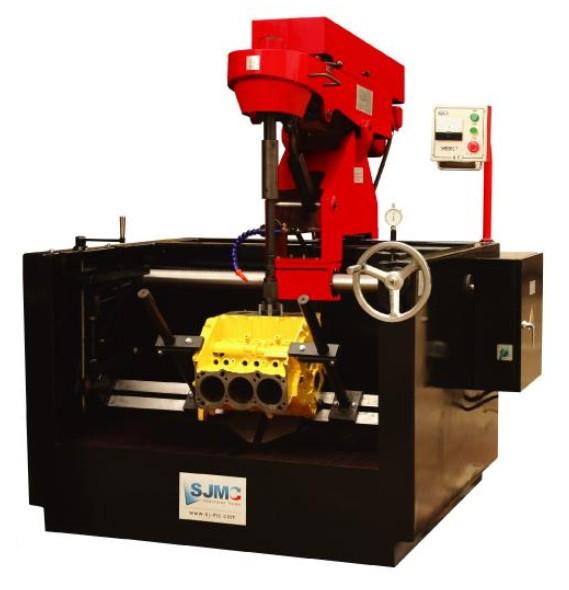

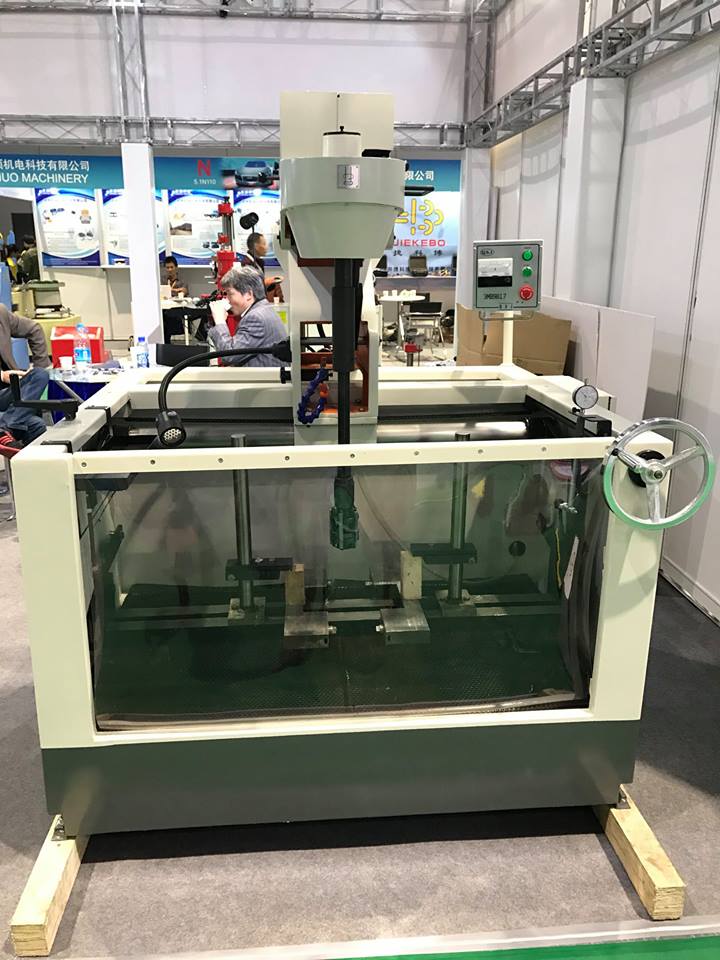

SJMC #3MB9817, vertical honing machine, 35-170mm hole honed diameter, 320mm hole honed depth

The machine is mainly used for honing single line engine cylinders and V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.

1.The machine table can shift of the fixture change 0°, 30°, 45°

2.The machine table is easily up and down manually 0 – 180 mm

3.Reverse precision 0-0.4mm.

4.Select mesh-wire degree 0°– 90°or non-mesh-wire.

5.reciprocating speed of up and down 0-30m/min

6.The machine is reliable performance widely use honing, easy operation and high productivity.

Good rigidity, amount of cutting

Standard accessories:

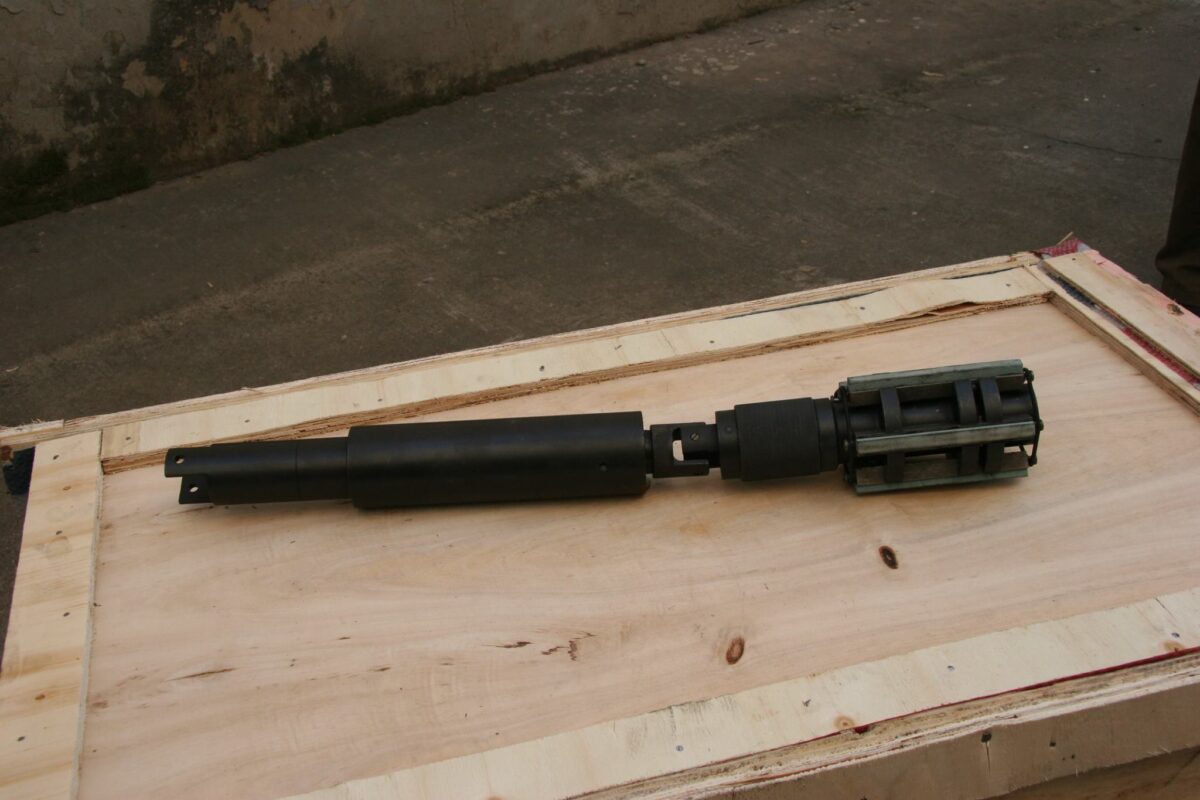

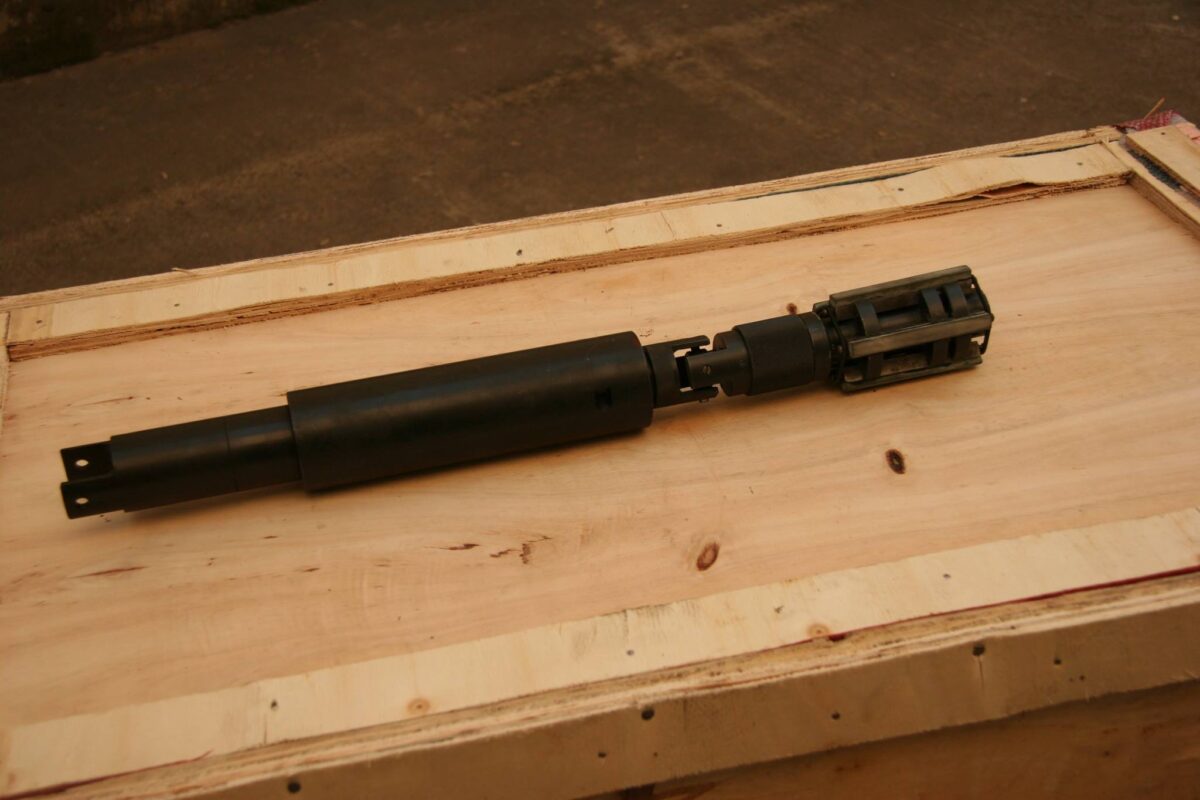

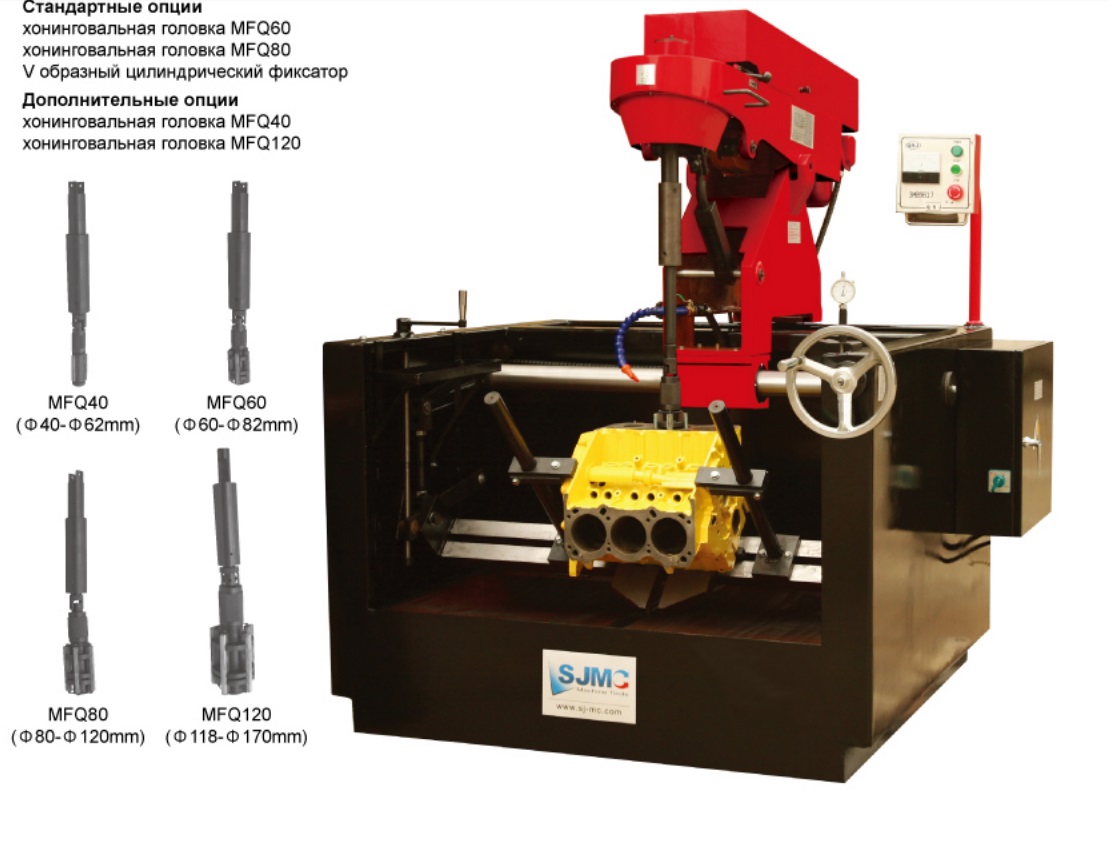

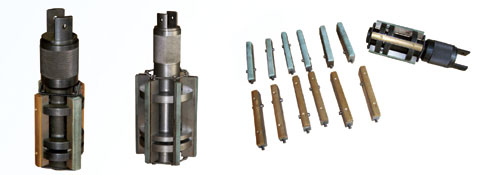

Honing bars, Honing heads MFQ80, MFQ60, Screw plate,

Press blocks, Left and right press bar, Handle, Measure block, Pull springs.
