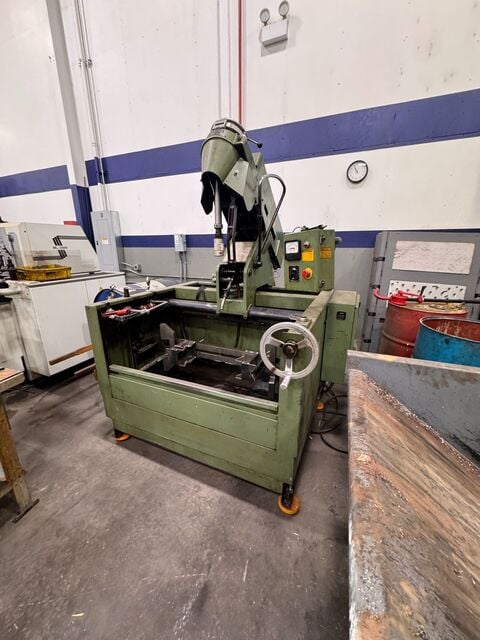

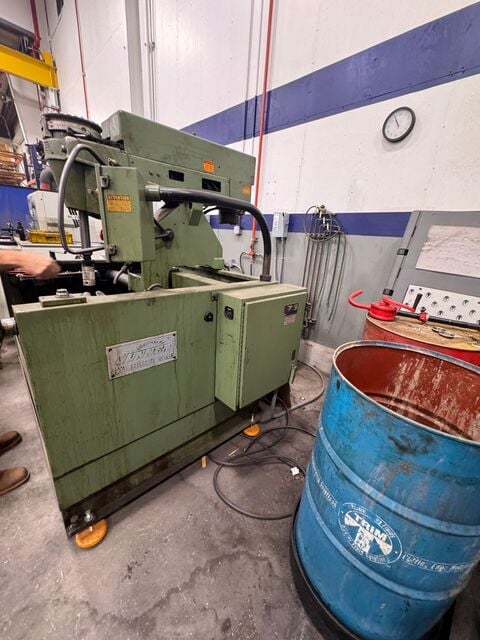

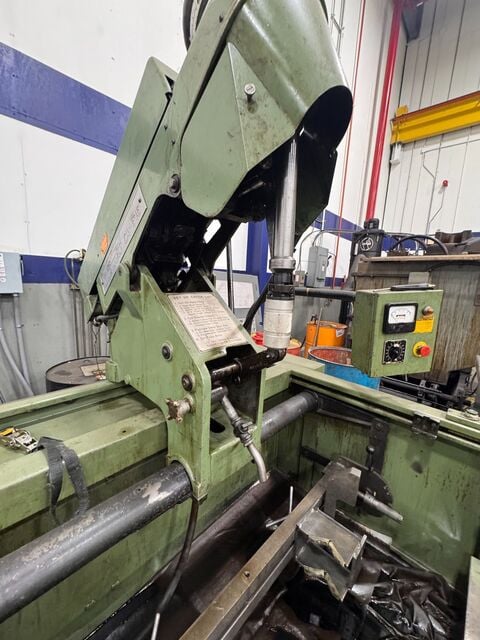

Sunnen #CV-616-D, Cylinder King automatic vertical honing machine, 230 V., 3 Ph.

Estimated monthly payment valid upon approved credit.

Request Formal Quote

SPECS:

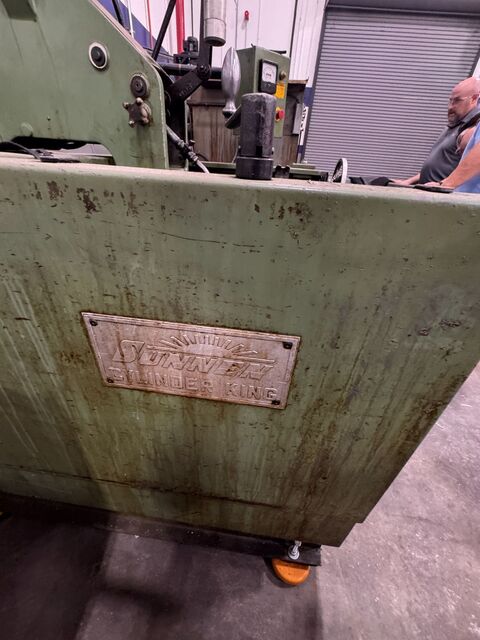

-SUNNEN PRODUCTS COMPANY CYLINDER KING
-MODEL: CV-616-D
-SERIAL NUMBER: 1K1 3407
-AUTOMATIC VERTICAL HONING MACHINE
-DESIGNED FOR PRECISION CYLINDER AND BORE HONING APPLICATIONS
-APPROXIMATE BORE DIAMETER CAPACITY: 3/4" TO 8"
-MAXIMUM WORK LENGTH: APPROX. 18" DEPENDING ON BORE DIAMETER
-0" TO 9" ADJUSTABLE STROKE LENGTH
-4 SPINDLE SPEEDS: 125 / 170 / 230 / 310 RPM
-3 STROKE RATES: 41 / 57 / 80 SPM
-AUTOMATIC/PRESET STOCK REMOVAL SYSTEM
-MECHANICAL STROKE AND FEED SYSTEM
-SUNNEN LOAD METER
-ADJUSTABLE DWELL/STROKE CONTROLS
-INTEGRATED HONING OIL / COOLANT SYSTEM
-LARGE TRAVERSE HANDWHEEL
-WORKHOLDING/CRADLE ASSEMBLY PRESENT

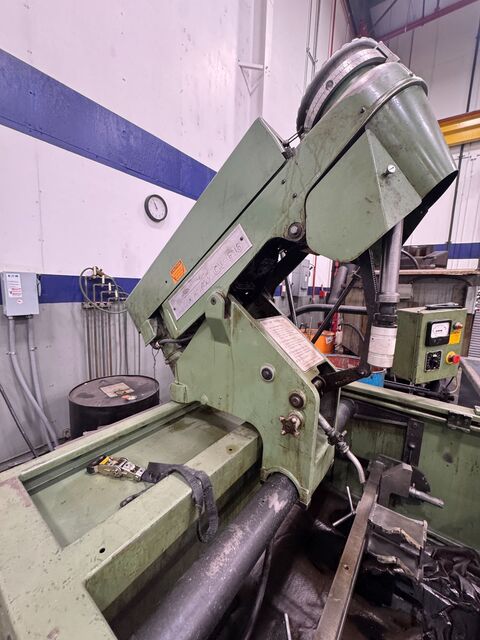

-HONING HEAD / TOOLING SHOWN INSTALLED

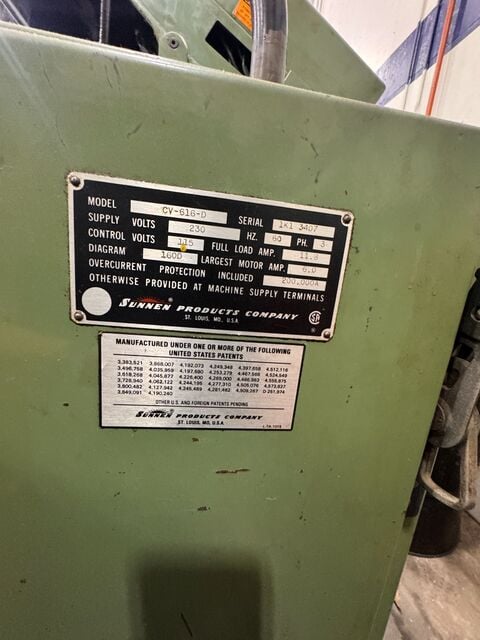

-230V
-3 PHASE
-60 HZ
-115V CONTROL VOLTAGE
-11.8A FULL LOAD

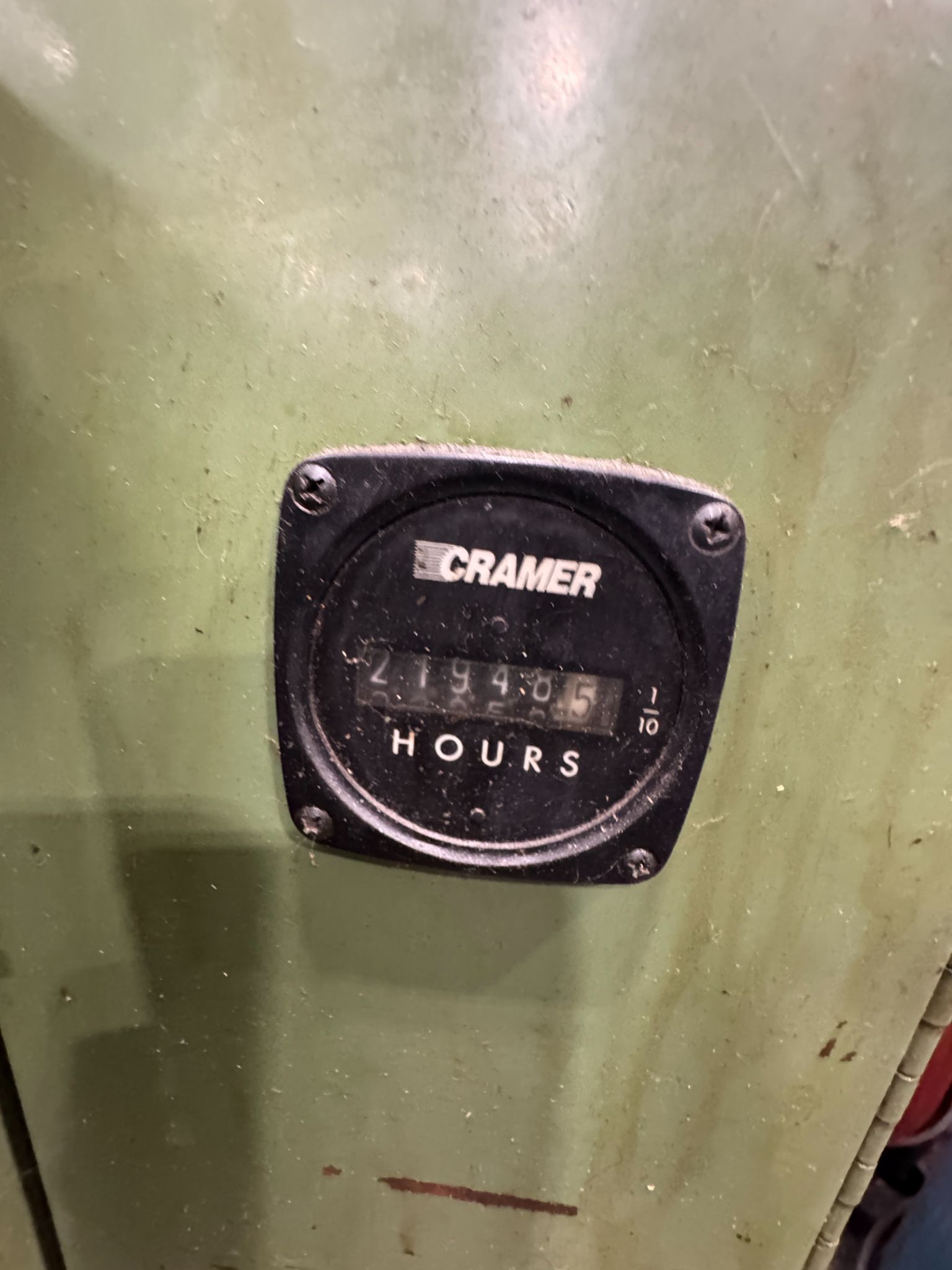

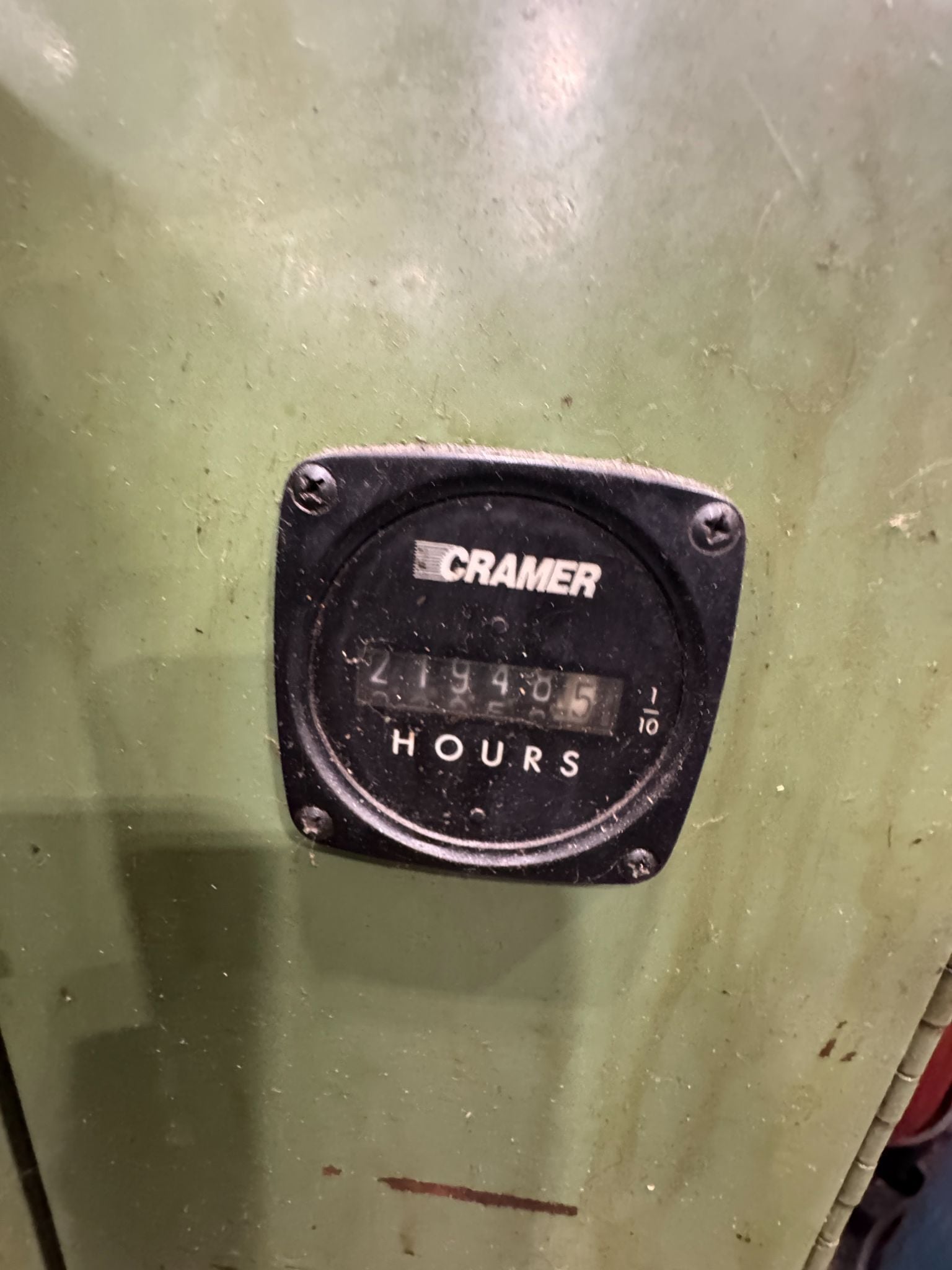

-HOUR METER SHOWS APPROXIMATELY 21,940.5 HOURS
-HEAVY-DUTY INDUSTRIAL MACHINE
-USED CONDITION WITH NORMAL SHOP WEAR, OIL RESIDUE, PAINT LOSS, SCRATCHES AND SURFACE WEAR
SUNNEN CV-616-D CNC metalworking equipment available. This pre-owned model is suited for precision machining tasks, offering reliable performance in your industrial operations. Contact us to enhance your production capabilities today.
