Sharp #RD-1600, box table, coolant system, built-in automatic tool ejector, automatic spindle reverse for tapping, 2013

Here We Have:

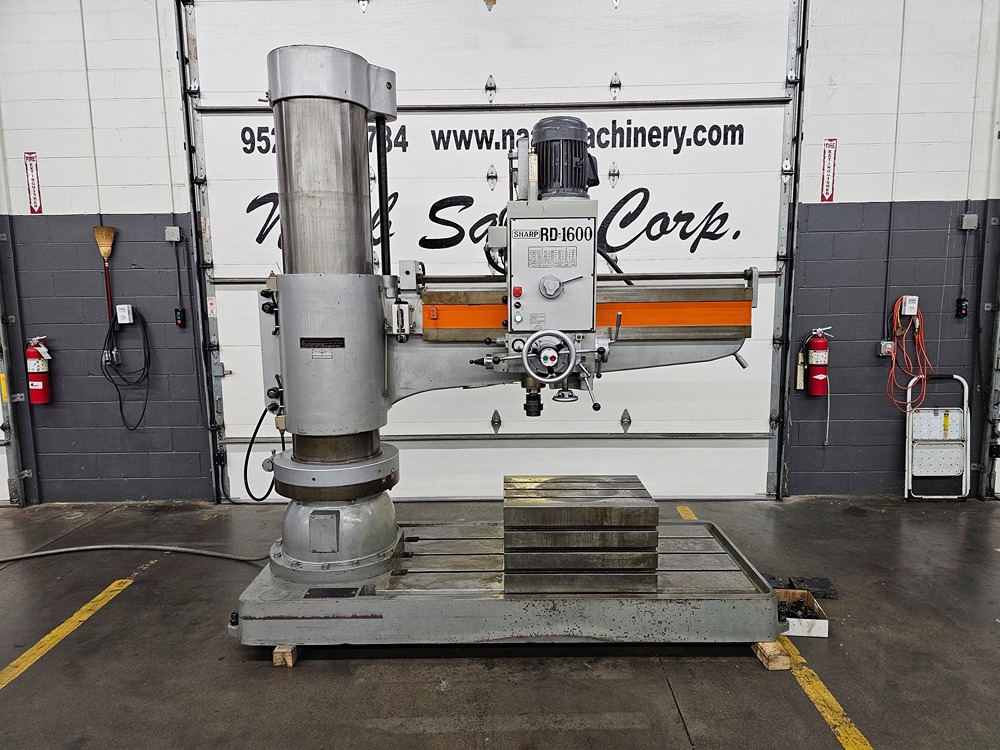

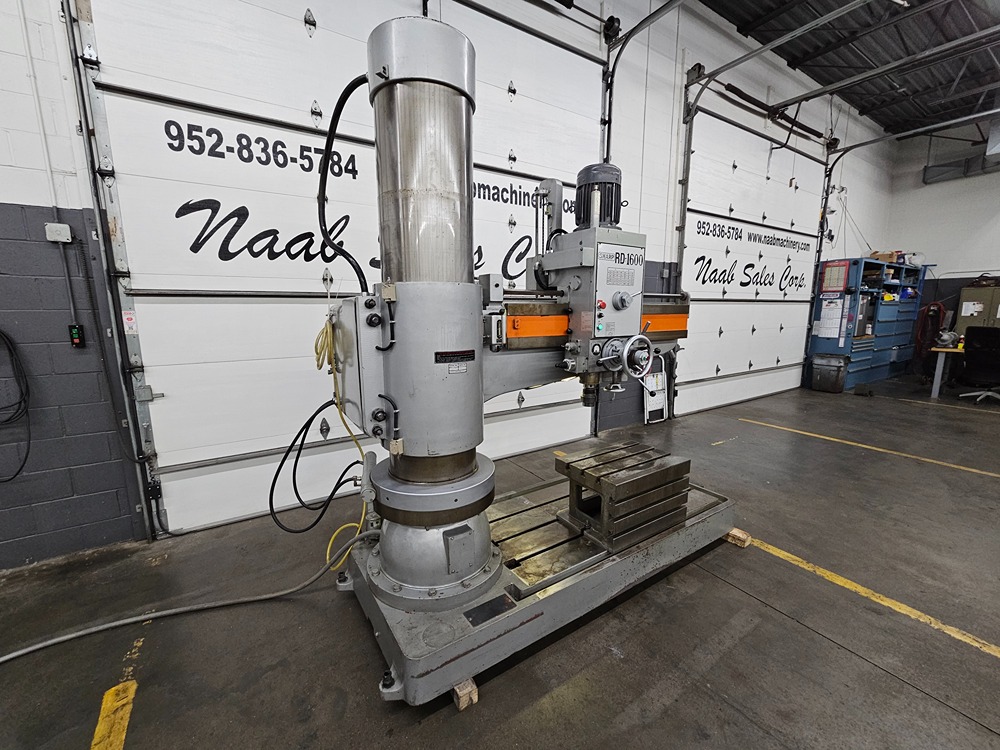

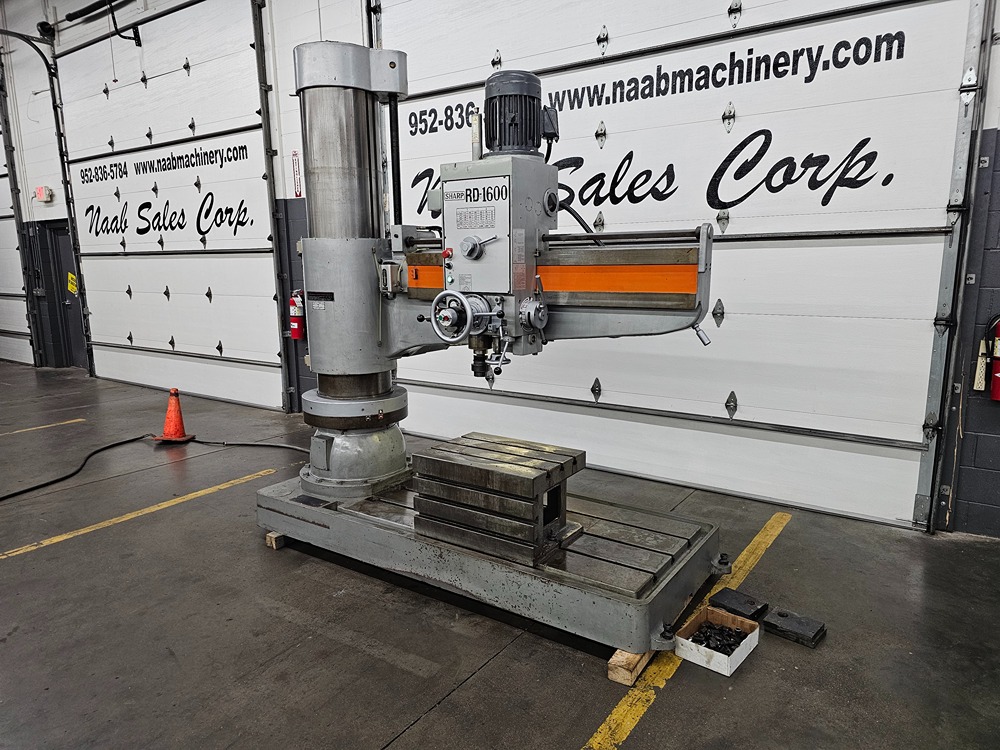

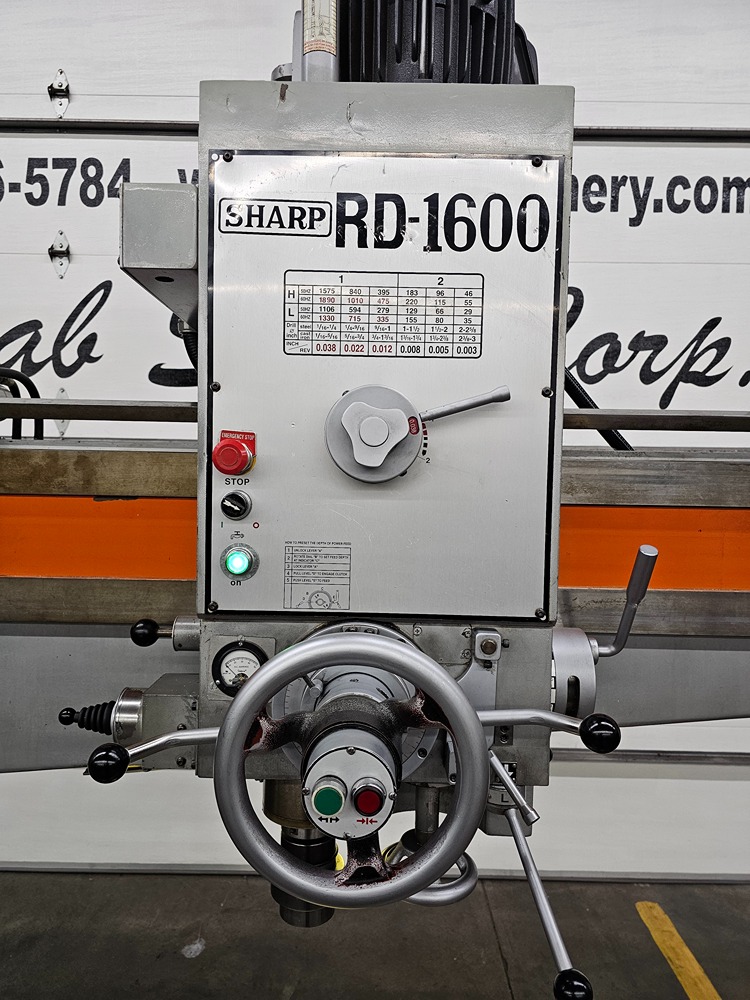

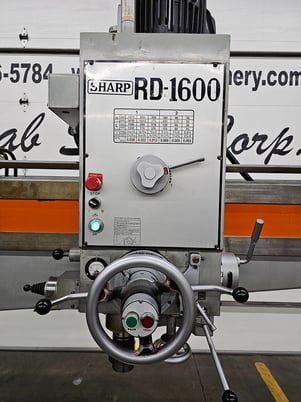

Sharp Radial Drill Model RD-1600 New in 2013

Make: Sharp Industries

Model: RD-1600

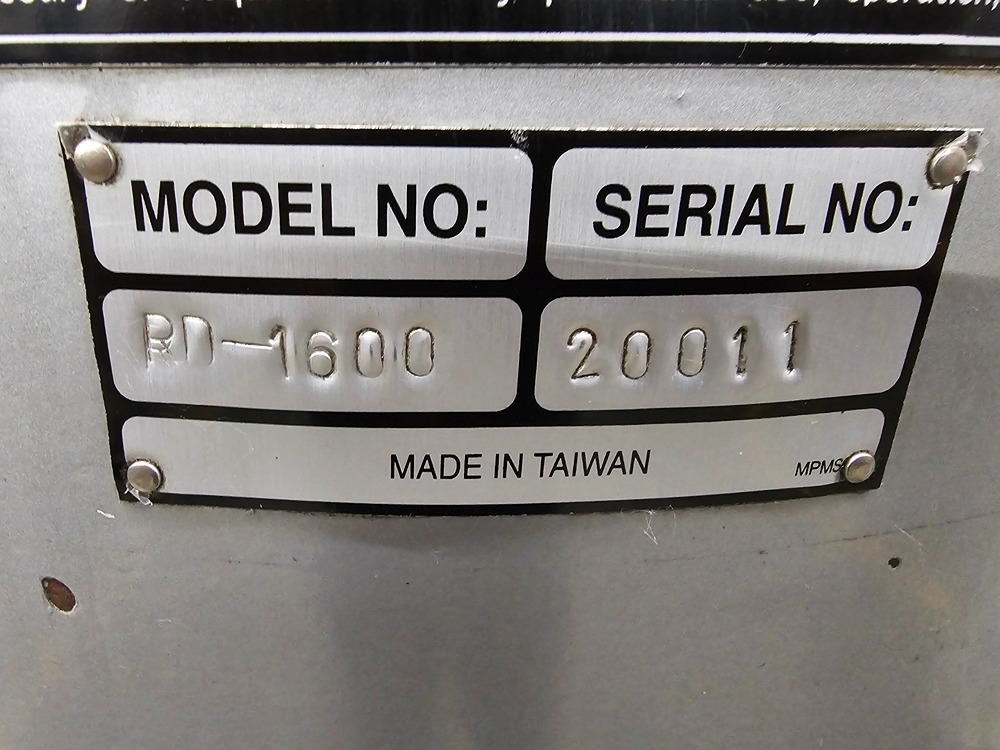

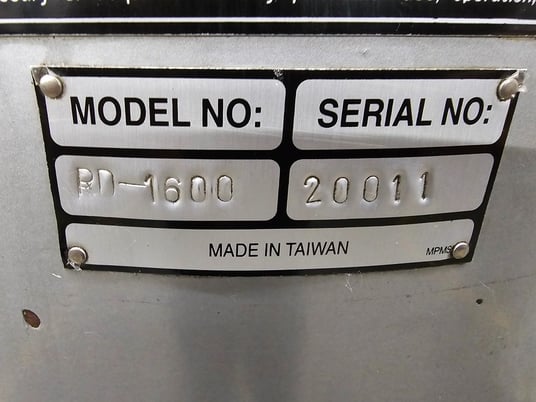

Serial Number: 20011

New in: 2013

17” column diameter

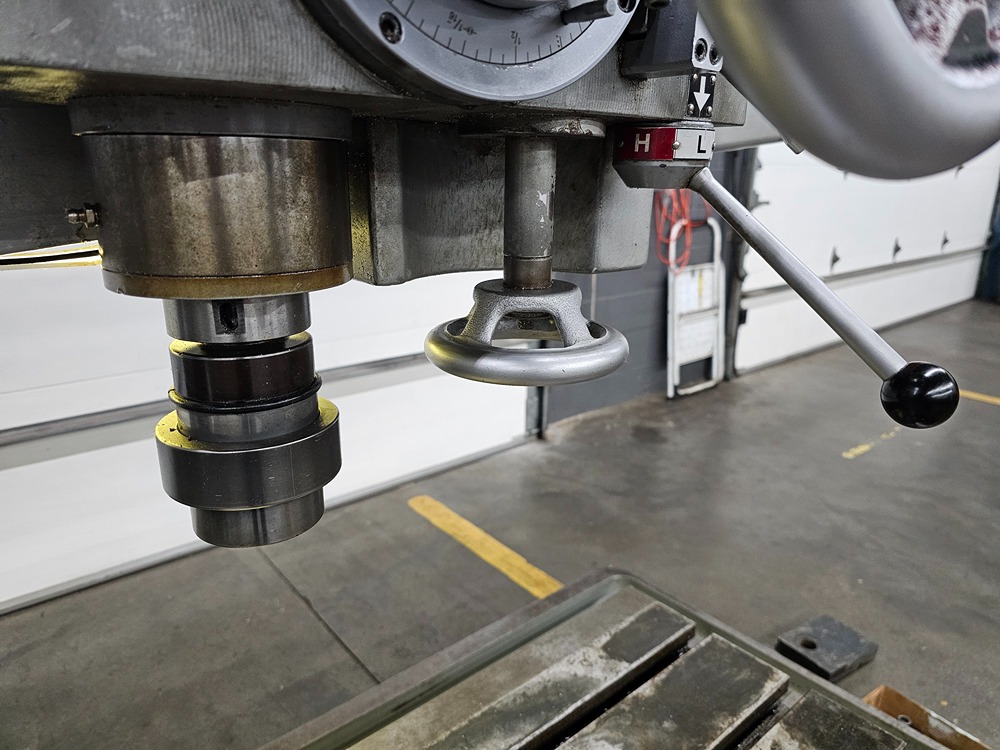

MT#5 spindle, 7.5 HP motor

63” column to spindle center

Drilling : 2.63” cast iron, 2.25” steel

Boring : 7.37” cast iron, 5” steel

Hardened and ground arm slide ways and gears

Double tube column design to increase rigidity

Arm elevation controlled by electric motor

Built-in automatic tool ejector

Safety device prevents arm from dropping even when bronze nut is worn out

T-slots and drain channels on box table

Box table

Coolant system

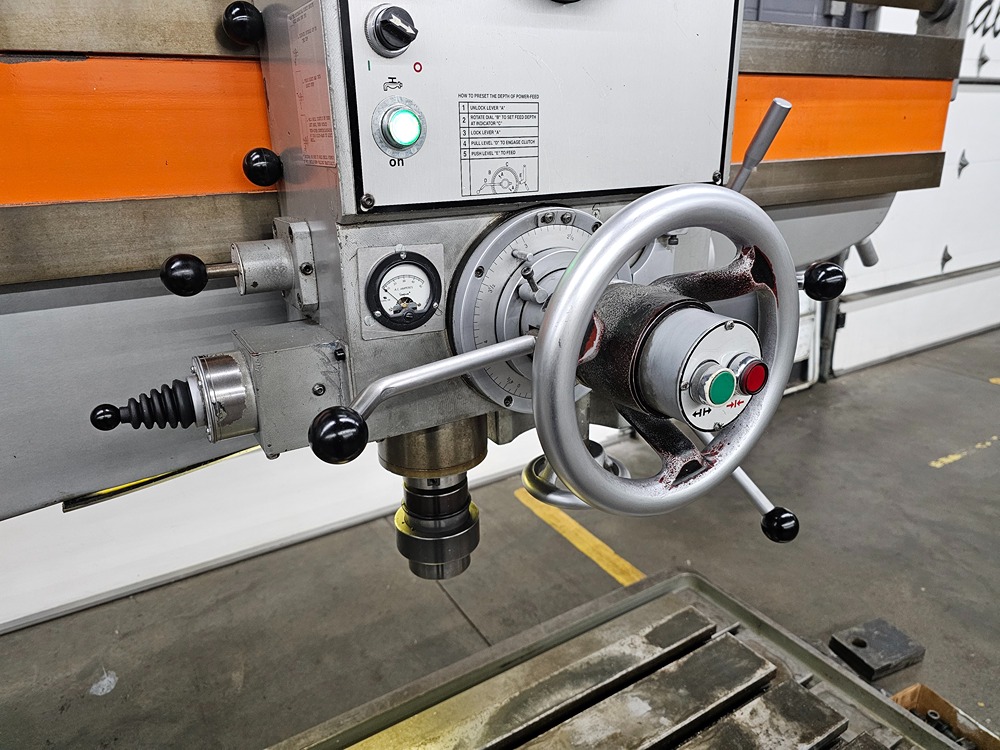

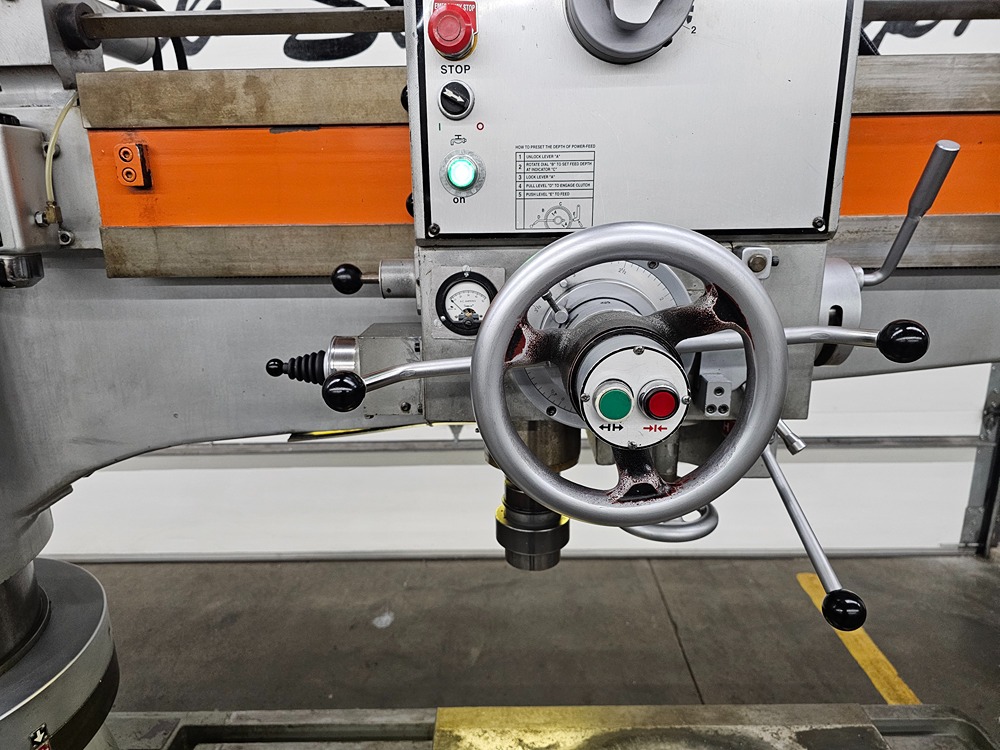

Auto spindle reverse for tapping

Work light

Tool box

Specifications:

Diameter of column: 17”

Distance from column surface to spindle center, max.: 63”

Distance from column surface to spindle center, min.: 13.37”

Travel of spindle head: 49.62”

Distance from base surface to spindle end, max.: 63”

Distance from base surface to spindle end, min.: 13”

Elevating height of arm: 35.43”

Effective area of table: 27.62” x 19.62” x 15.75”

Dimensions of base: 97.62” x 41.34” x 8.25”

Taper hole in spindle: MT #5

Stoke of spindle: 14.56”

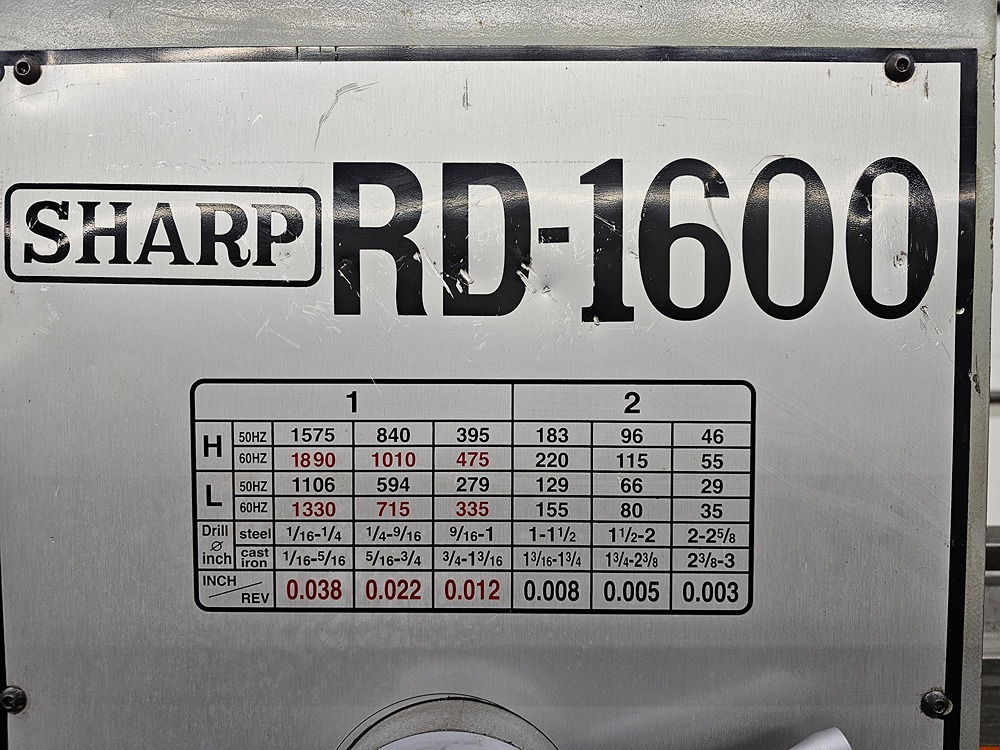

R.P.M. of spindle (rpm range x steps): 40-1920 x 12 Steps

Feed of spindle (1PR x steps): 0.003-0.038” x 6 Steps

Main motor: 7.5 HP

Elevating motor: 2 HP

Clamping motor for column and gear-box: 1 HP

Clamping motor for arm: 1.5 HP

Coolant pump: 1.12 HP

Machine height from floor, max.: 10.40’

Measurement (LxWxH) / Floor Space: 8.5’ x 3.75’ x 8.75’

Measurement (LxWxH) / Shipping Dims: 9.16’ x 4.75’ x 9.58’

Approximate shipping weight: 10,340 Lbs.

Cast Iron:

Drilling: 2.62”

Capacity Tapping: 2.37”

Boring: 7.37”

Steel:

Drilling: 2.25”

Capacity Tapping: 2”

Boring: 5”

Total Power Consumption (440V): 12 KVA/17.5 amps
