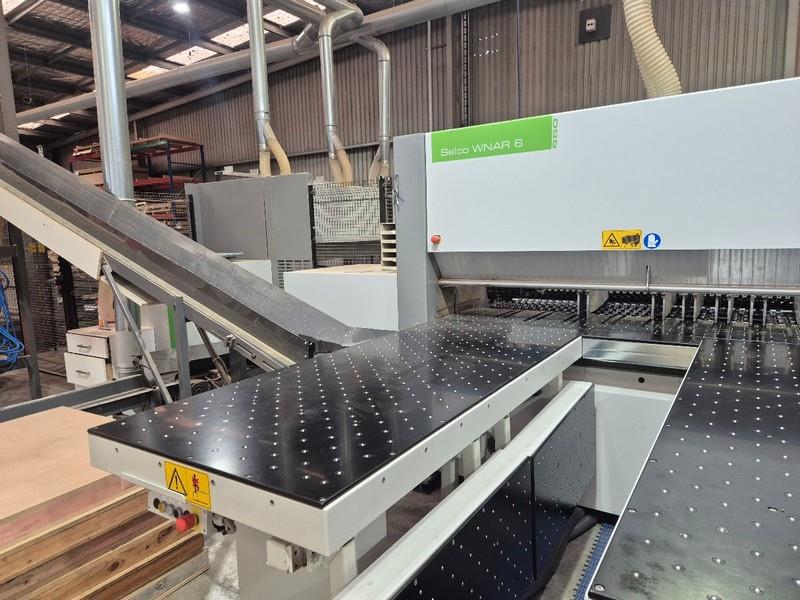

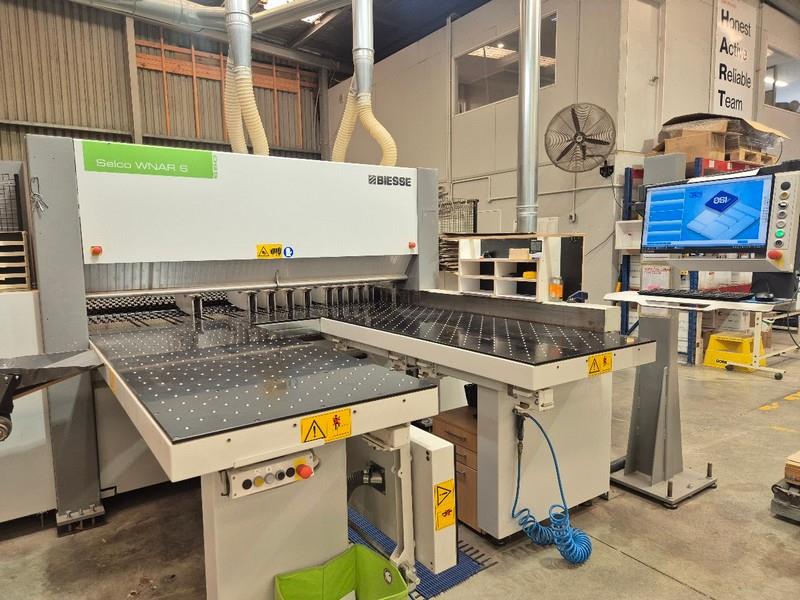

Selco #WNAR-650, Angular Panel Saw, 125.9" rip capacity, 86" crosscut, 4.8" max. saw blade projection, 16.9" main blade diameter, 25 HP main saw motor, 400 Volt, 2022

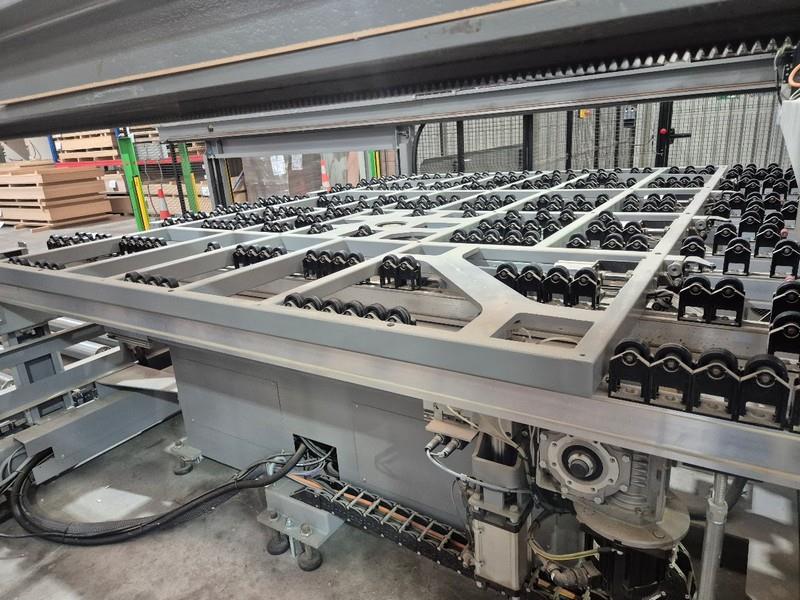

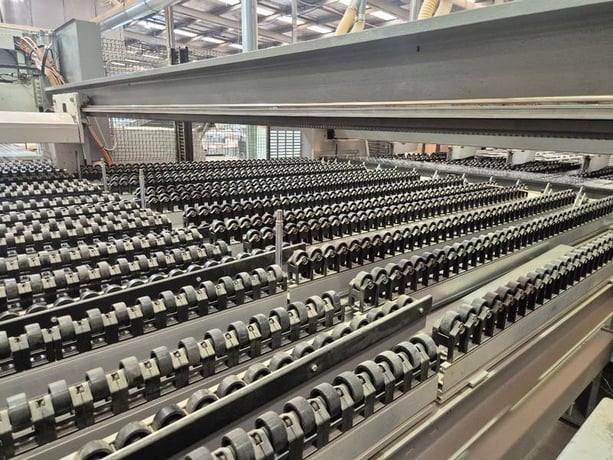

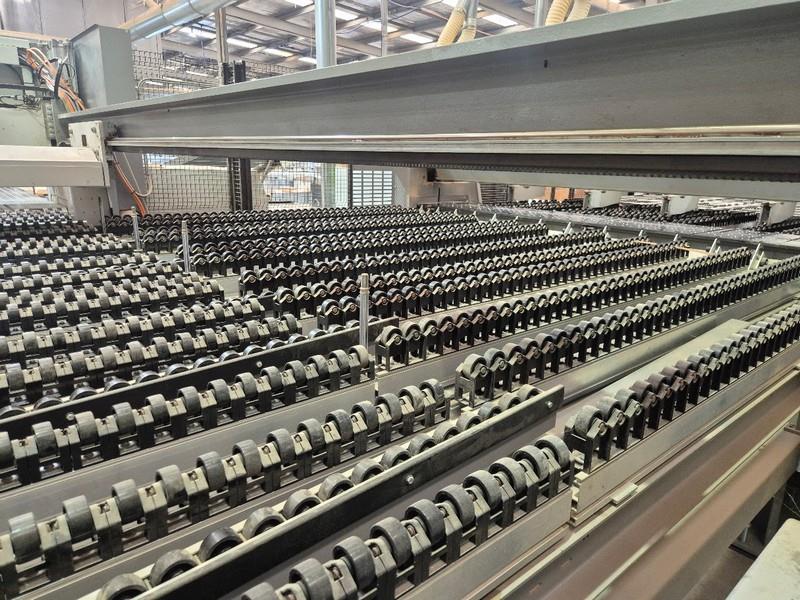

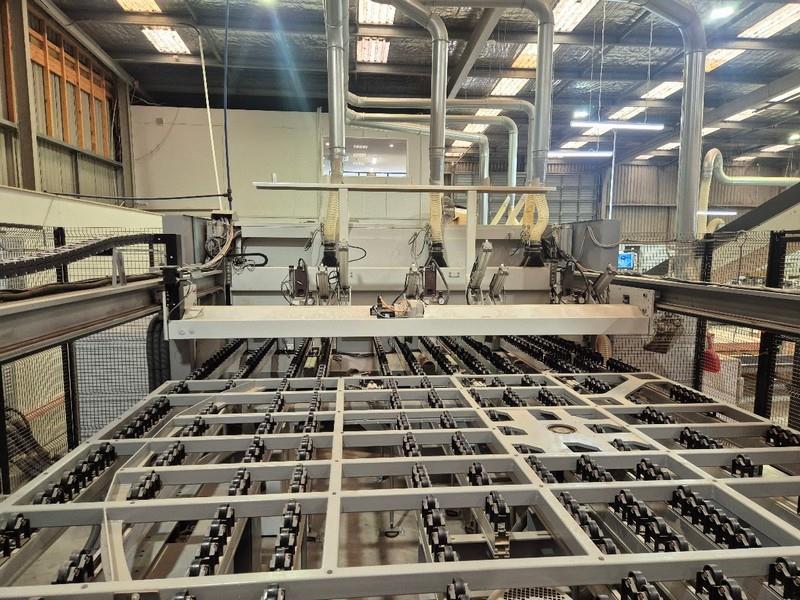

SELCO - WNAR 650 32/32: Angular Saw with "Rotating Station" -- Specifications: 125.9" (3,200 mm) Rip cap.; 86" (2,200 mm) crosscut cap.; 4.8" (123 mm) max. saw blade projection. -- Rip Cut & Crosscut SawsEach section with its own: 25 HP (18.5 kW) Main saw motor; 16.9" (430 mm) dia. main blade; 3 HP (2.2 kW) scoring motor; 7.8" (200 mm) dia. scoring blade. -- Rip & Crosscut Saw Carriage positioning speedsSaw Carriage travel speed from: 0 - 525 FPM (0 - 160 MPM) forward speed; 492 FPM (150 MPM) return speed.Pneumatic pressure beams with: Precision guide rack & pinion system on both sides; AC Servo brushless saw carriage drive motors. -- Rip SectionProgrammable rip cut pusher fence with: Rack & pinion drive system; AC Servo brushless drive motor; travel speed from: 0 - 295 FPM (0 - 90 MPM) Forward speed; 196 FPM (60 MPM) return speed.(4) Pneumatically raised-and-lowered material grippers; free-floating to avoid material jamming; max. gripper opening: 5" (128 mm).Polyamide gravity rollers on rails to facilitate smooth & accurate infeed of panels; (3) pneumatic front aligners align panels before pressure is applied by the grippers. -- Transfer Section: Middle Buffer Station (MBS) with logic for staggered cuts without interruption of the cut cycle.Carriage pusher bar with rack & pinion drive moves cut strips over transfer table to the crosscut section,0.9 HP (0.7 kW) Drive motor, travel speed from 16.5 - 65 FPM (5 - 20 MPM); pneumatic trap door for automatic ejection of trim strips. -- Crosscut Section:Programmable Crosscut pusher fence travel speed from 0 - 295 FPM (0 -90 MPM) forward speed, 196 FPM (60 MPM) return speed,(8) Free-floating material grippers, max. gripper opening 5" (128 mm); Machine table with Polyamide gravity rollers on rails to facilitate smooth & accurate feeding of panels.(3) Robust pneumatic aligner posts & (4) front aligners to align panels before pressure is applied by the grippers, rack & pinion drive system, AC Servo brushless drive motor.Pneumatic crosscut side alignment device aligns panels against the square fence before crosscutting; (1) side aligner in front of the crosscut line & (1) side aligner is behind the crosscut line to keep the strips aligned during positioning. -- Operator Interface:PC Numeric Control with the following features: 21" analogue flat panel color monitor (wide). Alphanumeric keyboard. Mouse. Ethernet PCI card. Intel microprocessor.Windows Operating system in one of the following languages: Italian/English/French/German/Spanish. Virtually unlimited memory capacity for complete cutting patterns, lists, sequences, error reporting & clear text diagnostics; online connection for data transfer is possible." DIGISET" electronic scoring saw(s) adjustment through the NC (no tools required), automatic saw blade cutting height & travel speed adjustment according to book height of panels. -- Rear Lift/Infeed System:10,000 Lbs max. lifting table cap.; max. stack height is 26.4" (670 mm) without pit or
