Manufacturer: Patterson
Stock # S733096
For Sale by Machinery & Equipment Co
Surplus Record Dealer Since 1969
Dominic Piazza
415-64...> Show Seller's Phone Number 415-649-9611 Let the seller know you found their listing on Surplus Record!
Description

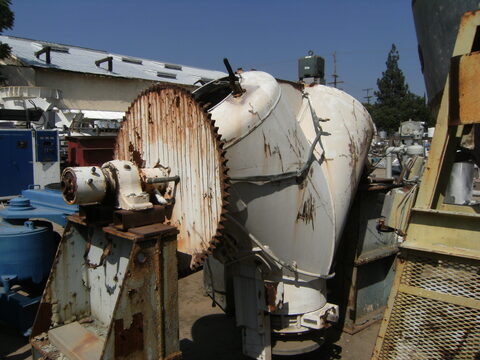

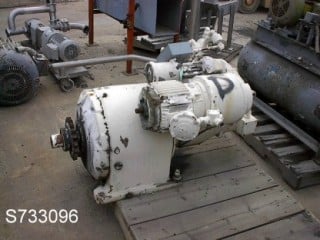

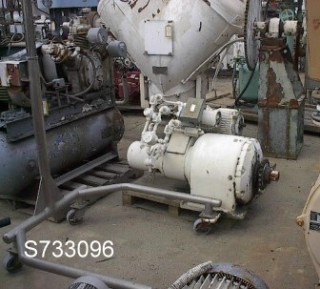

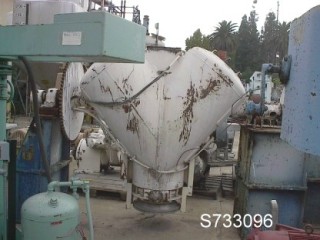

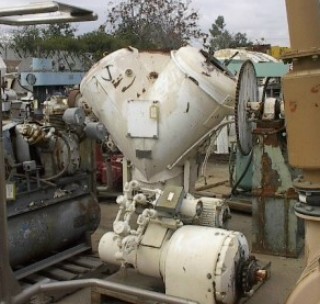

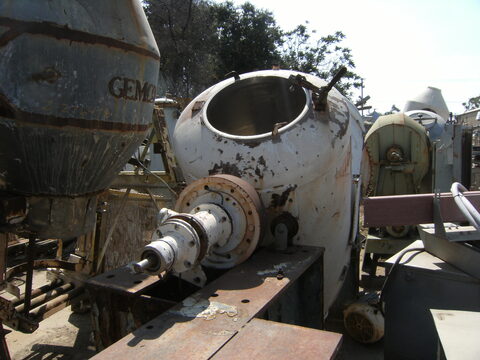

Patterson-Kelley 20 cubic foot twin shell (V-type) vacuum dryer with stainless steel product contact surfaces. Unit features a carbon steel jacket rated for 30 PSI at 250F and is designed for vacuum drying of powders and granular materials. Equipped with a 5 HP Reeves variable speed drive with motor brake and chain sprocket drive, allowing operating speeds from approximately 9.5 to 95 RPM. Includes 14" butterfly discharge valve, liquid feed bar, and twin pneumatic vibrators to assist material flow. Mounted on structural frame. Unit is missing two top doors and does not include an intensifier bar.
Cubic Feet: 20 Cu. Ft.
Type: Twin Shell (V-Type) Vacuum Dryer
Materials of Construction: Stainless Steel
Basis: FOB
Drive: 5 HP Reeves Variable Speed Drive
Cubic Feet: 20 Cu. Ft.
Type: Twin Shell (V-Type) Vacuum Dryer
Materials of Construction: Stainless Steel
Basis: FOB
Drive: 5 HP Reeves Variable Speed Drive
Get Your Price from Machinery & Equipment Co!
