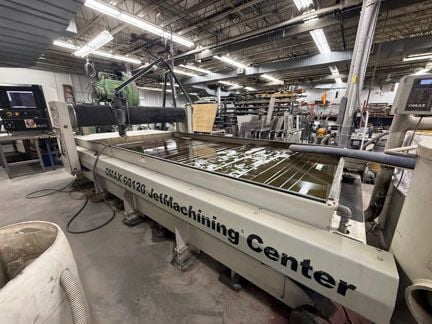

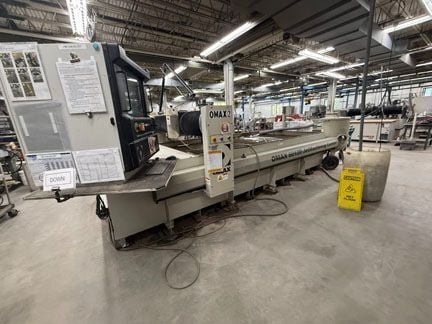

OMAX #60120, abrasive waterjet, 77" x 144" table, 62" x 126" cutting capacity, EnduroMax 5060V 50 HP pump, 60,000 psi, 2016

SPECIFICATIONS:
Table Size: 77" x 144"
Cutting Capacity: 62" x 126"
Parking Area for Carriage for Easy Loading from Front, Side, or Top of Table
Table Support Load: 400 lbs Sqr/Ft
Material Support Slats: 4" x 1/8" Galvanized
Drive System: Closed Loop Vector Linear Drive System
OMAX EnduroMax Pump Horsepower: 50 HP 3/60/460 Volt
Pump Pressure: 60,000 PSI
Nozzle Config: 0.016" Orifice, 0.042"/4" Mixing Tube
Garnet Feed System: Gravity Feed 25 lbs. Hopper with 600 lbs. Abrasive Bulk Hopper
Computer: PC Based with Monitor, Keyboard, Mouse
Software: Omax Intelli-Max Control Software
Footprint of Tank with Controller: 18'9" L x 9'2" W
Ceiling Requirement: 10'
Weight: 6200 lbs.
Operating Weight: 23,200 lbs.

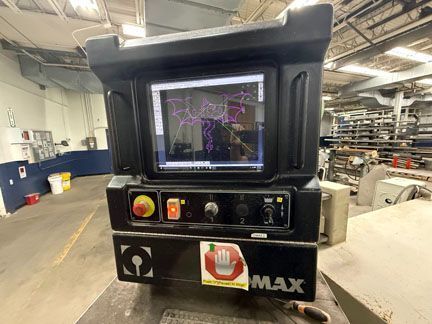

CONTROL:
PC Based Controller
Windows Operating System
USB Hub for External Hardware Additions
Monitor with External Power Supply
Keyboard
Mouse
Network Compatible
SOFTWARE:
OMAX Intelli-Max Waterjet Designed Software
CAD/CAM Software included with Easy to Use Drawing Library
CAD Formats Supported for Over 50 File Types
Heads-up Traverse Available
No G or M Code
DRIVE SYSTEM:
Closed Loop Vector Linear Drive System Designed Specifically for Waterjets by OMAX
Electronic Gearing for Precise Cutting Control
Dual 0.000039" (1 micron) Resolution with Linear Scale Feed Back to Control

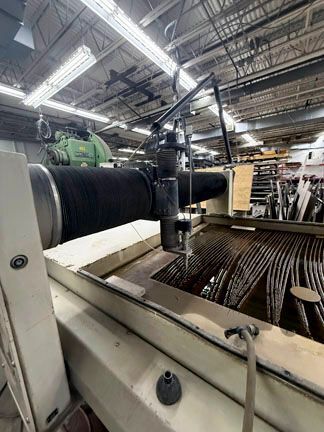

Motorized Z-Axis with Heads Up Traverse

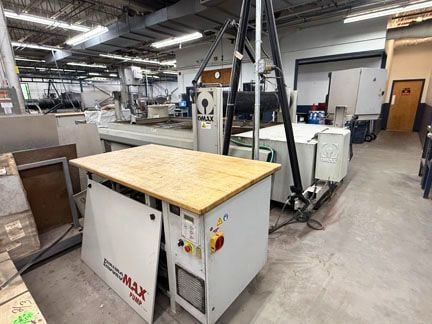

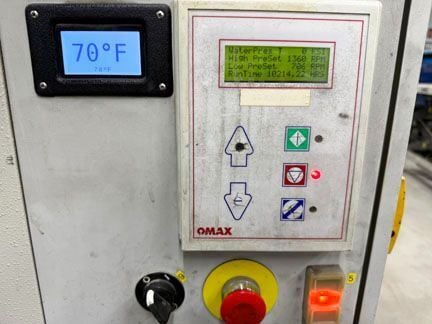

PUMP:
Omax EnduroMax 5060V Variable Frequency Drive High Efficiency Pump
Variable Frequency Drive from 0 to 60,000 PSI
Rated for 85% Efficiency as Opposed to 60%-70% from Intensifier Pump (Cut 20-30% Faster)
Pump Hours Only Accumulate During Cutting -Not Idle Time
For Safety, High Pressure System not Pressurize Except When Cutting
Rated for 1,000 Hours Between Pump Rebuilds
Rebuild Pump in as Little as 15 Minutes
Very Low Pump Operating Cost
Wired 3/60/460 Volt
EQUIPPED WITH:
Omax EnduroMax 5060V Variable Frequency Drive High Efficiency Pump
Programmable Z-Axis
OMAX Intelli-MAX CAD/CAM Control & Software
PC Based Control
600 lbs. Abrasive Hopper
Water Level Control
Exclusive Omax Intelli-TRAX Drive System Developed Exclusively for the Waterjet Environment
OPTIONAL INSTALLATION & SETUP (NOT INCLUDED IN PRICE)
We have over 28 years of Omax waterjet experience with (5) factory trained technicians on staff. We can offer setup and training on the machine, additional factory accessories, preventative maintenance, and factory parts. We can customize a program around an individual's need.
