Description
GENERAL SPECIFICATIONS:
MAKE............................... OKAMOTO
MODEL.............................. PRG-6
SERIAL NUMBER...................... 1092
AGE (YEAR)......................... 1984

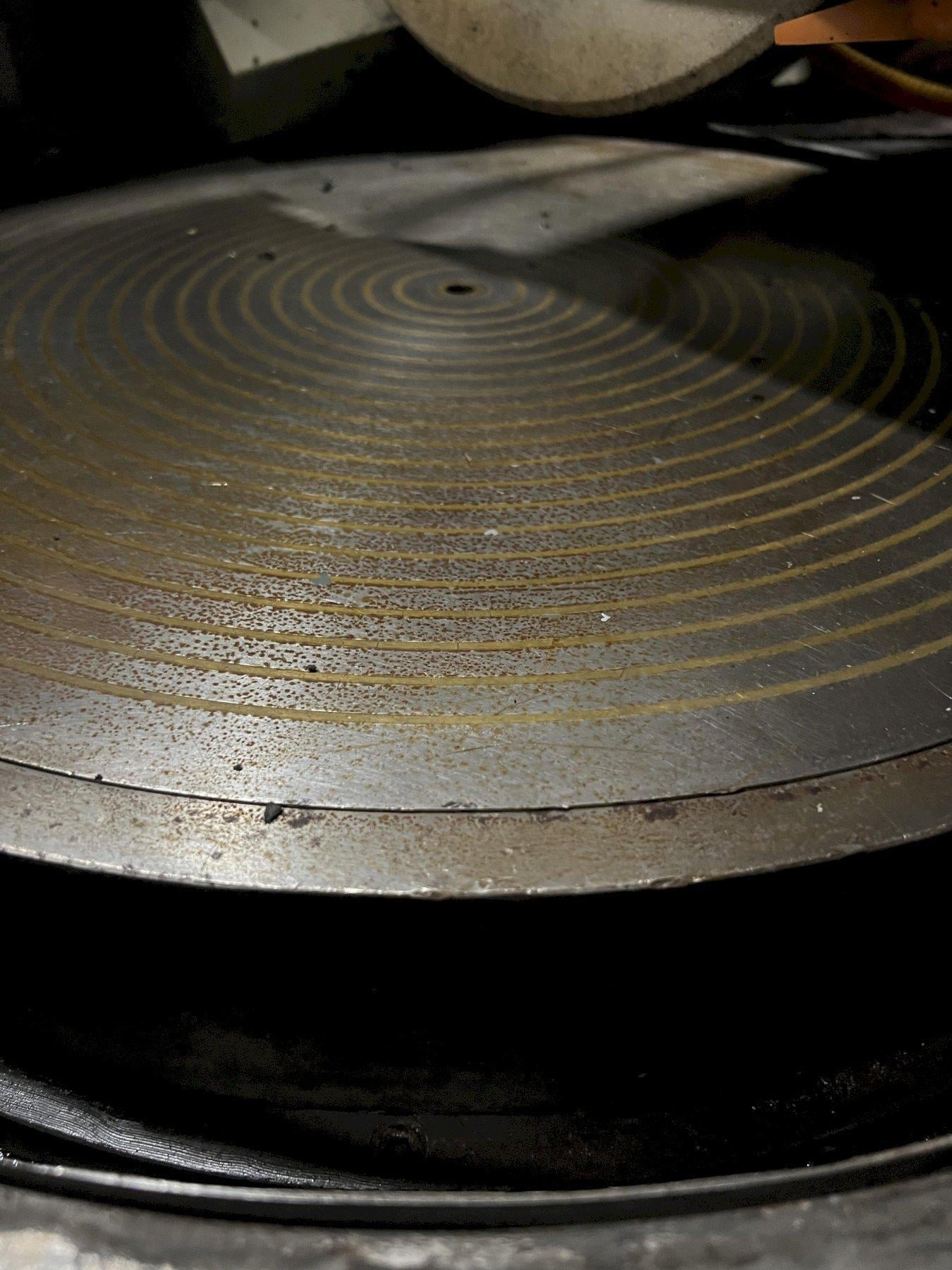

DIAMETER OF ELECTROMAGNETIC CHUCK.. 600 MM (23.6")
EFFECTIVE DIA. OF ELECT. CHUCK..... 552 MM (21.7")
MAX SWING INSIDE COVER............. 750 MM (29.5")
MAX. DISTANCE BETWEEN A NEW WHEEL..
AND THE CHUCK SURFACE.............. 200 MM (7.8")
VERTICAL MOVEMENT OF WHEEL HEAD.... 250 MM (9.8")
CHUCK TABLE INCLINATION ANGLE...... +/- 3 DEG.
WHEEL SIZE......................... 355 X (50)38 X 127
MIN. WHEEL DIAMETER................ 275 MM (10.8")
WHEEL SPEED........................ 1600 RPM
TABLE LEFT/RIGHT MOVEMENT MAX...... 400 MM (15.7")
TABLE FEED SPEED (STEPLESS)........ 0.2 - 2.5 M/MIN
TABLE SPEED (STEPLESS)............. 20 TO 150 RPM
WHEEL HEAD VERTICAL FEED........... 0.4 MM/HANDWHEEL ROTATION
................................... 0.002 MM/GRADUATION
WHEEL HEAD AUTOMATIC INFEED........ 0.002-0.02 MM (10 STEPS)
ELECTRICS..........................
FLOOR SPACE DIMENSIONS.............
WEIGHT APPROX......................
EQUIPPED WITH:
24" ELECTRO MAGNETIC CHUCK
COOLANT SYSTEM
MANUAL
SPECIFICATIONS SUBJECT TO VERIFICATION
MAKE............................... OKAMOTO
MODEL.............................. PRG-6
SERIAL NUMBER...................... 1092
AGE (YEAR)......................... 1984
DIAMETER OF ELECTROMAGNETIC CHUCK.. 600 MM (23.6")
EFFECTIVE DIA. OF ELECT. CHUCK..... 552 MM (21.7")
MAX SWING INSIDE COVER............. 750 MM (29.5")
MAX. DISTANCE BETWEEN A NEW WHEEL..
AND THE CHUCK SURFACE.............. 200 MM (7.8")
VERTICAL MOVEMENT OF WHEEL HEAD.... 250 MM (9.8")
CHUCK TABLE INCLINATION ANGLE...... +/- 3 DEG.
WHEEL SIZE......................... 355 X (50)38 X 127
MIN. WHEEL DIAMETER................ 275 MM (10.8")
WHEEL SPEED........................ 1600 RPM
TABLE LEFT/RIGHT MOVEMENT MAX...... 400 MM (15.7")
TABLE FEED SPEED (STEPLESS)........ 0.2 - 2.5 M/MIN
TABLE SPEED (STEPLESS)............. 20 TO 150 RPM
WHEEL HEAD VERTICAL FEED........... 0.4 MM/HANDWHEEL ROTATION
................................... 0.002 MM/GRADUATION
WHEEL HEAD AUTOMATIC INFEED........ 0.002-0.02 MM (10 STEPS)
ELECTRICS..........................
FLOOR SPACE DIMENSIONS.............
WEIGHT APPROX......................
EQUIPPED WITH:
24" ELECTRO MAGNETIC CHUCK
COOLANT SYSTEM
MANUAL
SPECIFICATIONS SUBJECT TO VERIFICATION
