Description

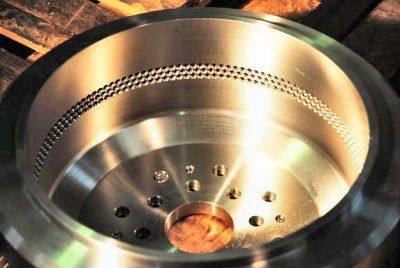

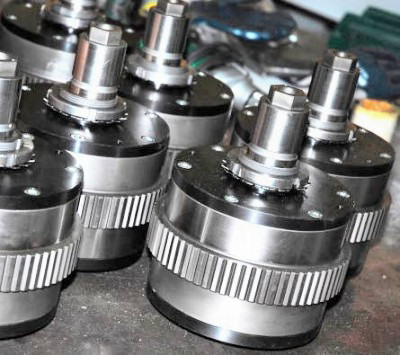

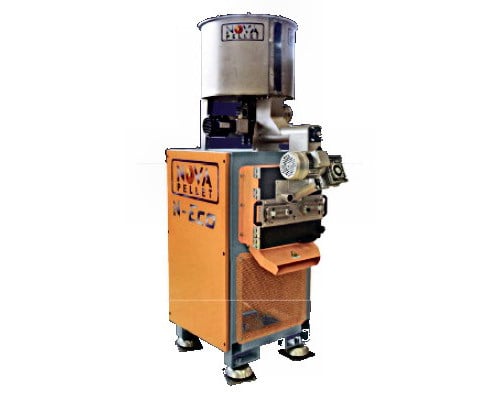

NOVA PELLET - N-Eco - 45 kW, ...Pellet Mill Low specific energy consumption per ton of pellet.Specifications: -- Capacity: 770 - 1,200 Lbs/Hr (350 - 550 kG/Hr) depending on the raw material. -- Main drive: 60 HP (45 kW). -- Pellet dimensions: 0.24" - 0.31" (6 - 8 mm) diameter. -- Raw Material: Wood chips, sawdust, wood shavings: 0.02" - 0.06" (0.5 - 1.5 mm) Length; 8 - 14% MC. -- Die: 15" (380 mm) Internal diameter; 0.6" - 2" (14 - 50 mm) long die holes. -- Roller: 7.2" (182 mm) Outer diameter.General specification: -- Pellet Mill with mechanical and electrical functioning system. -- Pellet Mill with (1) die and (2) Rollers. -- Electrical cabinet with: SIEMENS PCL System, touch screen, and remote modem connection. -- High efficiency motors with IE2 standards (Energy Saving). -- Raw material dosing system (frequency controlled). -- Mechanical level sensor for the saw dust hopper. -- Vegetable oil for start and end of production cycle. -- Automatic grease lubrication for rollers and main shaft. -- Electrical safety locks. -- CE conformity certificate.
(2) Units - One Without Motors., (1) LOT - Spare Dies and Rolls., (1) Cooling Fan., --- Factory ---, Motor and Drive:, * Main Drive Configuration: Dual-motor synchronous drive system, * Motor Power: 2 x 75 kW to 2 x 110 kW (approx. 200 - 300 HP combined), * Transmission Type: High-torque V-belt drive, * Die Linear ...more
used-universal milling technology pellet mill; model c165; 6 to 1 reduction gear box; 250 hp moto; center feeder on door with motor and reducer; 8 roller assemblies(4 sets); conditioner; produces up to 4 tons per hour of alfalfa or grassy material; year 1998.
