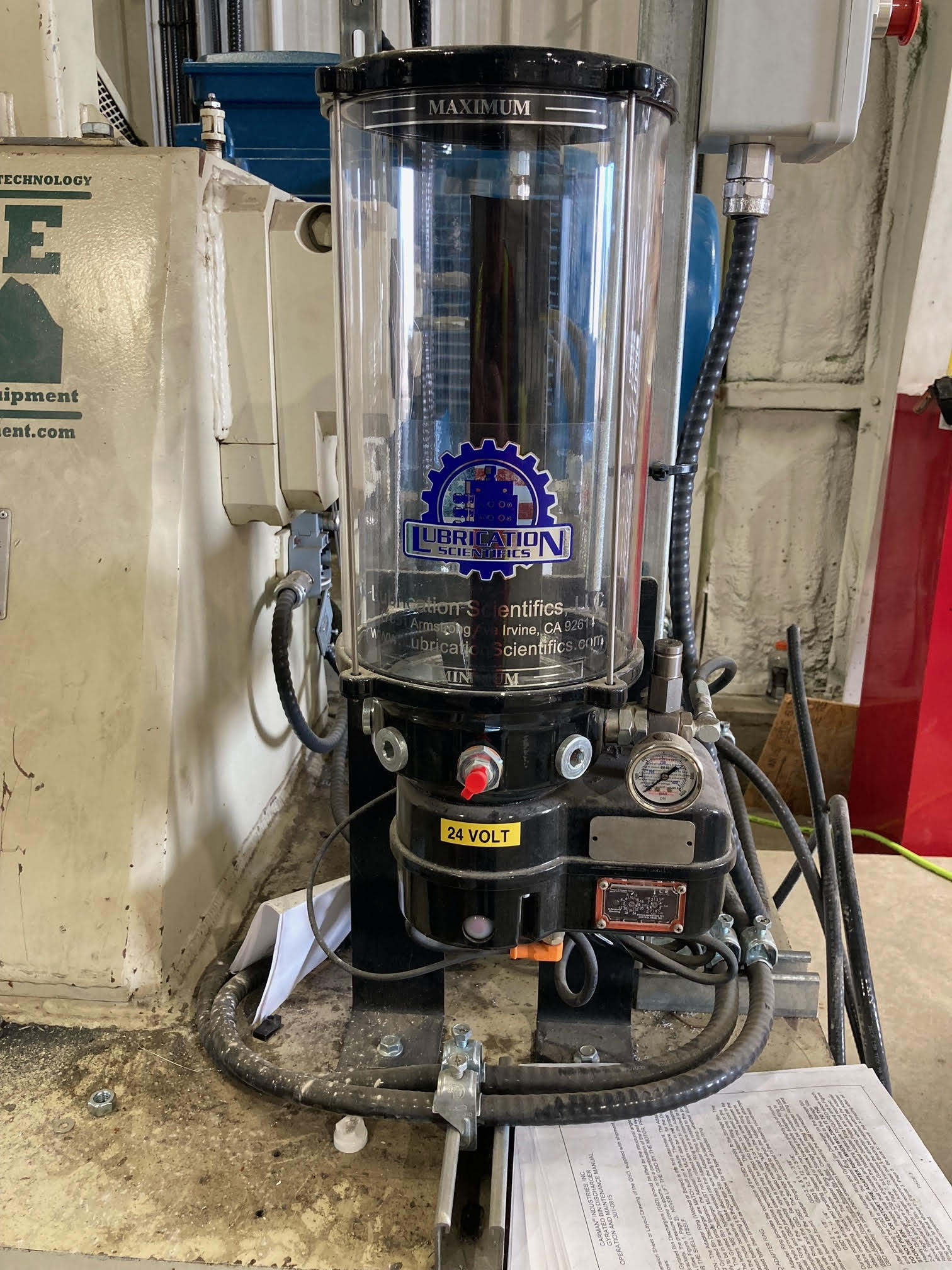

CME MILL-R150 Pellet Mill, 150 HP, Class 2 Div 2 with autogreaser

Estimated monthly payment valid upon approved credit.

Request Formal Quote

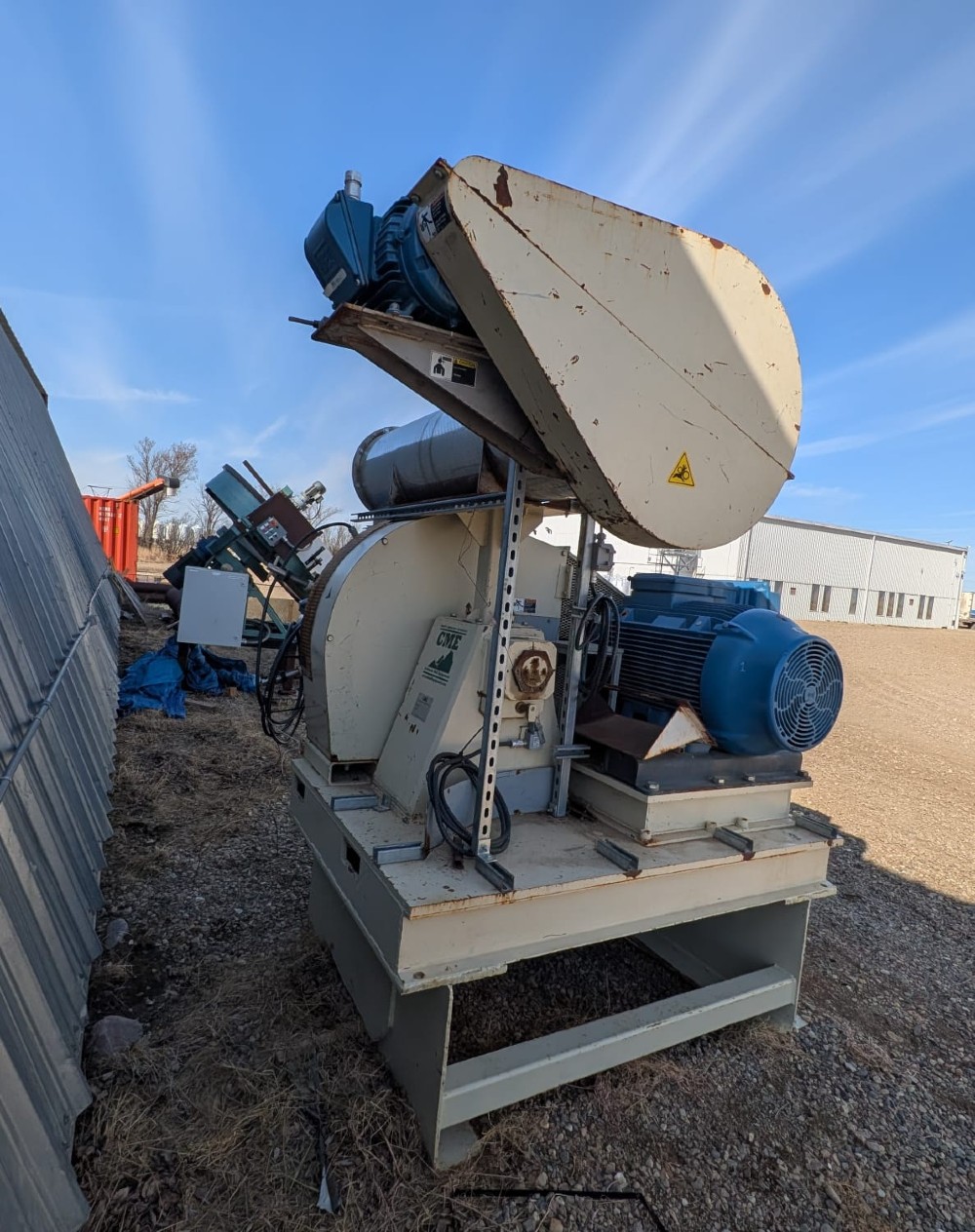

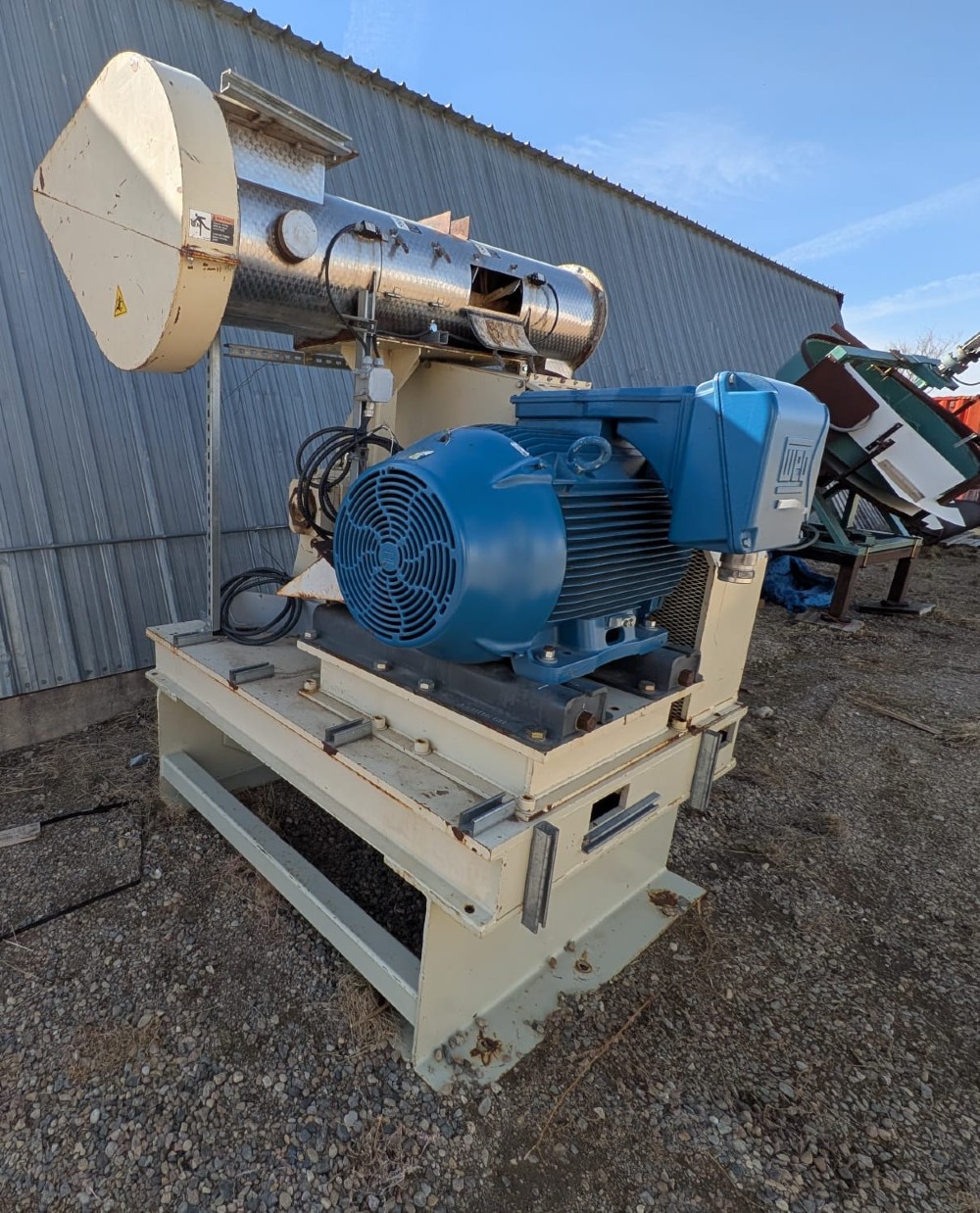

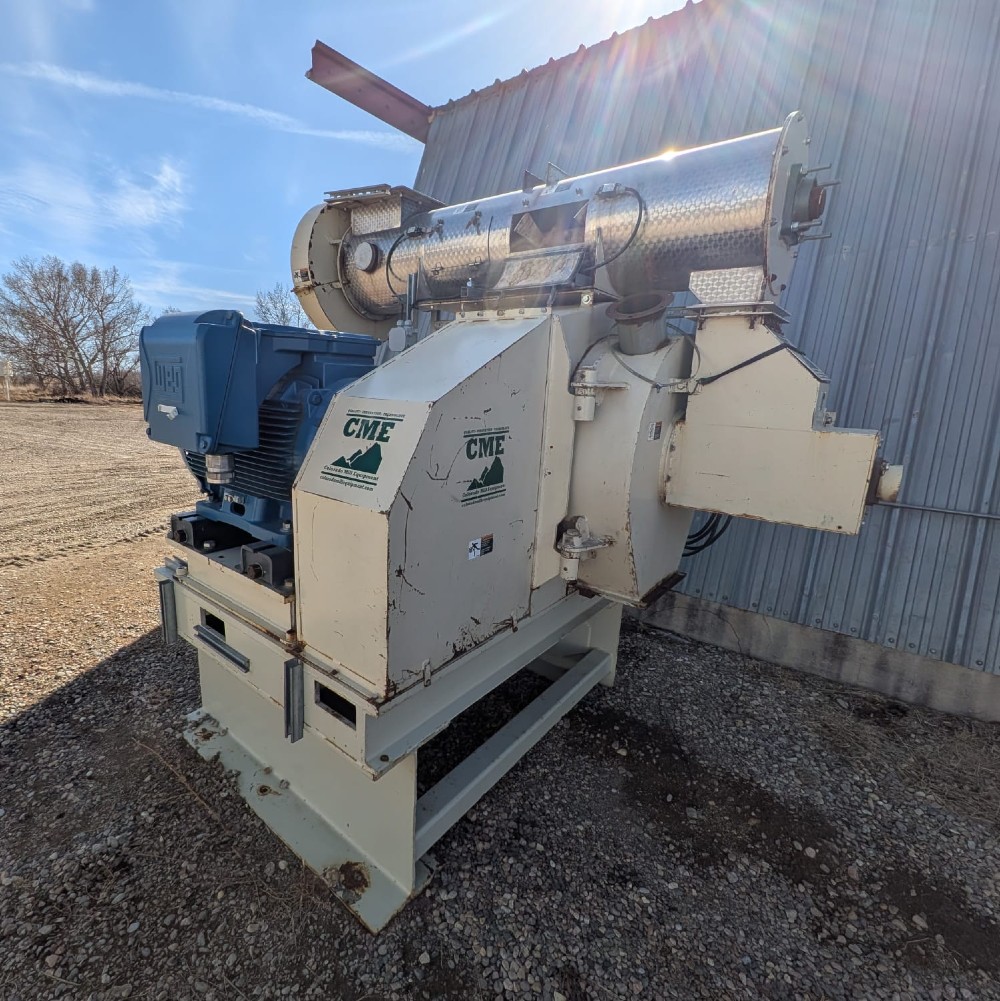

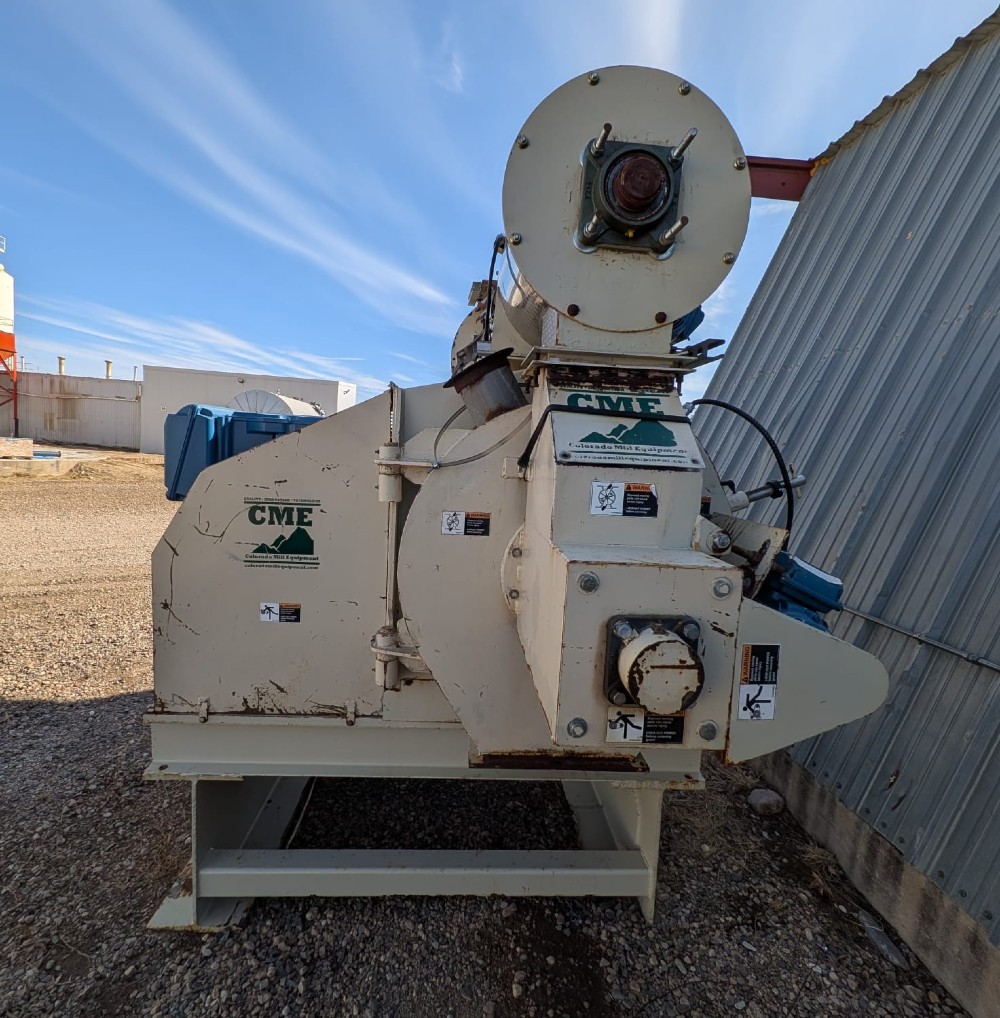

CME MILL-R150 ring die pellet mill, built 2023, low hours, with 150 HP 575 V Class 2 Div 2 motor.

Production scale Millennium Series mill, run only on oat, pea, and lentil fiber for micronutrient fertilizer granulation (low abrasion service). Complete with force feeder, dies, and rolls. Commissioned and documented by PAMI. Located near Rosetown, Saskatchewan.

GENERAL

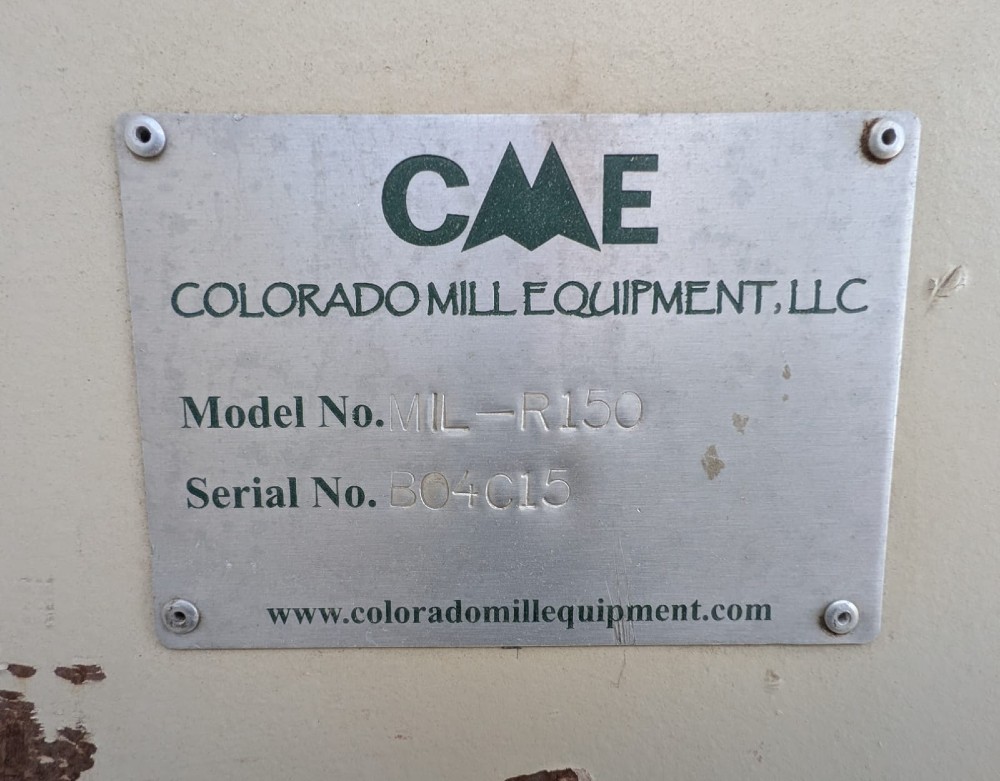

• Manufacturer: Colorado Mill Equipment (CME), Cañon City, Colorado, USA
• Model: MILL-R150 (Millennium Series)
• Equipment type: Ring die production scale pellet mill
• Year: 2023
• Condition: Used, low hours (to be confirmed by seller)
• Service history: Oat, pea, and lentil fiber granulation only (low abrasion)
• Commissioning: 2023, PAMI installation and commissioning records available
• Location: Rosetown, Saskatchewan, Canada

CAPACITY AND PERFORMANCE

• Throughput: 3,000 to 20,000 lbs/hr (1.4 to 9.1 tonnes/hr), material and die dependent
• Suitable feedstocks: Animal feed, fertilizer, biomass, wood pellets, organic granules
• Die size range: 1/8 in to 3/4 in (3 mm to 19 mm)
• Die inner diameter: 16 in (406 mm)
• Discharge height: 16 in (406 mm)

MILL BODY

• Configuration: Ring die with internal rolls, gravity discharge
• Die assembly: Removable, supports field die changes
• Roll assembly: Standard CME rolls, serviceable condition
• Force feeder: Included, original equipment
• Frame: Heavy fabricated steel, painted finish

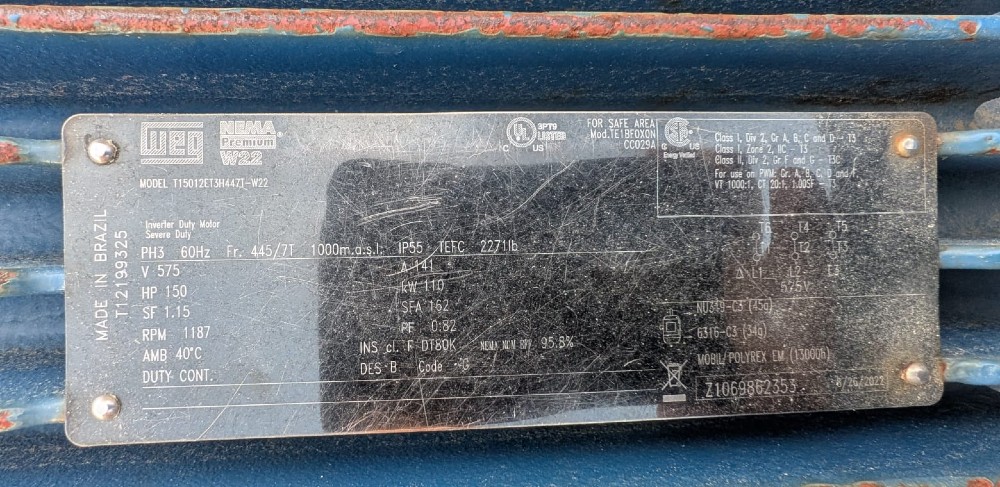

DRIVE MOTOR

• Power: 150 HP
• Speed: 1200 RPM
• Voltage: 575 V, 3 phase
• Frame: 445/7T
• Hazardous location rating: Class 2 Div 2 (CSA rated for combustible dust)
• Bearing: Roller bearing
• Mount: Foot mount

ELECTRICAL

• Voltage: 575 V, 3 phase, 60 Hz
• Full load amps: Approx 140 A at 575 V
• Recommended breaker: 200 A, 3 pole
• Hazardous location wiring: Buyer to meet CSA Class 2 Div 2 in installation jurisdiction
• Starting: Soft starter or VFD recommended to reduce shock loads

DIMENSIONS AND WEIGHT

• Footprint (W x L): 90 in x 80 in (2,286 mm x 2,032 mm)
• Height: 73 in (1,854 mm)
• Weight: 9,500 lbs (4,310 kg)
• Rigging: Forklift access two sides; overhead crane recommended for installation

NORTH AMERICAN / EXPORT NOTE
575 V is Canadian standard and the Class 2 Div 2 rating is genuine value for Western Canadian fertilizer, feed, and grain dust facilities. US (460 V) or European (400 V) buyers would replace the motor or use a step up transformer; mill body is voltage agnostic.

SUITABLE FOR
Fertilizer and soil amendment, animal feed, biomass and wood pellets, pet and specialty feed, Western Canadian Class 2 Div 2 facilities

LESS SUITABLE FOR
Highly abrasive minerals (accelerates die and roll wear), stainless required pharma/food, very fine grinding (this is a granulation mill)

DOCUMENTATION (on request)
Motor nameplate and CSA certificate, PAMI commissioning records, operating log and hours, oat fiber particle size data, condition photos, CME die and roll inventory

SALE TERMS

• Delivery: FCA Rosetown, SK; buyer arranges rigging and freight
• Inspection: By appointment, as is where is
• Payment: Wire transfer, cleared before release
• Title: Clear, no liens; bill of sale at closing
• Spare parts: Dies, rolls, wear parts available separately
• Trade in: Seller open to trade in with CME or other vendors
