For Sale by N & R Machine Sales
Surplus Record Dealer Since 1998
Location: Navasota, TX
Contact Randy Nevels
Phone Number: 800...> Show Phone Number 800-245-3194
Let the seller know you found their listing on Surplus Record!
Description

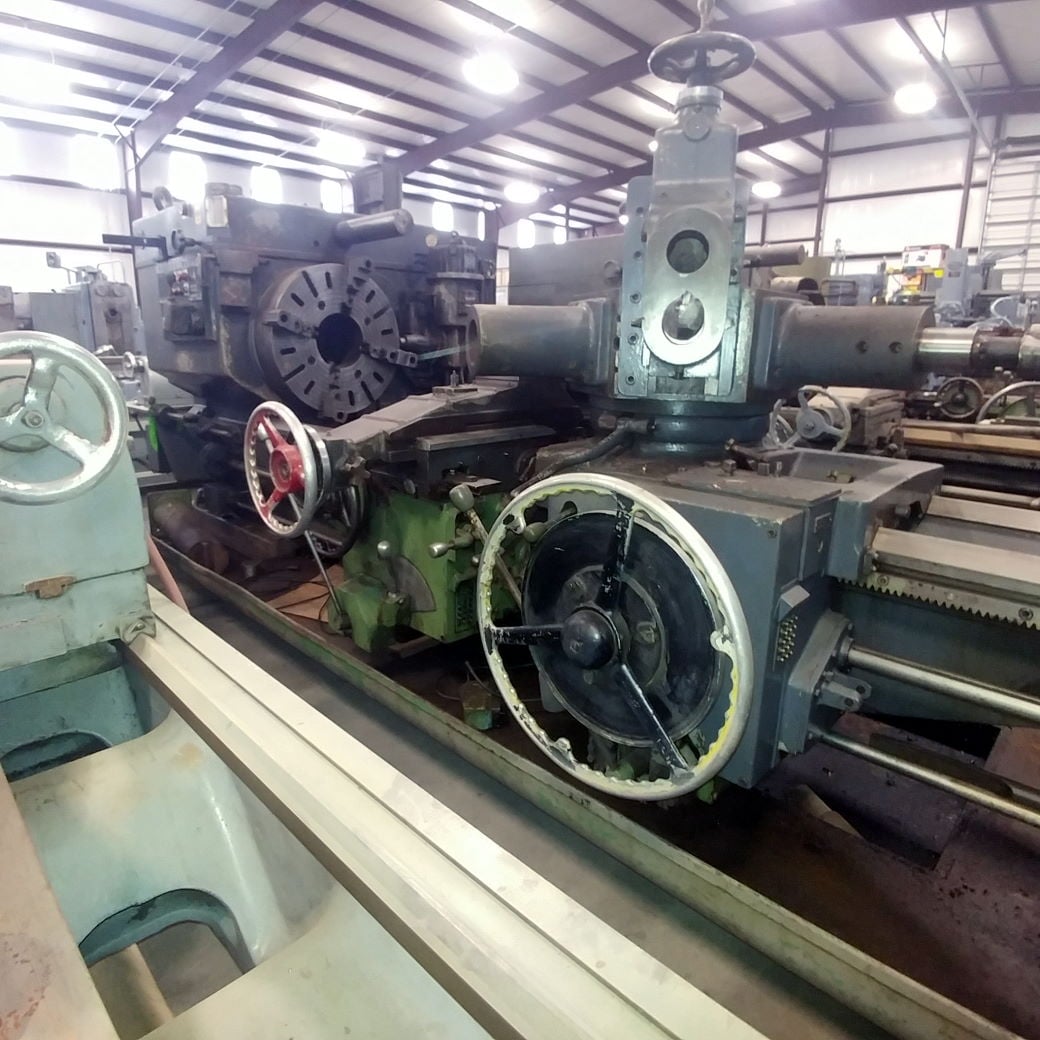

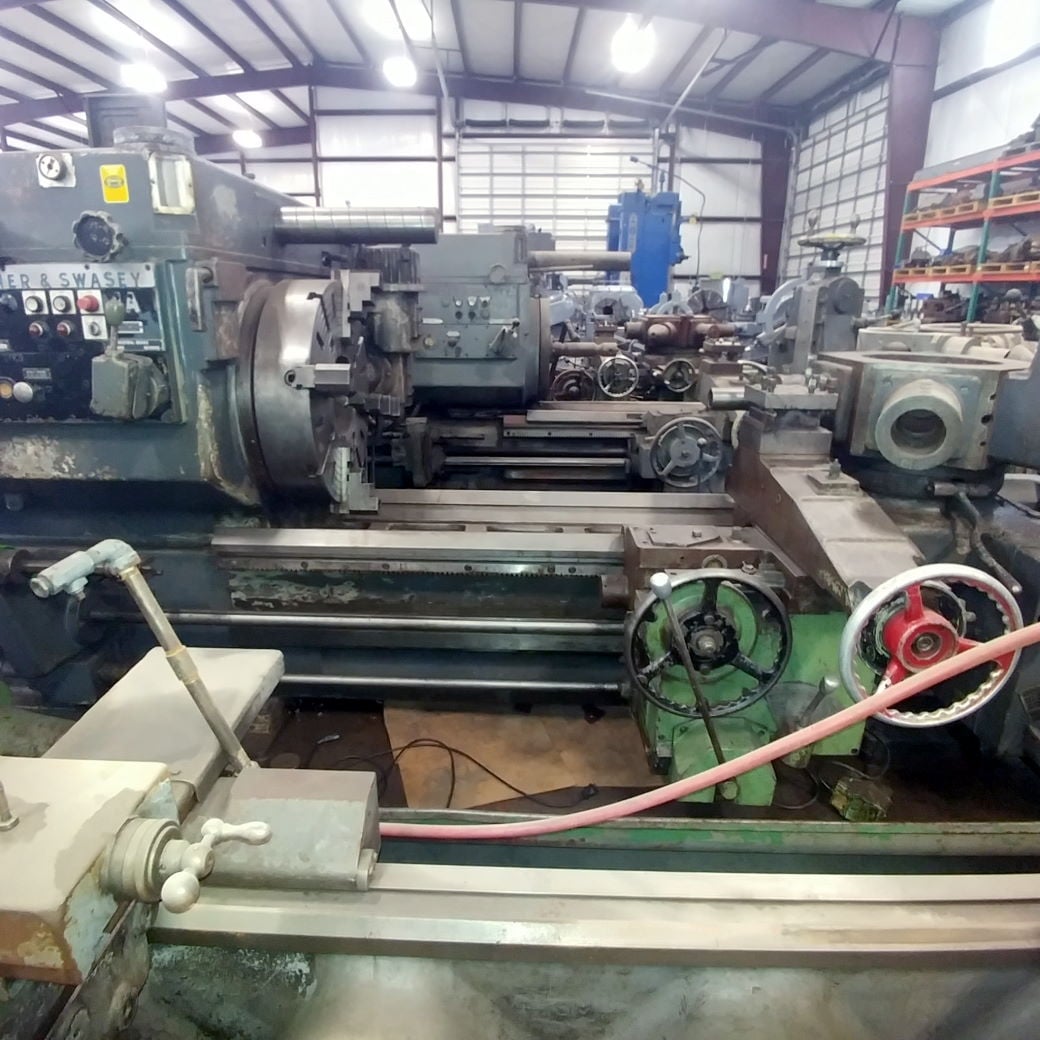

4 A Used Warner & Swasey Square Head Saddle Type Turret Lathe Ref.#L630453
Model: 4A - 3550 Lot 6
Serial No. 1464341
New: 1956
Swing Over Bed Ways 28-1/4"
Swing Over Cross Slide Carriage 22"
Center Distance 62"
Spindle Hole 9-1/4"
Spindle Speeds 20 To 526 Rpm's
Spindle Nose A-15
Chuck Size 24" 4- Jaw
Feeds Cross .004 To .090 I.P.R.
Feeds Long. .005 To .167 I.P.R.
Main Motor 60/30 Hp.
Flange Holders 2
Slide Tools 1
Weight 28,000 Lbs.
Floor Space Right To Left 20'
Floor Space Front To Back 7'
Machine Height 80"
Power Compound On Front Apron Yes
Coolant Yes
Tool Post 4 Way On Front Yes
Rapid Traverse Front And Rear Yes
Fixed Rear Turret Yes
Full Chip Pan And Coolant Yes
Condition Very Good
Equipped With:
Note: Machine Aprons And Rapid Traverse Boxes Have Been Reconditioned. New Feed And Rapid Shafts.
Head Stock Has Been Flushed And New Oil And Filters. Machine Has Been Cleaned, Painted And Cycled. Machine May Be
Seen Under Power With Proper Notice
Model: 4A - 3550 Lot 6
Serial No. 1464341
New: 1956
Swing Over Bed Ways 28-1/4"
Swing Over Cross Slide Carriage 22"
Center Distance 62"
Spindle Hole 9-1/4"
Spindle Speeds 20 To 526 Rpm's
Spindle Nose A-15
Chuck Size 24" 4- Jaw
Feeds Cross .004 To .090 I.P.R.
Feeds Long. .005 To .167 I.P.R.
Main Motor 60/30 Hp.
Flange Holders 2
Slide Tools 1
Weight 28,000 Lbs.
Floor Space Right To Left 20'
Floor Space Front To Back 7'
Machine Height 80"
Power Compound On Front Apron Yes
Coolant Yes
Tool Post 4 Way On Front Yes
Rapid Traverse Front And Rear Yes
Fixed Rear Turret Yes
Full Chip Pan And Coolant Yes
Condition Very Good
Equipped With:
Note: Machine Aprons And Rapid Traverse Boxes Have Been Reconditioned. New Feed And Rapid Shafts.
Head Stock Has Been Flushed And New Oil And Filters. Machine Has Been Cleaned, Painted And Cycled. Machine May Be
Seen Under Power With Proper Notice
Get Your Price from N & R Machine Sales!
