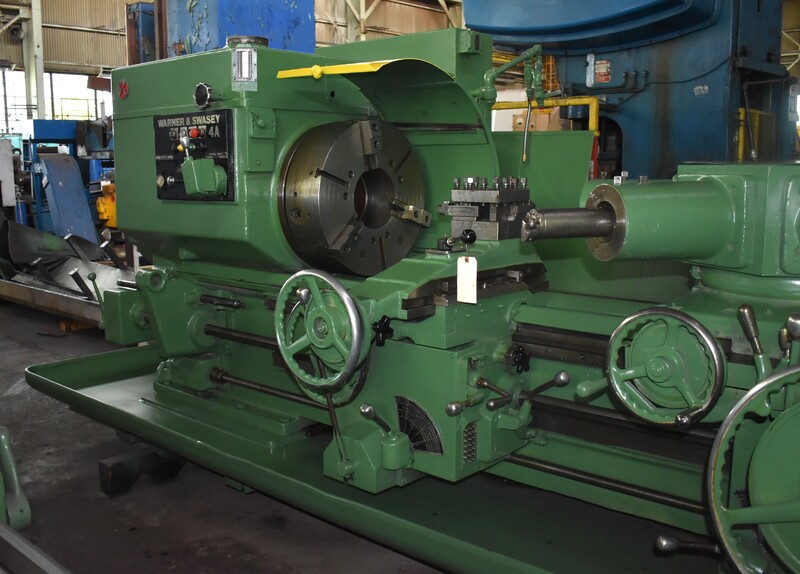

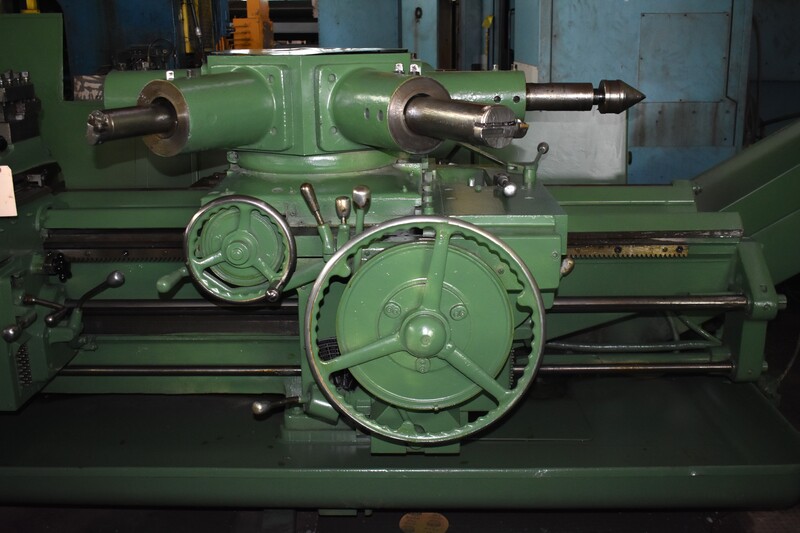

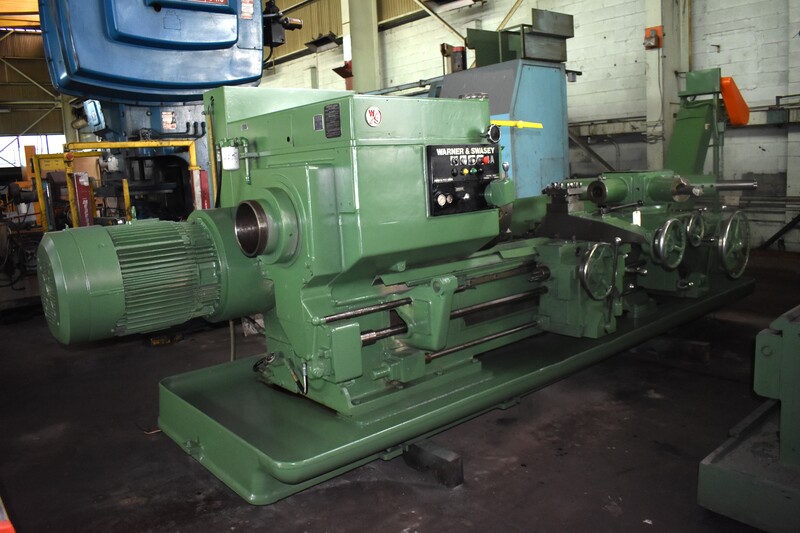

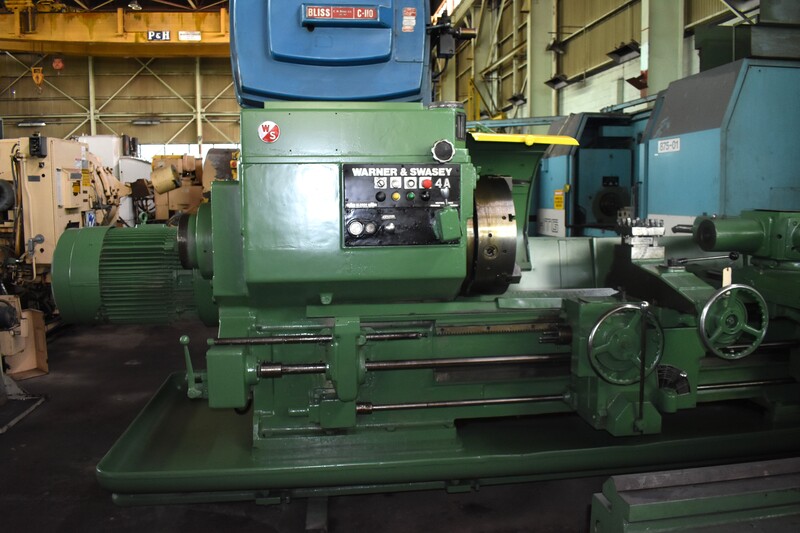

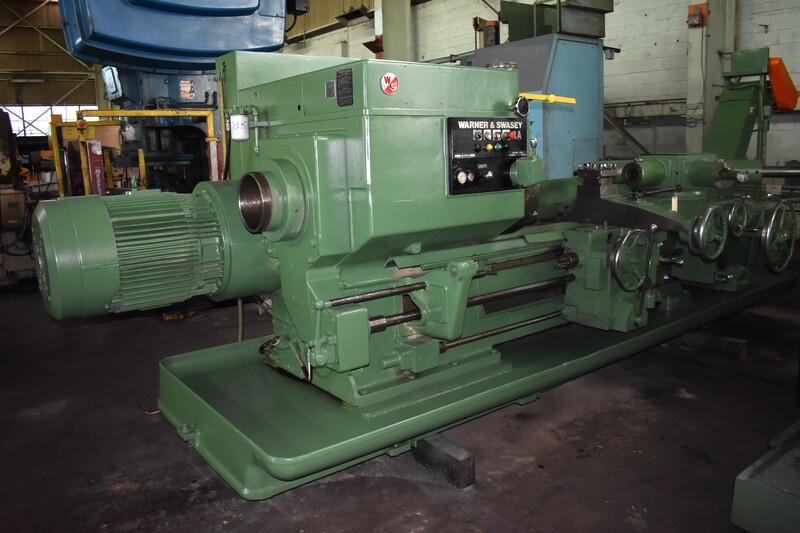

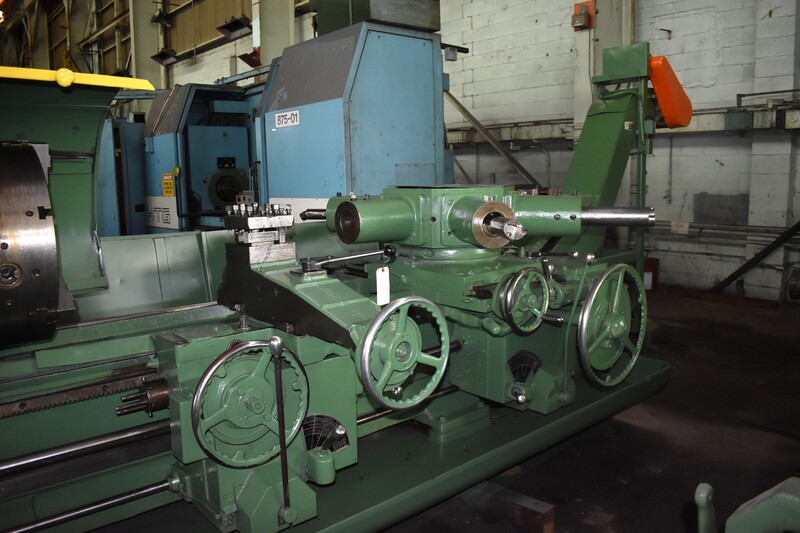

No. 4A Warner & Swasey, M3550, square head, saddle type turret lathe, 29.5" swg o/bed ways, 9.3" spdl hole

4A WARNER & SWASEY EXTRA HEAVY-DUTY

"SQUARE-HEAD" SADDLE-TYPE TURRET LATHE

W/CROSS-SLIDING TURRET & TAPER ATTACHMENT

New 1980, Serial 2843501, Lot 583, Model 4A,

Series M3550

EQUIPPED WITH:

9.3" Hole Thru Spindle - "Square-Head" Design

Taper Attachment on Turret

24" 3-Jaw Chuck

(6) Flanged Tool Holders - 4-Way Tool Post

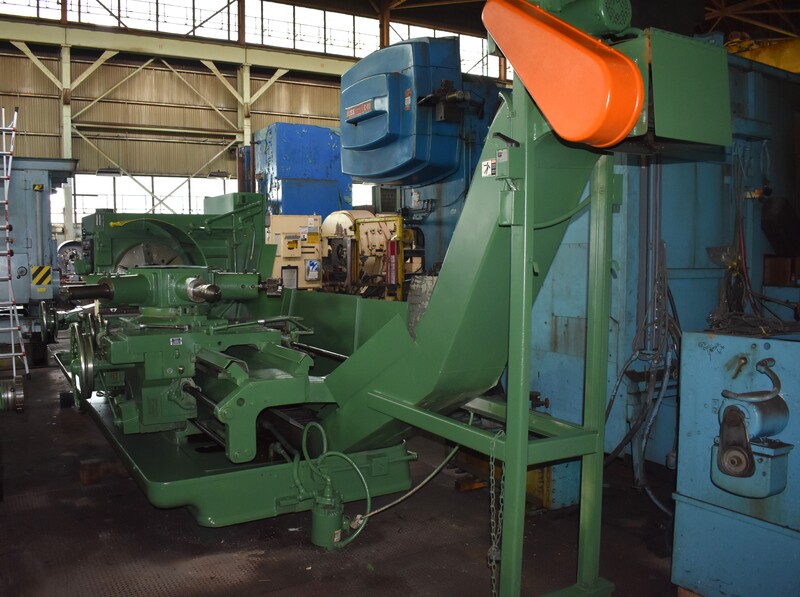

Power Rapid Traverse - Coolant-Chip Pan & Conveyor

CATALOG SPECIFICATIONS:

Hole Thru Spindle 9.3"

Bar Capacity, Round 9"

Bar Capacity, Square 6.375"

Bar Capacity, Hexagon 7.75"

Swing Over Bed Ways 29.5"

Swing Over Carriage Guard 28.25"

Swing Over Carriage Horn 22.44"

Turning Length, Maximum 59.875"

Carriage Longitudinal Travel (Z-Axis) 68.375"

Cross-Slide Cross Travel (X-Axis) 17"

Turret Cross Travel (X-Axis) 12"

Turret Longitudinal Travel (Z-Axis) 68.375"

Spindle-Face to Turret, Maximum 80.19"

(32) Spindle Speeds, Range 10 to 526 RPM

(16) Carriage Longit Feeds (Z-Axis) .005 to .167 IPR

(16) Cross-Slide Cross Feeds (X-Axis) .003 to .103 IPR

(16) Turret Longitudinal Feed (Z-Axis) .005 to .167 IPR

Main Motor, Horsepower/RPM 75/37.5 HP

Overall Dimensions, L x D 17'10" x 7'9"

Weight, Approximately 21600 LBS
