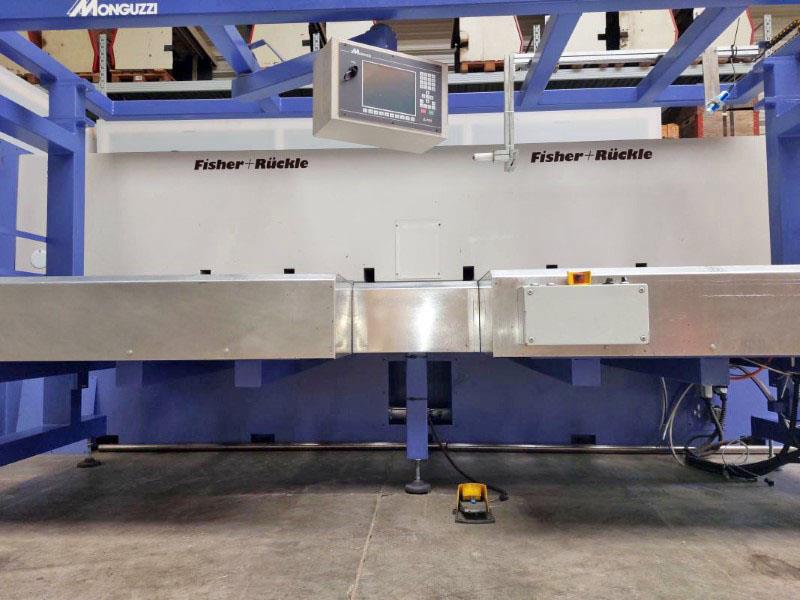

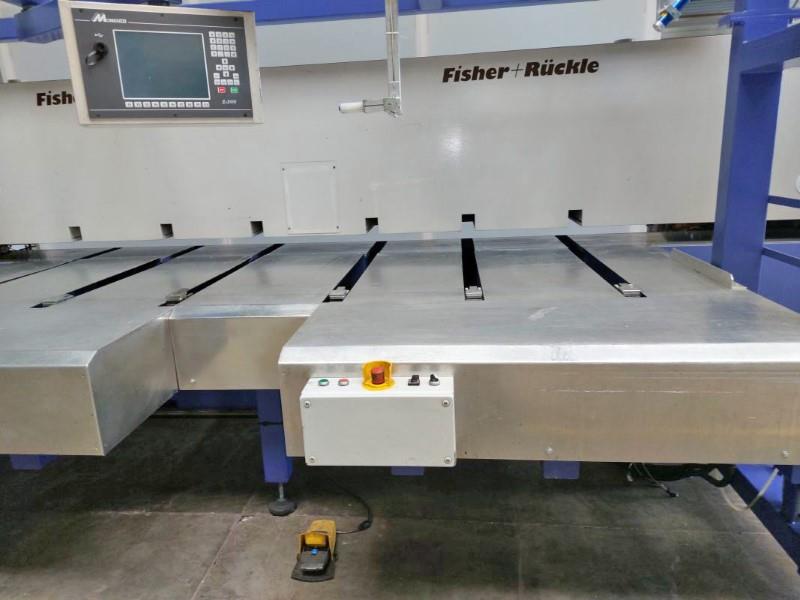

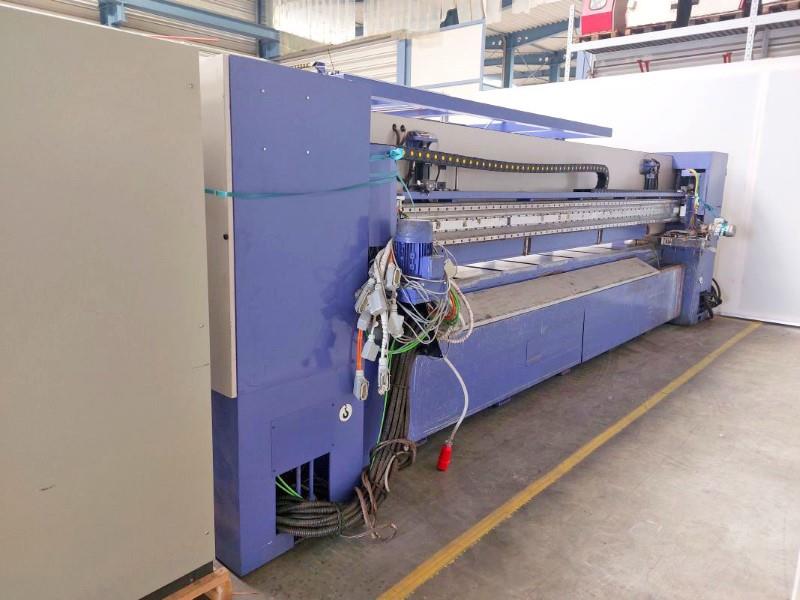

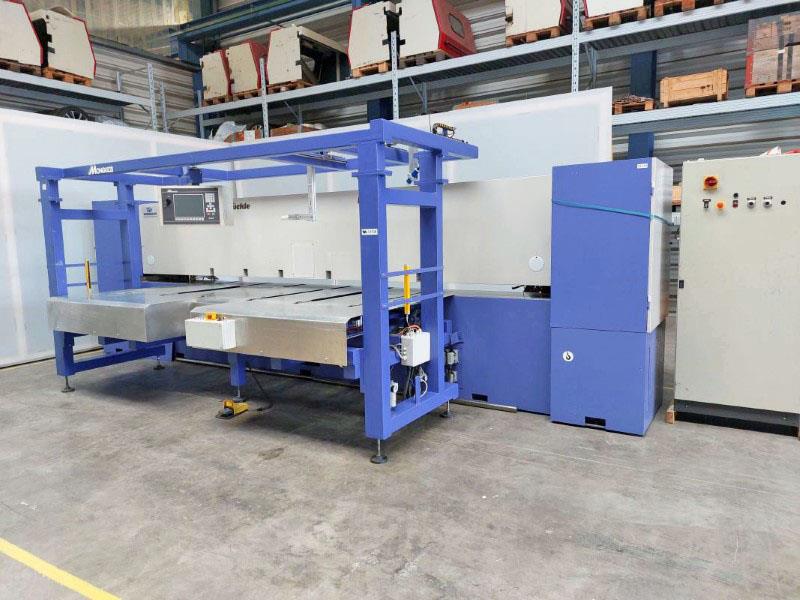

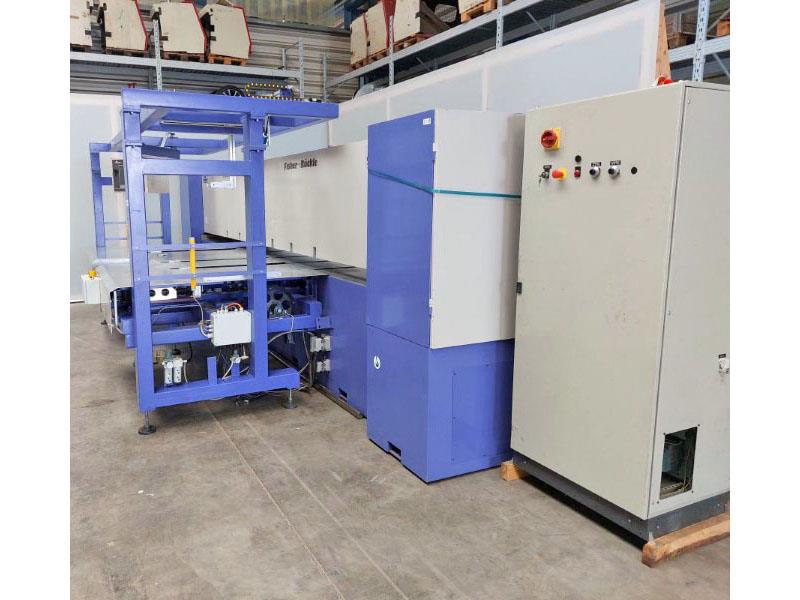

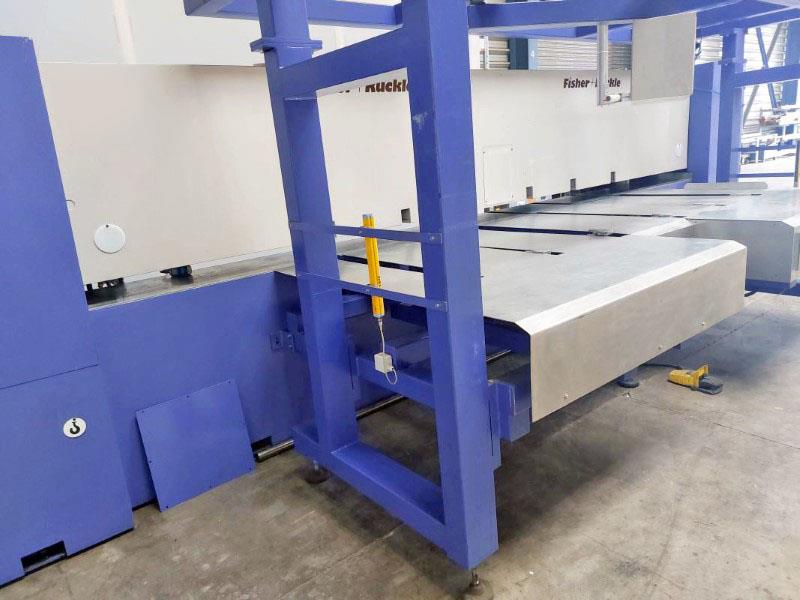

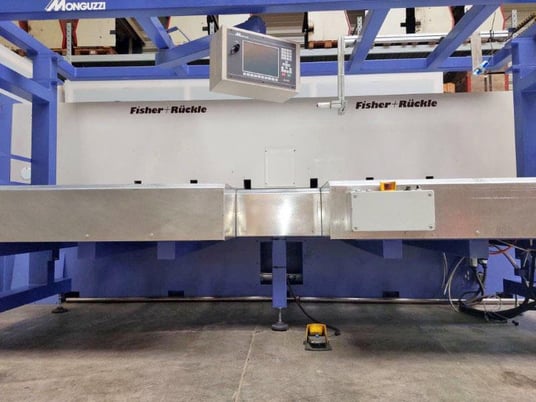

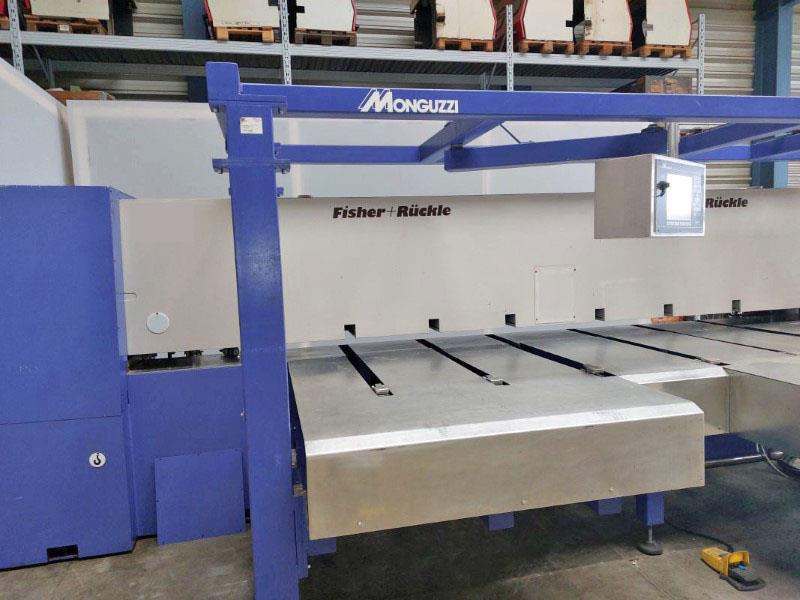

Monguzzi / Fisher Ruckle #Alos/AFH-34, veneer guillotine w/ internal milling & glue applicator

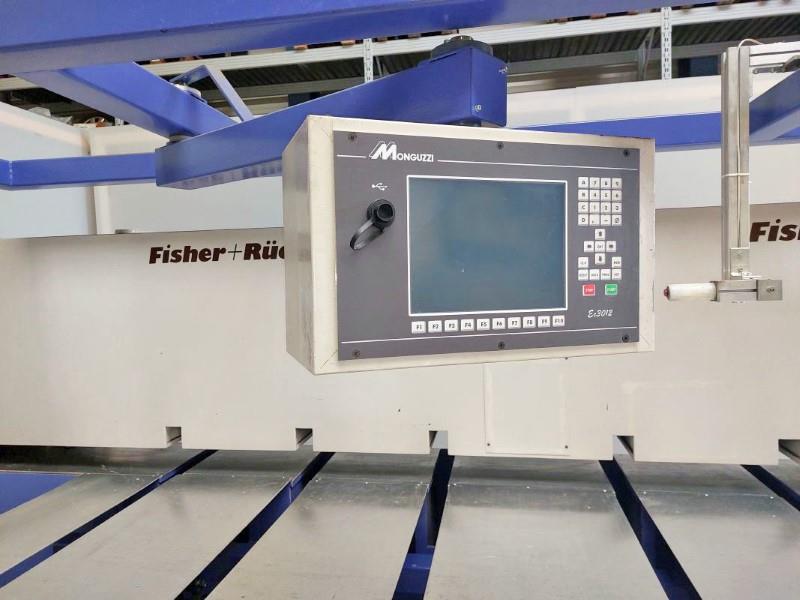

FISHER+RUCKLE/MONGUZZI ALOS/AFM 34 Veneer Guillotine with integral Milling & Glung units for butt jointing veneer. After Guillotine cut of vener bundle, the edge is jointed with a Milling Router and glue is applied while bundle is pressed for subsequent splicing. Ideal for medium production. -- Veneer thickness 0.4 - 5 mm. -- Veneer Bundle Cutting capacity 3,00 x 1,250 x 38 mm high (depending on type of veneer) (126" x 49.2" x 1.5"). Min bundle length is 400 mm (15.75"). MIn bundle width 45 mm (1.11"). Max. opening is 80 mm (3.15"). 45 veneer blade angle. -- Max translation speed of Milling & Gluing operation: 38 Meters/min. (125 FPM). Max Router Speed 10,000 RPM. -- Type of glue: Urea or PVC. Glue Pot capacity: 1.5 L (0.4 US Gal). -- Cycle Speed for Cutting and Gluing is about (2) cycles per minute. Speed for Cutting, Jointing and Gluing is about (1) cycle per minute. -- Powered Milling & Gluing units ride on state-of--the- art Linear Motors. Variable speed rotation of Router and travel of Milling Router. -- Features: Electronic control with custimizable programs. -- Amount of Glue applied to glue bundle is variable Can use PVC or UREA glue types. -- Comes with (3) replacement guillotine knives. -- Note: Feed chain replaced in 2020. -- Total Power: 15 KW (approx 30 Amps at 400/3/60). Hydraulic power pack 7.6 KW. Air Supply required: (5) Nl/min @ (6) bar. ( 0.06 CFM @ 90 psi). -- Overall Footprint dimensions: 6,800 x 5,000 x 2,000 mm (22.3' x 10' x 6.5'). Approx weight: 10,000 Kg. (22,200 Lbs).
