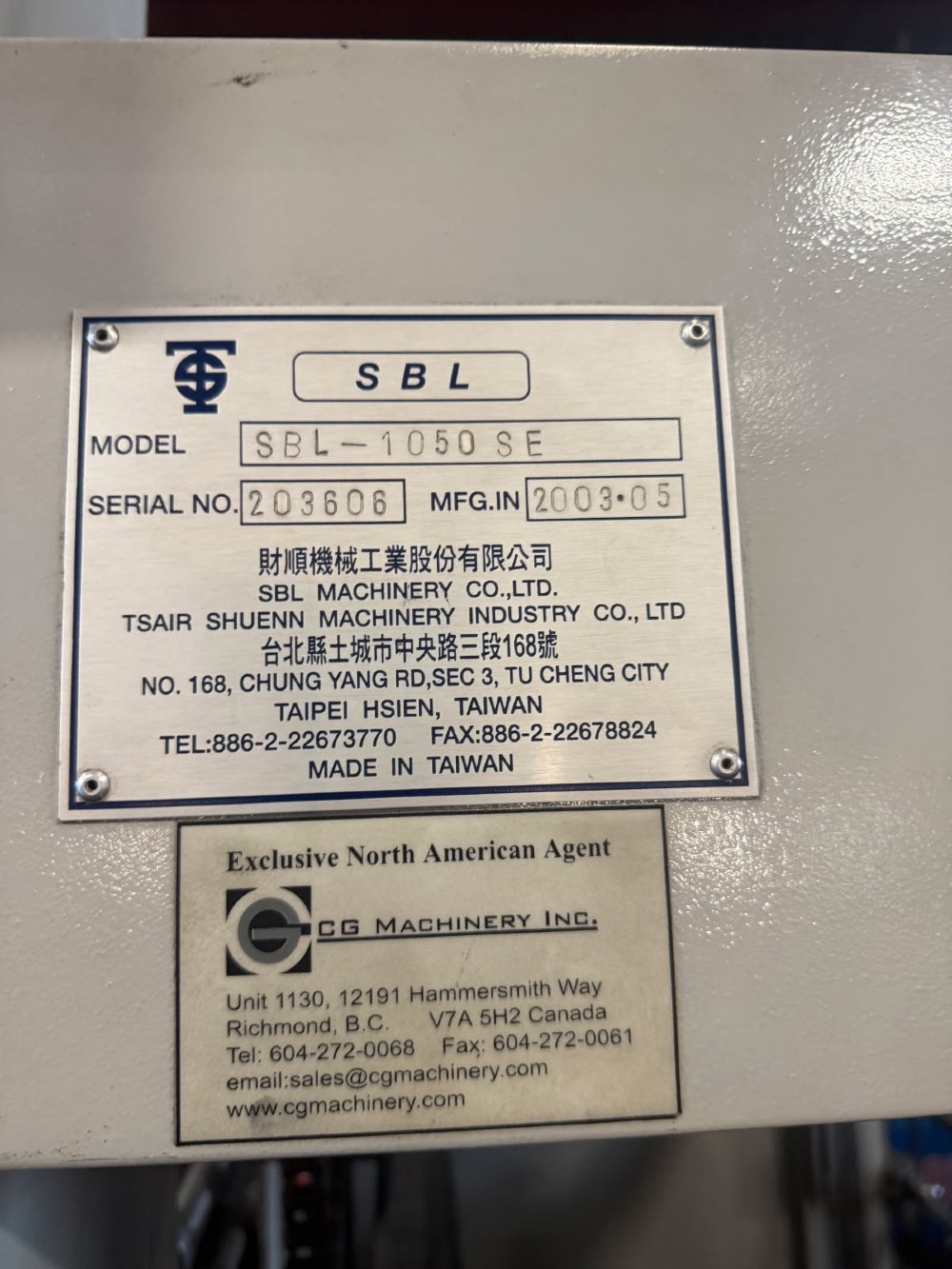

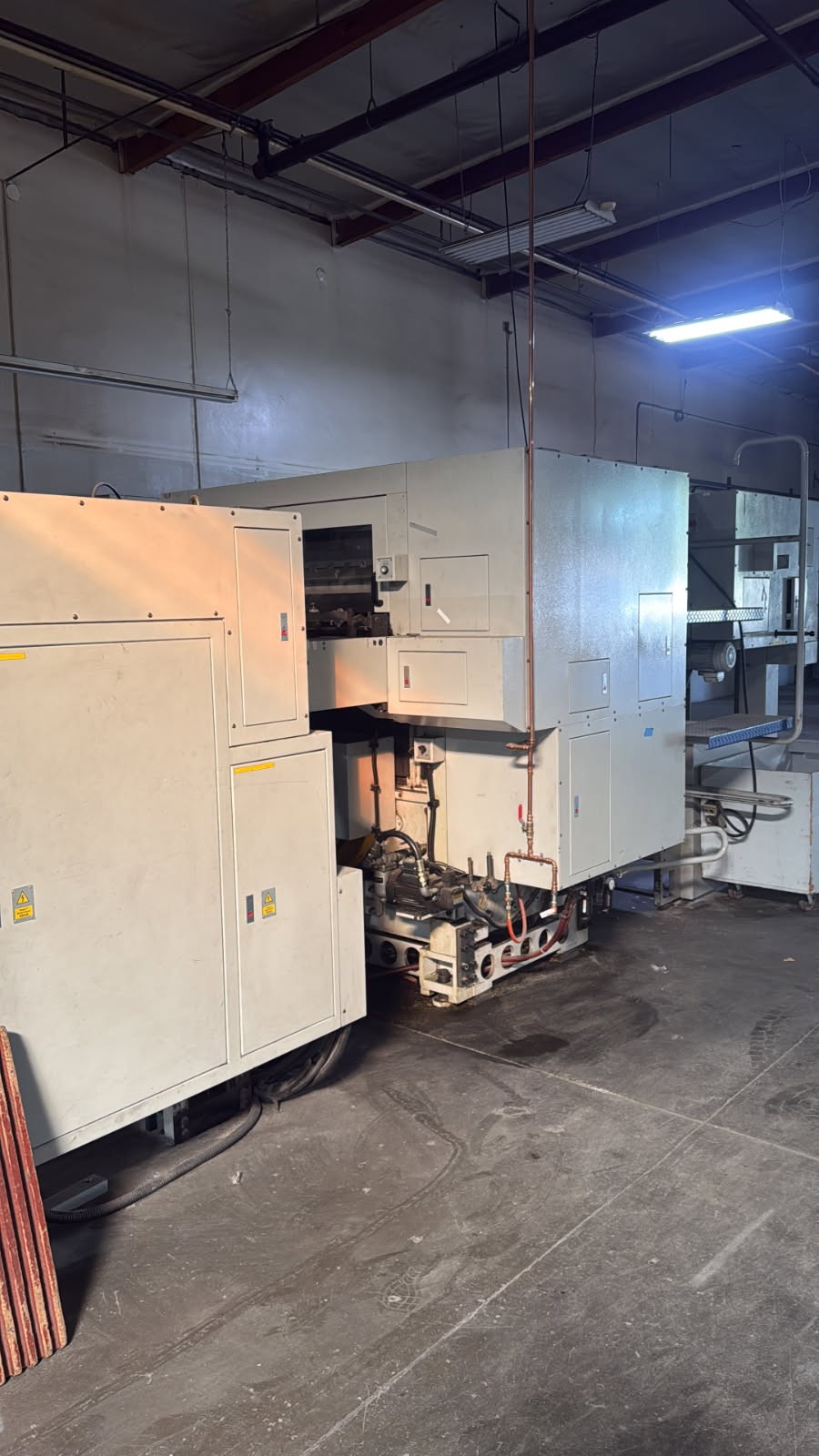

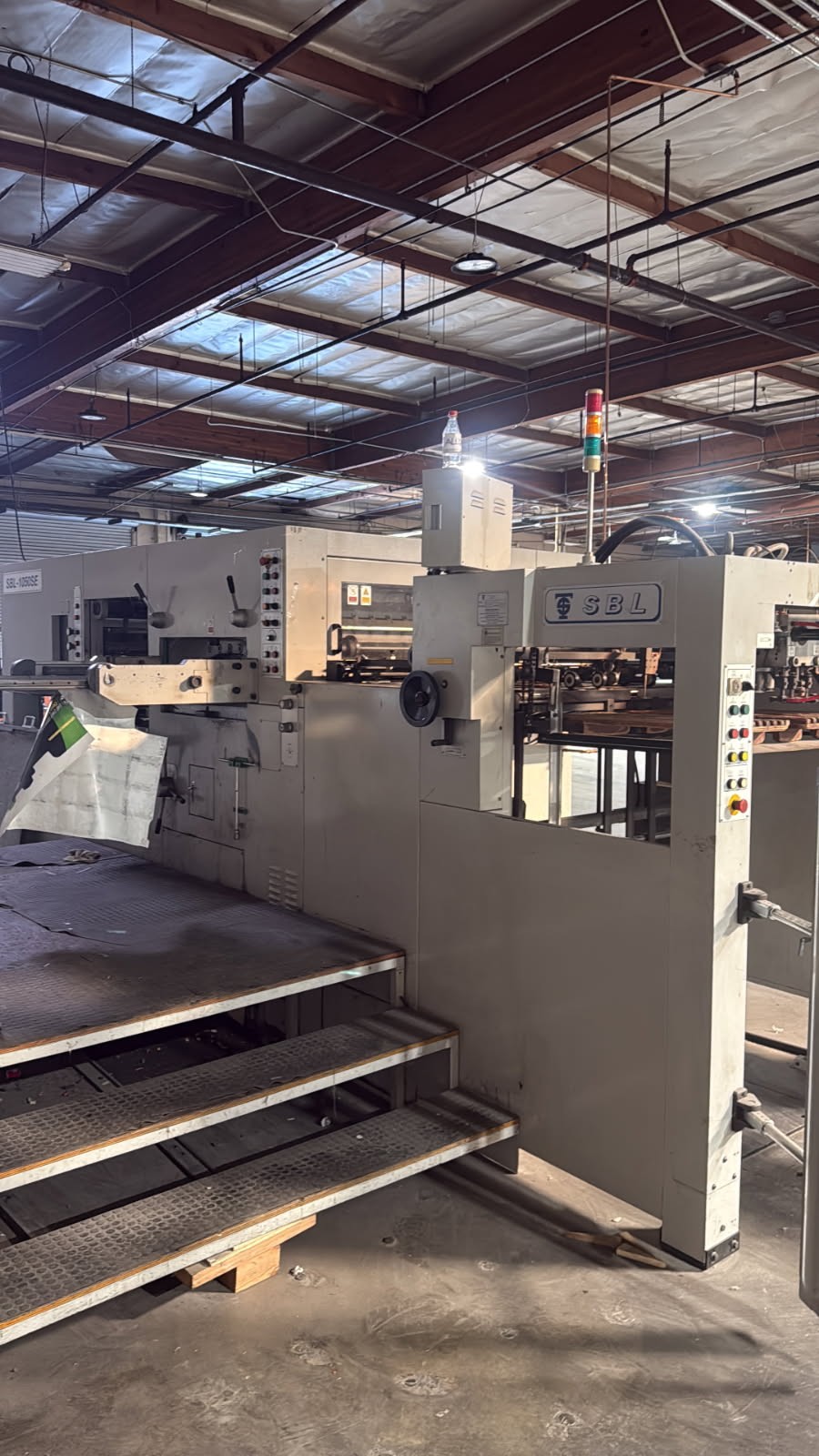

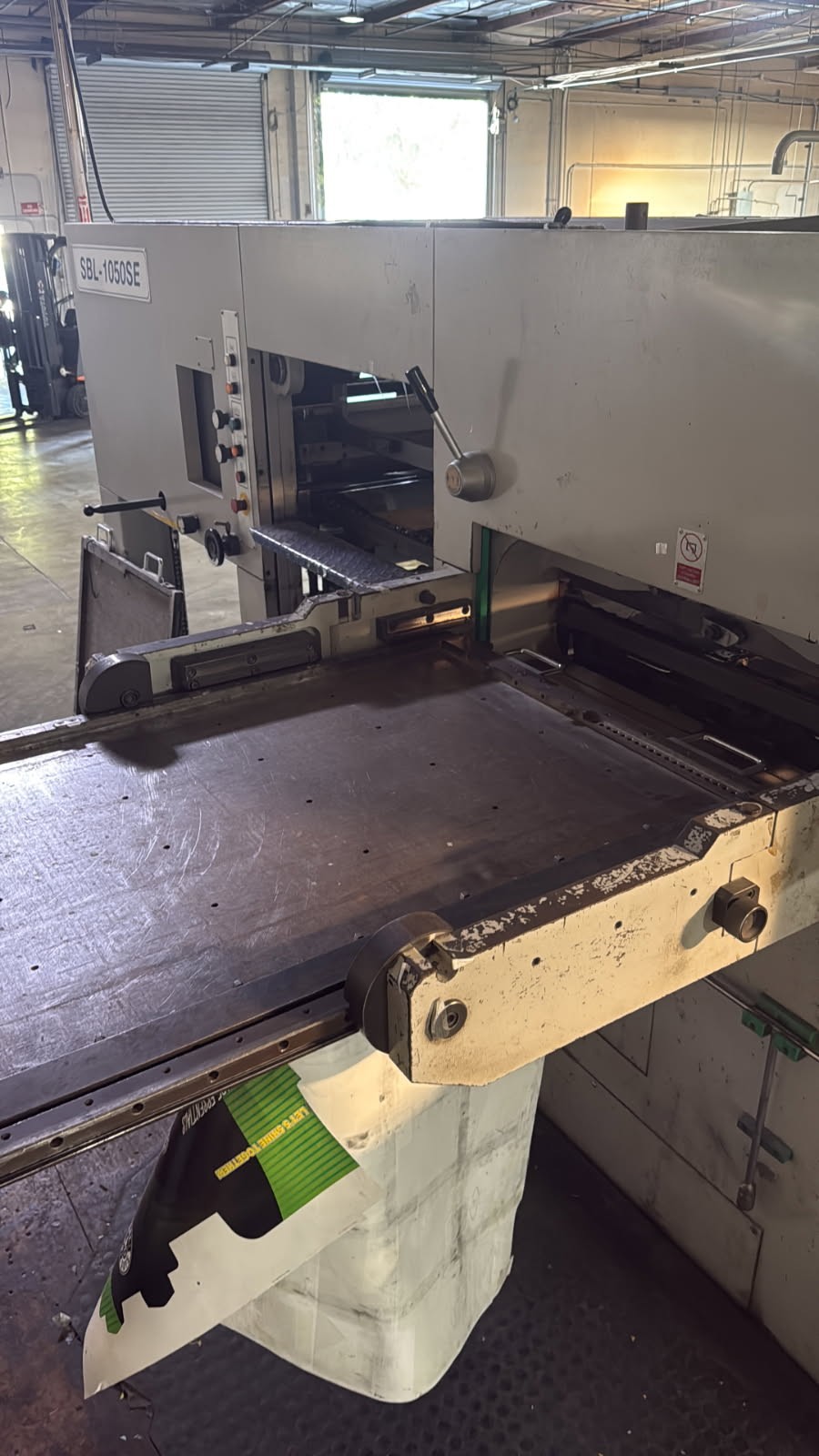

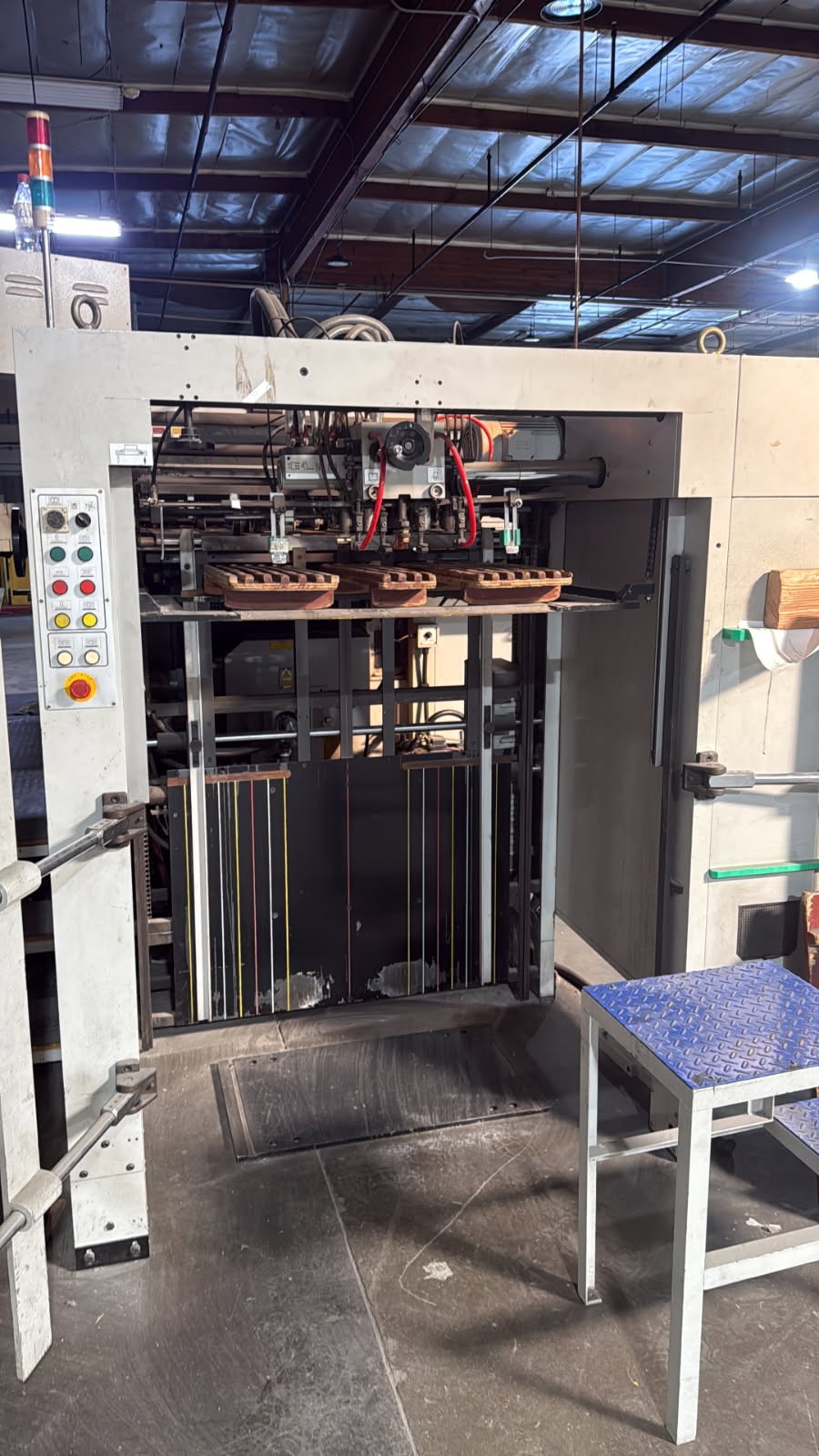

300 Ton, SBL #SBL-1050SE, die cutter and stripping machine

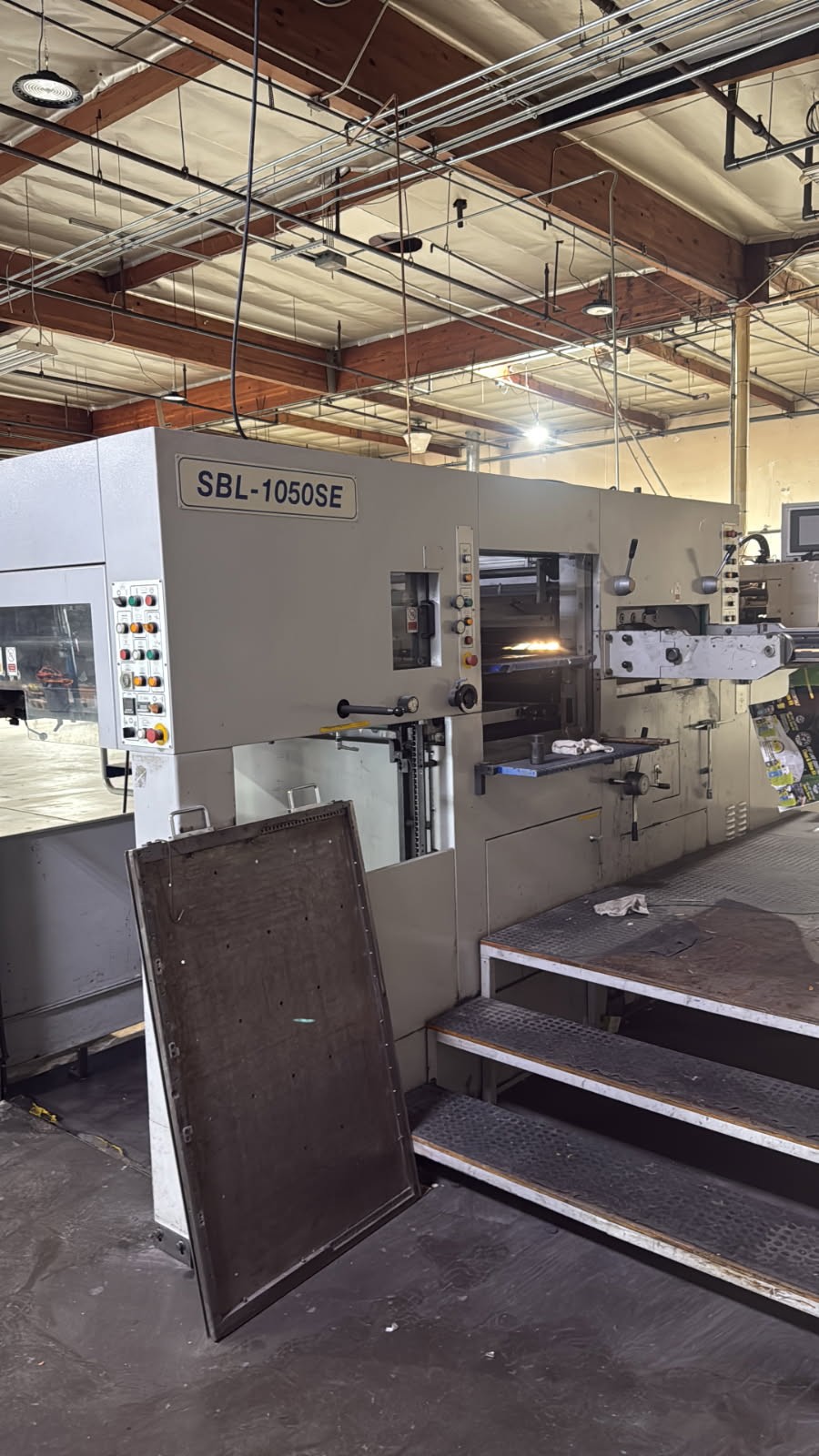

Model SBL-1050SE​

Automatic Platen Die Cutting and Creasing

Max. paper size: 1050 x 750 mm

Min. paper size: 400 x 370 mm

Max. die-cutting paper size: 1040 x 730 mm

Min. gripper margin: 9.5mm

Die-cutting force: 300 Tons

Inner size of die chase: 1144 x 760 mm

Cutting plate size: 1080 x 736 mm

Range of material thickness: 0.1mm~2mm (80~1400gsm)

Corrugated paper: ≦4mm

Height of cutting rules: 23.6mm

Max. punching speed: 7500S/H

Register tolerance: ±0.075mm

Total power: 20KVA

Outer size of machine(mm): 5683L × 2204W × 2132H

Machine weight (approx.) : 16 Tons

Feeder pile height with pallet: 1000mm

Feeder pile height with pallet

(without non-stop): 1200mm

Delivery pile height: 840mm

Feeder pile height with 300mm elevation

(option) 1500mm

Version V.02

Small sheet device

(option) 350mm x300mm

Gripper bite(minimum) 3mm
