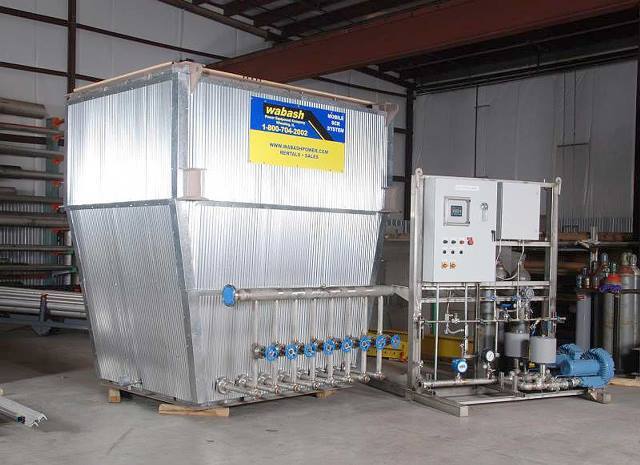

Mobile SCR System, Anhydrous Ammonia Process Control Unit, 3' x4' x8', Stainless Steel Skid Package

Anhydrous Ammonia Process Control Unit
3x4x8 Stainless Steel Skid Package Includes:
Bottle rack for storage of (8) 150# or 300# anhydrous ammonia compressed bottles (Enduser to supply bottles).
Distribution manifold, regulator and hoses for connection to 3 bottles at one time.
Automatic switch over from 3 primary feed bottles to 1 back-up upon detection of low supply pressure.
1 3HP Dilution air blowers, with motor starter.
Ammonia control piping & instrument air piping with thermal mass flow controller.
Allen Bradley Compactlogix PLC controller for ratio control of the ammonia injection based on boiler fuel consumption.
All skid mounted hardware and wiring.
Duct mounted manifold, all SS construction to be insulated by lessee in the field. 4 header with a 3 150# inlet connection (8) 1/2 branches, and a pressure gauge. Each branch contains a gate valve, orifice plate and Dwyer Capsuhelics for flow balancing.
All 304 SS construction, 8 injection lances for proper ammonia distribution across the duct.
Instrumentation for monitoring the SCR reaction and controlling the ammonia system is enclosed in a NEMA 4 enclosure and has an inlet temperature switch.
