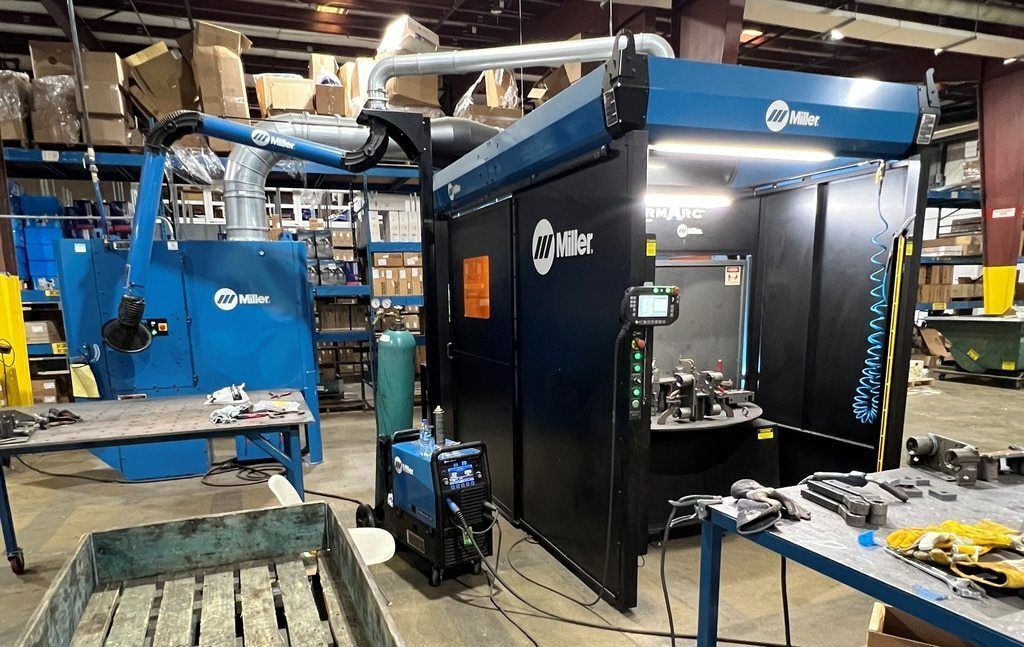

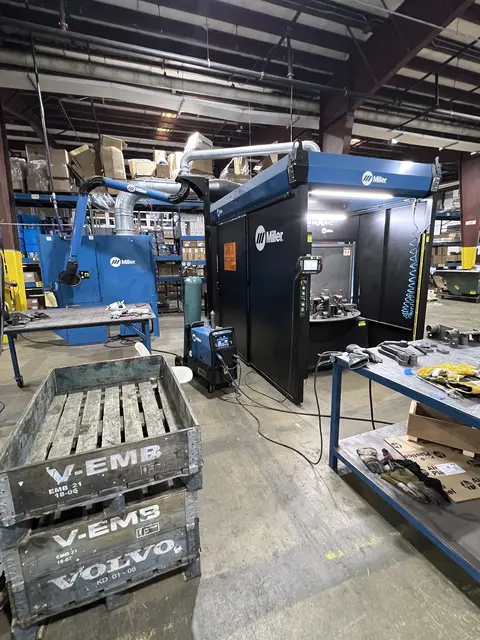

Miller, PerformArc PA-350S, Panasonic robot, Servo driven indexing turntable pay per load 350 lbs., 2020

New - 2020
SPECIFICATIONS:

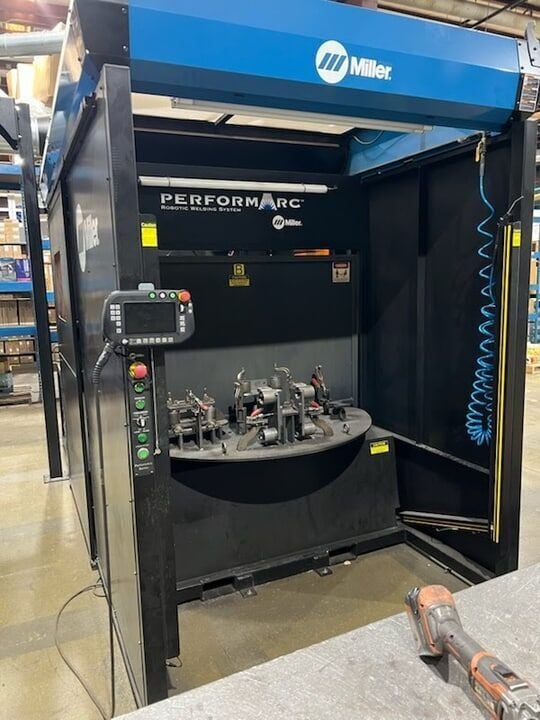

Servo Driven Indexing Turntable Pay Load - Maximum............350 Lbs. (Per Station)
Station A - For Load/Unload
Station B - Robot/Weld Envelope
Work Envelope:
- Tool Height - Maximum............40"
- Load Height - Maximum............31"
- Cell Front Opening............62"
- Rotation Diameter............66"
Panasonic Welding Robot Arm:
- RT............+/- 170°(+/-170°)
- UA............+155° to -90° (+155° to -90°)
- FA............+90° to -75° (+75° to -90°)
- RW............+/-270° (+450° to -90°)
- BW............+90° to -150° (+90° to -150°)
- TW +/- 400° (+/-400°)
Processes: Miller Power Supply 450 A @44v DC 100% Duty Cycle, Wire Feed Speed range 50 - 1400 IPM, Wire Diameter 0.035 - 0.062 Inch.
Capabilities: Activewire GMAW, GTAW, Opti drive, Push-Pull Torch, Active Wire Pull Torch and advanced Arc Modes, Panasonic Tawers.
- Overall System Dimensions..............168" (L) x 72" (W) x 90"(H)
EQUIPPED WITH:

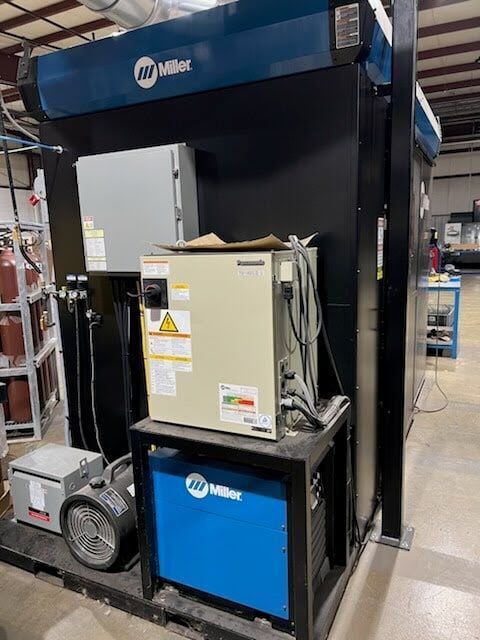

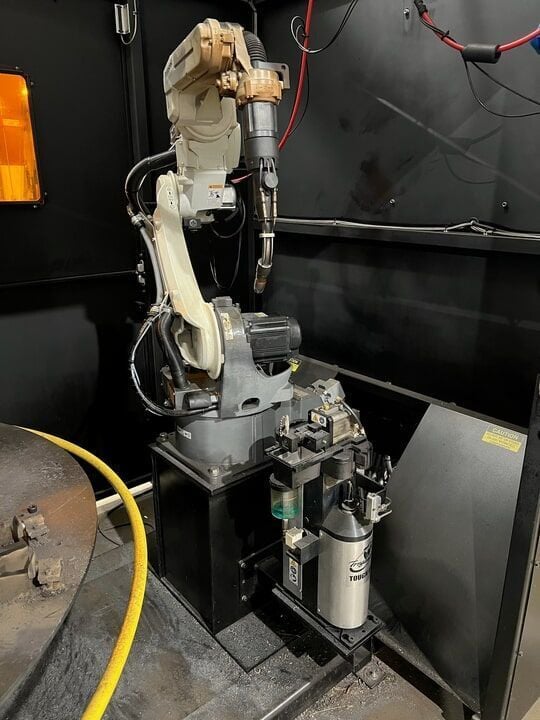

Panasonic TM-1400 Welding Robot with Panasonic YA-1UAR Controller
Panasonic G3 Series 64 bit RISC Windows CE robot controller (Auto/Teach)
Miller Auto-Continuum 350 Welding Power Supply
Tregaskiss TA3 air cooled torch
Tregaskiss reamer w/sprayer, wire cutter, lubricator

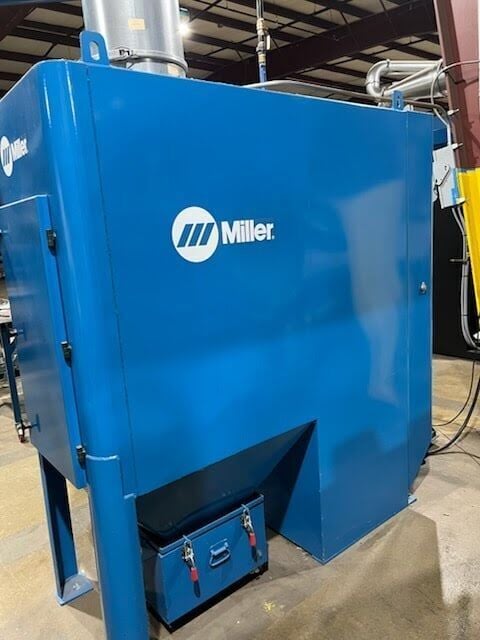

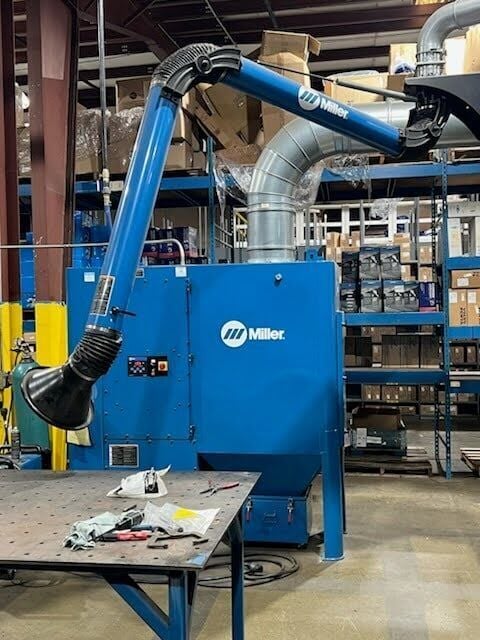

FILTAIR 4000 fume collector
FILTAIR fume hood

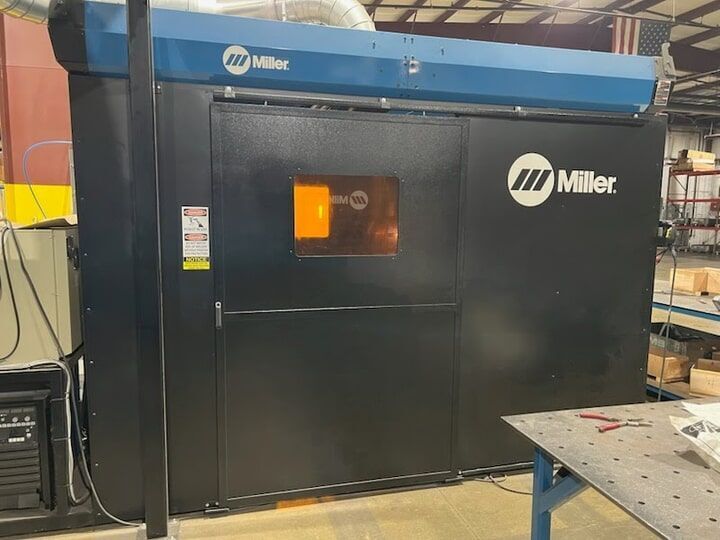

Operator Protection: Sliding Doors and an Arc Shield that Indexes with the Turntable, Light Curtains
Books and Manuals
*Preliminary specifications, pending confirmation.
