For Sale by Southern Fabricating Mchy Sales
Description

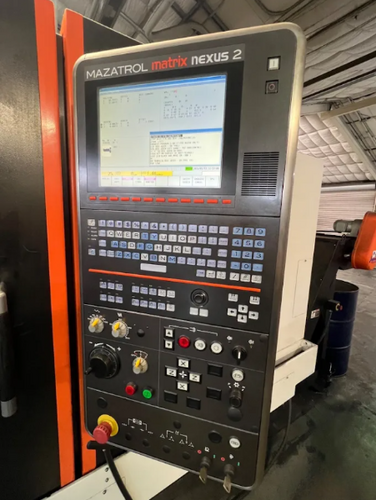

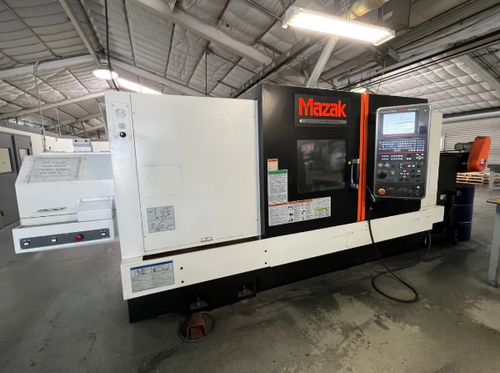

22.83” X 38.54” CNC Turning Center with Mazatrol Matrix II Control, 18” 3-Jaw Hydraulic Thru - Hole Chuck, 12D / 24 Position Drum Turret, Programmable Tailstock, Tailstock Thrust Select (9 - Level), Large Spindle Bore, Tool Eye, High Power Coolant, Work Light, intelligent Safety Shield, Re-Threading, ThreadStart Point Compensation and Jorgensen Chip Conveyor - Side 1000U.
GENERAL SPECIFICATIONS
Chuck Size: 18”
Bar Capacity: 7.3”
Max. Turning Diameter: 22.83”
Max. Turning Length: 38.54”
Machine Travels ( X & Z): 12.2” X 42.12”
Max. Spindle Speed: 2,000 RPM
Spindle Nose: A215
Spindle Motor: 50 HP
Turret Configuration: 12 Tools Bidirectional
Machine Dimensions: 159” X 90”
Machine Weight: 20,420 Lbs
Electrical Requirements: 220 V / 3 Ph / 60 Hz / 27 Kva
INCLUDES: Mazatrol Matrix II Control, 18” 3-Jaw Hydraulic Thru - Hole Chuck, 12D / 24 Position Drum Turret, Programmable Tailstock, Tailstock Thrust Select (9 - Level), Large Spindle Bore, Tool Eye, High Power Coolant, Work Light, intelligent Safety Shield, Re-Threading, ThreadStart Point Compensation and Jorgensen Chip Conveyor - Side 1000U.
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
