Manufacturer: Mazak
Model: NEXUS-QTN-250II/1500
Year: 2009
Swing: 26.5
Chuck: 10
Bar Capacity: 3.0
Centers: 60.2
Stock # 10141
For Sale by Used CNC LLC
Surplus Record Dealer Since 1997
Mike Oracko
224-53...> Show Seller's Phone Number 224-537-0982 Let the seller know you found their listing on Surplus Record!
Description

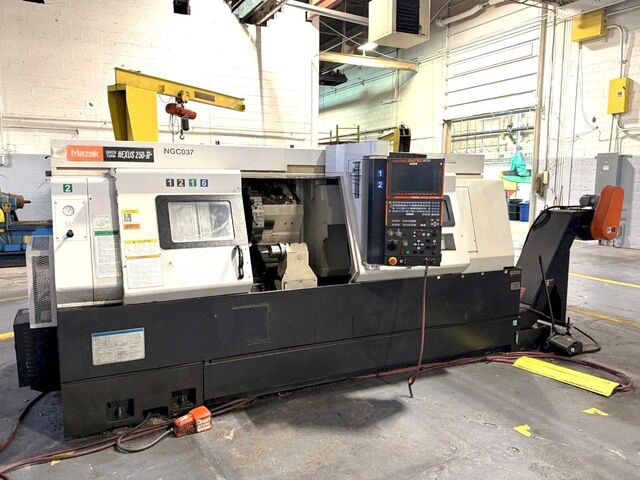

2009 MAZAK NEXUS QTN 250II/1500 CNC Turning Center available. Features 26.5" swing over bed, 14.7" max machining diameter, 10" hydraulic chuck, 35 HP motor, and 12 turret positions. Equipped with EIA/ISO, MATRIX control, and 12,023 lbs.
2009 MAZAK MAZAK QTN 250II/1500
SPECIFICATIONS:
Swing Over Bed..................... 26.5"
Machining Length................... 59"
Distance Between Centers........... 60.2"
Chuck Size 1....................... 10"
Spindle Nose 1..................... A2 - 8
Spindle Bar Capacity 1............. 3"
Turning Diameter, Shaft Diameter... 14.75"
Spindle Speeds 1................... 4,000 RPM
Spindle Horsepower 1............... 35 hp
Spindle Bore Diameter 1............ 3.6"
X1 - Axis Travel................... 9"
Z1 - Axis Travel................... 61"
Rapid Traverse Rate - X1........... 1,181 in/min.
Rapid Traverse Rate - Z1........... 1,299 in/min.
Turret Configuration 1............ 12
Tailstock Taper.................... MT 4
Tailstock Quill Travel............. 59.2"
Control............................ CNC (MAZAK MAZATROL MATRIX CNC COLOR CONTROL)
Weight............................. 12000.00
EQUIPPED WITH:
EIA/ISO INPUT PROGRAMMING
10'' 3 JAW HYDRAULIC CHUCK
CHIP CONVEYOR RIGHT SIDE DISCHARGE
AUTO TOOL EYE
USB 2 PORT
USER MACRO
600 PAIRS
SEQUENCE NUMBER COMPARISON STOP
ABSOLUTE POSITIONING SYSTEM
CHUCK OPEN/CLOSE
TOOL LIFE MONITORING
TRANSFORMER
ALL AVAILABLE STANDARD TOOL HOLDERS
ALL AVAILABLE MANUALS
HYDRAULIC PROGRAMMABLE TAILSTOCK AUTOMATIC
MATRIX CNC CONTROL
2009 MAZAK MAZAK QTN 250II/1500
SPECIFICATIONS:
Swing Over Bed..................... 26.5"
Machining Length................... 59"
Distance Between Centers........... 60.2"
Chuck Size 1....................... 10"
Spindle Nose 1..................... A2 - 8
Spindle Bar Capacity 1............. 3"
Turning Diameter, Shaft Diameter... 14.75"
Spindle Speeds 1................... 4,000 RPM
Spindle Horsepower 1............... 35 hp
Spindle Bore Diameter 1............ 3.6"
X1 - Axis Travel................... 9"
Z1 - Axis Travel................... 61"
Rapid Traverse Rate - X1........... 1,181 in/min.
Rapid Traverse Rate - Z1........... 1,299 in/min.
Turret Configuration 1............ 12
Tailstock Taper.................... MT 4
Tailstock Quill Travel............. 59.2"
Control............................ CNC (MAZAK MAZATROL MATRIX CNC COLOR CONTROL)
Weight............................. 12000.00
EQUIPPED WITH:
EIA/ISO INPUT PROGRAMMING
10'' 3 JAW HYDRAULIC CHUCK
CHIP CONVEYOR RIGHT SIDE DISCHARGE
AUTO TOOL EYE
USB 2 PORT
USER MACRO
600 PAIRS
SEQUENCE NUMBER COMPARISON STOP
ABSOLUTE POSITIONING SYSTEM
CHUCK OPEN/CLOSE
TOOL LIFE MONITORING
TRANSFORMER
ALL AVAILABLE STANDARD TOOL HOLDERS
ALL AVAILABLE MANUALS
HYDRAULIC PROGRAMMABLE TAILSTOCK AUTOMATIC
MATRIX CNC CONTROL
