Manufacturer: Victor
Model: VMT-X260
Year: 2024
Swing: 26.0
Chuck: 10
Bar Capacity: 2.9
Centers: 54.2
Stock # 10051
Click to zoom in
For Sale by Used CNC LLC
Surplus Record Dealer Since 1997
Location: Huntley, IL
Contact Mike Oracko
Phone Number: 224...> Show Phone Number 224-537-0982
Let the seller know you found their listing on Surplus Record!
Description

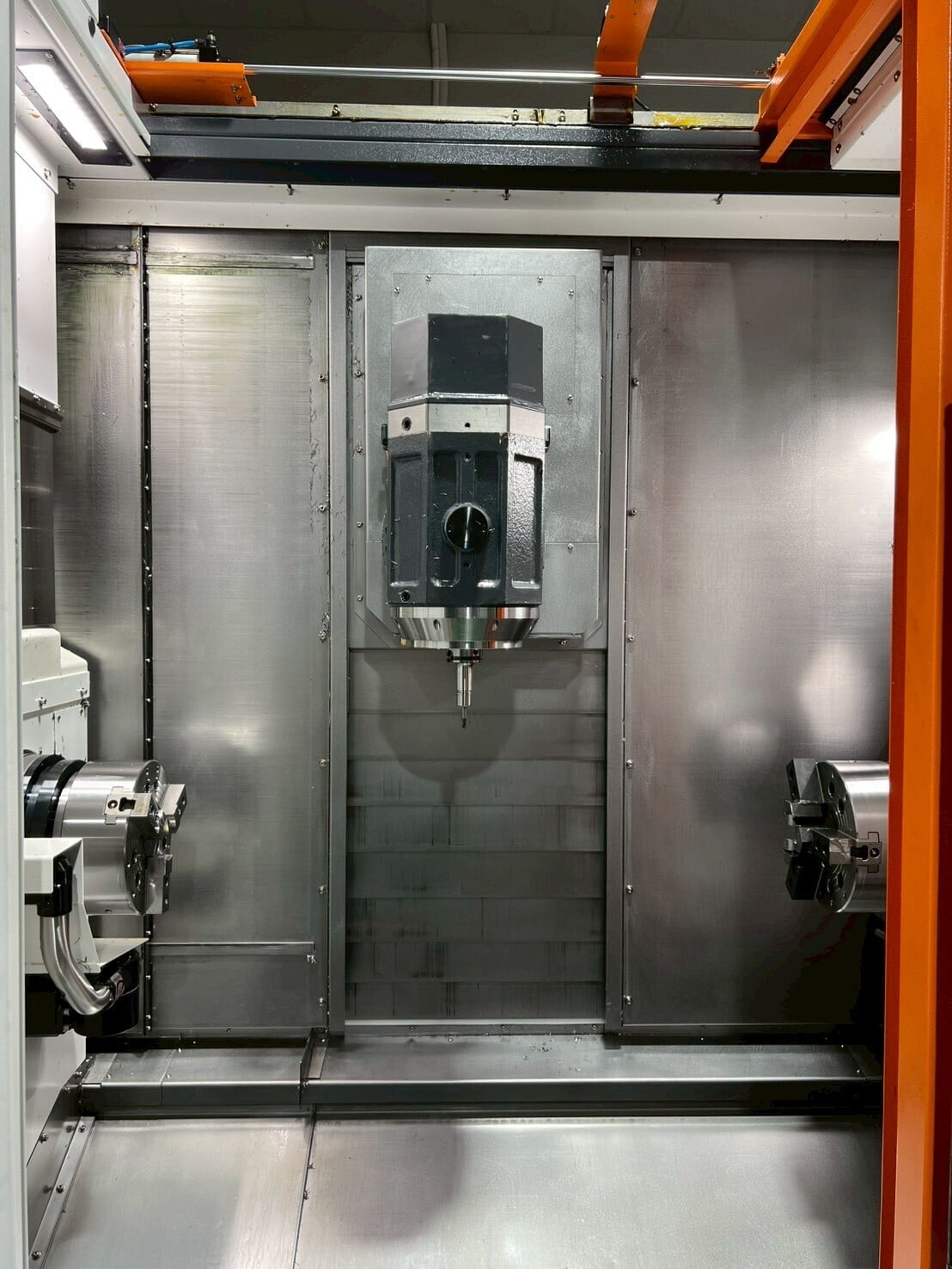

Experience precision with the 2024 Victor Taichung VMT-X260 CNC Lathe. Featuring Y-Axis, dual 10" chucks, and Siemens 5-axis control, it handles complex tasks effortlessly. Maximize efficiency with a 12,000 RPM milling spindle and 29.5 HP power.
2024 VICTOR TAICHUNG VMT-X260
SPECIFICATIONS:
Swing Over Bed......................... 26"
Turning Diameter....................... 19.7"
Turning Length......................... 42.3"
Distance Between Spindles.............. 54.2"
Chuck Size 1........................... 10"
Spindle Nose 1......................... A2-8
Spindle Bore Diameter 1................ 2.95"
Bar Capacity 1......................... 2.59"
Spindle Speeds 1....................... 3,500 RPM
Spindle Horsepower 1................... 29.5 hp
Chuck Size 2........................... 10"
Spindle Nose 2......................... A2-8
Spindle Bore Diameter 2................ 2.95"
Bar Capacity 2......................... 2.59"
Spindle Speeds 2....................... 4,200 RPM
Spindle Horsepower 2................... 29.5 hp
B - Axis Head Travel................... -30 to +210 Degrees
B - Axis Head Indexing................. 0.001
B - Axis Milling Spindle Taper......... HSK-63
B - Axis Milling Spindle Speed......... 12,000 RPM
B - Axis Milling Spindle Horse Power... 29.5 hp
ATC For Milling Spindle................ 40
Tool Diameter.......................... 3.54" / 4.92"
Tool Length............................ 11.8"
Tool Weight............................ 15.4 lb
X1 - Axis Travel....................... 25"
Z1 - Axis Travel....................... 46"
Y1 - Axis Travel....................... 10.2"
W - Axis Travel Sub Spindle............ 42.5"
Rapid Traverse Rate - X1............... 1417 ipm
Rapid Traverse Rate - Z1............... 1417 ipm
Rapid Traverse Rate - Y1............... 1417 ipm
Machine Weight......................... 27,558 lb
Dimensions............................. 214" x 119" x 115" - Floor space w/ conveyor
EQUIPPED WITH:
SIEMENS ONE 5 AXIS SIMULTANEOUS CONTROL
COOLANT THRU MILL HEAD
RPM60 PART SETTER
CHIP CONVEYOR
2024 VICTOR TAICHUNG VMT-X260
SPECIFICATIONS:
Swing Over Bed......................... 26"
Turning Diameter....................... 19.7"
Turning Length......................... 42.3"
Distance Between Spindles.............. 54.2"
Chuck Size 1........................... 10"
Spindle Nose 1......................... A2-8
Spindle Bore Diameter 1................ 2.95"
Bar Capacity 1......................... 2.59"
Spindle Speeds 1....................... 3,500 RPM
Spindle Horsepower 1................... 29.5 hp
Chuck Size 2........................... 10"
Spindle Nose 2......................... A2-8
Spindle Bore Diameter 2................ 2.95"
Bar Capacity 2......................... 2.59"
Spindle Speeds 2....................... 4,200 RPM
Spindle Horsepower 2................... 29.5 hp
B - Axis Head Travel................... -30 to +210 Degrees
B - Axis Head Indexing................. 0.001
B - Axis Milling Spindle Taper......... HSK-63
B - Axis Milling Spindle Speed......... 12,000 RPM
B - Axis Milling Spindle Horse Power... 29.5 hp
ATC For Milling Spindle................ 40
Tool Diameter.......................... 3.54" / 4.92"
Tool Length............................ 11.8"
Tool Weight............................ 15.4 lb
X1 - Axis Travel....................... 25"
Z1 - Axis Travel....................... 46"
Y1 - Axis Travel....................... 10.2"
W - Axis Travel Sub Spindle............ 42.5"
Rapid Traverse Rate - X1............... 1417 ipm
Rapid Traverse Rate - Z1............... 1417 ipm
Rapid Traverse Rate - Y1............... 1417 ipm
Machine Weight......................... 27,558 lb
Dimensions............................. 214" x 119" x 115" - Floor space w/ conveyor
EQUIPPED WITH:
SIEMENS ONE 5 AXIS SIMULTANEOUS CONTROL
COOLANT THRU MILL HEAD
RPM60 PART SETTER
CHIP CONVEYOR
