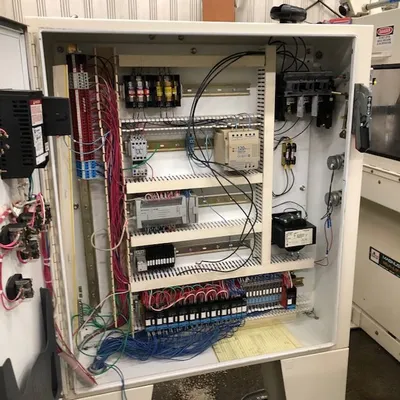

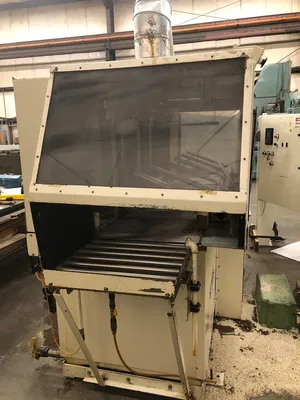

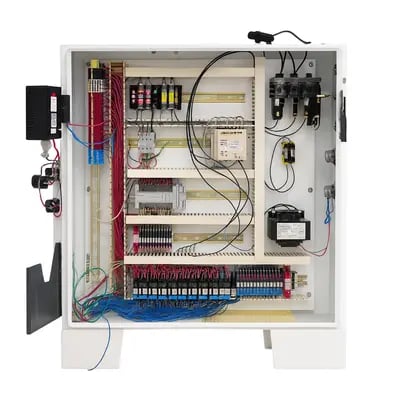

Magnus #ML24-1.5XS, Automatic 5-Stage Immersion/Agitation Parts Washer, 16" x22" tanks, RL, 2002

Description of Operation
1. Automatic Mode (“AUTO”)

Baskets will pass through the entire system automatically without operator assistance. All guards must be in place at all times.

2. Semi-Automatic Mode (“CAUTION”)

Baskets will pass through the system as directed by the operator using the push-button station. All guards must be in place at all times.

3. Manual Mode (“OPERATOR”)

Baskets will pass through the system by being physically moved by the operator. All guards must be in place at all times.

Specifications

Construction: Stainless
Work height: 36.38”
Work flow: Right to Left

Platform Typical Agitation Auto Cycle:

Stage 1 & 2 (Agitation): Wash

Stage 3 & 4 (Agitation): Rinse

Stage 5 (Agitation): Protective coating

Tank Dimensions (Inside, L × W × D):

24” × 17” × 24”

Tank Capacity:

50 gallons

Agitation Cycles (Short Stroke Mode):

60 cycles per minute

Basket Load Capacity:

50 lbs

Maximum Basket Width:

13”

Stroke for Pusher Beam (for 13” width basket):

22.20”

Air Pressure Required:

60 PSI

Voltage:

480 / 3 phase / 60 Hz

Weight (Estimated):

5,000 lbs

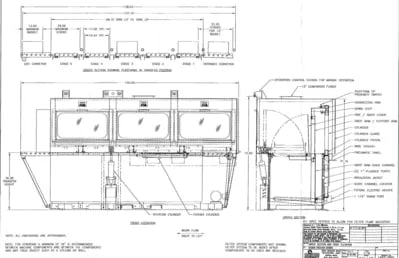

Overall Machine Dimensions with Conveyors (L × W × H):

138.3” × 55” × 80”
