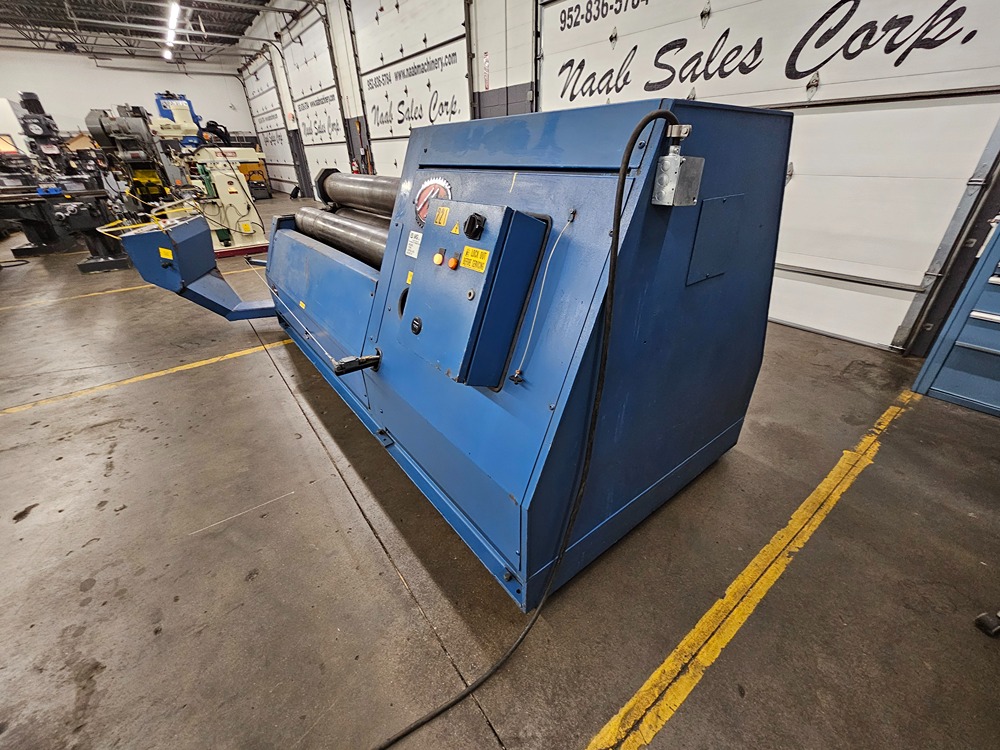

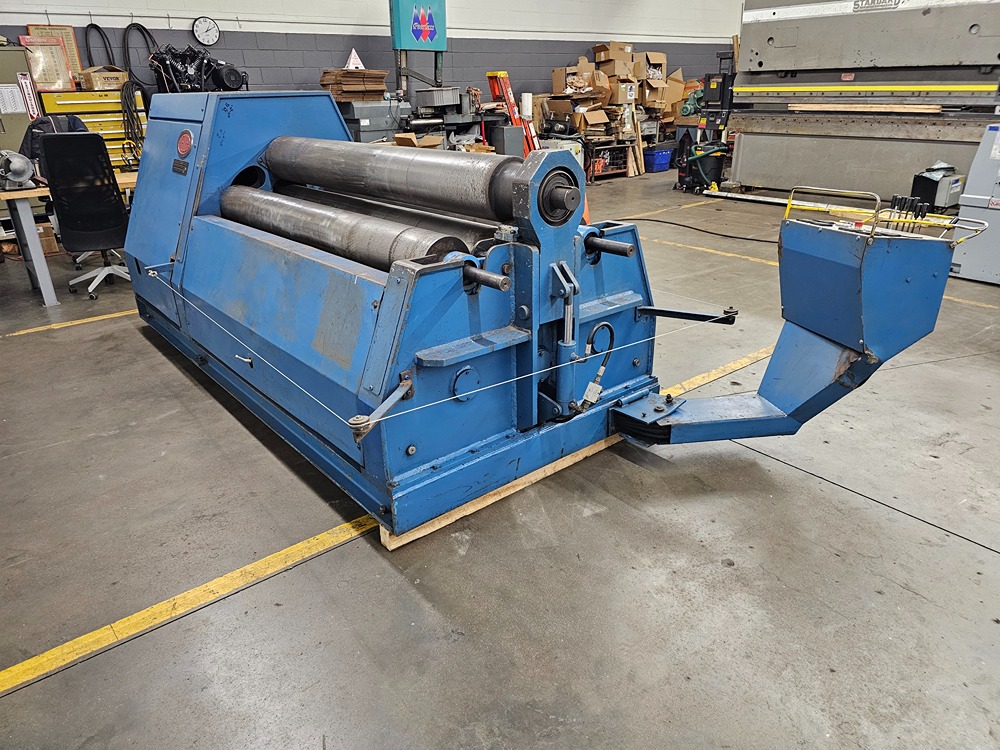

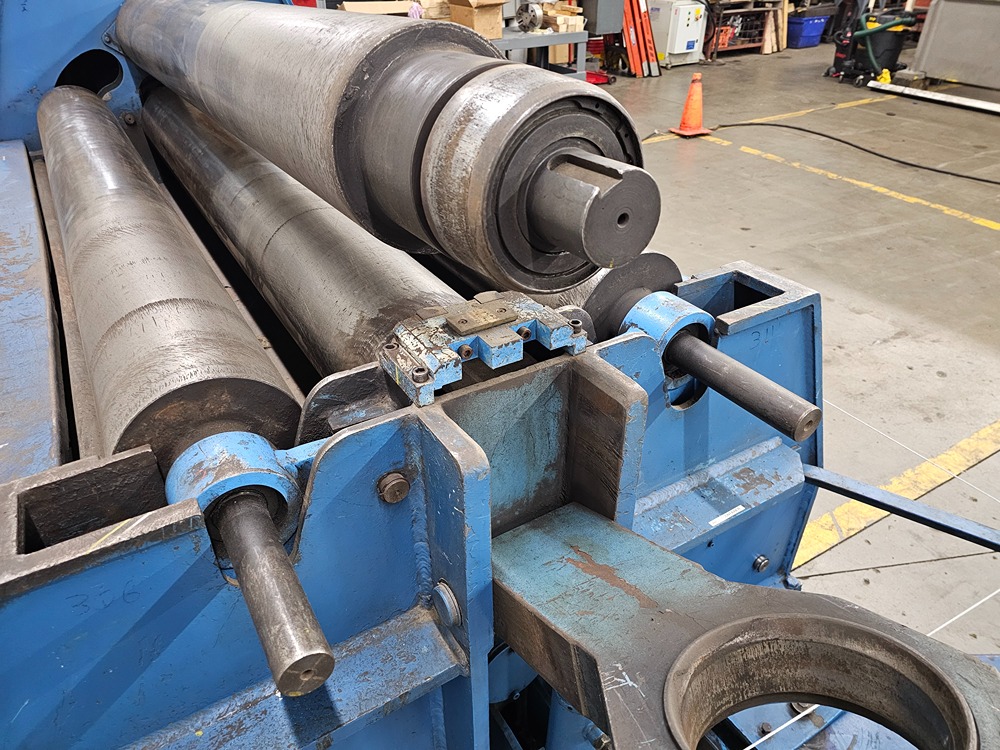

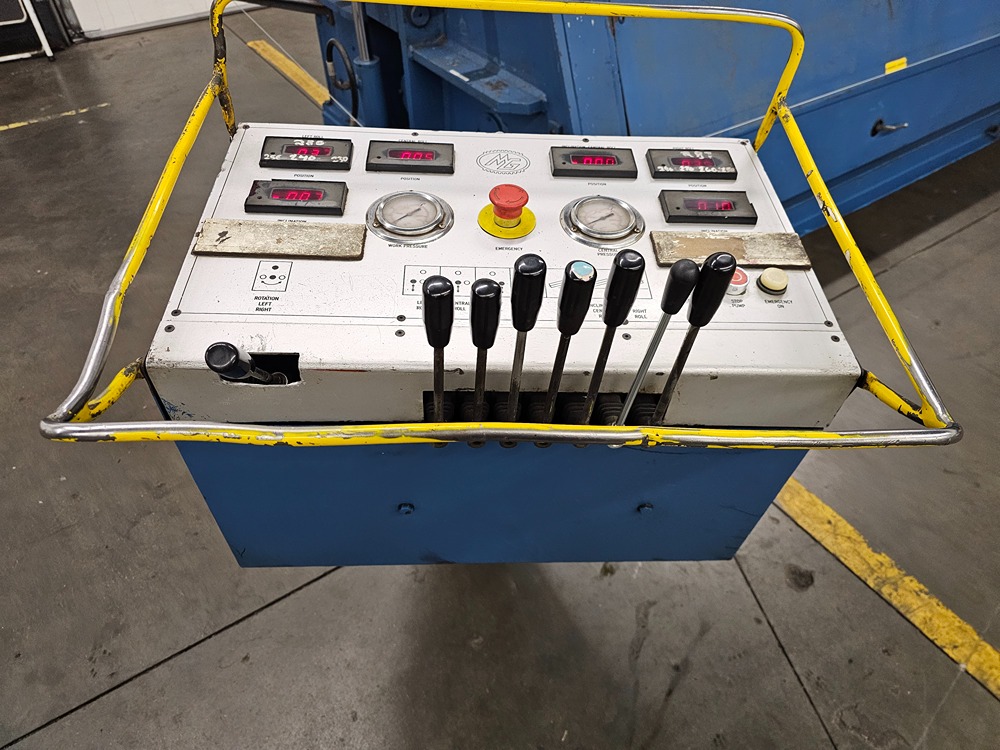

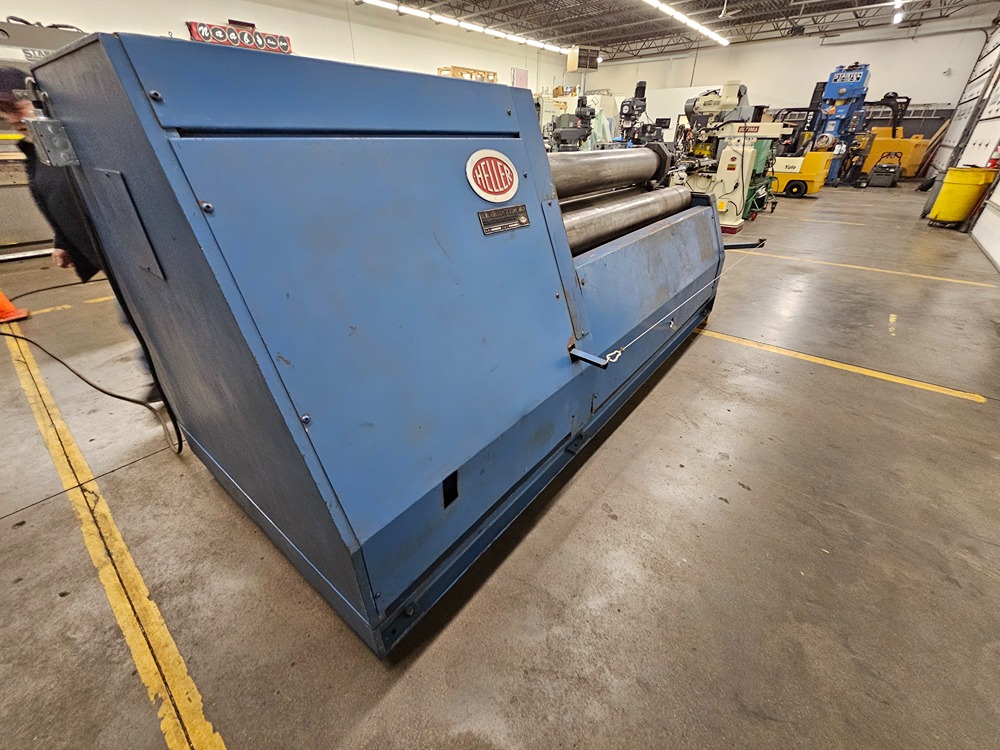

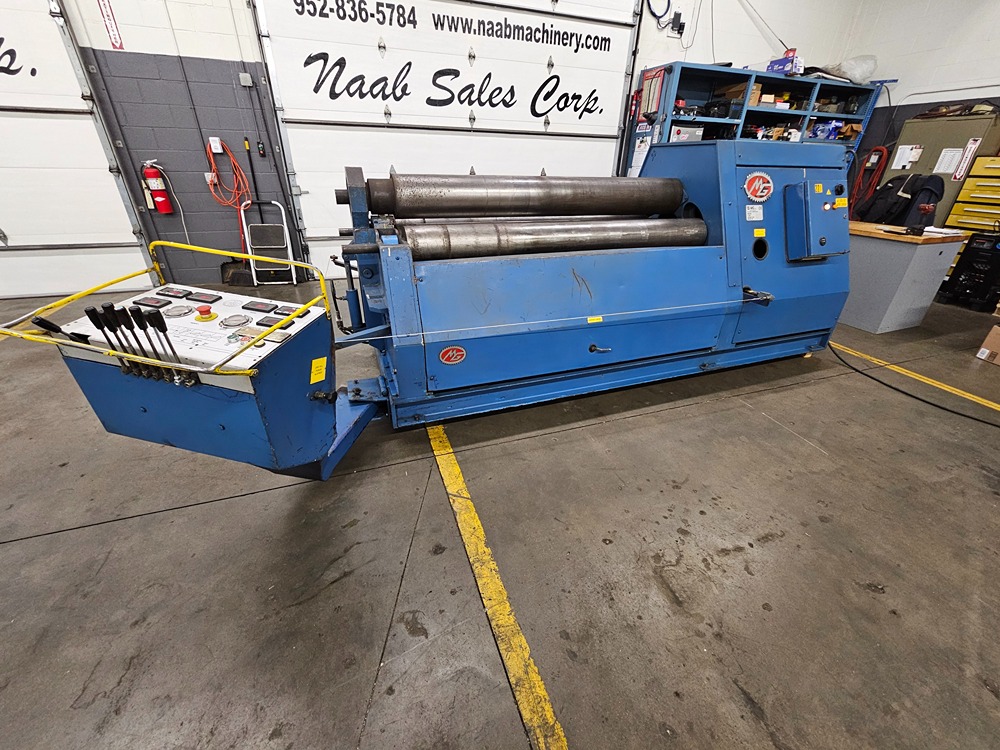

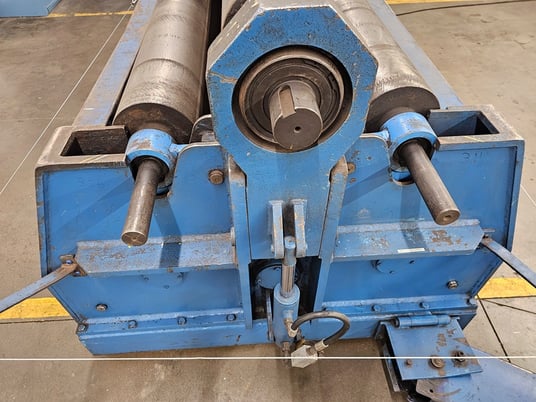

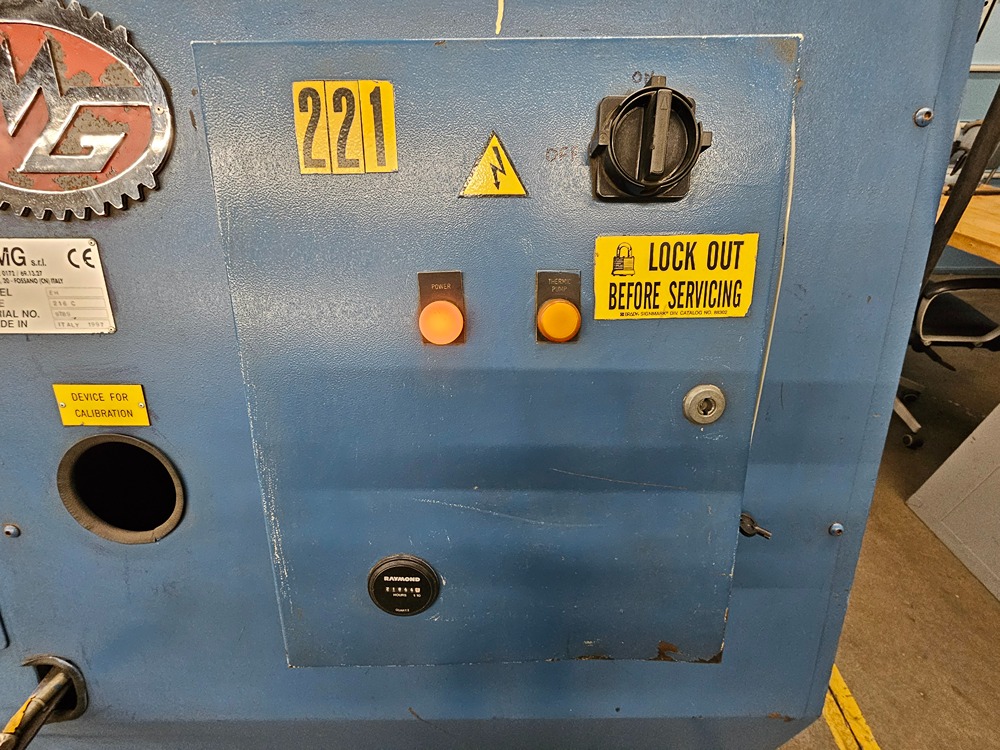

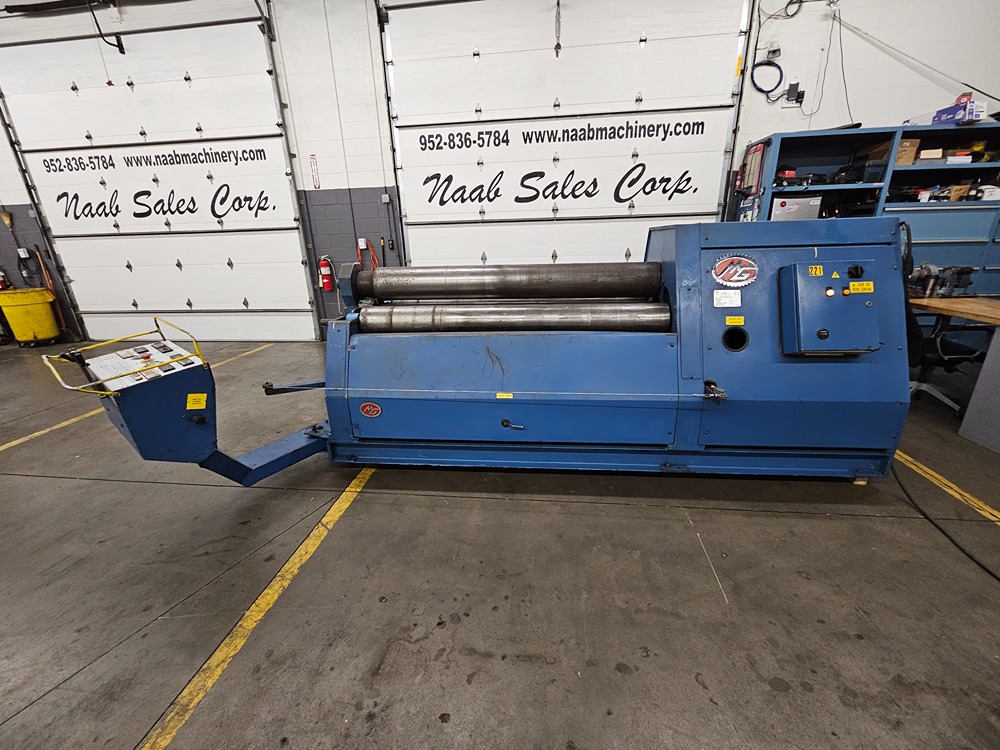

Here We Have: 4 Roll Hydraulic, MG Plate Roll Model: 420/16, 9/16” Cap. Make: MG Model: 420/16 Serial Number: 9789 New in 1997 Length of Rolls: 80″ Thickness Rolling: 9/16″ Pre-Bend: 1/2″ Top Roll Dia: 9.84″ Center Roll: 10.24″ Side Roll Dia: 8.66″ Working Height: 39″ Complete With: Cone Rolling Attachment Moveable Pendent Arm Digital Readouts for Positioning Dims: 147″X58″X60″ Weight 15000 Pounds Wired: 480v 3 Phase
